Features:
* Utilizes a MIPS MCU and 4MB Flash memory, based on the for Ecos operating system. , for CE, RoHS, SRRC, and REACH certified.
* Supports RS-422/RS-485/Ethernet data transmission, with a maximum serial port rate of 230,400 bps. Supports TCP/IP/Telnet/ for Modbus TCP protocols. Supports STA/AP/AP+STA wireless operating modes.
* Supports router/bridge network architectures. Supports web mode for easy configuration via PC software. Supports TLS/AES/DES3 secure data encryption. Supports OTA (over-the-air) updates via the web page.
Specifications:

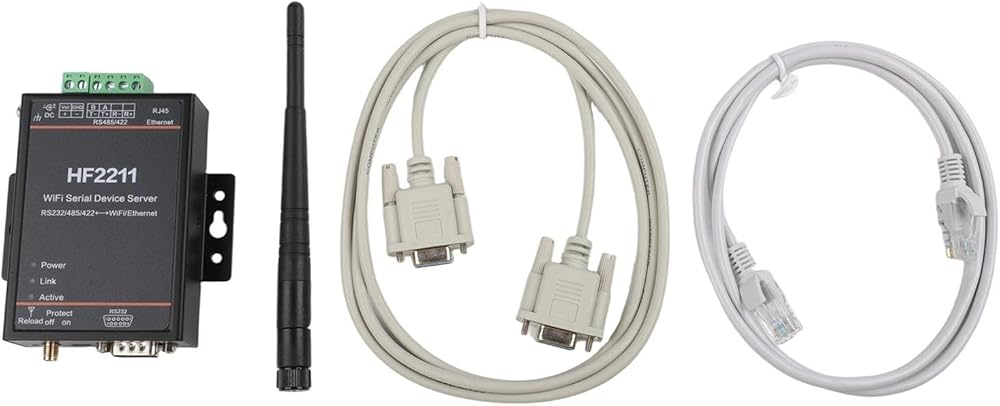

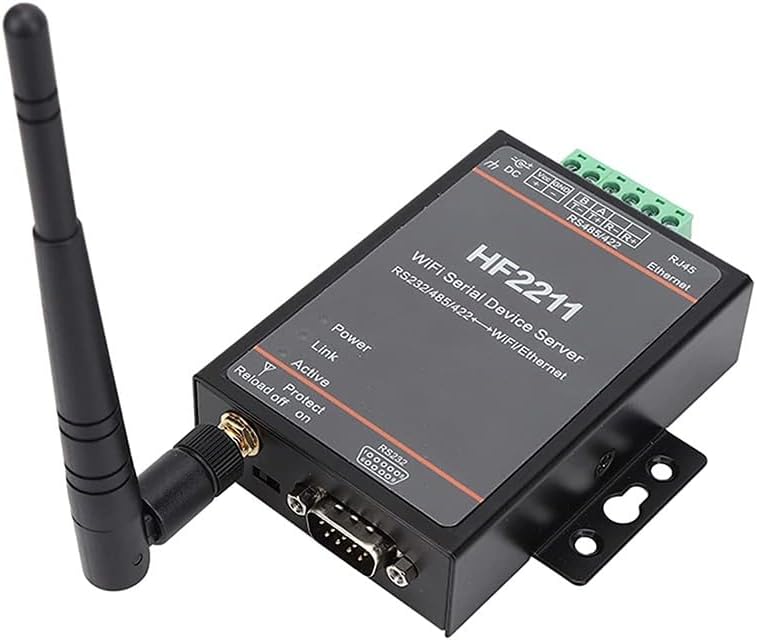

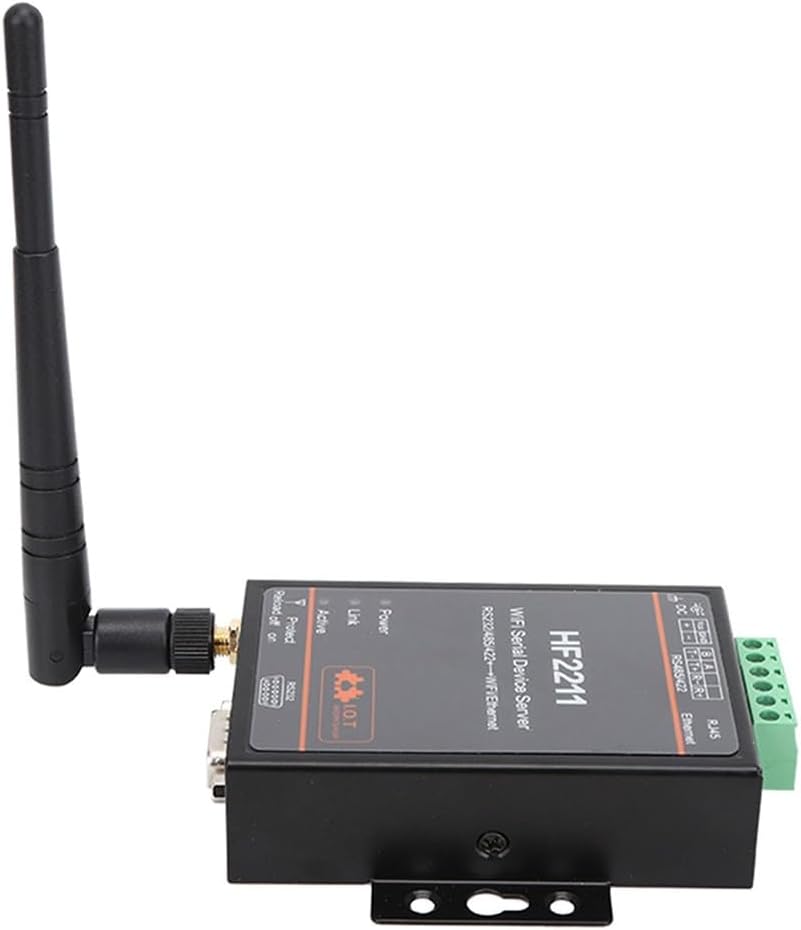

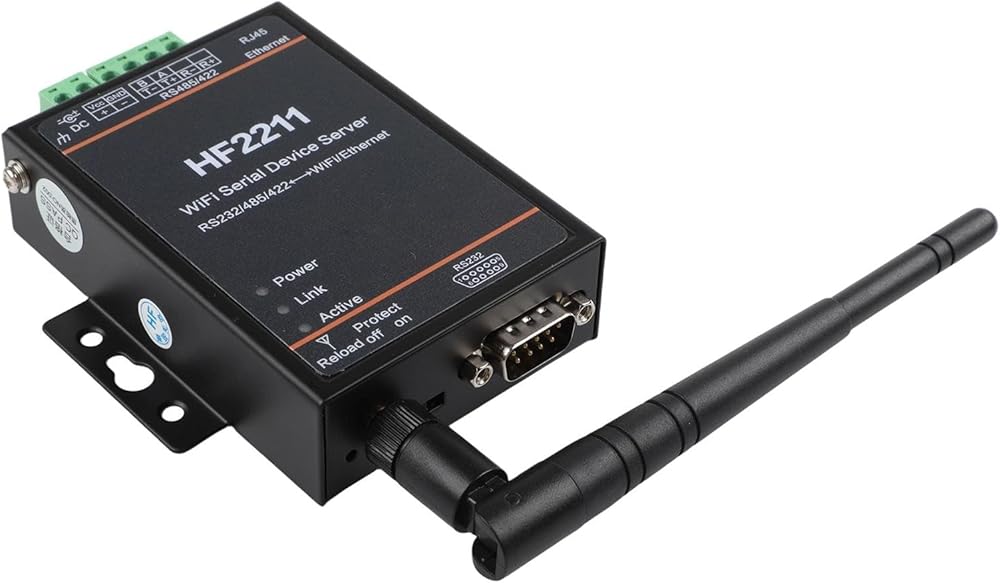

Part Name: HF-2211 Serial Port Server
Model: HF-2211
Input Voltage: Wide Range 5-36VDC
Size: Approximately 95 x 65 x 25mm / 3.7 x 2.6 x 1 inches
Color:
Material：
Operating Temperature: -45-85°C

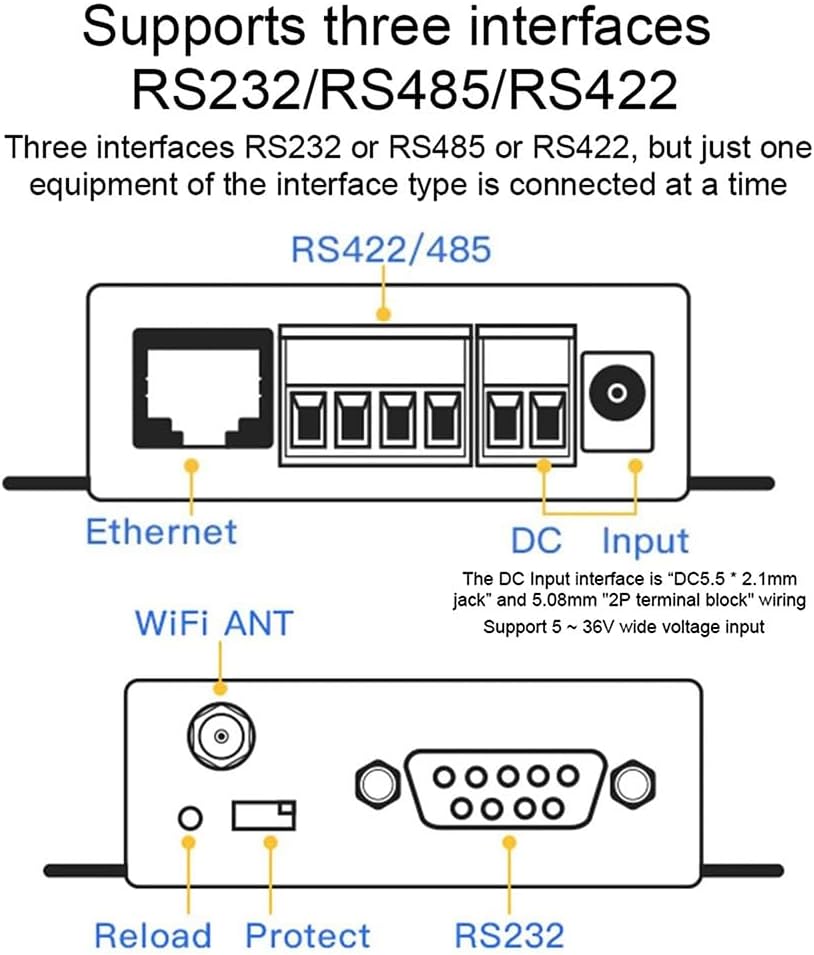

Connector: Ø5.5 x 2.1mm socket and 5.08mm terminal block
Operating Current: 200mA
Power Consumption:
Operation Mode: for Ecos
Flash Memory: 4MB
For RAM: 8MB
Ethernet Interface Specifications
Ethernet Interface Type
Interface Standard: 10/100 Base-T, Auto-Negotiation
Network Port for Protection: ESD: 8kV discharge, 15kV air discharge
Network Protocols: IP, TCP, UDP, DHCP, DNS, HTTP Server/, ARP, BOOTP, AutoIP, CMP, Telnet, uPNP
Security protocols (data communication): TLSv1.2, AES-128Bit, DES3, for SSL
Supported functions: (listed below)
Http protocol transmission mode
For Modbus conversion
NTP function + time zone setting
Virtual data channel
Registration packet function
Heartbeat packet function
Custom script function
Packet filtering
Serial frame function routing mode bridge mode roaming function switch
SSID
Chinese SSID
Parameter import and export
Supports for Modbus RTU to for Modbus TCP conversion
Unsupported functions
