Key Features and Benefits:
General Specifications
Packaging: Retail
Chipset: AMD X870E
BIOS: 256Mb AMI UEFI BIOS
Manageability: WOL, PXE
CPU Support: AMD Ryzen (Socket AM5 for Ryzen 9000, 8000 & 7000 Series Desktop Processors)
Memory Specifications:
ECC: Non-ECC, Non-Registered (supports On-Die ECC function)
Memory Type: DDR5
Memory Speeds Supported: Up to 8000+ MHz (OC) (with Ryzen 9000 Series; higher with specific series like 8400+ MT/s on 8000 Series)
Memory Slots: 4 x 288-pin DIMM
Memory Channel Support: Dual Channel
Max Memory Supported: 256GB
Maximum Memory Supported Per Slot: 64GB
Video Specifications:
Onboard Graphic Chipset: Requires CPU with Integrated Graphics
Storage Specifications:
M.2 Port Type: 2242 / 2260 / 2280 / 22110
M.2 Slots: 5 x M.2 Socket 3 (M key)
SATA: 4 x SATA 6Gb/s
RAID Support: RAID 0, RAID 1, RAID 5, RAID 10
Audio Specifications:
Audio Chipset: ROG SupremeFX ALC4080
Audio Channels: 7.1
Networking:
LAN Chipset: Realtek 5Gb Ethernet
LAN Speed: 100/1000/2500/5000 Mbps
Wireless Technology: Wi-Fi 7 (802.11be), backward compatible with 802.11a/b/g/n/ac/ax, Bluetooth 5.4
Expansion Slots:
PCI Express 5.0 x16: 1 (SafeSlot, supports x16 mode with Ryzen 9000/7000 Series)
PCI Express 4.0 x16: 1 (supports x4 mode via chipset)

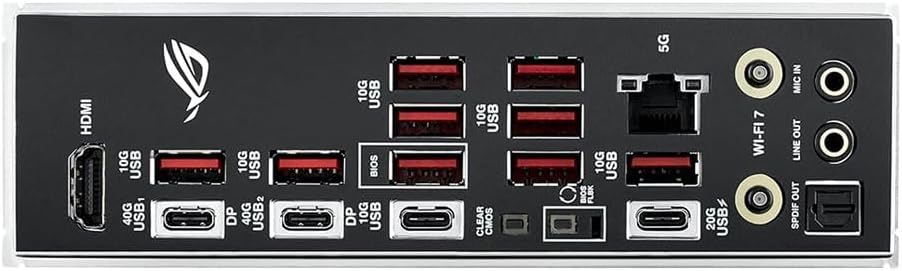

Back Panel Ports:
LAN Ports: 1 x RJ-45 (5Gb)
Audio Ports: 1 x 3.5 mm Line-In, 1 x 3.5 mm Line-Out (plus others for 7.1)
Specialty Ports: 2 x WiFi Antenna Ports
USB Ports: 2 x USB4 (Type-C 40 Gb/s), 1 x USB 3.2 Gen 2x2 Type-C, 1 x USB 3.2 Gen 2 Type-C, 9-10 x USB 3.2 Gen 2 Type-A (varies slightly by config)
Video Connectors: 1 x HDMI 2.1
Digital Audio: 1 x Optical S/PDIF Out
Internal I/O & Connectors:
Headers: 1 x Water Pump Header, 2 x CPU Fan Header, 5 x System Fan Header
USB Headers: 3 x USB 2.0 Headers (6 ports), 2 x USB 3.2 Gen 1 Headers (4 ports), 1 x USB 3.2 Gen 2x2 Type-C Header (1 port)
Other I/O: 3 x Addressable Gen 2 LED Headers
Power:
Power Connectors: 1 x 24-pin ATX, 2 x 8-pin +12V (ProCool II)
Physical Specifications:
Depth: 12.00 in. (304.80 mm)
Width: 9.61 in. (244.00 mm)
Form Factor: ATX
Warranty: 3 Years Limited (Parts & Labor)

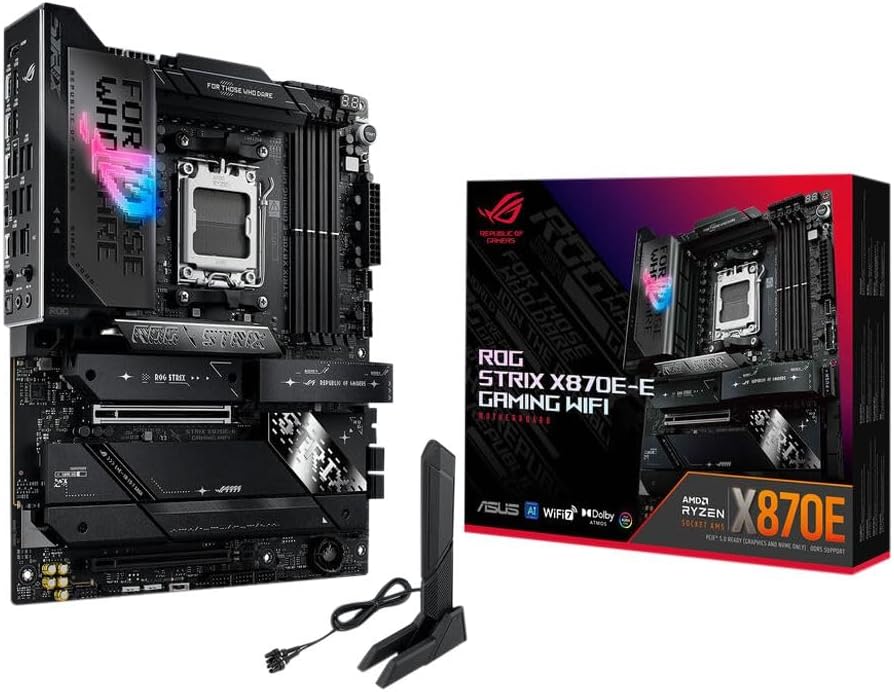

Package Contents: Motherboard, 2x SATA Cables, Thermal Pad for M.2, Antennas, Cable Ties, M.2 Q-Latch and Slides, ROG Key Chain, ROG Strix Stickers, 5x M.2 Rubbers, PCIe to Front USB Type-C Card
