Specification:

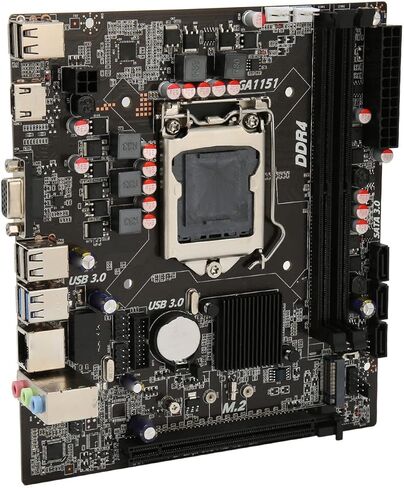

Item Type: Desktop Motherboard
Material: Printed Circuit Board
Chipset: H110
Motherboard Framework: M ATX

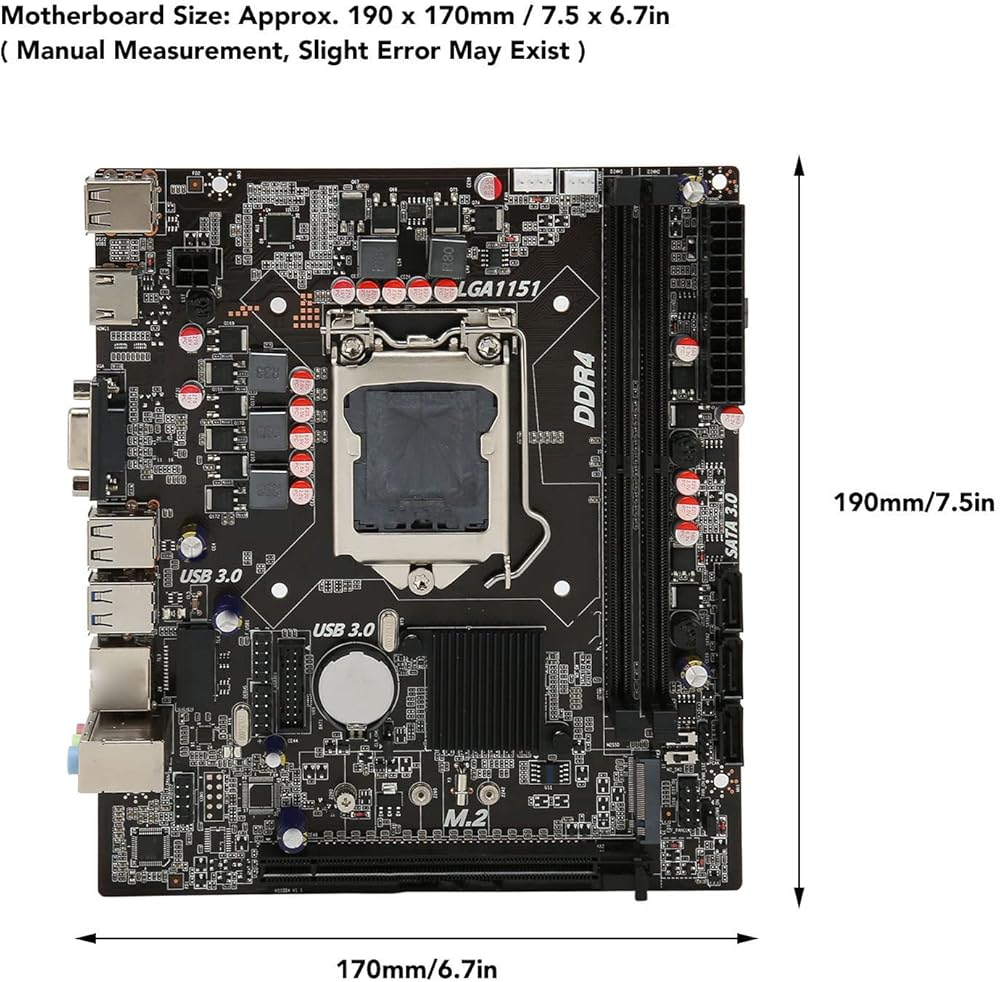

Motherboard Size: Approx. 190 x 170mm / 7.5 x 6.7in ( Manual Measurement, Slight Error May Exist )
CPU Slot Type: Supports LGA 1151
Netword Card Chip: 100M Netword Card Chip
Graphics Card Slot: PCI E X16 Gen 3.0
Supported Memory Type: 2 x DDR4
Maximum Memory Capacity: 2 x 32GB (64GB in Total)
SATA Interface: SATA3.0 x 3

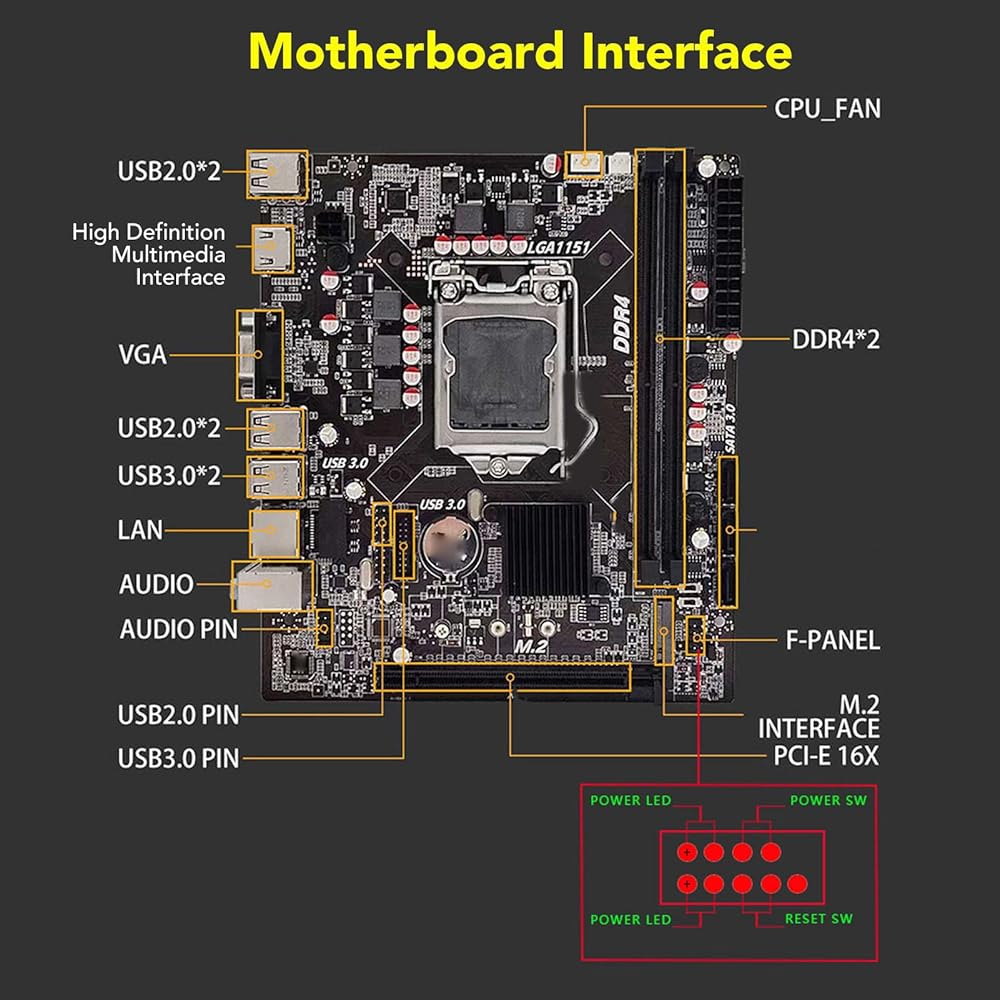

USB Interface:USB3.0 x 2, USB2.0 x 4
Sound Adapter: ALC897
Power Supply: 24 Pin x 1, 4 Pin x 1
Expansion Interface: 1 x HD Multimedia Interface, 1 x VGA, M.2 Interface(NGFF, NVME Protocol Supported)
Battery Type: CR2032 Battery (Inbuilt)
Battery Capacity: 240mAh
The Motherboard Is Fixed In The Main Box, And Then Connected According To The Corresponding Marked Connector. No Power Problem: When The Device Cannot Be Turned On And The Power Indicator Is Off, Please Make Sure That The Power Supply Is Connected And Works Normally. If Your Cpu Fan Is Installed Correctly, You Can Also Tell If The Power Supply Is Working Properly By Determining If The Fan Is Working Properly.
1. Check The Power Supply Of The Power Adapter
A. Check Whether The Power Cable Is Connected And The Socket Is Properly Plugged, As Shown In The Following Figure. If The Extension Cable Has A Main Power Switch, Make Sure It Is On.
B. Replacing The Extension Cord And Socket Can Help Solve The Problem.
Check Whether The Mainboard Power Supply Is Correctly Connected:
1. Ensure That The Power Cable Of The Power Adapter Is Correctly Inserted Into The Atx Power Port. The Motherboard May Contain Both 24pin Eatxpwr And Eatx12v, Make Sure That Both Eatx12v And 24pin

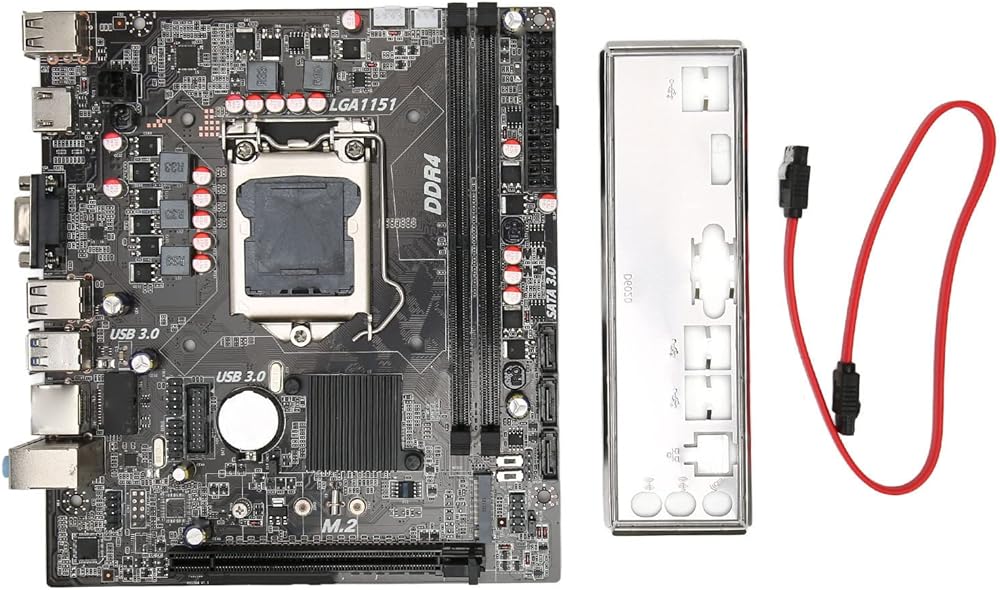

PackageList:
1 x Desktop Motherboard
1 x Baffle
1 x SATA Cable
