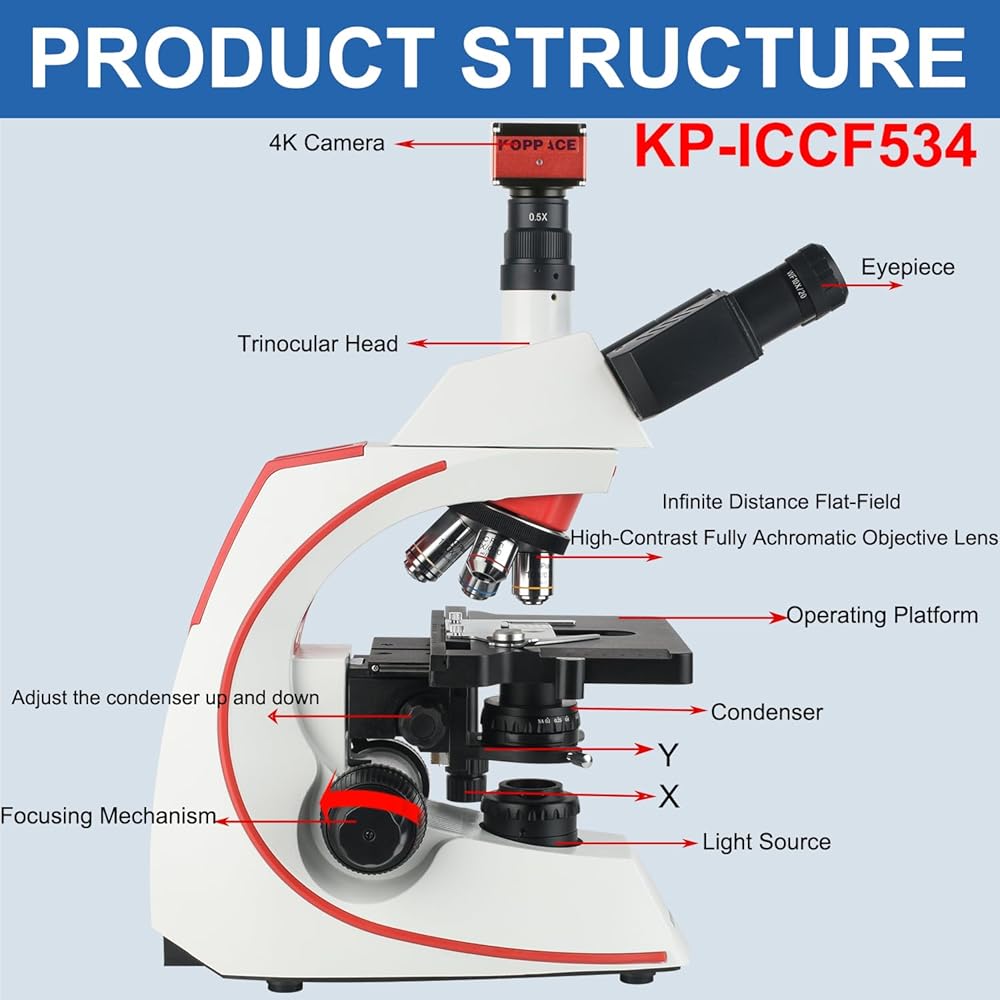

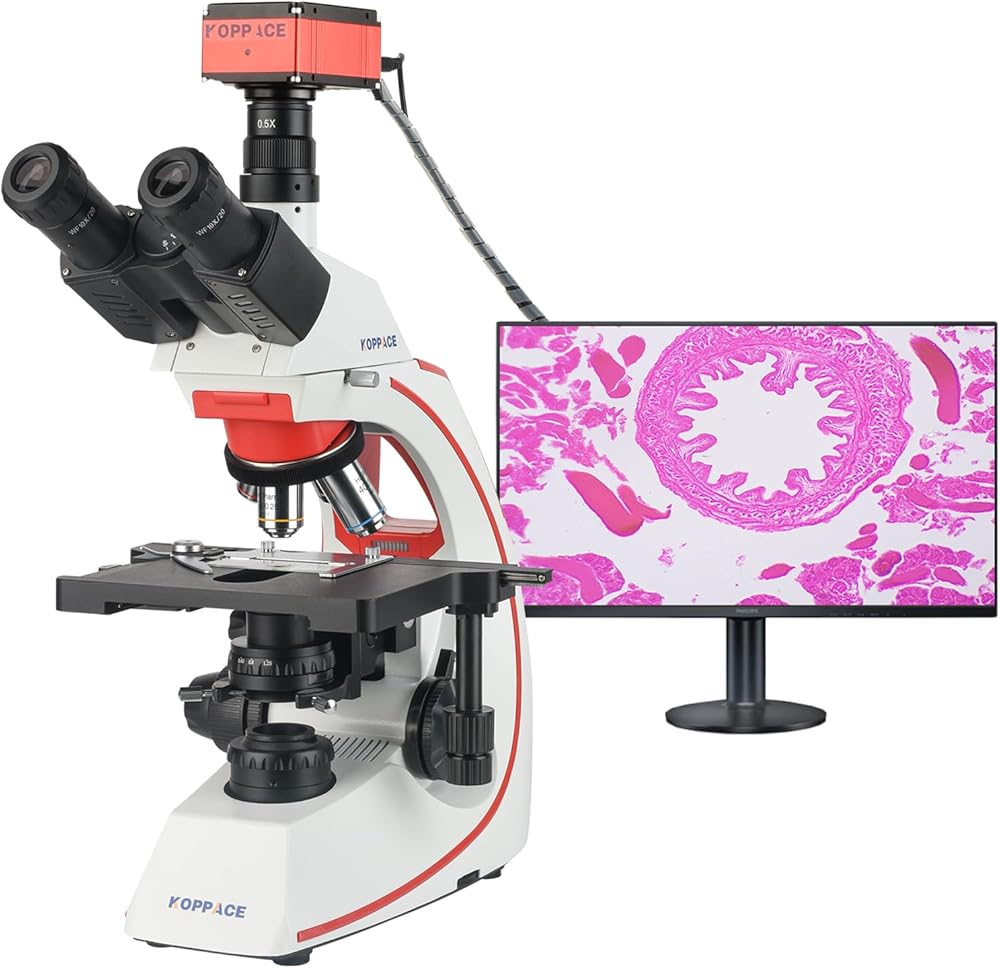

Model KP-ICCF534
Optical Magnification 40X-1600X
Electronic Amplification 155X-3870X

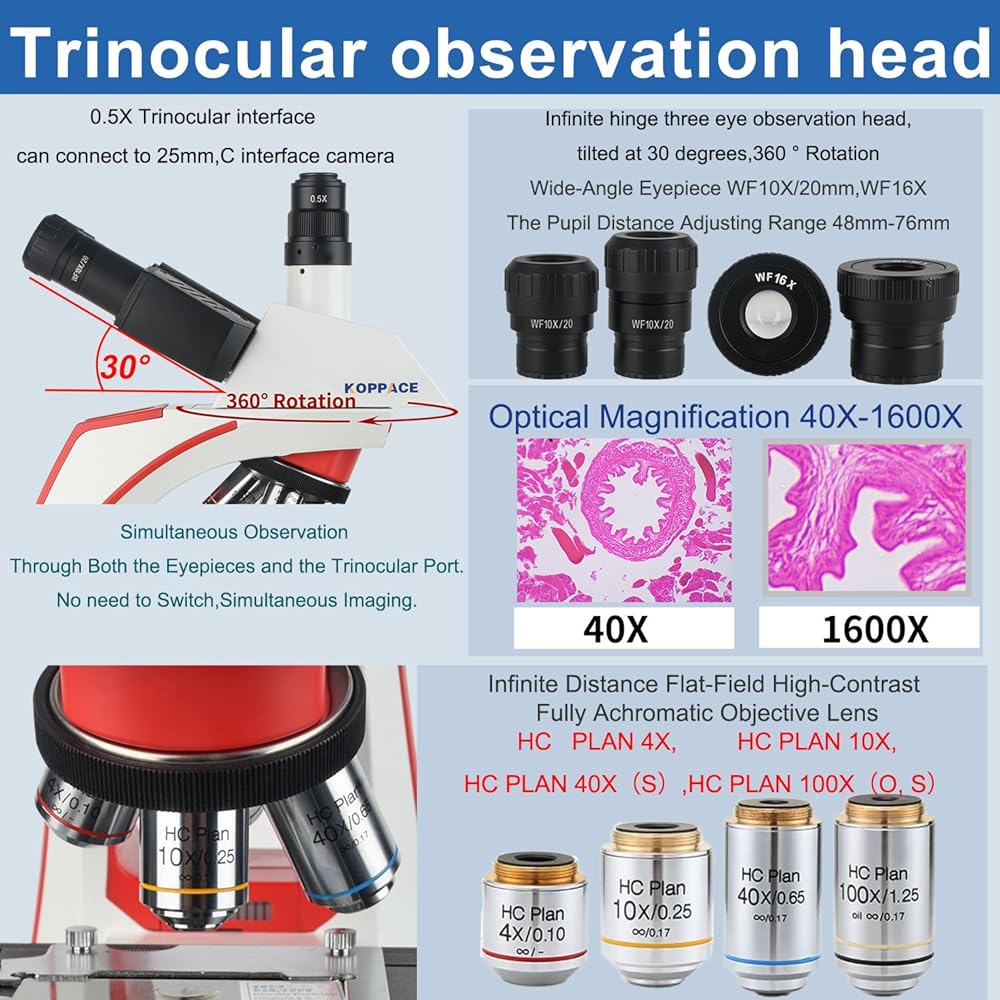

Observation Tube Infinity hinged trinoculars: 30 °tilt,360 °Rotatable interpupillary distance: 48-76mm （Simultaneous Observation Through Both the Eyepieces and the Trinocular Port.No need to Switch,Simultaneous Imaging.）
Eyepiece High eye point,wide Angle WF10X/20mm,WF16X/16mm,adjustable vision.
Objective Lens Infinite Distance Flat-Field High-Contrast Fully Achromatic Objective Lens
HC PLAN 4X,
HC PLAN 10X,
HC PLAN 40X(S)),
HC PLAN 100X(O, S)
Converter Four holes inclined,steel ball positioning

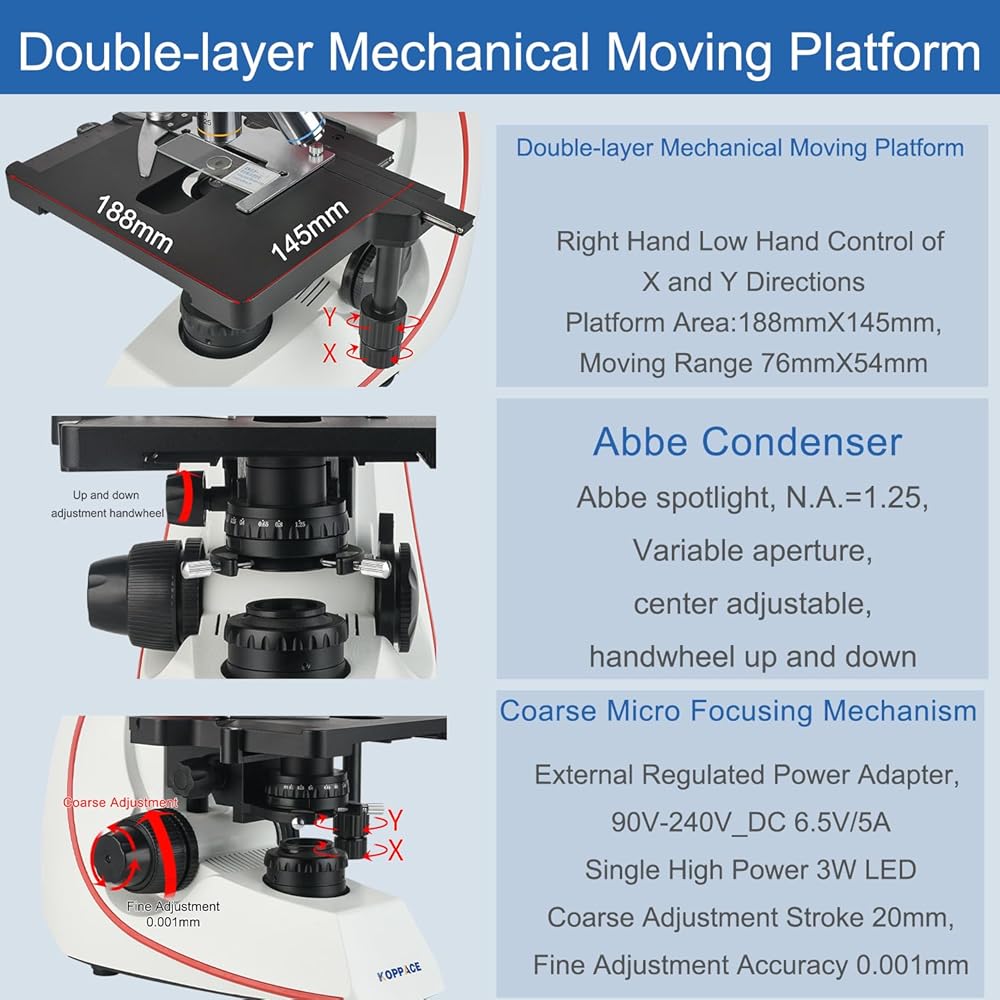

Operating Platform Double layer Mechanical Moving platform,Triangular steel Column guide rail up and down,area:188mmX145mm,Moving range:76mmX54mm
Coarse Micro Focusing Mechanism Coaxial roughing and fine-tuning,with hand wheel tightening adjustment and limit device,coarse-tuning 20mm,fine-tuning accuracy 0.001mm
Condenser Full Kela abbe convergent lens,N.A=1.25, up and down,adjustable center,variable diaphragm
Light Source LED cold light source,3W,precision stepless dimming,no flicker
Power External switch stabilized power supply,input ac90-240v, output DC 6.5V/5A

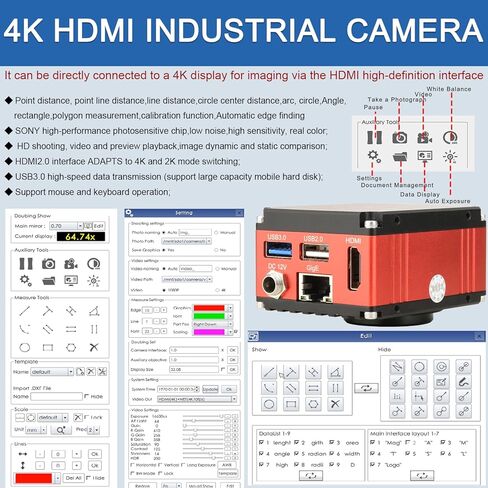

Trinocular Interface 0.5X

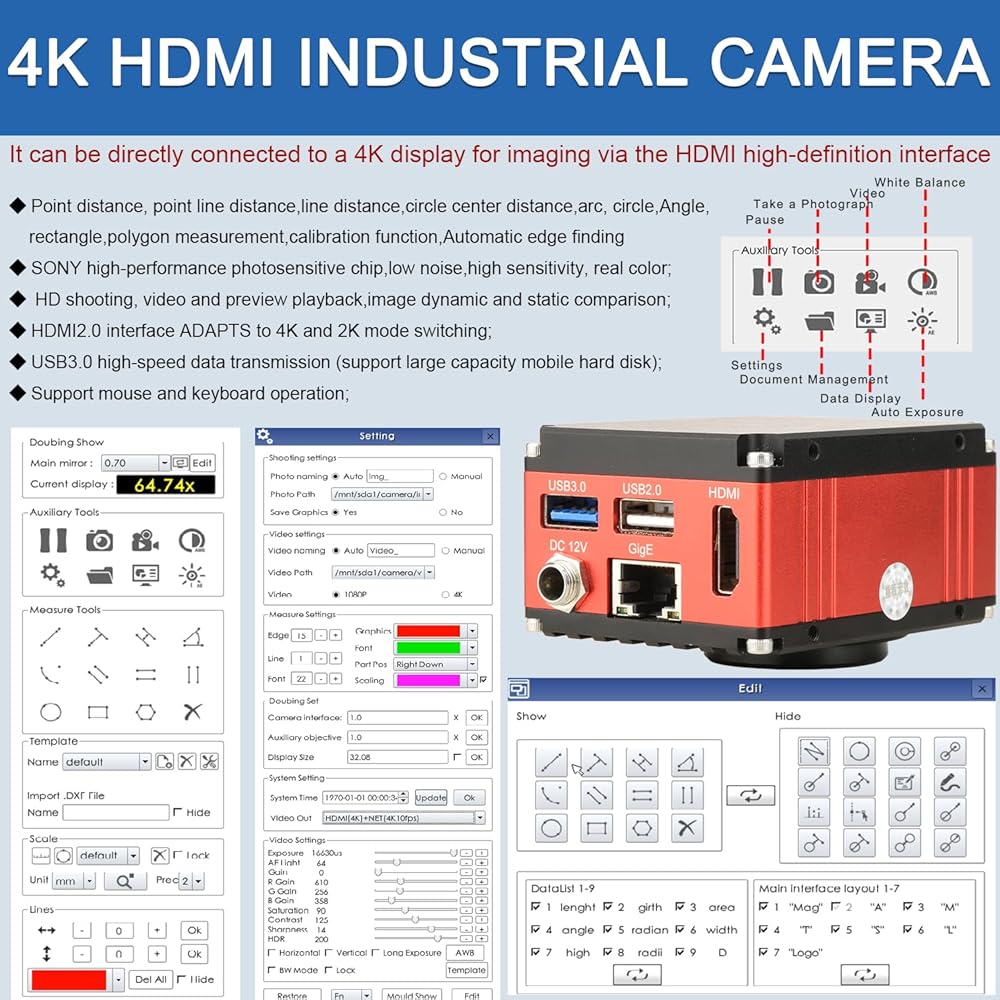

Pixel 8.3 Million Pixels
Output Method HDMI、GigE、USB3.0
Sensor 8.3M 1/1.8" CMOS
Photographic Resolution 3840X2160,(Photo can be Manually and Automatically Named file Name)
Video Resolution 4K 30 Frames (3840X2160),1080P 60 Frames (1920X1080)
Pixel Size 2.0μmX2.0μm
Frame Rate 60FPS
Color Adjustment R/G/B
White Balance Auto/Manual
Image Adjustment Exposure Value,Saturation,Brightness,Contrast,Definition,Anti Reflective,Black and White,Flip,Crosshair,Support Horizontal/Vertical Flip,Picture Playback
Storage Mode U Disk Storage,Photo Taking,Video Recording and Measurement

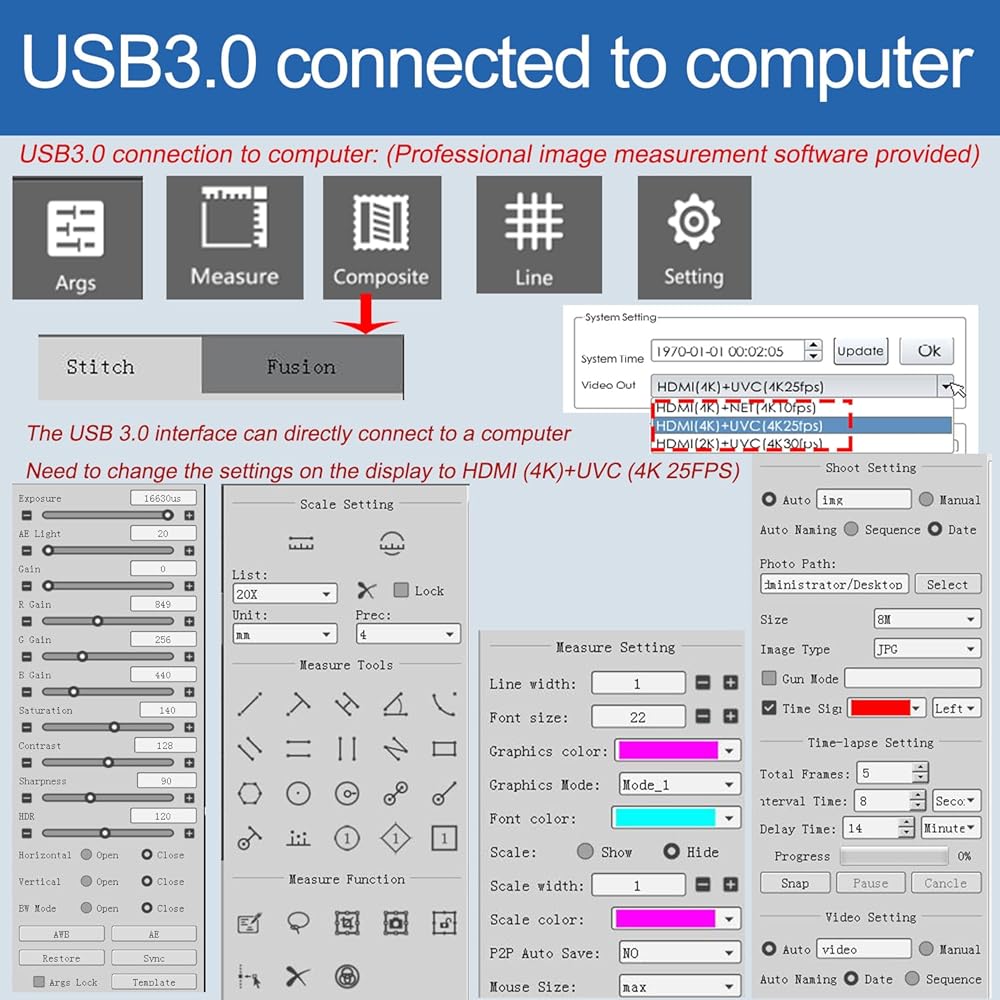

GigE/USB3.0 We provide professional image measurement software by connecting to a computer through a network port or USB 3.0 interface
Cross Hair Support 100 Groups Cross Line,The Color Position is Adjustable
Power Supply AC100V-240V DC-12V

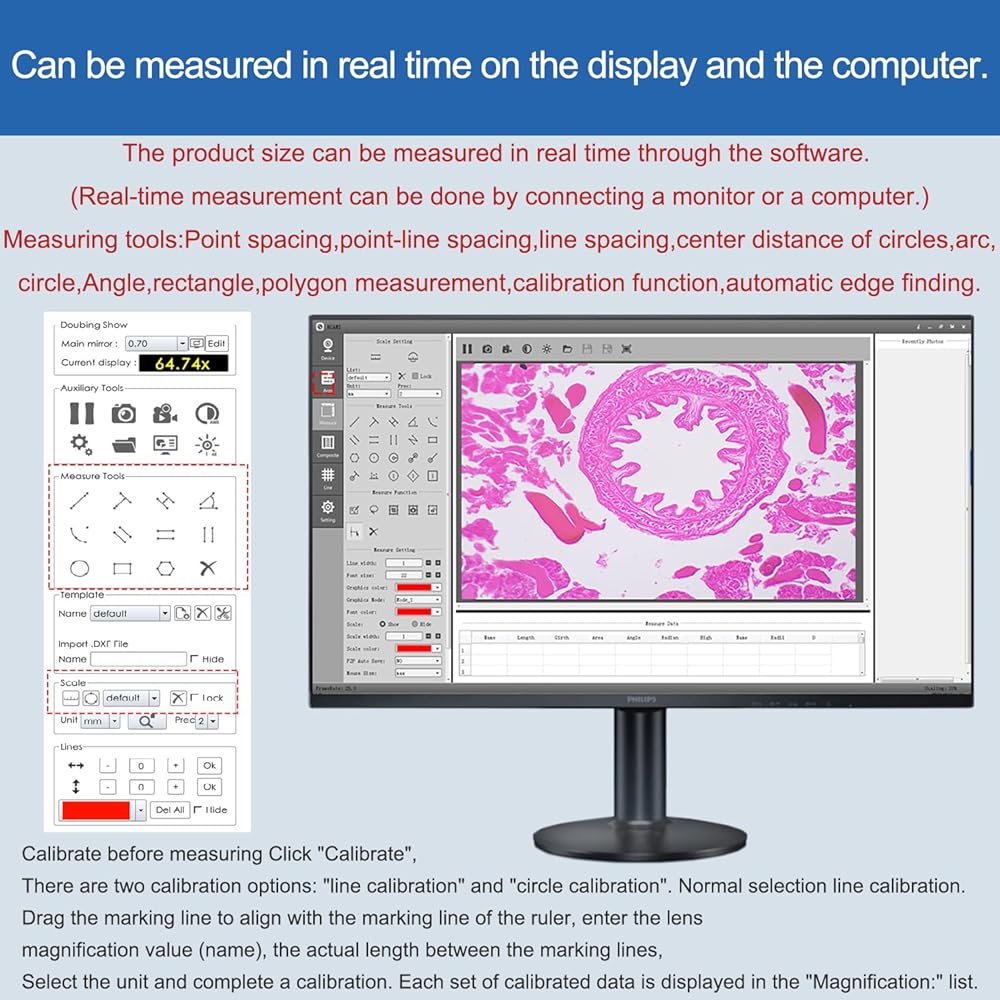

Measuring Function Point Spacing,Point Line Spacing,Line Spacing,Center Distance arc,circle, Angle,Rectangle,Polygon Measurement,Calibration Function,Automatic Edge Searching

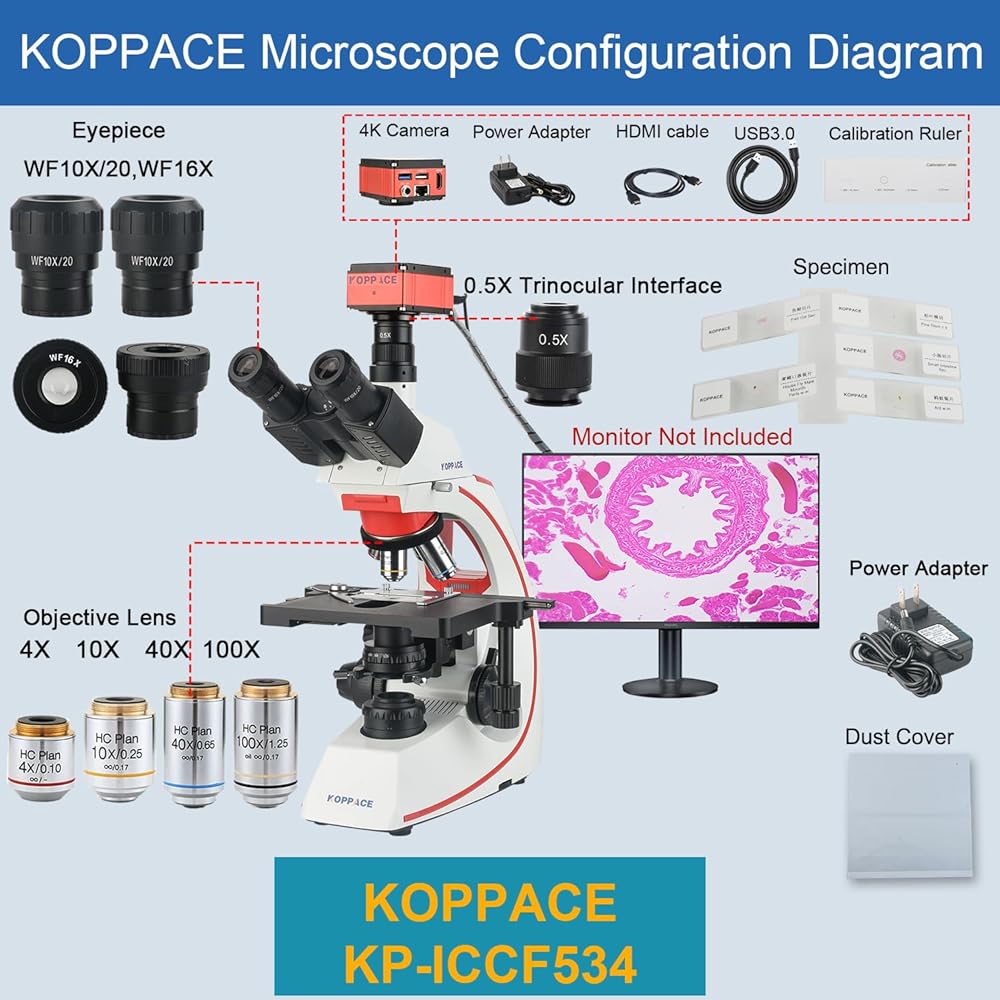

Packing List:
1、Eyepiece WF10X/20 *2
2、Eyepiece WF16X *2
3、Objective lens HC PLAN 4X *1
4、Objective lens HC PLAN 10X *1
5、Objective lens HC PLAN 40X *1
6、Objective lens HC PLAN 100X *1
7、Trinocular Microscope Body *1
8、0.5X Trinocular Interface *1
9、Power adapter *1
10、5 Pieces Specimen *1
11、Dust Cover *1
12、4K Camera *1
13、HDMI Line *1
14、Camera Power Supply *1
15、Calibrating Ruler *1
16、USB 3.0 Line *1
