Chipset
IntelB660 Express Chipset
Memory
Support for DDR45333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) /3200/3000/2933/2666/2400/2133 MT/s memory modules
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Integrated Graphics Processor-IntelHD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Expansion Slots
1 x PCI Express x16 slot, running at x16
2 x PCI Express x1 slots
Storage Interface
CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
IntelOptane Memory Ready
USB
Chipset:
1 x USB Type-Cport on the back panel, with USB 3.2 Gen 2 support
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
2 x USB 2.0/1.1 ports on the back panel
Chipset+2 USB 2.0 Hubs:
4 x USB 2.0/1.1 ports available through the internal USB headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x parallel port header
1 x S/PDIF Out header
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper

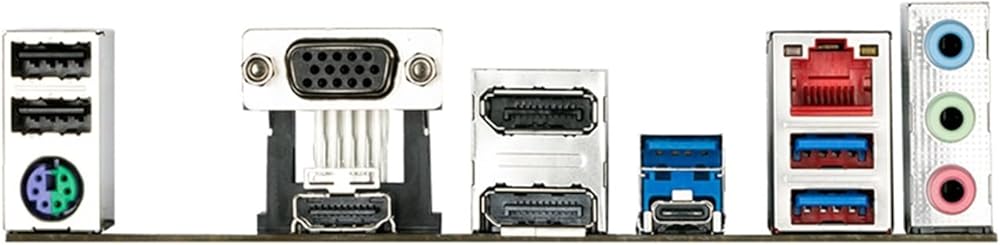

2 x USB 2.0/1.1 ports
1 x D-Sub port
1 x HDMI port
2 x DisplayPorts
3 x USB 3.2 Gen 1 ports
1 x USB Type-Cport, with USB 3.2 Gen 2 support
3 x audio jacks
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
==========
RAID Supported : Yes
Processor compatibility : 12th Intel Core i3,12th Intel Core i9,12th Intel Core i7
Usage Scenario : Enthusiast & Overclocking,Gaming,Audio & Video,Office,3-D Modeling
Back I/O Ports : 1x RJ45,VGA (D-Sub),2x USB 3.2/3.1 Gen 1,Disply Port,HDMI 2.0
Onboard LAN : 1x RJ45
Number of M.2 : 1
Number of SATA Ports : 6
Storage Interface Type : SATA 3,M.2 (SATA)
Number of PCI : 3
Number of PCIe x 16 : 1
Crossfire : sli
PCI - E standards : PCI-E 3.0
Number Of Memory Slots : 4
Support Memory Type : DDR4
Memory channel : Double
Maximum Ram Capacity : 128 GB
Form Factor : Micro-ATX
Chipset Manufacturer : Intel
Battery Included : No
Chipset : Intel B660
Application : Desktop
Socket Type : LGA 1700
