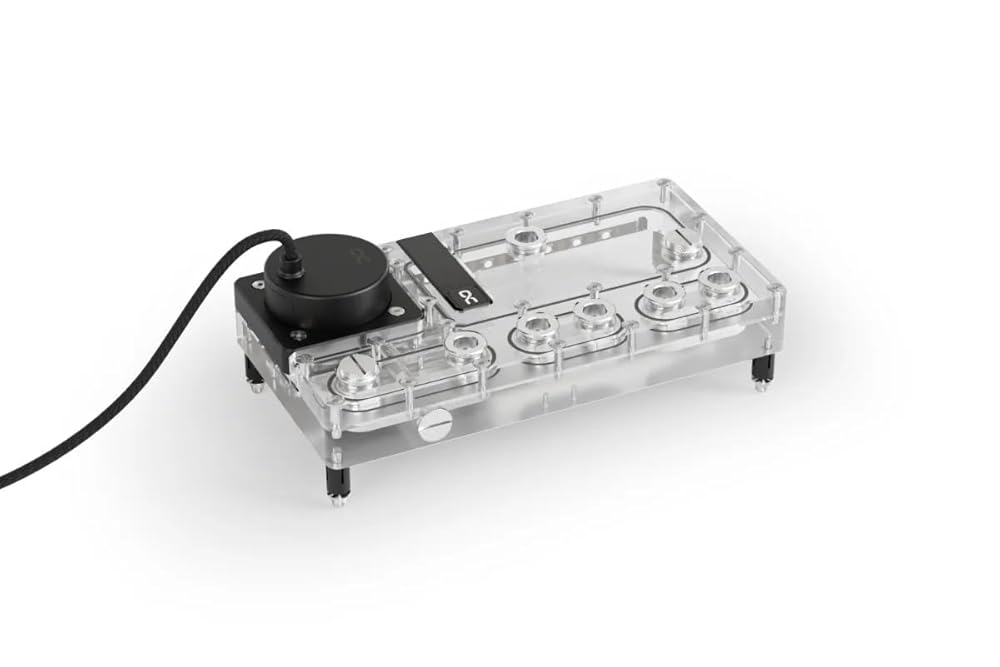

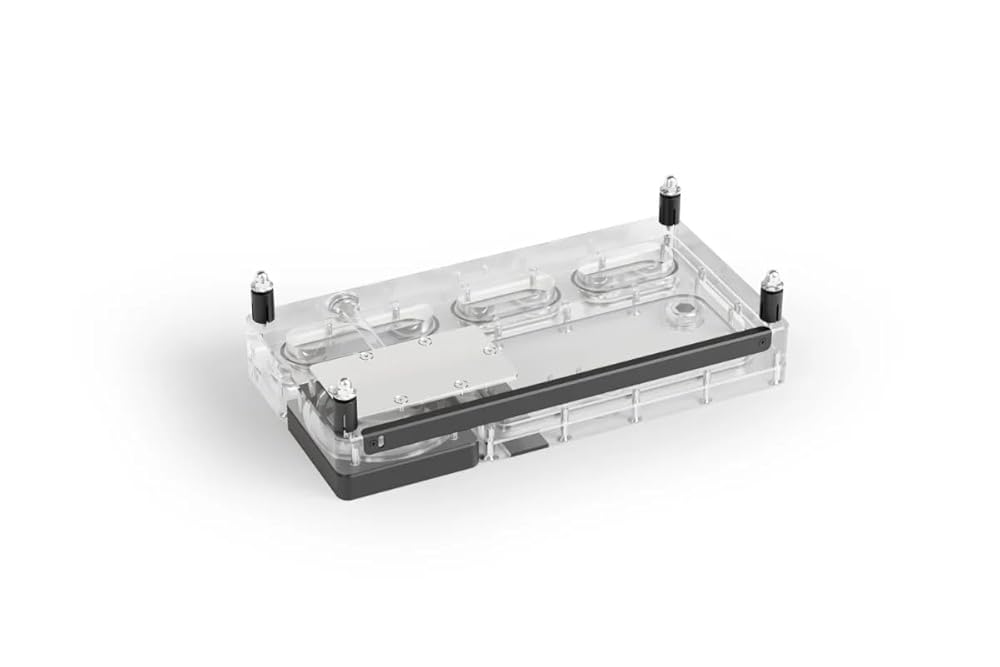

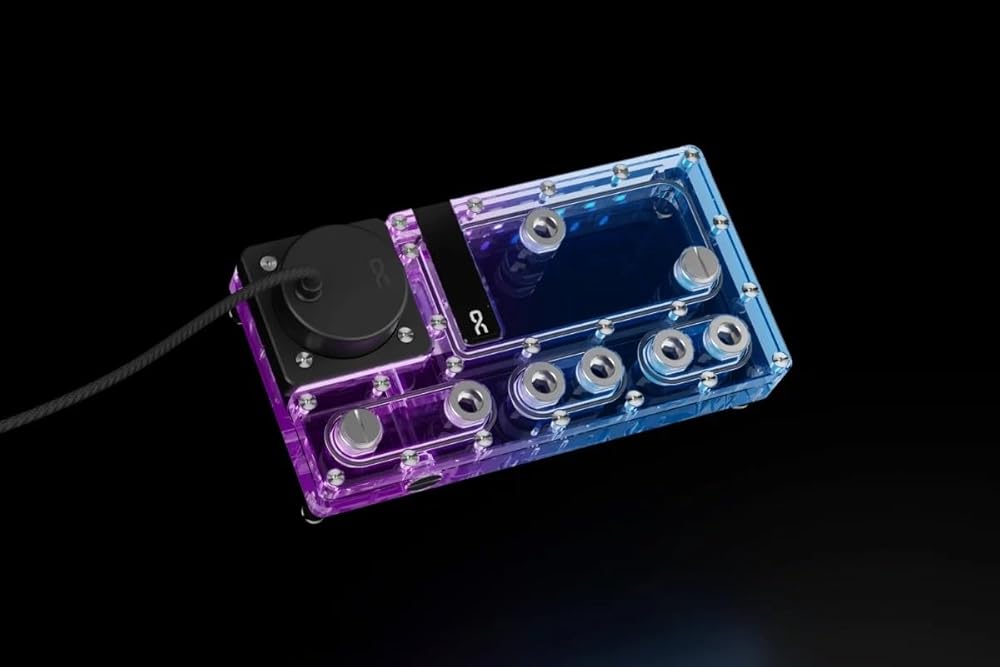

The Alphacool Core Distro Plate V.2 with VPP Apex pump is an essential component of any custom water cooling setup. Thanks to its revised design, the Core Distro Plate V.2 offers greater flexibility during installation. It significantly simplifies the construction, planning, and maintenance of complex cooling loops, and thanks to the pre-installed VPP Apex pump, no additional pump mounting is required. A key element of Alphacool's Core Design Series is the chrome-plated G1/4" fittings made of brass. On the Core Distro Plate V.2, the G1/4" fittings are embedded directly into the acrylic. This design avoids potential leakage issues caused by stress cracks that can occur when fittings are screwed directly into acrylic. Technical Data Distro Plate Dimensions (L x W x H) 240,00 x 125,00 x 34,50 mm Dimensions (L x W x H) with pump 240,00 x 125,00 x 62,20 mm Dimensions (L x W x H) with push mounting 240,00 x 125,00 x 62,30 mm Dimensions (L x W x H) with pump + push mounting 240,00 x 125,00 x 88,80 mm Material Acrylic Volume 105ml Pump compatibility VPP/D5 Threads 8x G1/4" inner thread / 1x drain port Maximum working temperature 60 C Pressure tested 0,8 Bar Quantity digital aRGB LEDs 11 Power digital aRGB LEDs 5V Power connection digital aRGB LEDs 3-Pin JST + 3-Pin 5V Technical Data Pump Dimensions (Distro Plate with pump) (L x W x H) 240,00 x 125,00 x 62,20 mm Material pump synthetic material Material pump cover aluminium Material axle ceramics Connections 4-Pin PWM | SATA Rotational speed 2500 - 4500 RPM Cable lengths 4-Pin PWM - 48cm | SATA - 48cm Operating voltage 8-13V DC / 14W IP32 Starting voltage 12V DC Maximum pumping head 4,25m Maximum flow rate 340L/h Maximum working temperature 60 C Model: 13873
