مميزات خاصة

♪ ALTERA High Efficiency Chip: Using the main control ALTERA high- efficiency chip, the audio signal transmission without distortion sound quality can reach the HIFI standard, ALTERA chip has flexibility, high reliability and low power consumption characteristics.

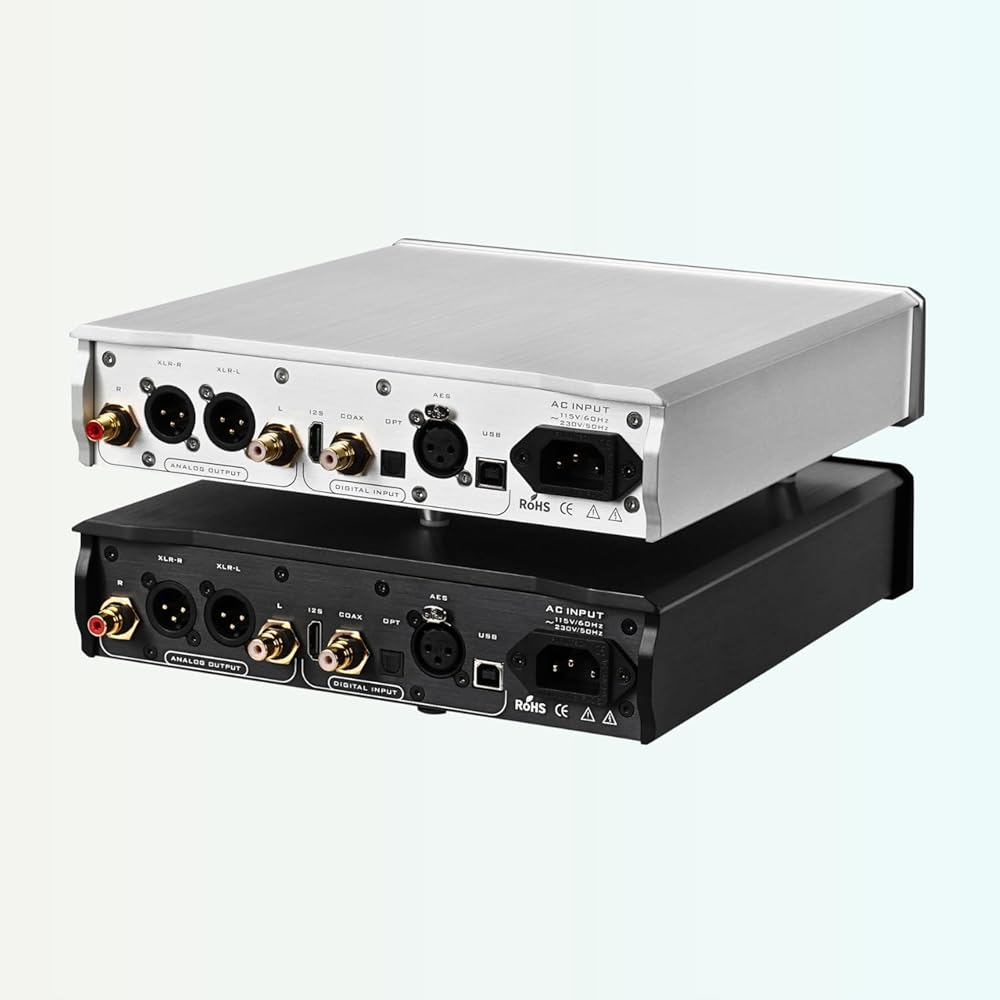

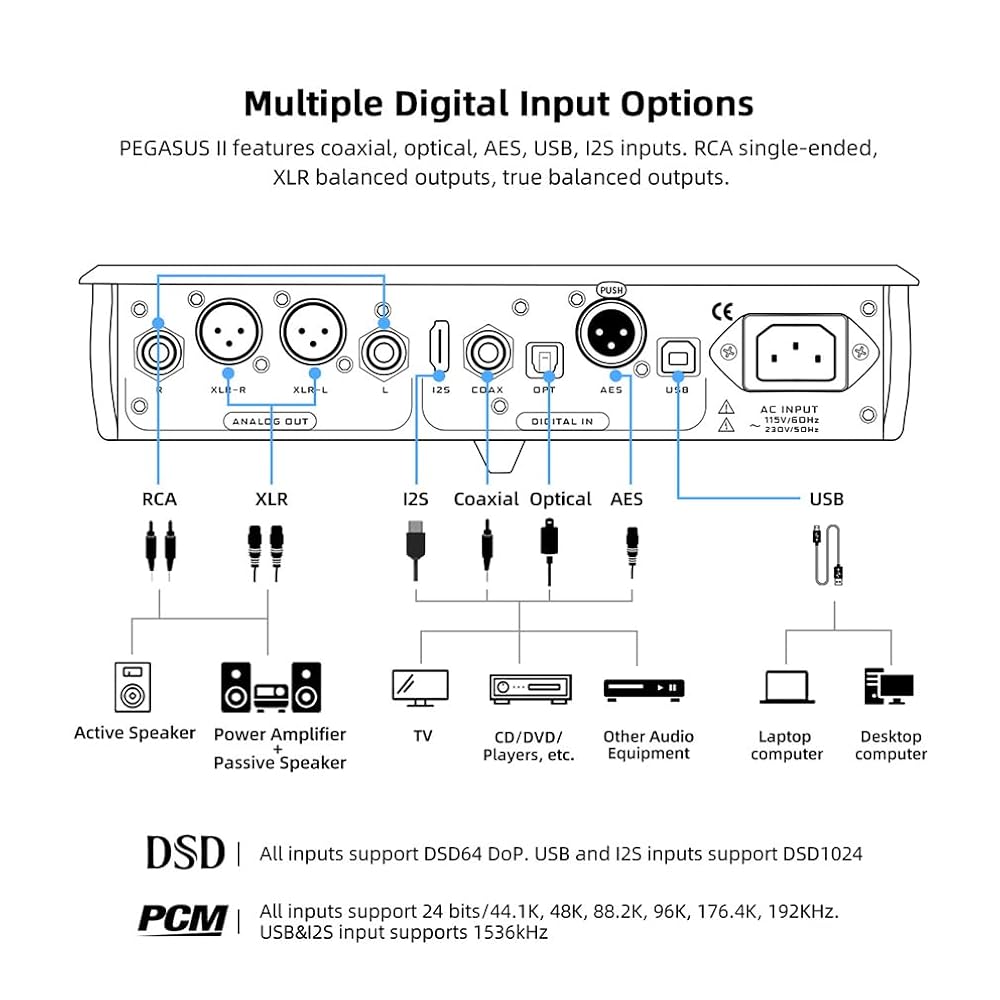

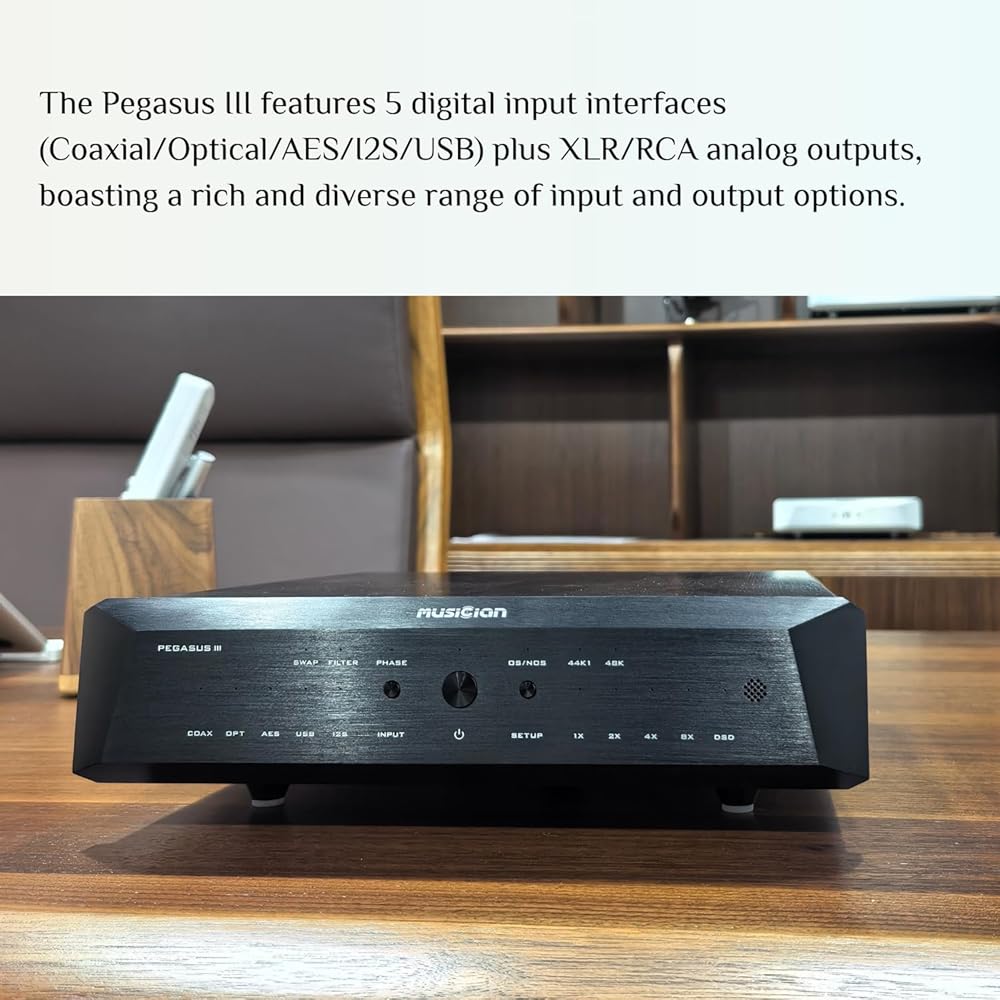

♪ Multiple Digital Input Options: PEGASUS II features coaxial, optical, AES, USB, I2S inputs. RCA single-ended, XLR balanced outputs, true balanced outputs. All inputs support DSD64 DoP. USB and I2S inputs support DSD1024 and 1536kHz.
♪Customized Power Tailstock: Tailstock to PCB alignment using multiple single crystal copper wire wraps. Optimize PCB alignment for many times. Customized RCA ports to ensure the most efficient audio signal transmission.
♪Low Noise DAC: High decoding speed, low digital noise, ensure low distortion of the audio signal and very low background music noise.Toroidal core transformers ensures stable power supply and meets strict speaker load conditions.

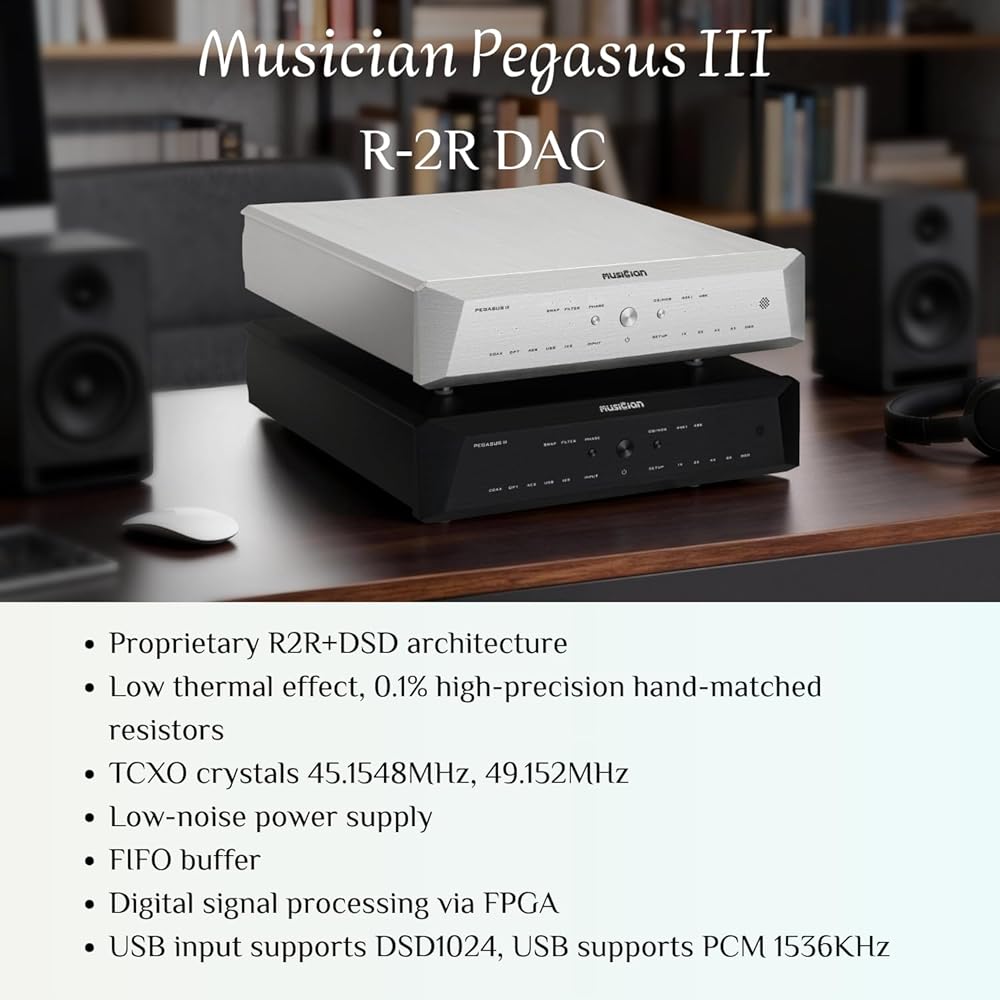

♪R2R Arrays: Each channel is equipped with an independent high-speed FPGA to control the decoding through 4 sets of R-2R network.

وصف

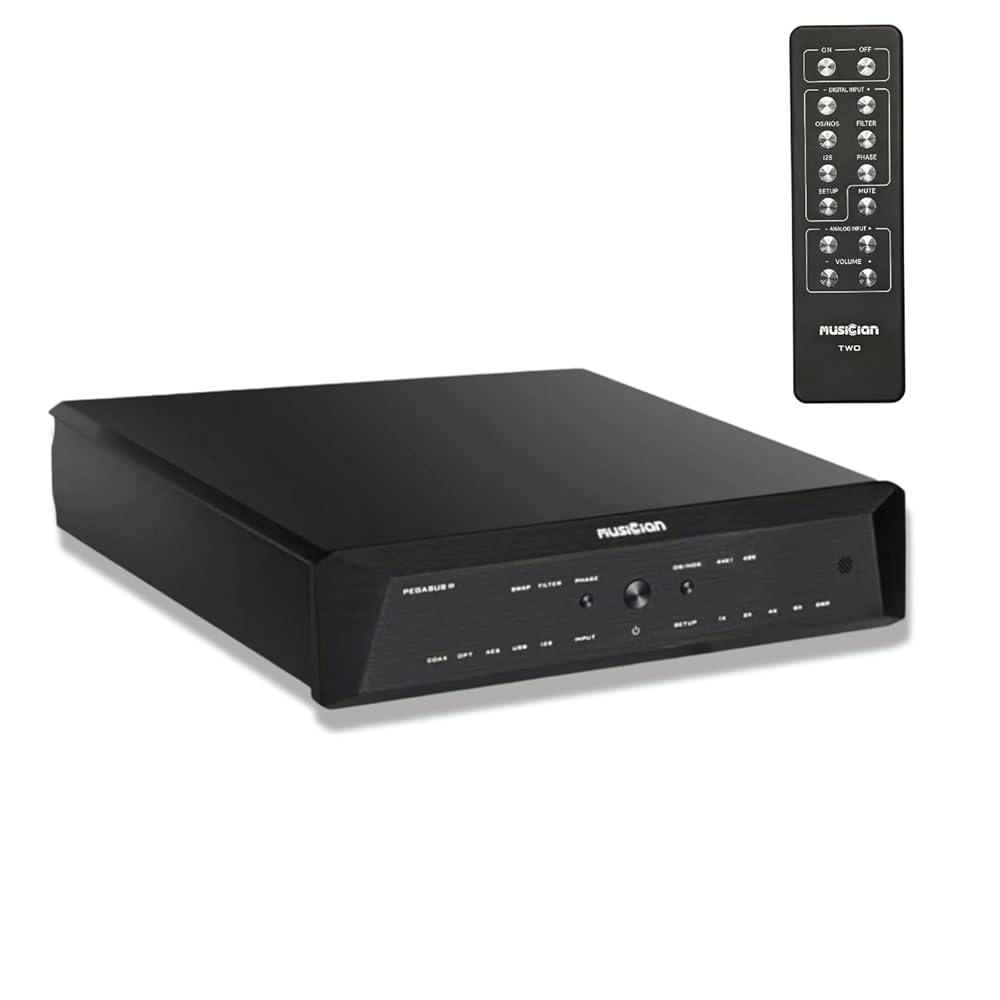

Musician Pegasus III R2R DAC DSD1024/1536kHz Home Audio DAC USB/OPT/COAX/AES/IIS Input RCA/XLR Output HiFi Desktop Preamplifier

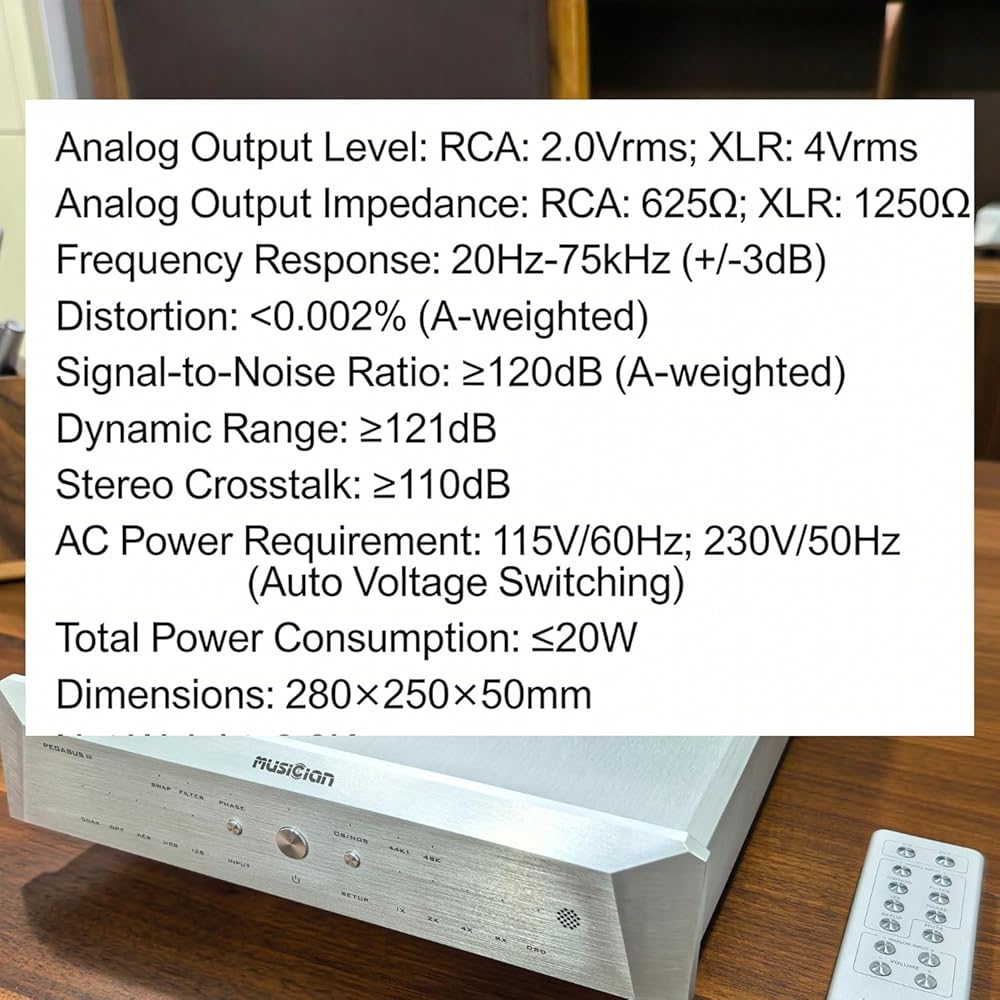

Technical Parameter:
Model: Musician Pegasus II
Frequency Response: 10Hz-60KHz
THD+N: 0.002%
SNR: 123dB(A- weighting)
Dynamic Range: >120dB
AC Power Supply: 115V/60Hz ~ 230V/50Hz
Power Consumption: ≤20W
Analog Output: RCA(2.2Vrms), XLR(3.55Vrms)
Digital Input: Coaxial/Optical/USB/AES/I2S
DSD: Supports DSD64 DoP, USB&I2S input supports DSD1024
PCM: All inputs support 24 bits/44.1K,48K, 88.2K,96K,176.4K, 192KHz; USB input supports 1536kHz; I2S input suports PCM 768KHz.
Size: 280 x 250x 50 mm
Weight: 3.9KG

مرحبًا،

بحث

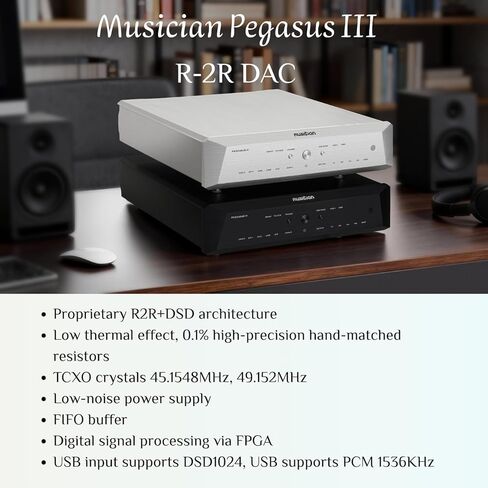

جهاز فك التشفير الموسيقي Pegasus III R2R DAC، DSD1024 PCM1536 كيلو هرتز، مدخل USB/Opt/Coax/AES/IIS، محول صوت تناظري رقمي متوازن ومخرج RCA/XLR (أسود)
