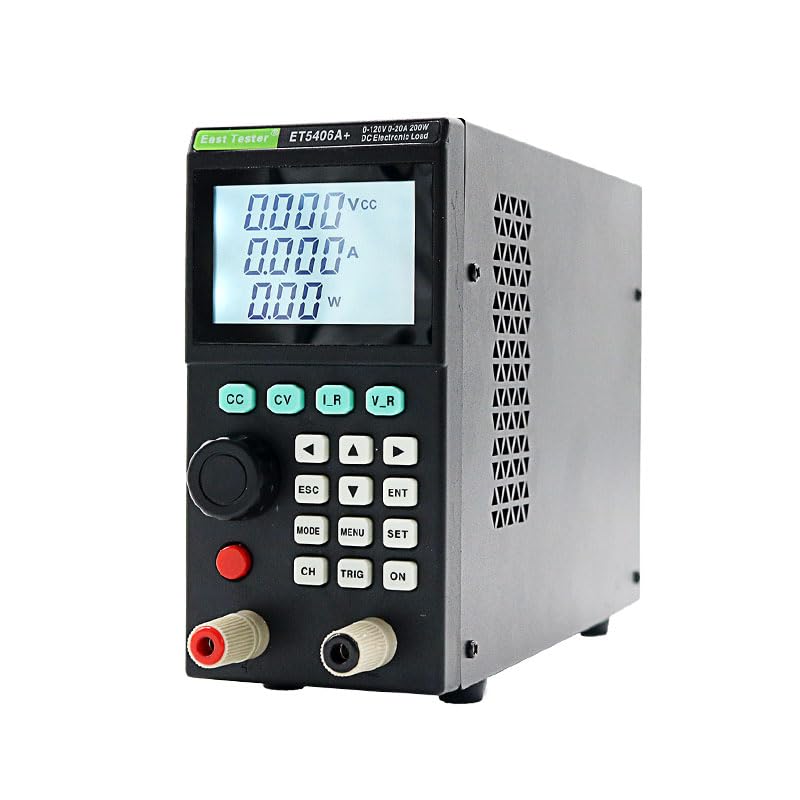

Programmable DC Electronic Load Tester ET54A+ Battery Capacity Load Detector Constant Current Voltage USB Testers for Power Supply Switch Charger (ET5407A+) in Saudi Arabia

ET5406A+

SAR 730
SizeET5406A+
– 1 +

Special Features

  • Battery test/LED test/Dynamic output performance of the power supply/Test the continuity of power output within a certain range/Simulate a variety of loading status changes/Simulate load short circuit/Support external trigger input (DB9 interface is required)
  • It provides overcurrent, overvoltage, overpower, over temperature protection. The overvoltage and overcurrent parameters can be set flexibly, so as to effectively protect the load
  • CC, CV, CR, CP and CC+CV, CR+CV several basic measurement modes, 2.8 inch TFT LCD screen with rich display contents, With visual interface display system, simple and convenient
  • Maintain data storage in case of power failure, with input polarity reverse prompt
  • With PS2 interface, and supports external keyboard for data value setting; Multiple safety protection
  • It has intelligent fan speed control function, which can effectively reduce the fan noise when it is working

Description

ET5410A+ Single Channel Programmable DC electronic load is widely used in charger, switching power supply, linear power supply, battery and other Production line testing. production line testing. Model: ET5410A+ Power input: supporting 110V 220V Load input: 0-150 V, 0-40A, 0-400W CV mode:Range 0.119.999V,0.1150.00V CC mode:Range 03.000A,040.00A CR mode；Range 0.05Ω1 kΩ，1 kΩ4.5kΩ CP mode： Range 0400W Tran Test：Mode CC，CV Battery Test： Discharge mode CC，CR Dimensions (mm):90mm×190mm×300mm Packing size: 40*30*20cm Packing Weight: 3.8kg The package includes: 1XET5410A+ DC electronic load 1X US type power plug 2X Fuses 1X English User Manual
