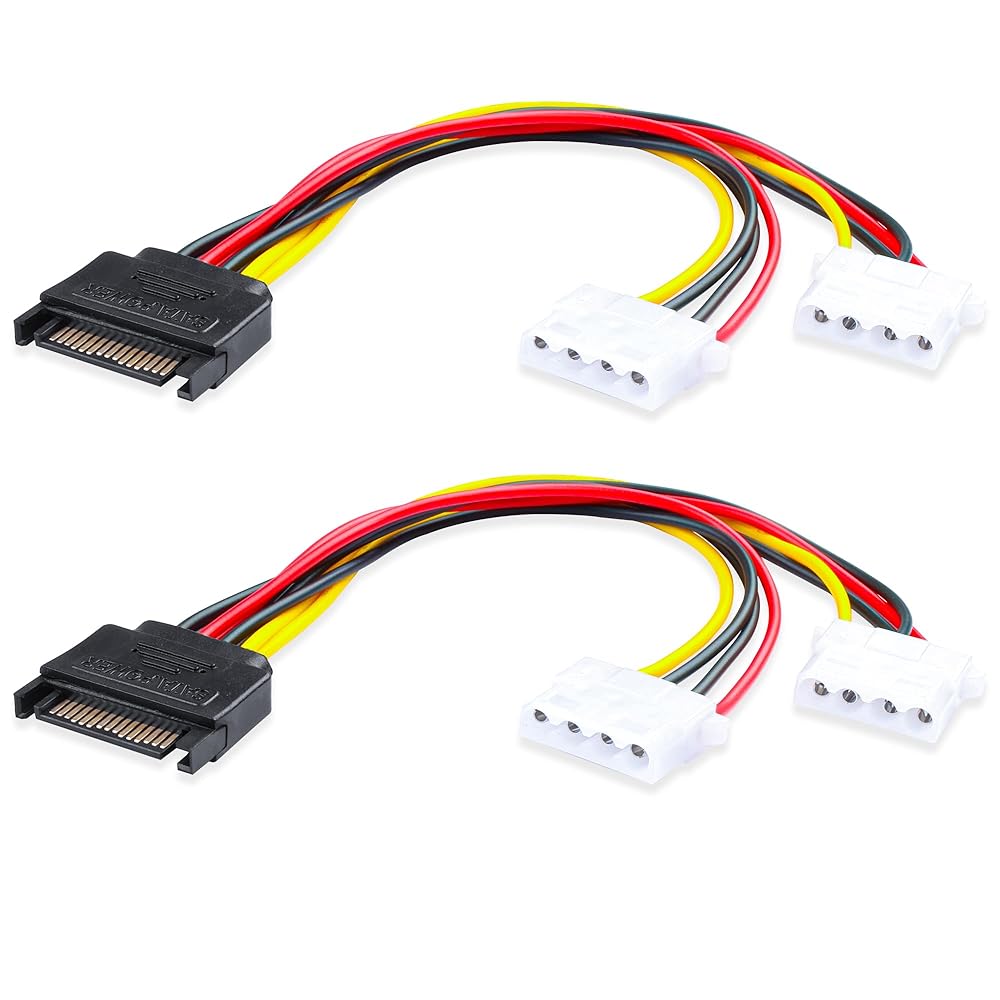

This product is a SATA 15-pin to 4-pin IDE Molex female splitter power extension cable. Its overall structure consists of three parts: the connector, the conductors, and the outer sheath. The connector end features a standard 15-pin SATA male connector designed for connecting to a power output port, while the other end features two 4-pin IDE Molex female connectors, supporting the simultaneous connection of two 4-pin IDE Molex devices; The conductors are made of 18 AWG tinned copper, with a wire gauge configuration that complies with UL 1007 certification standards, ensuring stable current transmission; The cable is encased in a PVC insulating jacket with a thickness of 0.76 mm, offering wear resistance, electrical insulation, and flame retardancy. The compact and practical design ensures power supply safety while facilitating cable management inside the chassis, providing a reliable solution for powering multiple 4-pin IDE Molex devices.

Product Name: SATA 15-Pin to IDE Molex 4-Pin Splitter Cable (1 Male to 2 Female Power Cable)

Product Dimensions: 20 x 3 x 0.83 cm / 7.9 x 1.18 x 0.32 in

Connector 1: IDE Molex 4-Pin Female
Connector 2: SATA 15-Pin Male

Color: Black

Precautions:
1. Power Matching: Ensure the total power consumption of the connected 4-pin IDE Molex devices does not exceed the capacity of the power supply and this splitter to prevent device damage or power supply failure caused by overloading.
2. Secure Connection: When plugging or unplugging, align the connectors properly to ensure the male and female ends are fully inserted and make tight contact, preventing issues such as unstable power supply or hard drive data loss caused by poor contact.
3. Cable Usage Environment: Avoid subjecting the cable to heavy pressure, excessive bending, or proximity to high temperatures or sharp objects to prevent damage to the insulation or breakage of the conductors, which could compromise power supply safety.
4. Device Compatibility: This product is only compatible with devices featuring standard 4-pin IDE Molex connectors (such as mechanical hard drives, optical drives, or fans). It does not support power expansion for devices without 4-pin IDE Molex connectors; do not force a connection.
5. Power Supply Quality Assurance: This product must be used with a reliable computer power supply. If the power supply itself has issues such as unstable power delivery or insufficient output power, using this splitter may still cause device malfunctions.

Package Contents: 2 x SATA 15-pin to IDE Molex 4-pin splitter cables; 1 x male-to-2-female power cable
