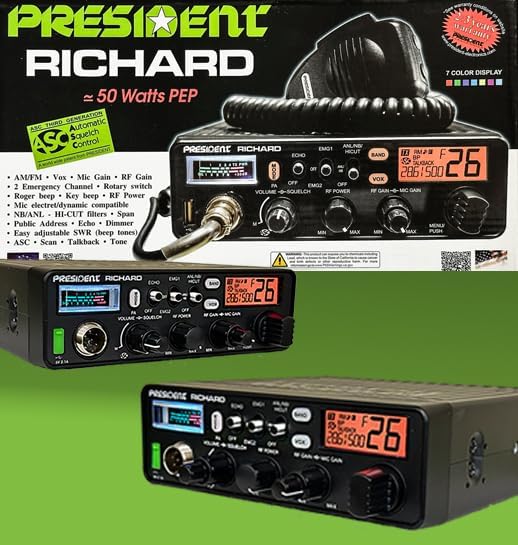

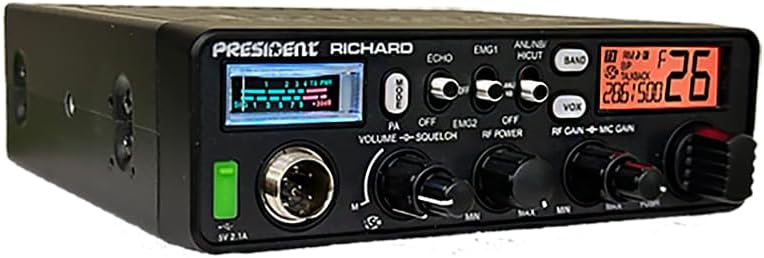

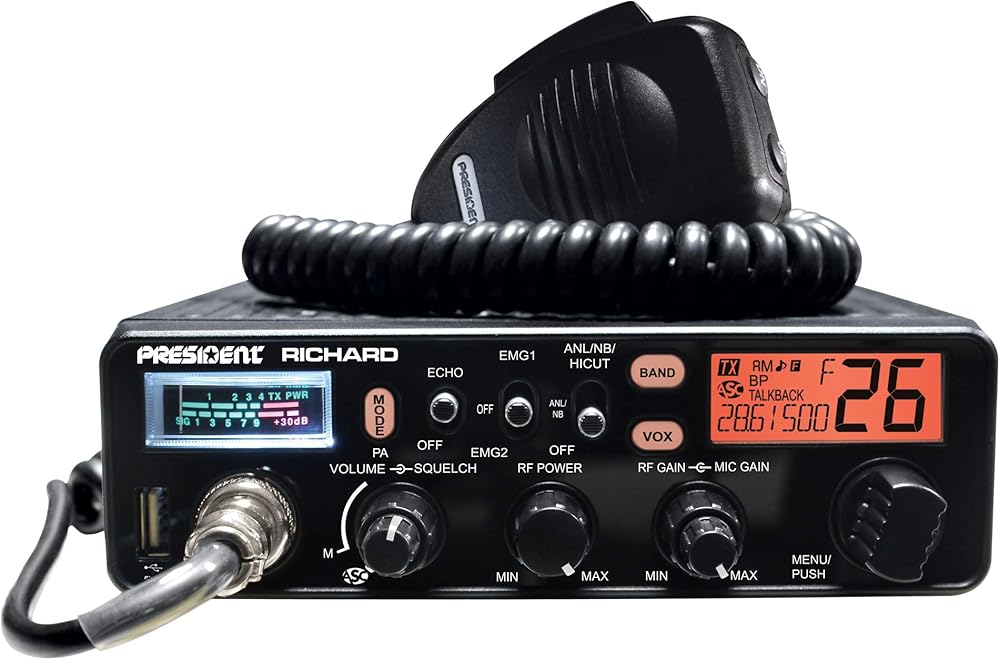

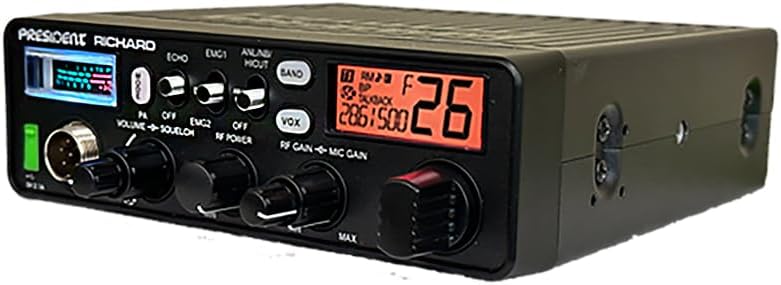

Product Identification
General Features
Frequency 28,000-29,700 MHz
AM-FM Broadcast Band Type
Power supply 13.8 V
Dimensions (W x H x H / Weight) 170 x 160 x 52 mm
Microphone Type (Pin) 6 Pin
Sensitivity (20 dB SINAD) 0.7 μV -110 dBm (AM) / 0.35 μV -116 dBm (FM)
2% audio signal distortion
Transmission power 13 W AM (~ 50 W PEP) / 40 W FM
Absorbed current 7A (with modulation)
Furniture Model
Special features
Scan Channel
RF Gain
Mic Gain
Roger Bip
Multi-color screen Yes, 7 colors
Emergency Channel Button 9/19
RF Power Control
Echo function
SQ - Manual and digital silencer
SWR Meter
VOX files
and meter
Reply
Sound button
Rear Panel Connections
Additional speaker connection
Outdoor PA connection
Microphone connection with VOX function

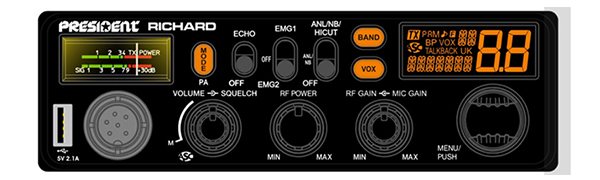

Front Panel Connections
USB port
Package includes:
Microphone
Amateur Radio
Microphone Stand
Amateur Radio Mounting Bracket
Power cord
