SPECIFICATION
- Input: Coaxial F-type female (ANT) – analog TV / CCTV RF
- Power input: DV5V--1A
- RF input: 47—870MHZ
- Output: HDMI 1.3 (female) – 75 Ω composite video; Display Ratio 720P/1080P(60HZ)
- Supported Formats: NTSC & PAL
- Frequency Coverage: VHF + UHF full band, 251 channels
- Channel Selection: Auto & manual preset, full-standard analog tuner
- Display Compatibility: Any HDTV, HD monitor, projector with HDMI input

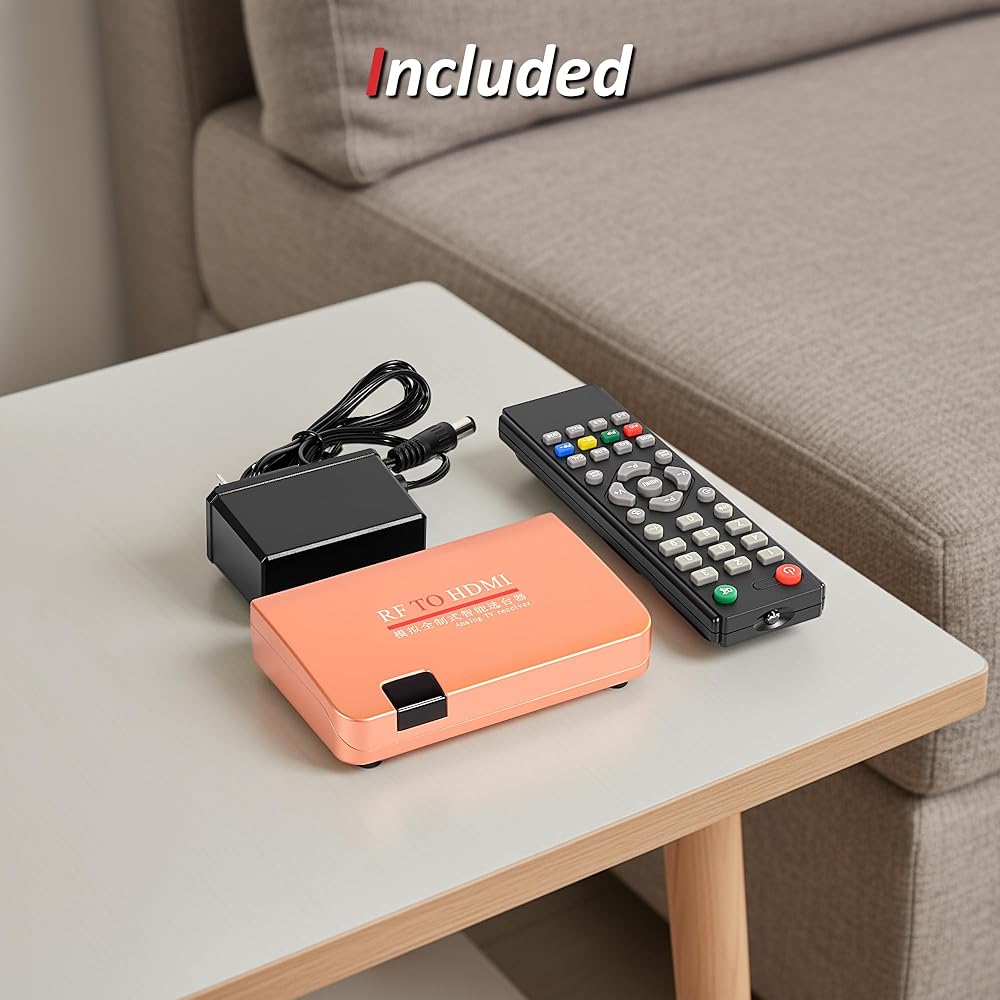

PACKAGE
1* Modulator
1* Remote (2*AAA battery Not included)
1* Manual
1* Power Cord

Compatible with:
Atari 2600, Atari 5200, ColecoVision Commodore 64 64C Mini-Computer, Fairchild Channel F ,Fisher-Price PXL-2000, Intellivision Magnavox Odyssey 2 ,Nintendo Entertainment System, Sega Master System, 8mm Camcorder, Betamax, JVC HR-3300U, Panasonic OmniMovie, VHS Philips Video 2000, Phlips VCR RCA SelectaVision Videodisc Player, VHS-C Camcorder.
NOT support digital TV signal input such as ATSC/DVB/ISDB/DTMB/DMB
Quick Start Guide
-1. Connect the TV aerial cable (RF coax) to the RF IN socket on the receiver.
-2. Plug one end of an HDMI lead into the HDMI OUT port on the receiver and the other end into an HDMI IN port on your TV.
-3. Switch the TV on, then use its remote to select the corresponding HDMI input source.
-4. Connect the receiver's power adapter; press the power key on the supplied remote.
Press the centre MENU key → RIGHT → PRESET → DOWN → AUTO PRESET SEARCH → RIGHT to start channel scan. (P+/P– move up/down, V+/V– move left/right and also act as ENTER.)
