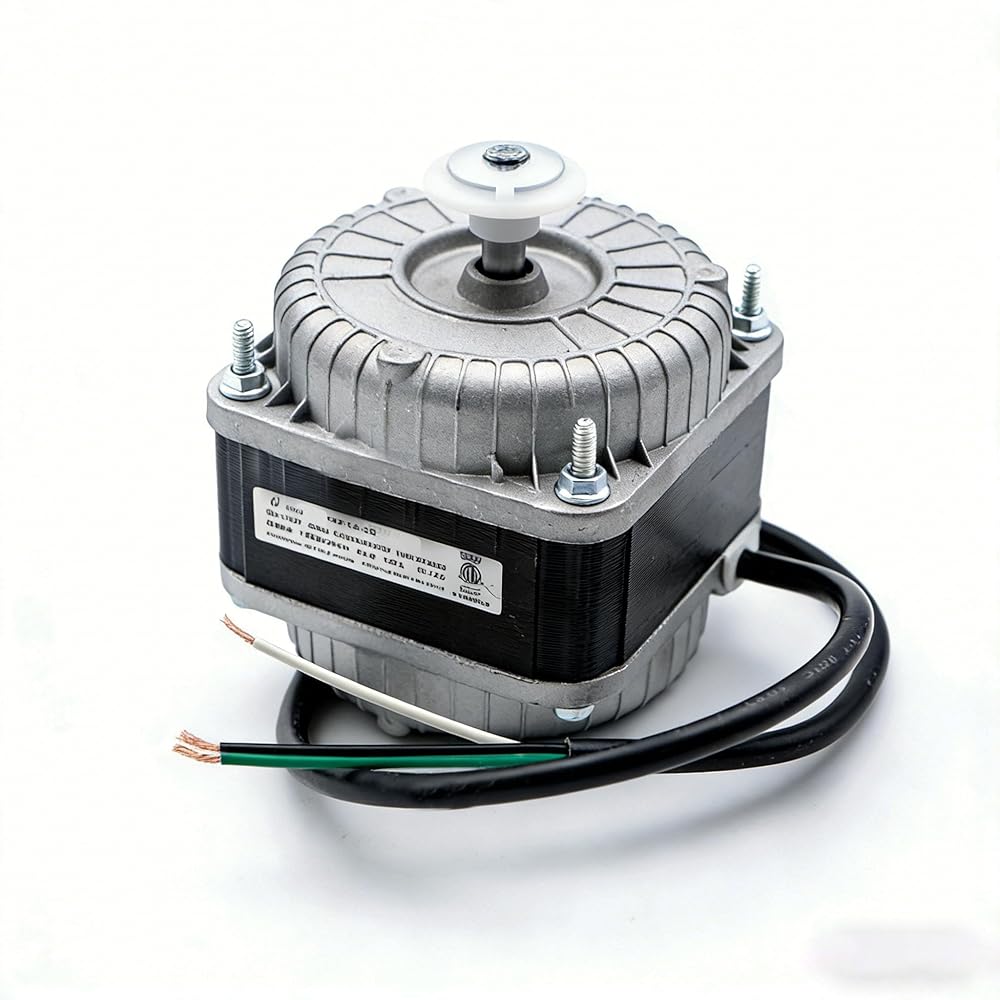

This shaded pole motor YZF12-20 is a single-phase electric AC motor, the motor working environment is 120V/60Hz,-22°F to 122°F ambient temperature,input power 50W, output power 12W, current 0.65A, rotational speed 1550r/min,can the maximum fan blades size that can be used is Φ230,28°,it widely used in small ventilation, condenser or evaporator air circulation in refrigeration equipment.
The motor uses pure copper enameled wire,is Class B insulation, and has built-in overheat protector, the protection temperature is 234°F, winding temperature rise≤80K, using sleeve bearing, can work continuously, after testing, the average life of the motor more than 20000 hours.it is ETL certified.
The motor input is a 3-core sheathed wire, specification 20AWG, UL certification, line length of 19.68-21.65 inches,Connect the black wire to the live wire, the white wire to the neutral wire, and the green wire to the ground,Ensure the grounding wire is installed reliably before using the motor.
The motor needs to be installed by a professional, or under the guidance of a professional.The motor requires the user to choose the appropriate fan blades and mounting bracket, these accessories are not included in the package.
1 Pack: 1 pcs
