Linear Sensors
Product parameters:
Model: LJ12A3-4-Z/BY
Detection distance: 4mm
Working voltage: DC 6-36V
Output method: PNP three wire normally open (non embedded)
Output status: Normally open (NO)
Output level: High level (when sensing metal)
Detected object: magnetic metal object
Shell material: copper/ABS
Lead length: 1.2M
Product diameter: 12mm Thread length: 40mm Total length: 60mm
Protection functions: power reverse protection, surge protection, and load short circuit protection.
Operating environment: -30 to+70 ° C/-30% to+95% RH
Insulation impedance:>50mQ
Temperature impact: Temperature range: -30 to+65 , with an impact of ± 10% within a detection distance of ± 15%; When the power supply voltage exceeds 3 rated voltage+15%, it will cause damage during operation.
Brown positive blue negative black signal.
Packaging list:

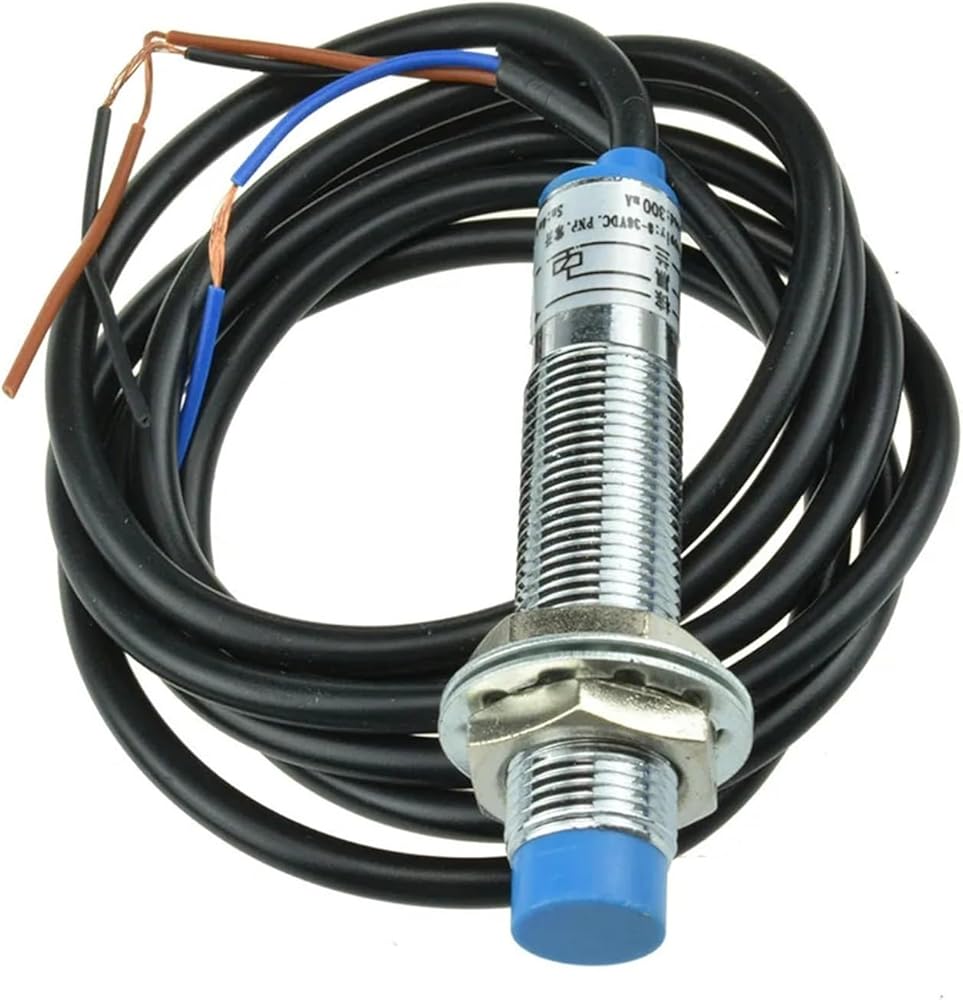

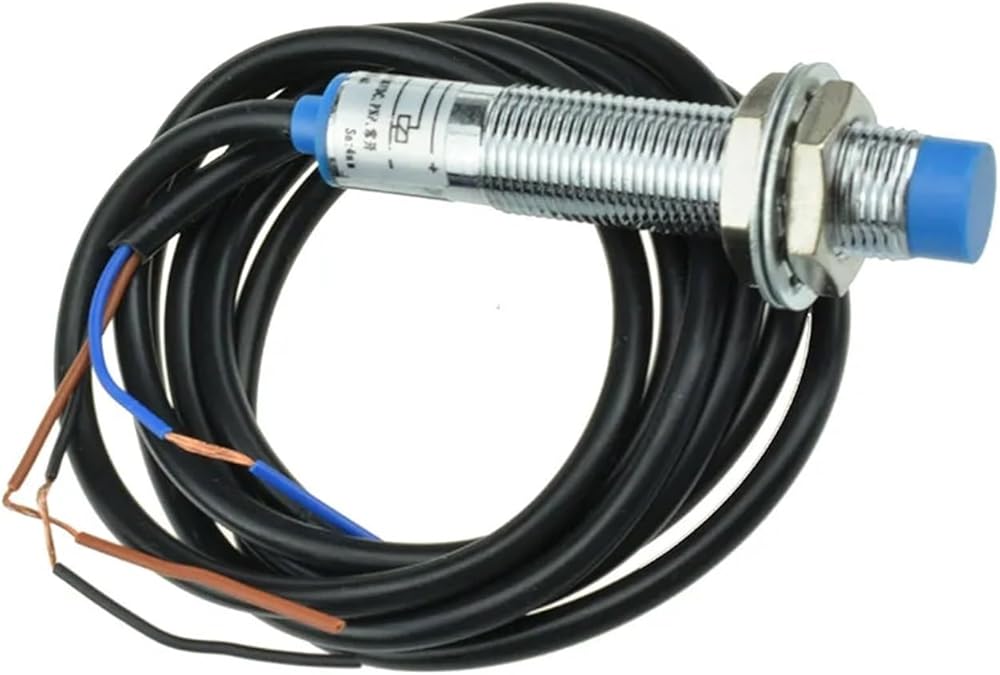

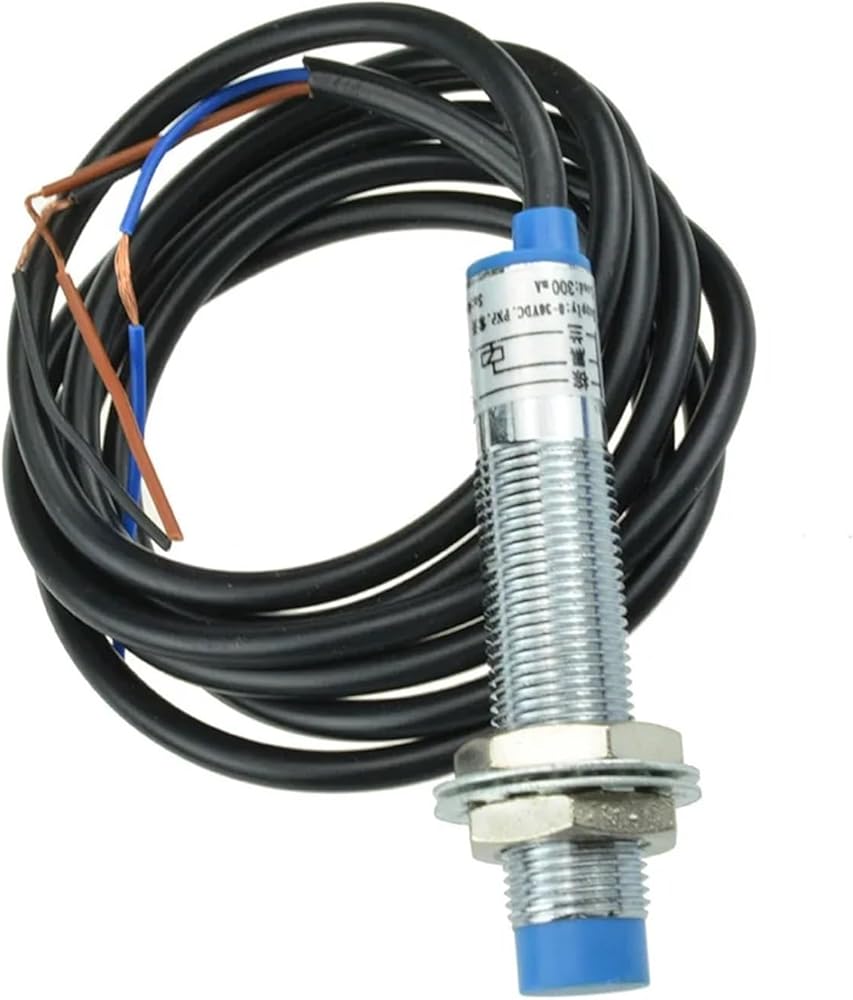

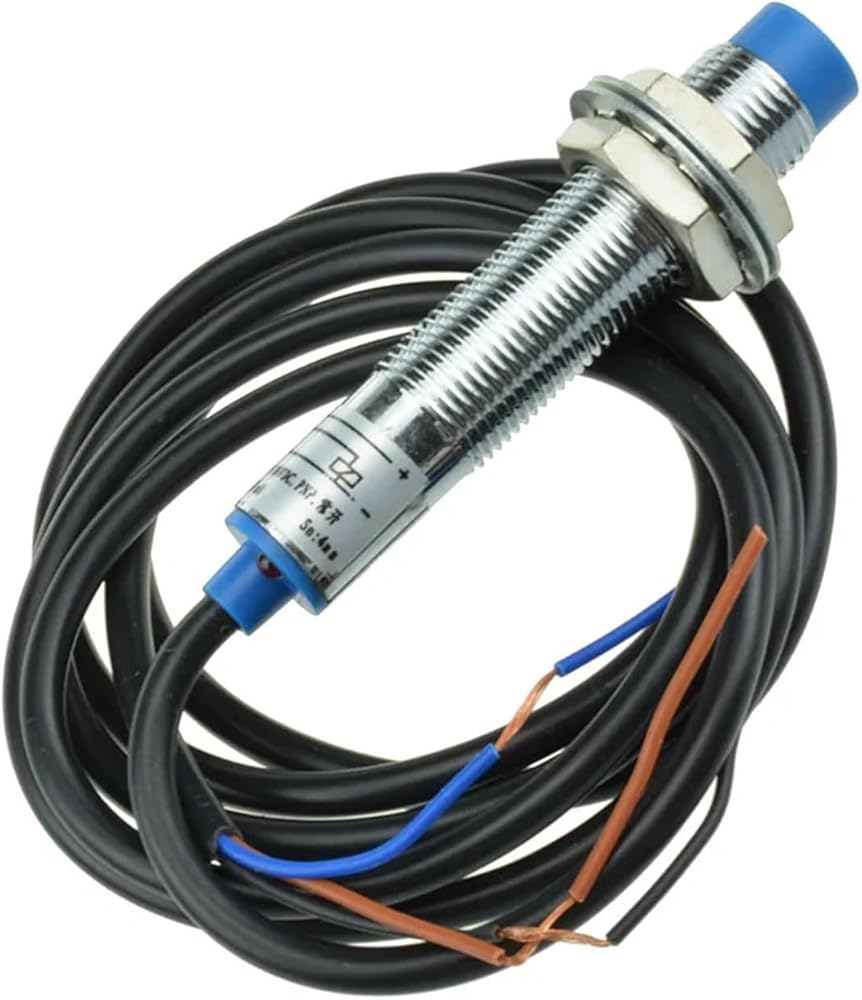

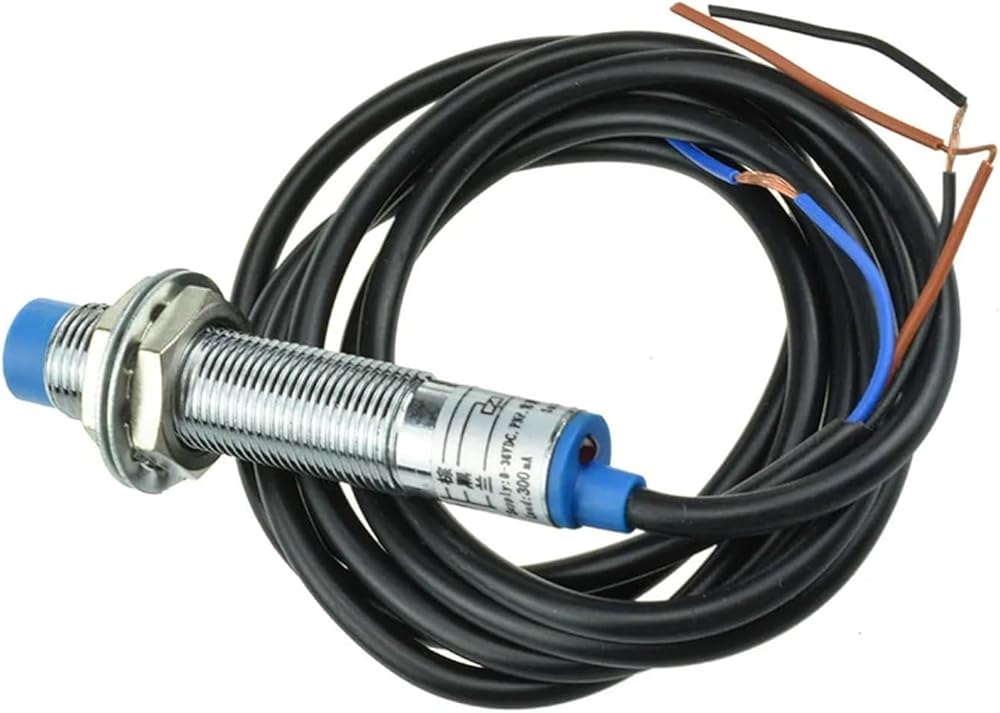

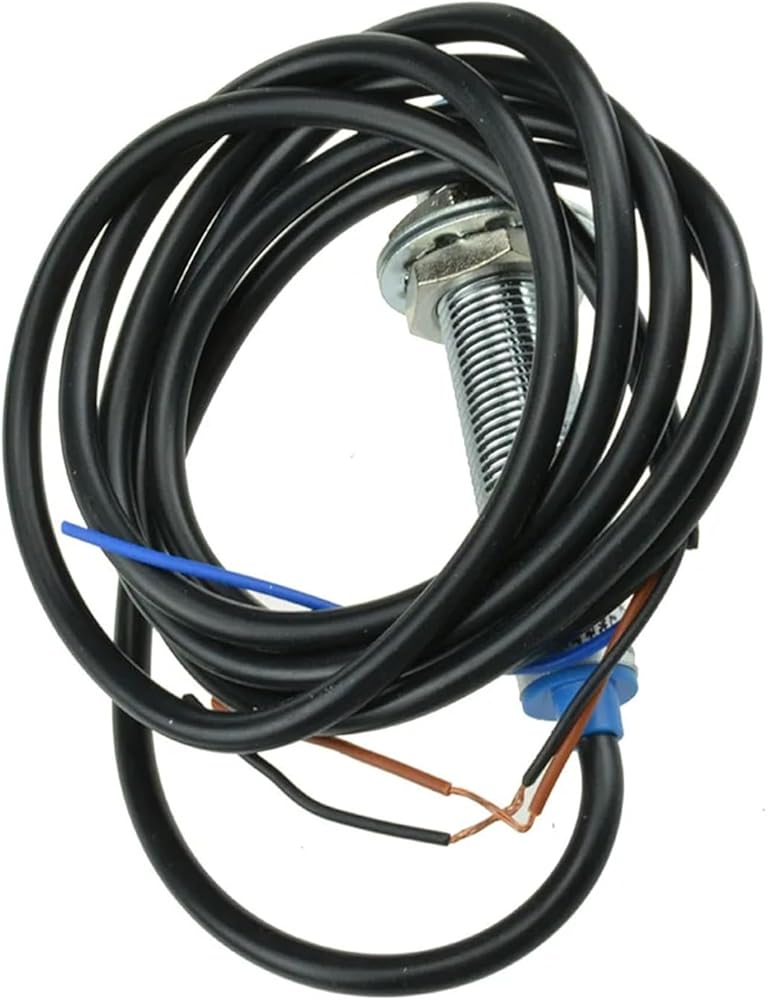

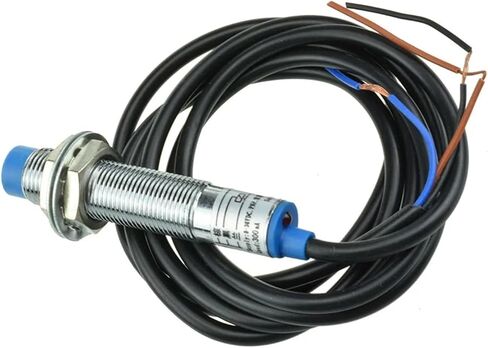

LJ12A3-4-Z/BY proximity switch * 1
