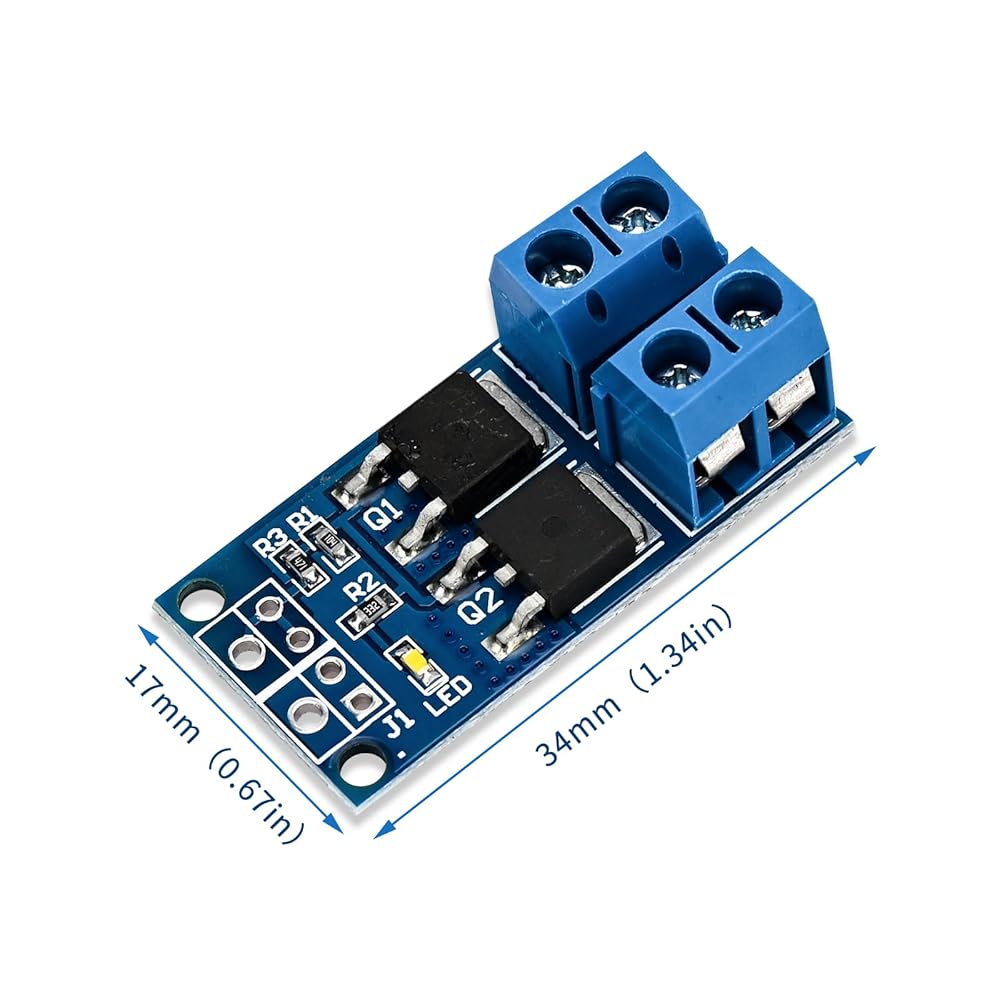

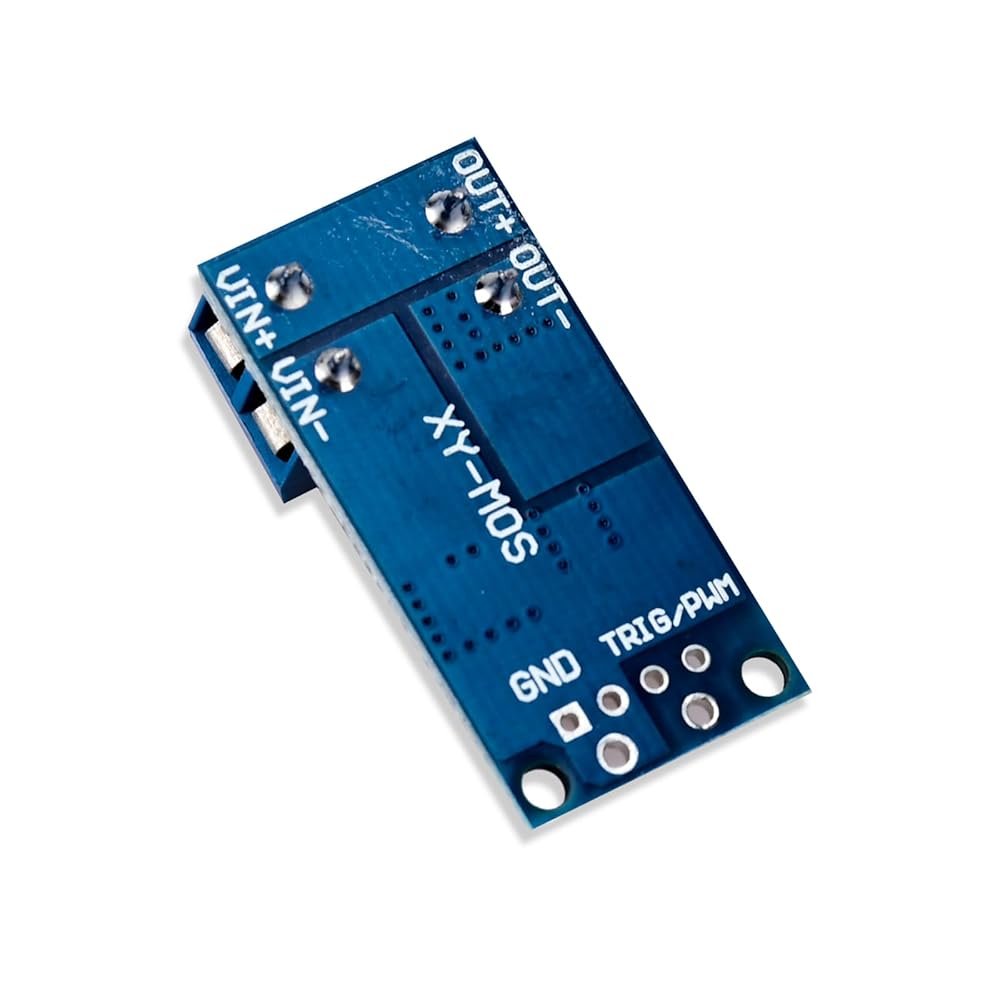

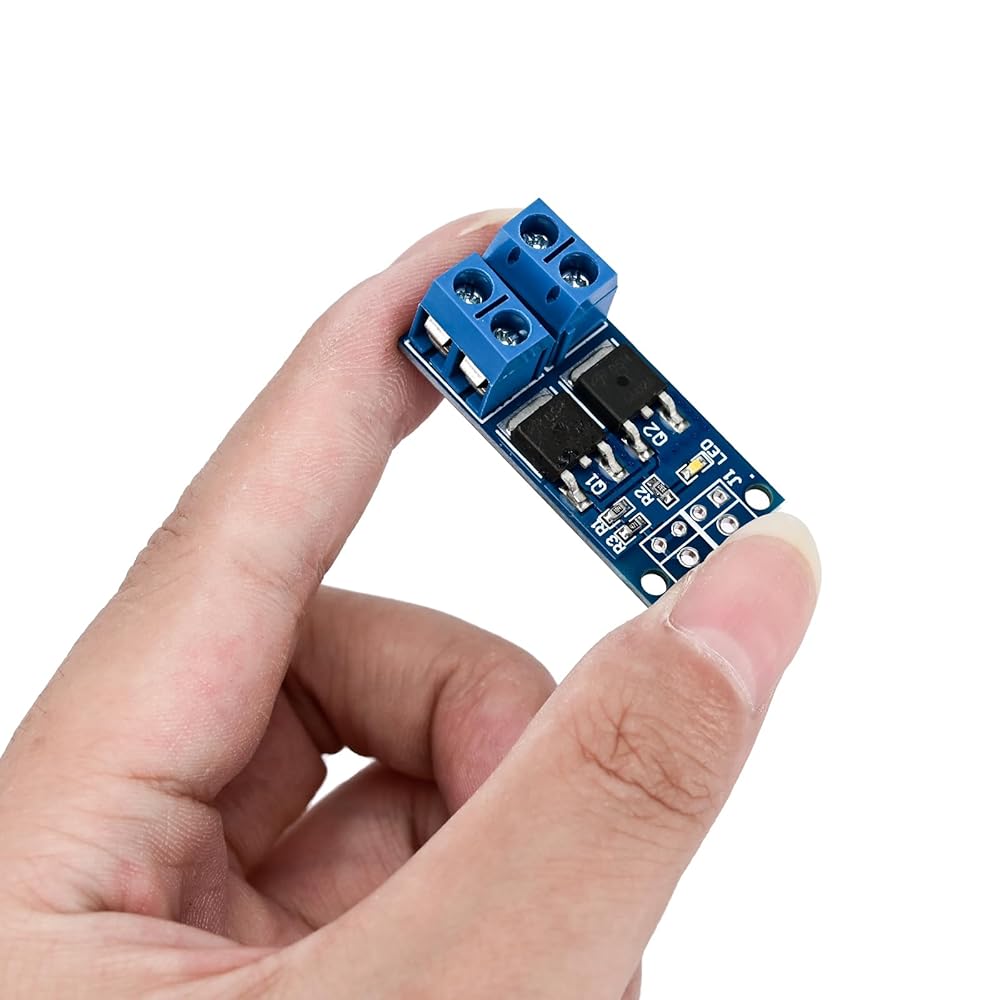

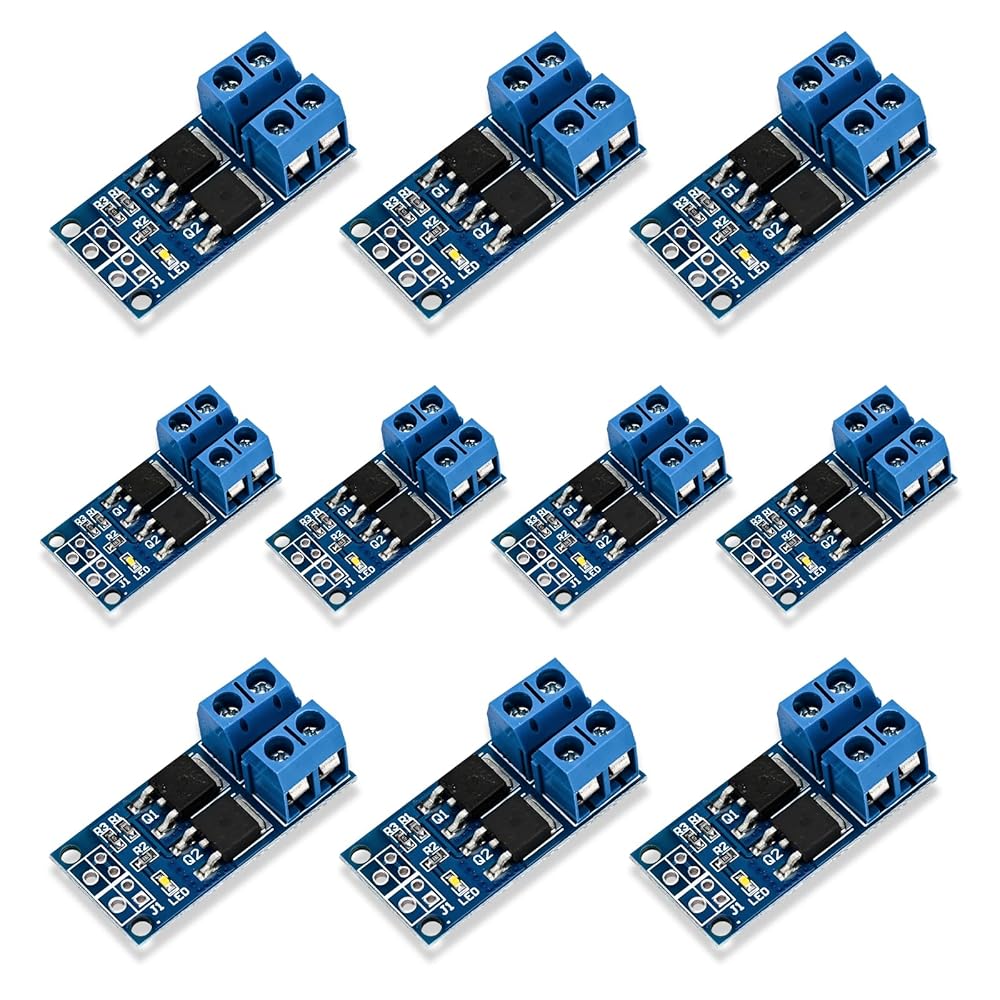

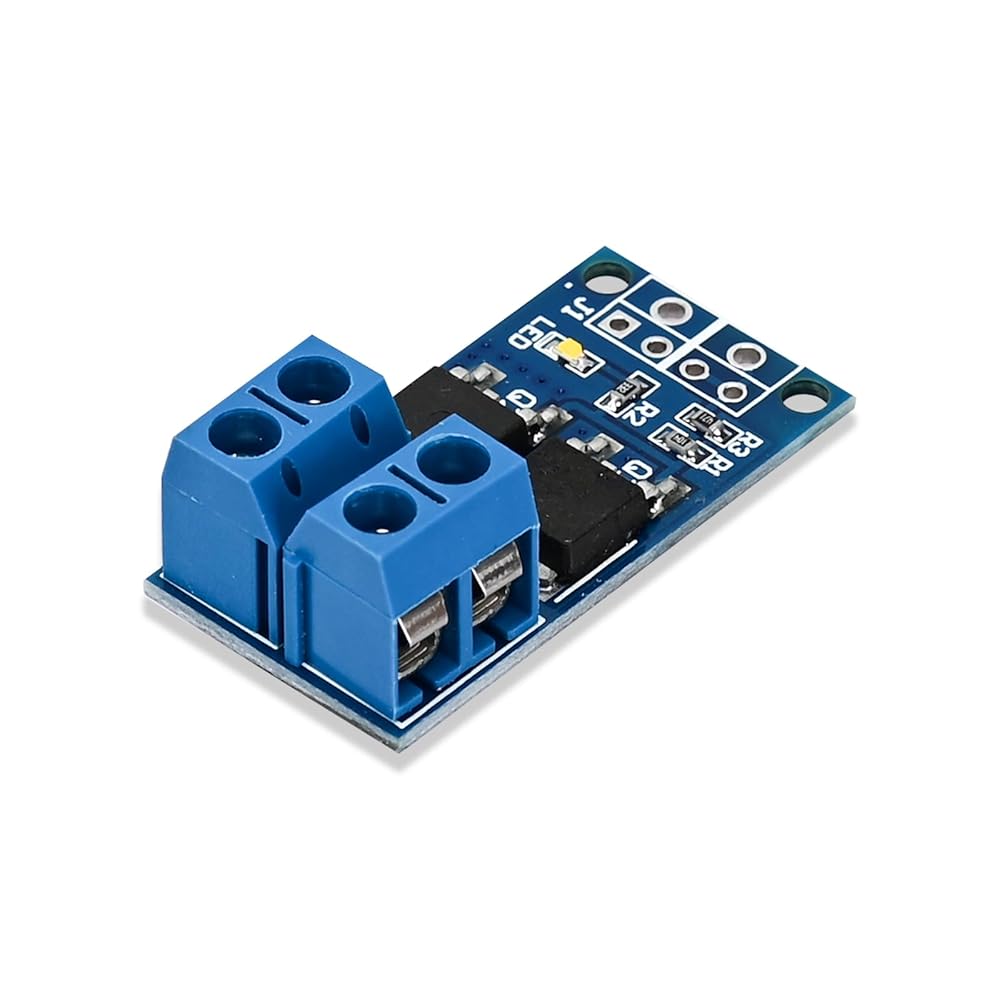

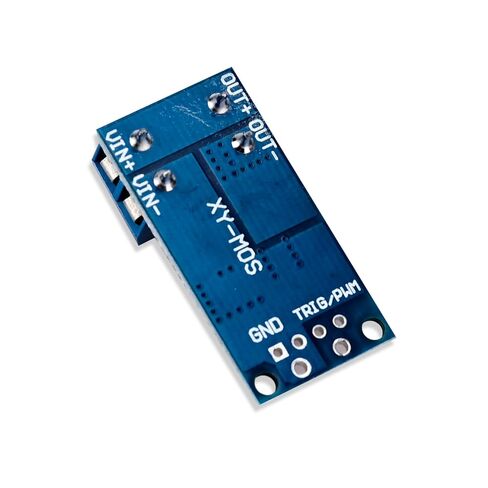

Name: 10Pcs 15A 400W MOSFET Trigger Switch Drive Module DC 5V-36V PWM Adjustment Electronic Switch Control Board
Brand: Podazz
Availability: InStock

Special Features

🧩【Working Voltage】: DC 5V--36V.
🧩【Dual MOS】Using dual MOS parallel active output, the internal resistance is lower, the current and the power is larger.unlimited switching; Working temperature: -40-85℃; Size: 3.4*1.7*1.2cm.

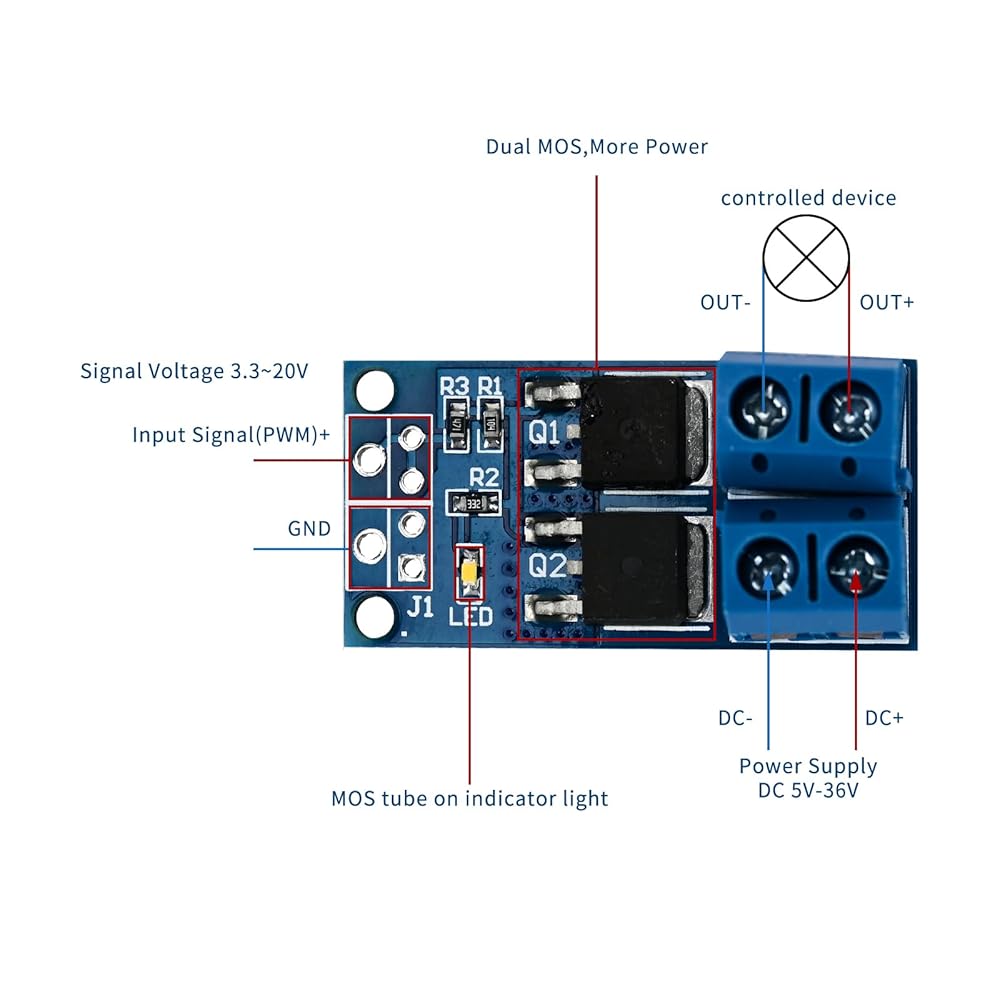

🧩【Trigger Signal Source】: digital high and low level (DC3.3V--20V), which can be connected to the microcontroller IO port, PLC interface, DC power supply, etc. Can be connected to PWM signal, signal frequency is 0-20KHZ.
🧩【Output Capability】: DC 5V-36V, continuous current 15A at room temperature, power 400W! It can meet the use of most equipment and easily control high-power equipment. Under auxiliary cooling conditions, the maximum current can reach 30A.
🧩【Application】: The output end can control high-power equipment, motors, light bulbs, LED light bars, DC motors, micro water pumps, solenoid valves, etc. PWM can be input to control motor speed, lamp brightness, etc.
