مميزات خاصة

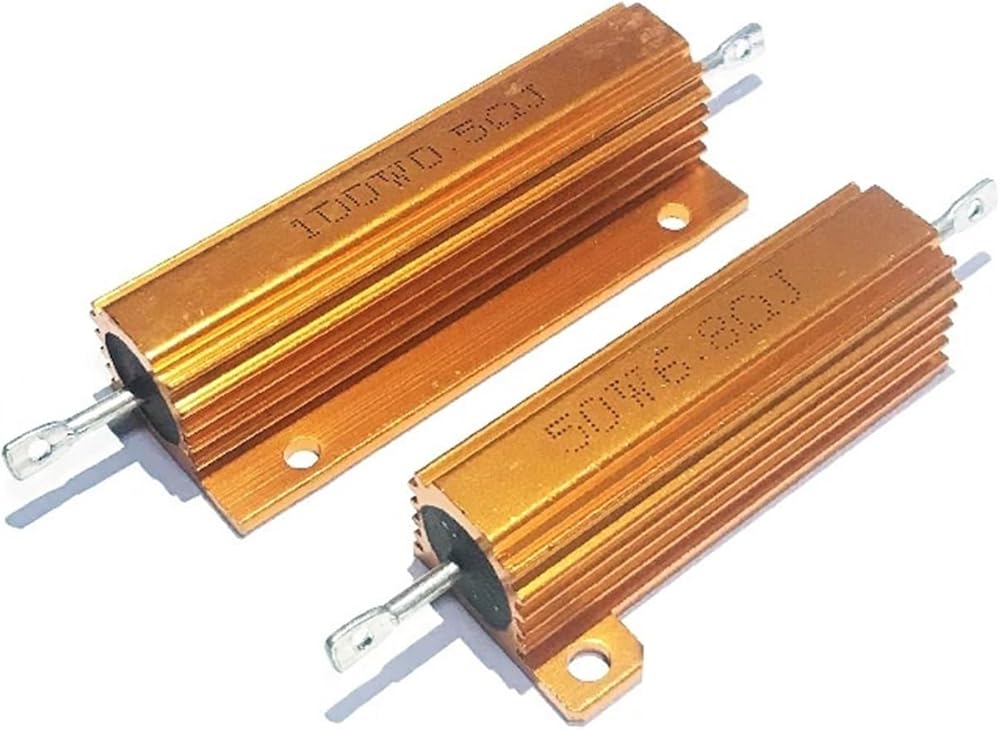

Advantage: The surface of the aluminum power resistor has cooling grooves, is small in size, has high-temperature resistance, and strong overload capacity, and can be used in harsh environments. The induction resistor has a solid structure and high stability for long service life.
Packing List: 1 x Aluminum Housing Resistors
Application: This aluminum load resistor is suitable for the lighting product, audio, Frequency converter, frequency divider, inverter, and other industrial control. Chassis-mounted resistors are widely used in power supply and automation equipment in the industry.
Instruction: The aluminum-housed resistor is easy to install, and suitable for cooling plate installation. Connect the wires to the shafts on both sides, choose the appropriate size of the screw and install it on the hole.
Applicable: The water oil coolant hose is suitable for water cooling systems, CNC machine tools, milling machines, air source equipment, industrial assembly lines, industrial automation, etc.

وصف

PACK:1PCS
Basic Parameters
Product Name : Aluminium Shell Resistors;
Suitable for inverter, LED lights, speakers, frequency divider, servo industry and other industrial control
This product using a professional process potting, with a solid, temperature, moisture resistance, high anti-vibration, explosion-proof and so on.
Specification:
Casing Material: Aluminum
Power Rating: 50W
Tolerance: 5%
Working voltage: 220V
Max. overload voltage: 220V
Body Size: 49.2x16x15/1.93"x0.63"x0.59"(L*W*H)
Lead Size: 10mm/0.39"
Mounted Hole Size : 1.8mm/ 0.07", 3.5mm/ 0.14"
ATips:
This product in the use of time, there will be heat phenomenon.
Do not touch the outside of the resistor directly by hand when the resistor is in operation for a long time to avoid injury.
If the resistor work for a long time, please do Heat dissipation.
