1. [MODULAR CONSTRUCTION] for easy installation on guide rails.
2. Three-phase monitoring of phase sequence and loss for comprehensive protection.
3. Powered by the measuring circuit, no extra power source needed.
4. Two groups of normally open/close contacts for versatile control options.
5. Includes 2 indicator lights to show various working statuses.

Specification:
Features:
Standard modular construction and guide rail type installation.
Three-phase monitoring of phase sequence, phase loss.
Powered by the measuring circuit, not required additional auxiliary power.

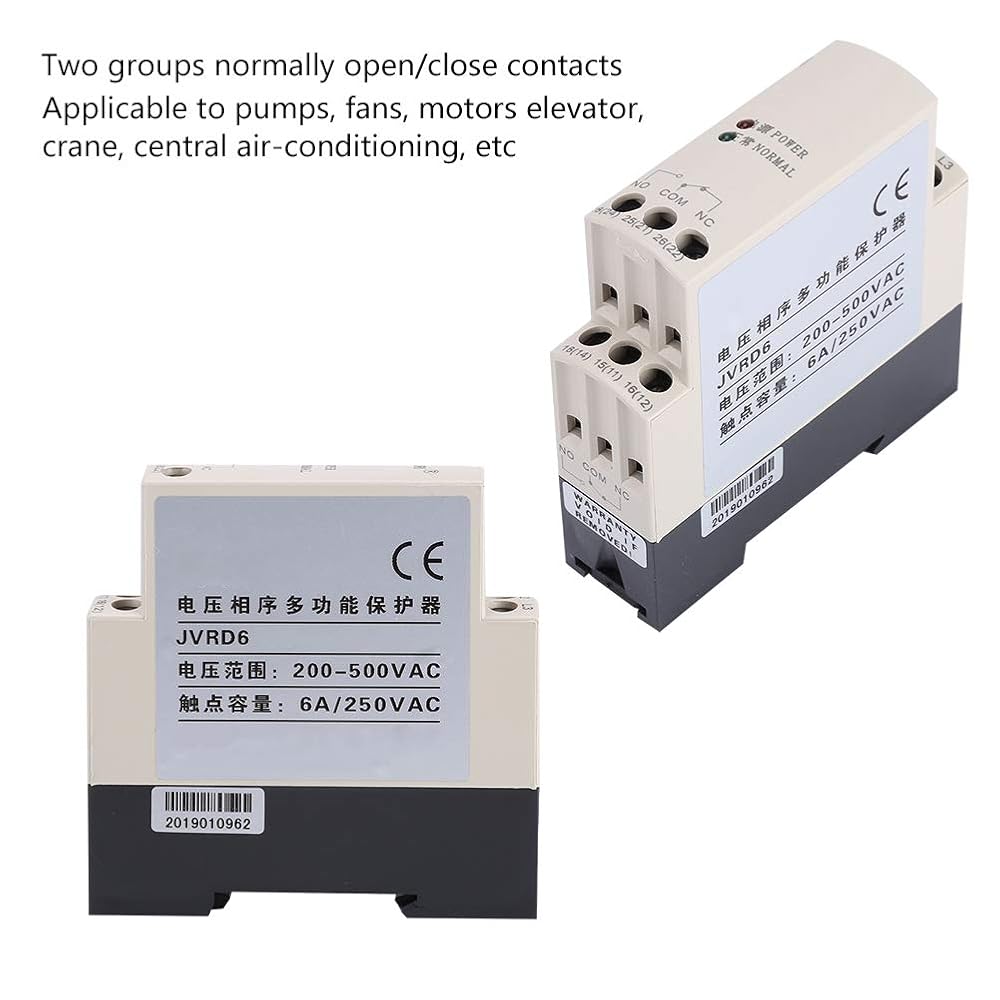

Two groups normally open/close contacts.

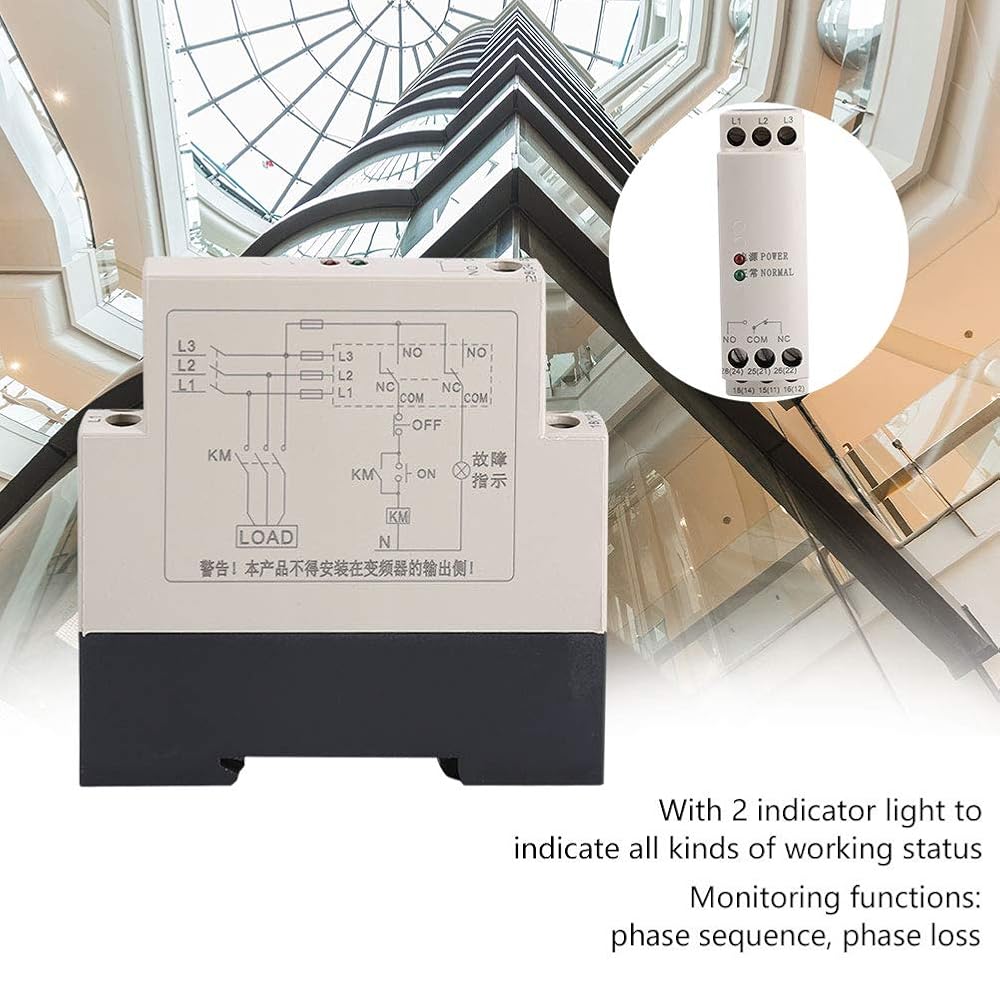

With 2 indicator light to indicate all kinds of working status.
Applicable to pumps, fans, blowers, motors elevator, crane, central air-conditioning, etc.
Specification:
Condition: 100% Brand New
Material: Plastic, Metal
Color: As Picture Shown

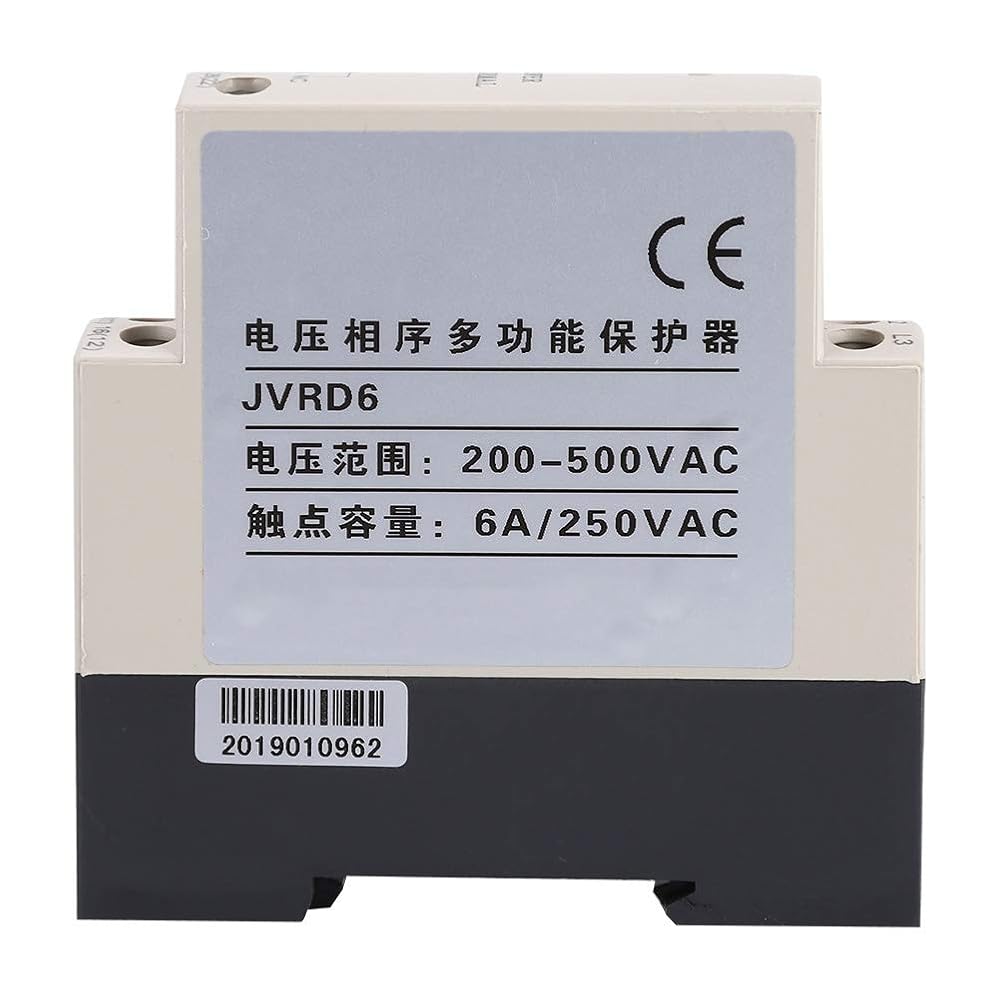

Model: JVRD6
Rated voltage: 200-500VAC,50/60Hz
Interrupting capacity: 250VAC
Contact capacity: 6A/250VAC
Rated current: 6A
Monitoring circuits: L1,L2,L3
Protective Functions: Phase sequence, Phase loss
Installation: 35mm guide rail
Overall Size: 7.9 * 2.3* 7.9cm/3.1 * 0.9 *3.1in
Package Weight: Approx. 122g/4.3oz
Package List:

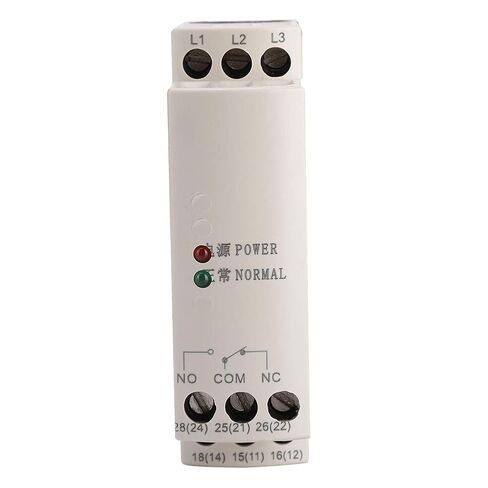

1 * Phase Sequence Protection Relay
