AMS Feeder Unit Replacement for P1P/P1S/X1/X1C/X1E AMS Multi-Color Printing System: Hall Sensor Equipped Filament Drive Gear Part 3D Printer Accessories in Saudi Arabia AMS Feeder Unit Replacement for P1P/P1S/X1/X1C/X1E AMS Multi-Color Printing System: Hall Sensor Equipped Filament Drive Gear Part 3D Printer Accessories in Saudi Arabia AMS Feeder Unit Replacement for P1P/P1S/X1/X1C/X1E AMS Multi-Color Printing System: Hall Sensor Equipped Filament Drive Gear Part 3D Printer Accessories in Saudi Arabia AMS Feeder Unit Replacement for P1P/P1S/X1/X1C/X1E AMS Multi-Color Printing System: Hall Sensor Equipped Filament Drive Gear Part 3D Printer Accessories in Saudi Arabia AMS Feeder Unit Replacement for P1P/P1S/X1/X1C/X1E AMS Multi-Color Printing System: Hall Sensor Equipped Filament Drive Gear Part 3D Printer Accessories in Saudi Arabia AMS Feeder Unit Replacement for P1P/P1S/X1/X1C/X1E AMS Multi-Color Printing System: Hall Sensor Equipped Filament Drive Gear Part 3D Printer Accessories in Saudi Arabia

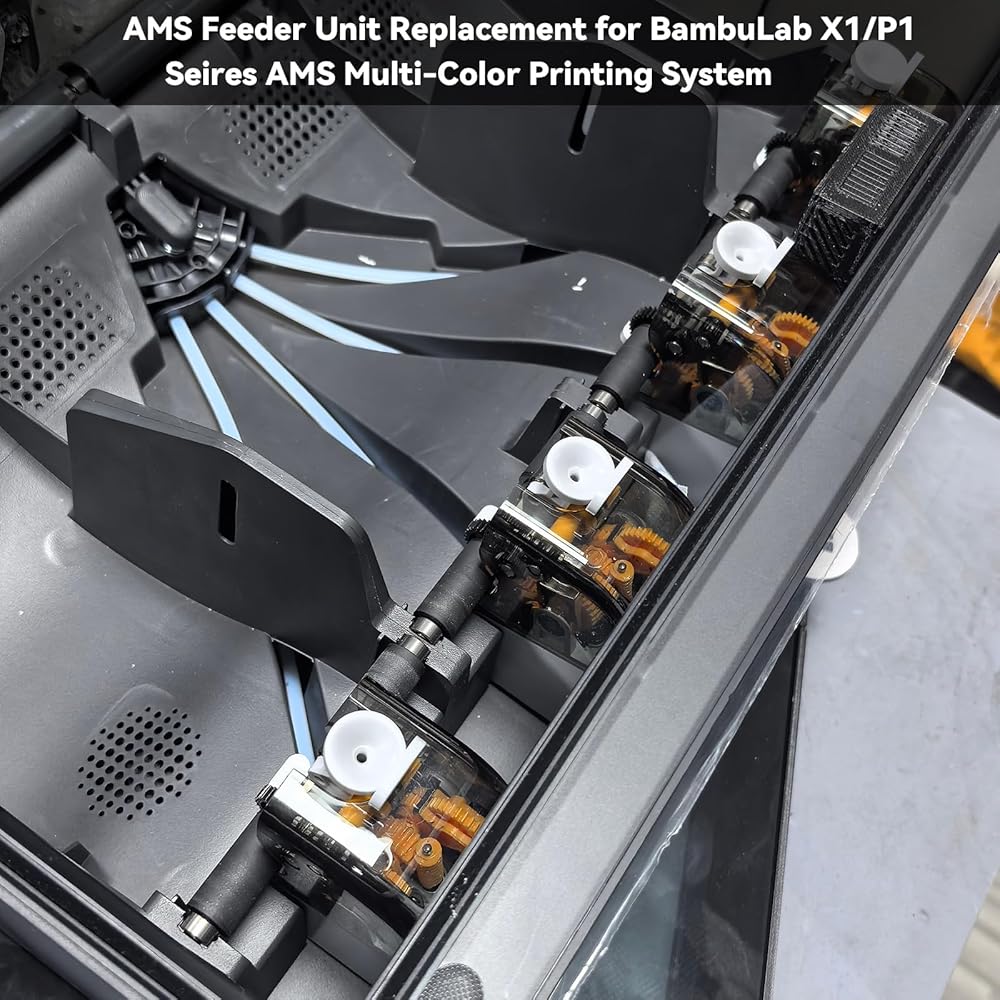

AMS Feeder Unit Replacement for P1P/P1S/X1/X1C/X1E AMS Multi-Color Printing System: Hall Sensor Equipped Filament Drive Gear Part 3D Printer Accessories

SAR 313
Brand
Imdinnogo
Weight
171 g
– 1 +

Special Features

  • Specially designed for Bamboo X1/P1 Series AMS automated filament 3d printing project, can directly replace broken original. Not suitable for A1/A1 Mini AMS Lite and H2D combo AMS 2pro

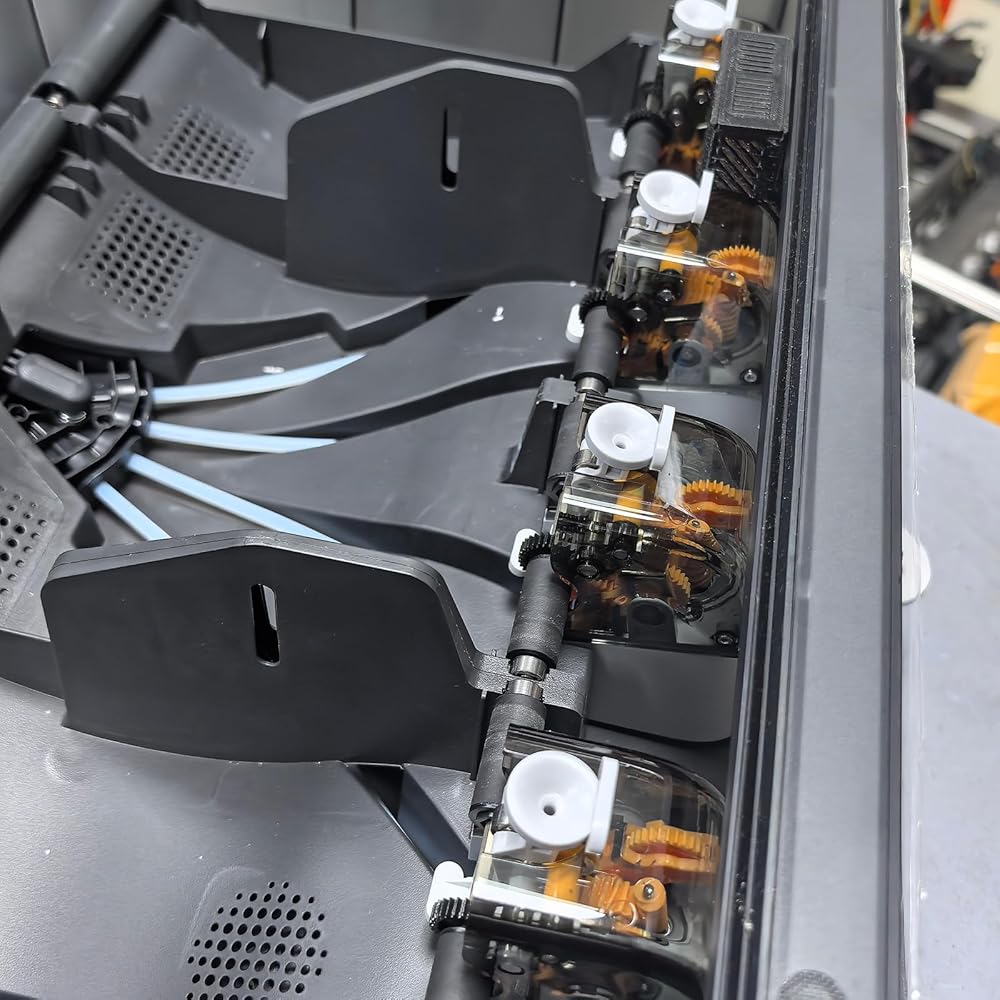

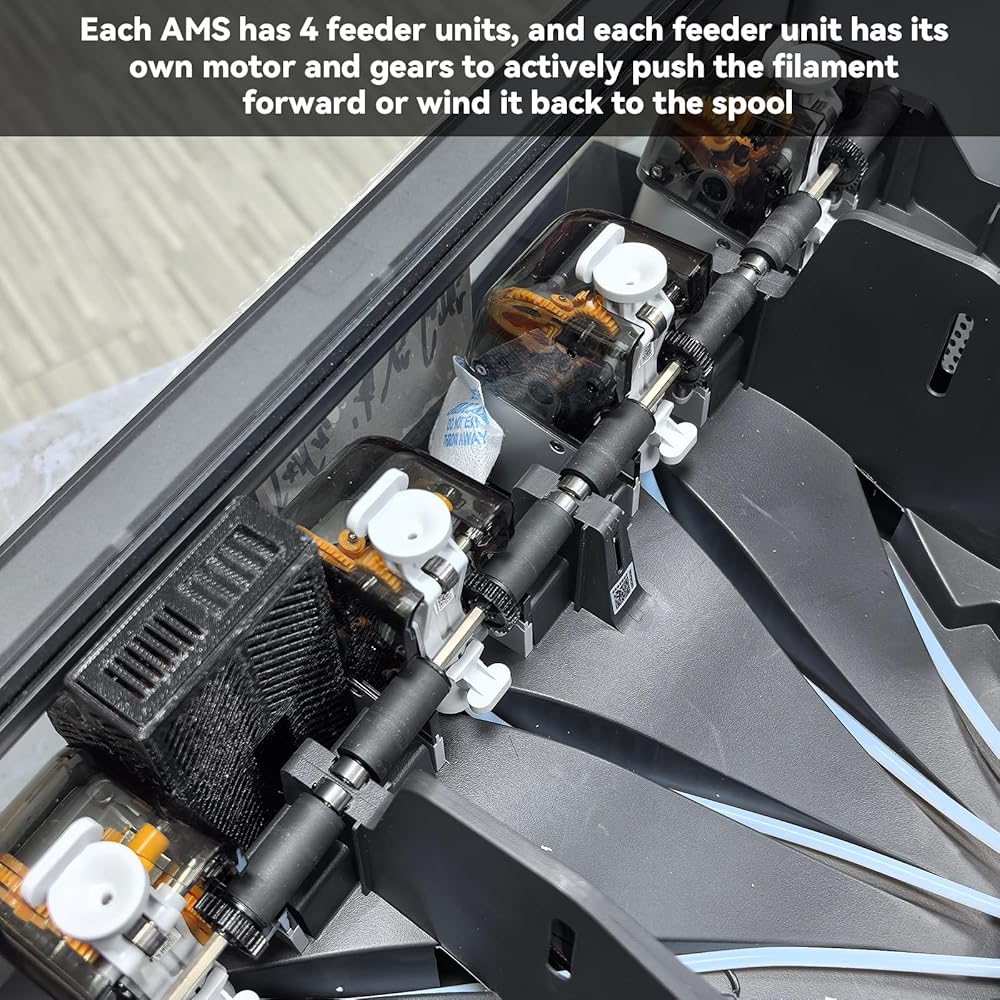

  • Each AMS has 4 feeder units, and each feeder unit has its own motor and gears to actively push the filament forward or wind it back to the spool

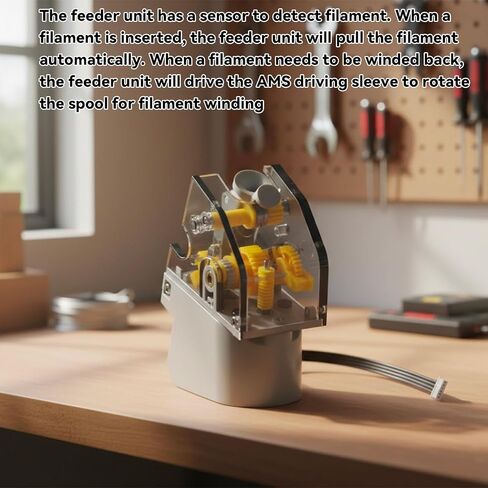

  • The feeder unit has a sensor to detect filament. When a filament is inserted, the feeder unit will pull the filament automatically. When a filament needs to be winded back, the feeder unit will drive the AMS driving sleeve to rotate the spool for filament winding

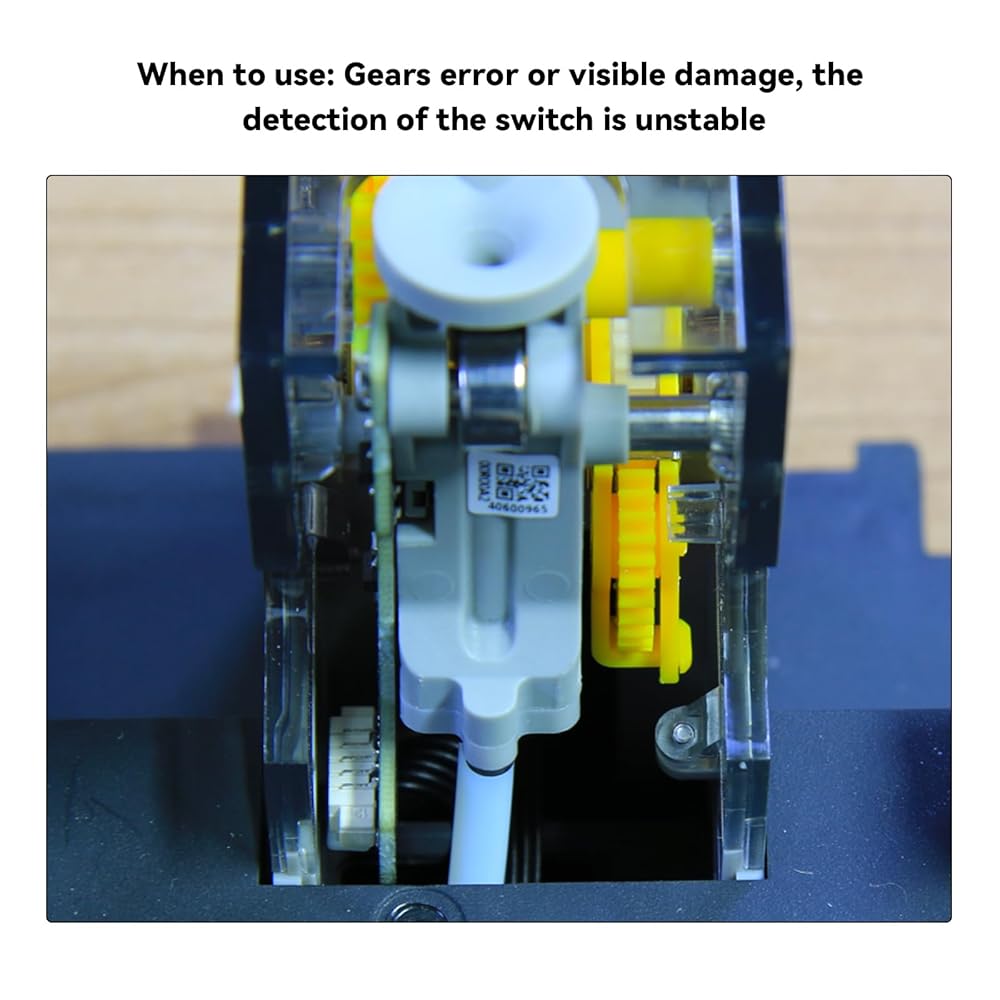

  • When to use: Gears error or visible damage, the detection of the switch is unstable. Tools needed H1.5 Allen key. Learn more about the replacement of AMS Feeder Unit (Hall) on Wiki
  • Easy to install, firstly disconnect PTFE tube, remove middle frame, then remove the AMS active support shaft assembly, disconnect the cable from the main board, and the PTFE tube from the filaments hub, finally remove the AMS feeder unit, replace new

Description

In the Box

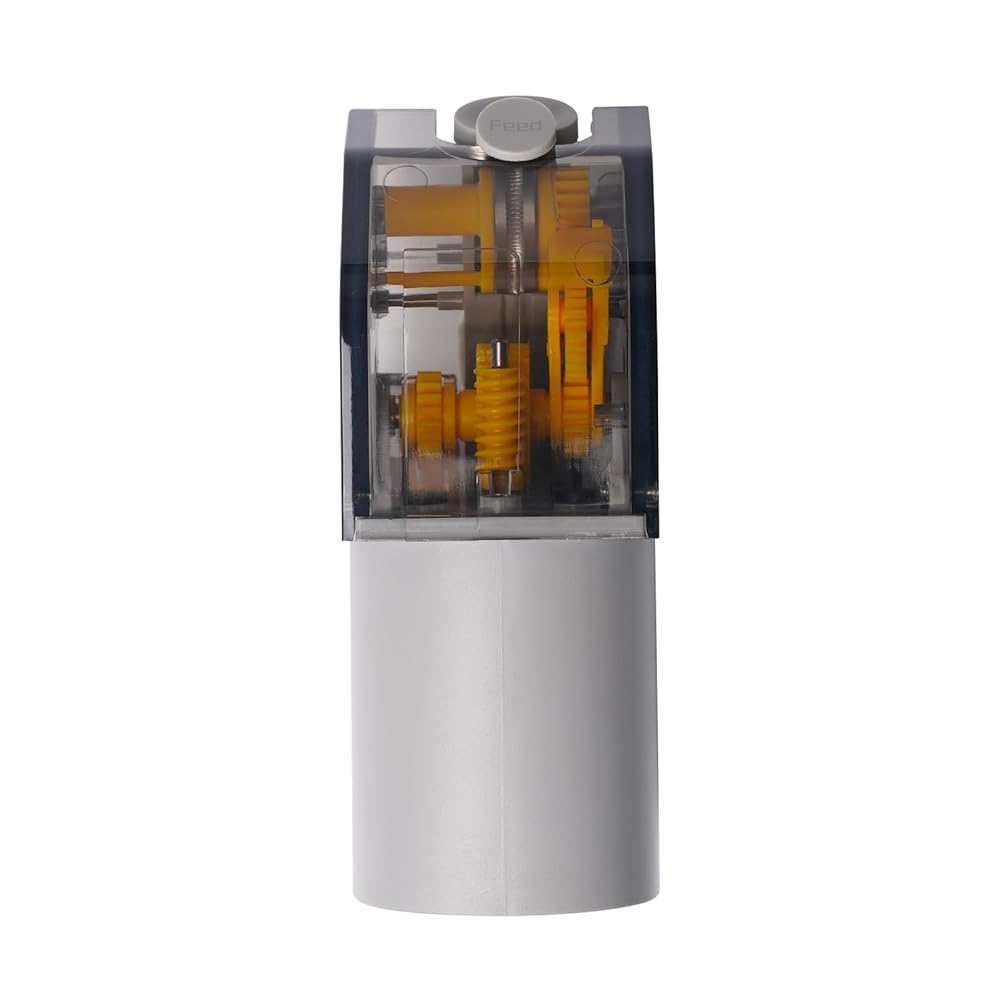

AMS Feeder Unit (Grey Hall Version)
How to verify completion: Connect the AMS to printer and power on. Load 3d material the slot you replace the AMS feeder unit to the AMS, click "Load" on the screen to start loading the filament
