Specification:
Condition: Brand New
Item Type: Motor Controller
Material: Metal
Color: As Pictures Shown
Working Voltage: DC 12V
Working Current: (Normal mode) standby current 22mA, working current 109mA;
(Energy saving mode) Standby current 7mA, working current 76mA.
There are three input control ports: forward control, reverse control and stop control.
Two input modes, low pulse mode, low level mode
Delay Time: 0.1-.9s, 1-9999s, 1-9 minutes.
Number of Cycles: No cycle, 2-99 cycles, Cycle forever.
Three Indicator Lights: Forward indicator light, reverse indicator light, stop indicator light.
6 functional modes
Relay Load Current: 30A 250VAC / 30VDC
Size: Approx. 97.5 x 56 x 24mm / 3.8 x 2.2 x 0.9in

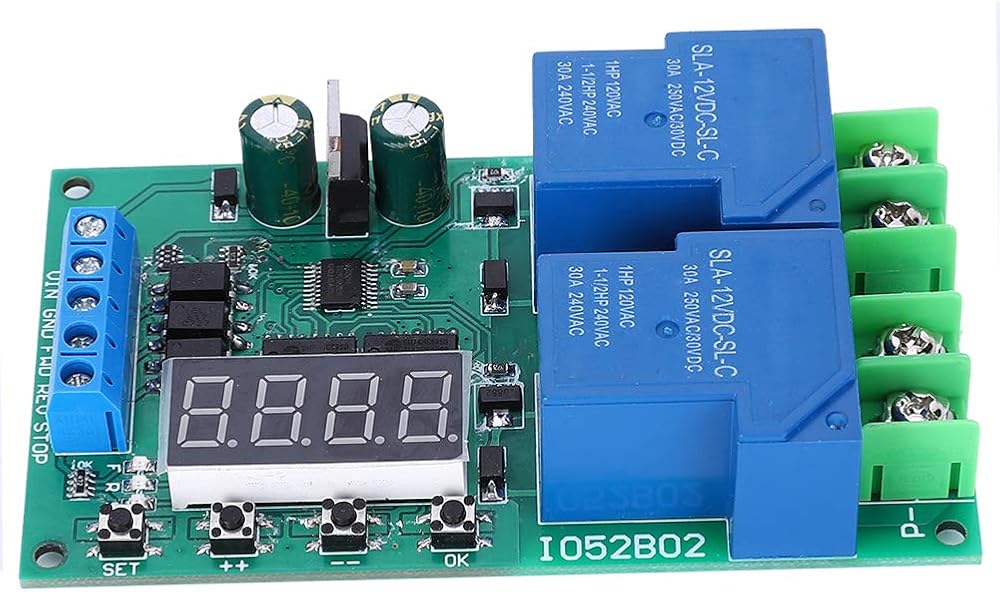

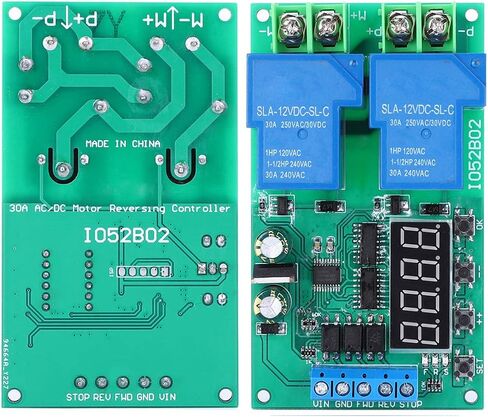

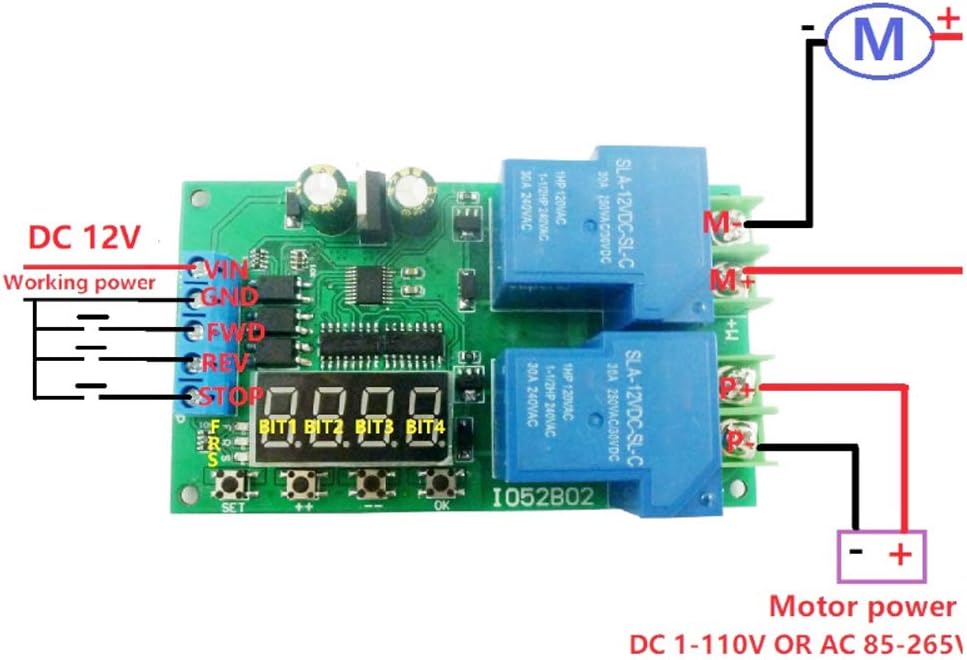

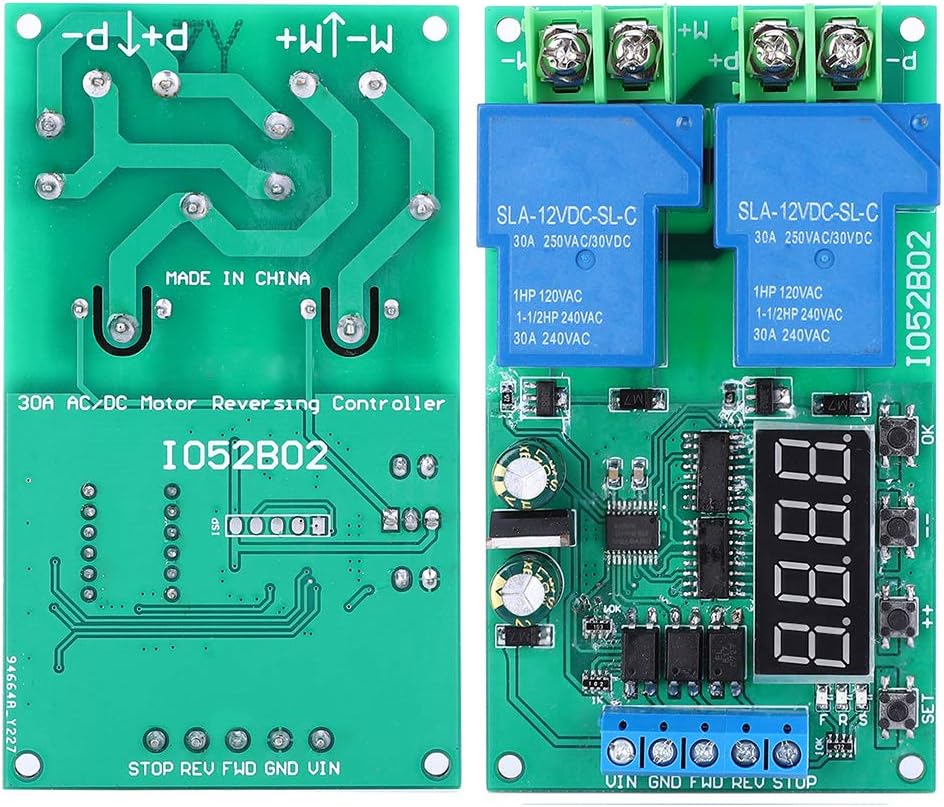

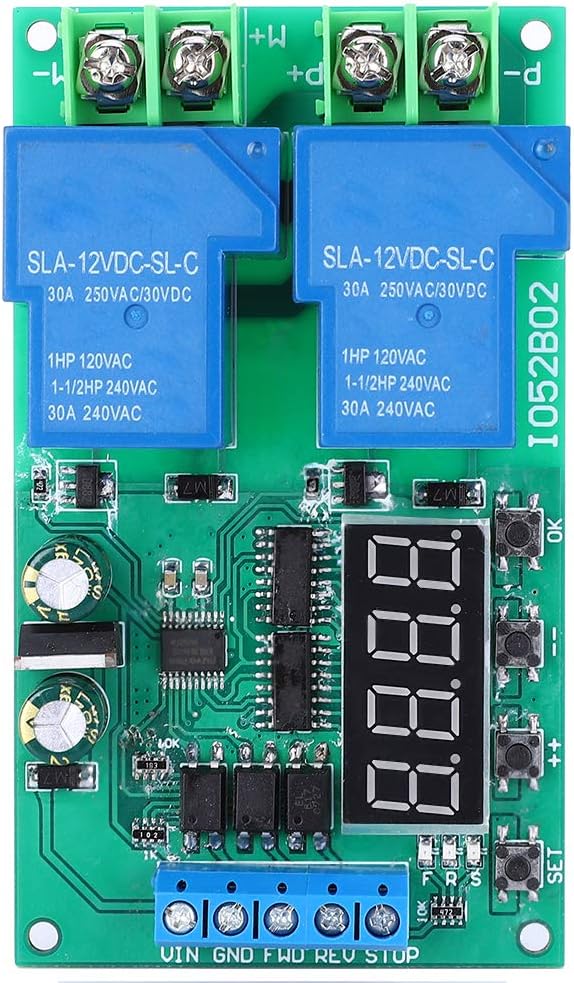

Port:
VIN: Positive power supply, DC 12V power supply
GND: Negative power supply
FWD: Forward rotation input control (some function modes are invalid)
: Reverse input control (some function modes are invalid)
STOP: Stop input control (some function modes are invalid)
M +: Motor positive
M-: Motor negative
P +: Positive pole of motor power supply
P-: Negative pole of motor power supply

Package List:

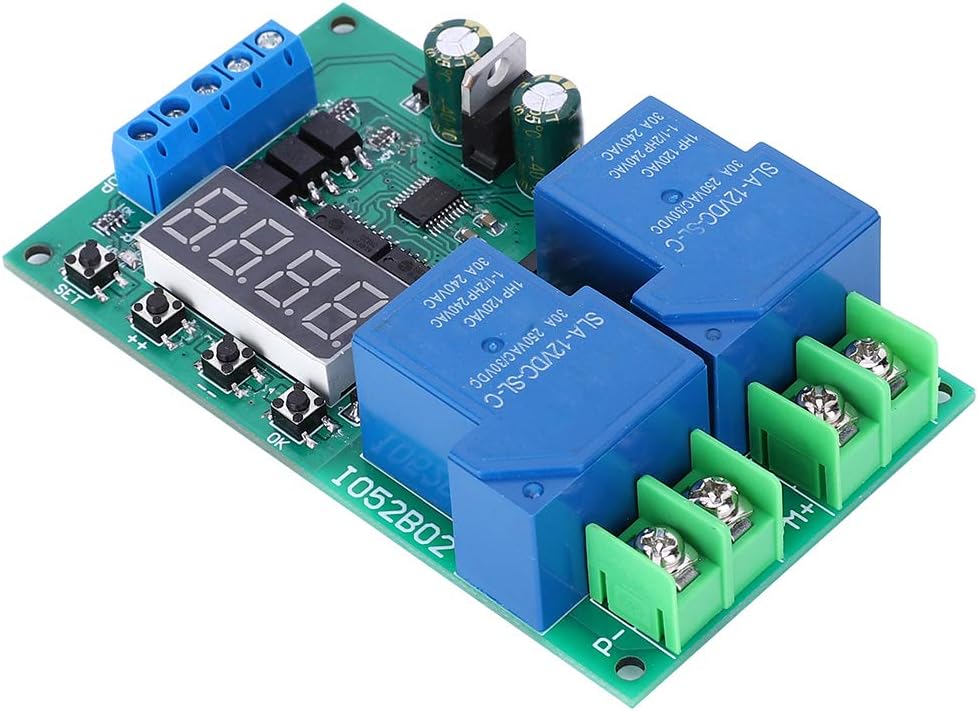

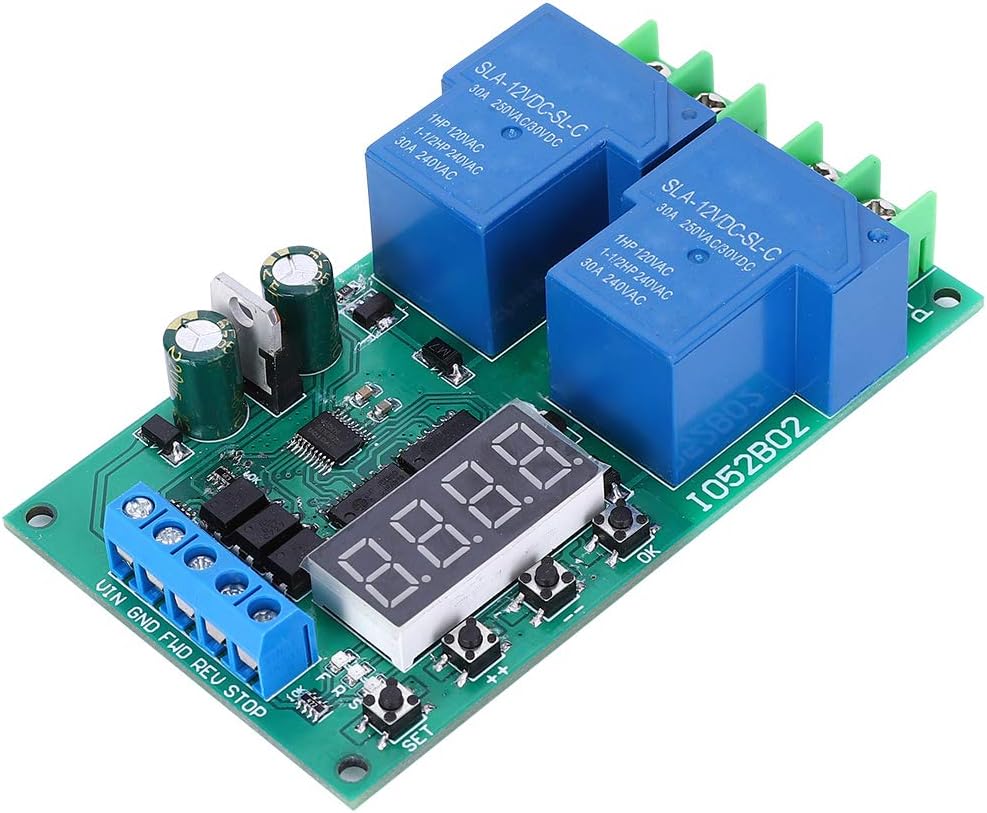

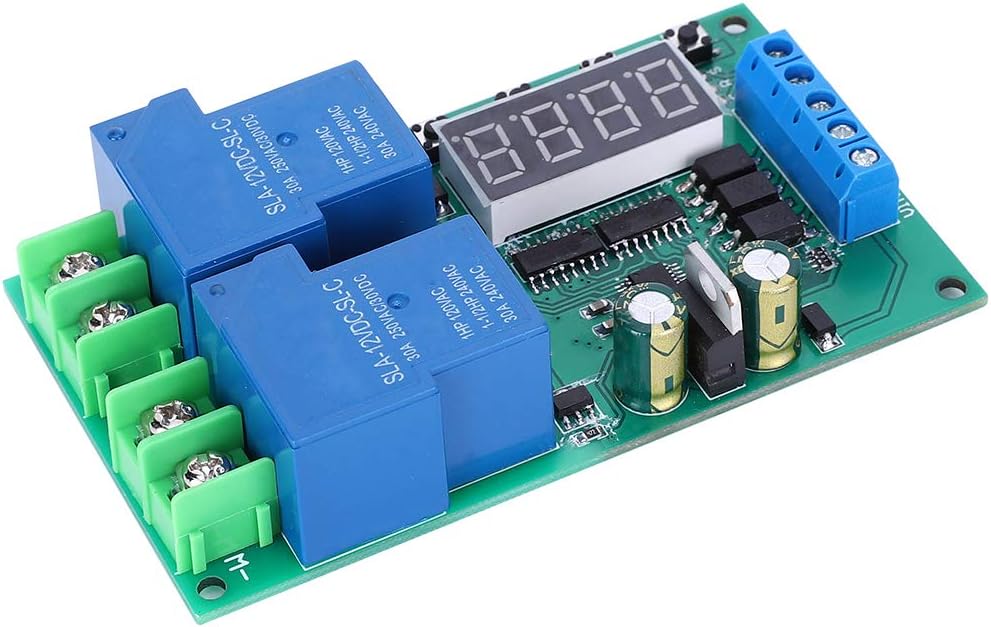

1 x Forward/Reverse Controller Module
