Introduction

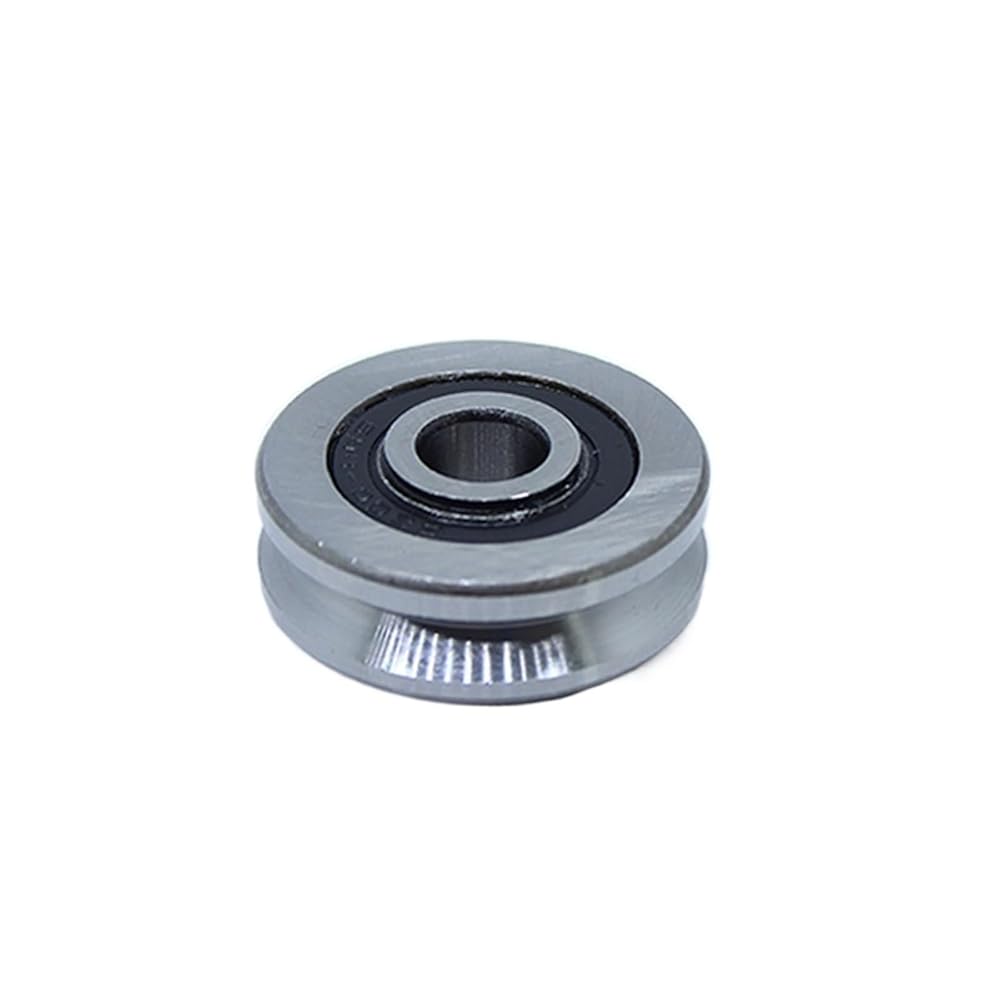

Bearing Type: V Groove Bearing
Model: 124219V10-4
Inner Diameter: 12mm
Outer Diameter: 42mm
Height: 19mm
V Groove Width: 10mm
V Groove Depth: 4mm
Quantity: 2PCS
Bearing Type: V Groove Bearing
Model: 124219V11-4
Inner Diameter: 12mm
Outer Diameter: 42mm
Height: 19mm
V Groove Width: 11mm
V Groove Depth: 4mm
Quantity: 2PCS
Bearing Type: V Groove Bearing
Model: 124219V12-4
Inner Diameter: 12mm
Outer Diameter: 42mm
Height: 19mm
V Groove Width: 12mm
V Groove Depth: 4mm
Quantity: 2PCS
Bearing Type: V Groove Bearing
Model: 124219V13-4
Inner Diameter: 12mm
Outer Diameter: 42mm
Height: 19mm
V Groove Width: 13mm
V Groove Depth: 4mm
Quantity: 2PCS
Bearing Type: V Groove Bearing
Model: 124219V14-4
Inner Diameter: 12mm
Outer Diameter: 42mm
Height: 19mm
V Groove Width: 14mm
V Groove Depth: 4mm
Quantity: 2PCS
Bearing Type: V Groove Bearing
Model: 124219V15-4
Inner Diameter: 12mm
Outer Diameter: 42mm
Height: 19mm
V Groove Width: 15mm
V Groove Depth: 4mm
Quantity: 2PCS
More information
1. Heat treatment:
The surface of the V-guided rail is hardened and the surface hardness is up to HRC60.
The hardness of the V-slot surface of the V-wheel bearings is also hardened on the surface reaching HRC60 and by
ensuring the wear resistance of the components this ensures a long service life of the entire V-guided roller
linear rail system.
2: Precision processing:
V-bearing V-shaped grooves precision-processed can be precisely combined with V-guided rails to ensure high
speed and smoothness of straight-line motion.
3. Assembly process:
V-type roller bearings the use of processing technology is directly processed on the outer ring V-type groove
the entire V-type bearing has a good rigidity. At present some
