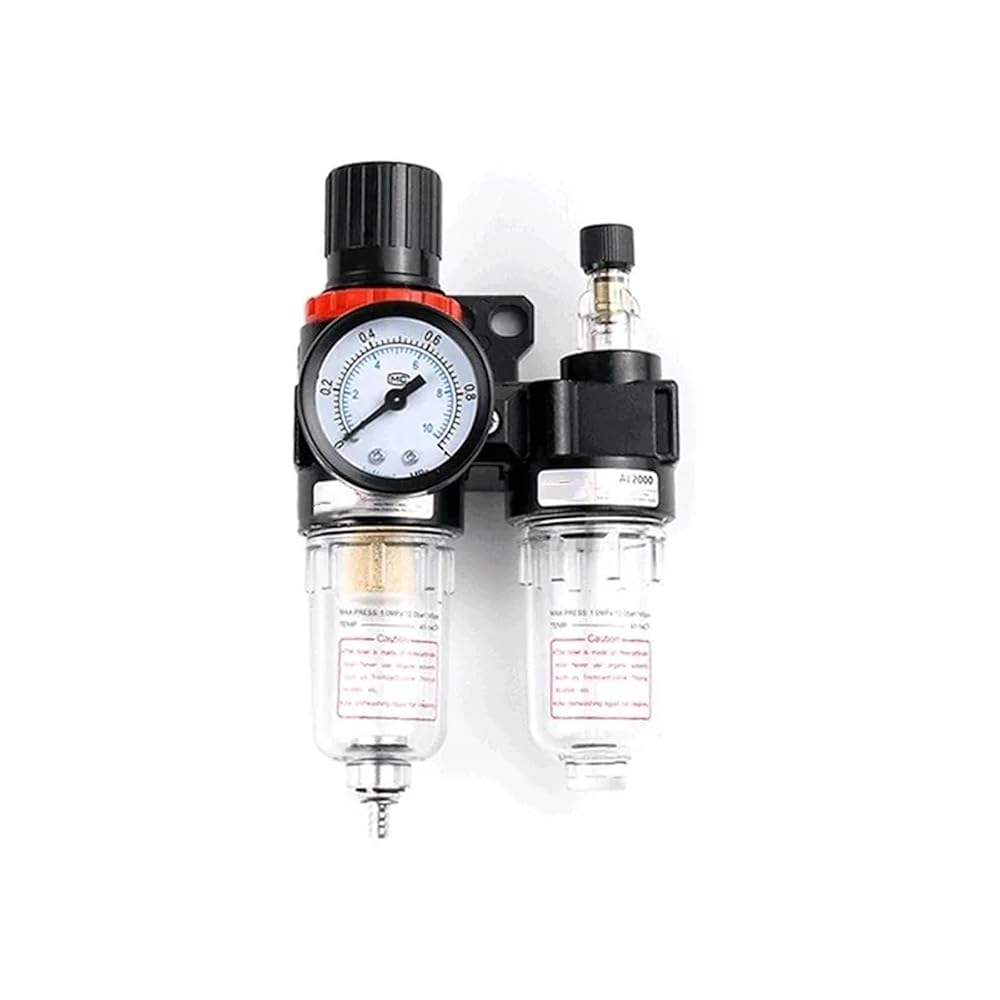

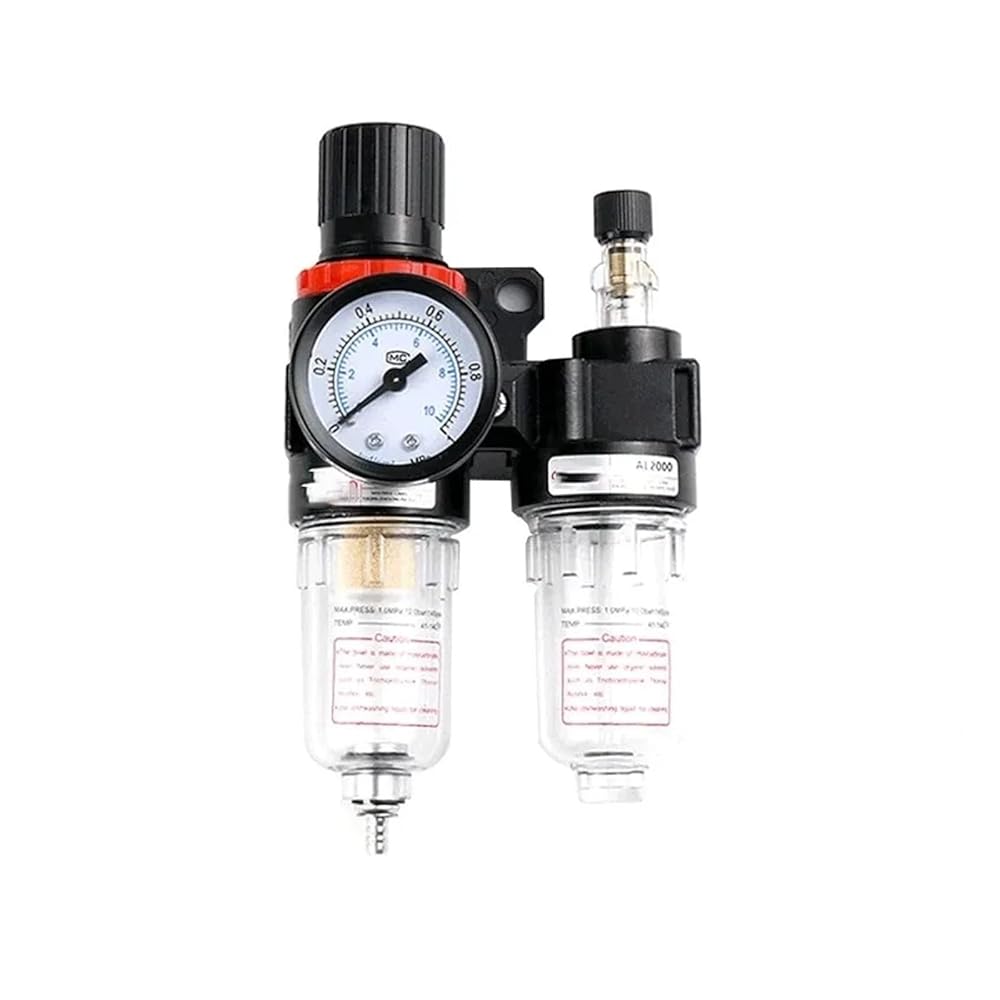

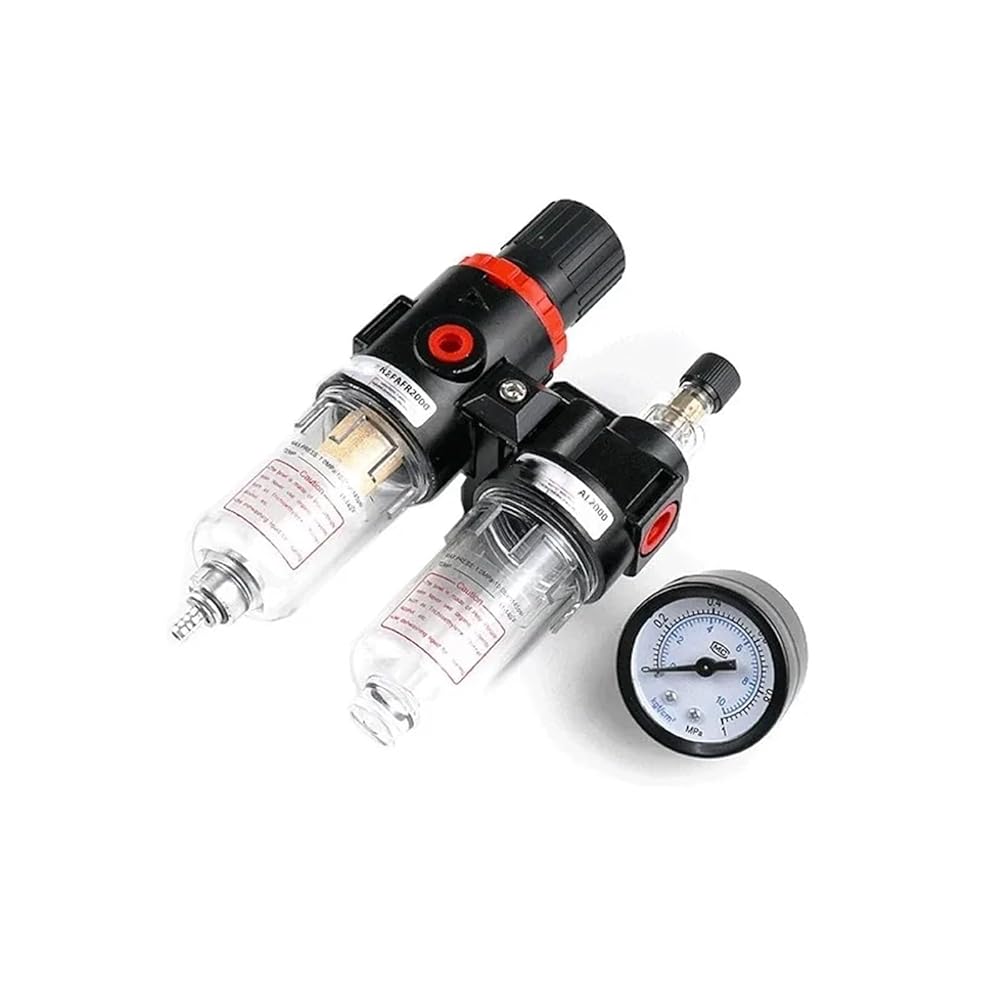

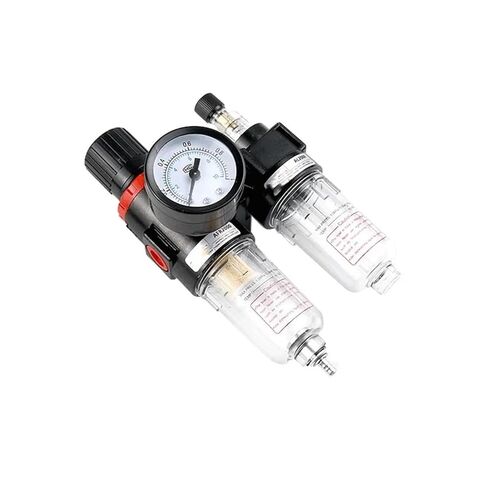

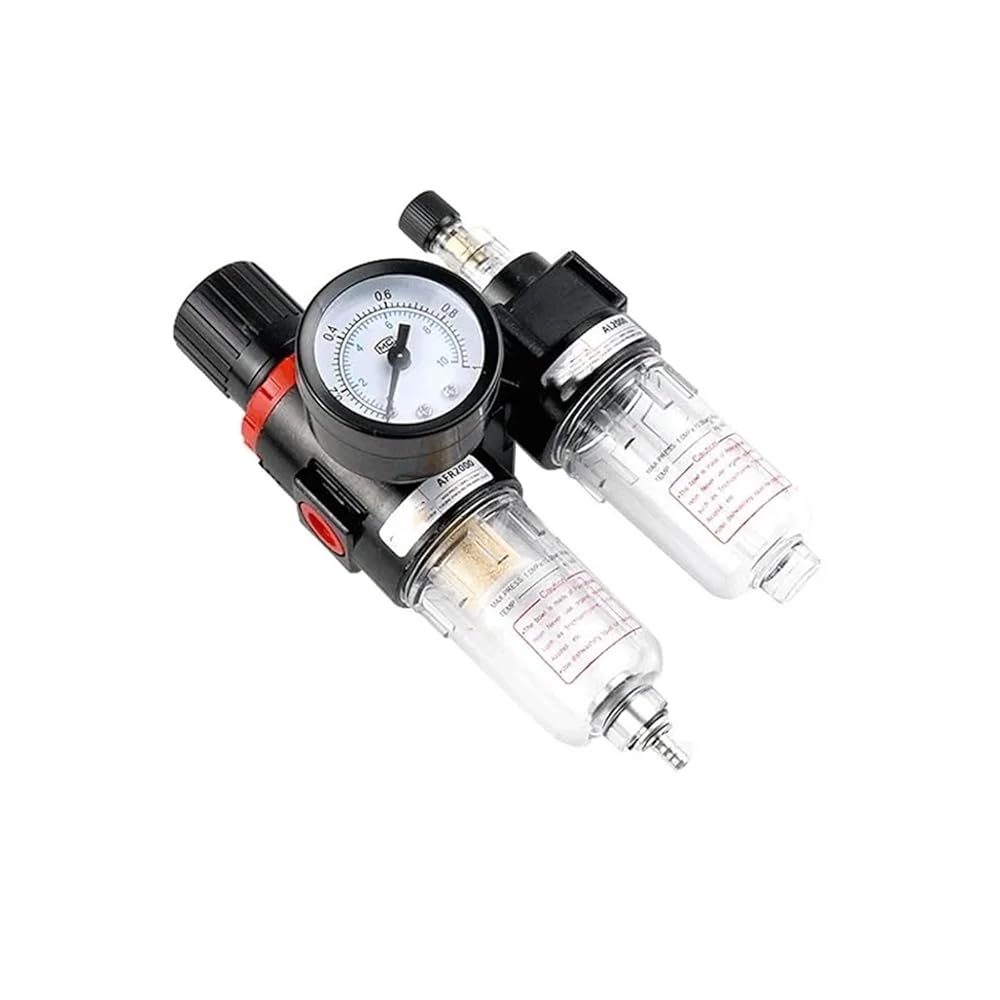

Filter, Regulator & Lubricator Combos
Specification:
Material: Metal, Plastic
Working fluid: Air
Connection pipe hole: 1/4"
Filter accuracy: 40m
Adjustable pressure range: 0.5-8.5Kgf/cm2
Max. adjustable pressure: 134PSI/9.9kgf/cm2
Pressure range: 0~1.0MPa (manual drainage: 0-9.5kgf/cm2, differential pressure drainage: 1.5-9.5kgf/cm2)
Working temperature range: 5-60 degrees
Pressure gauge caliber: G1/8
Water filter capacity: 15cc
Oil delivery cup capacity: 25cc

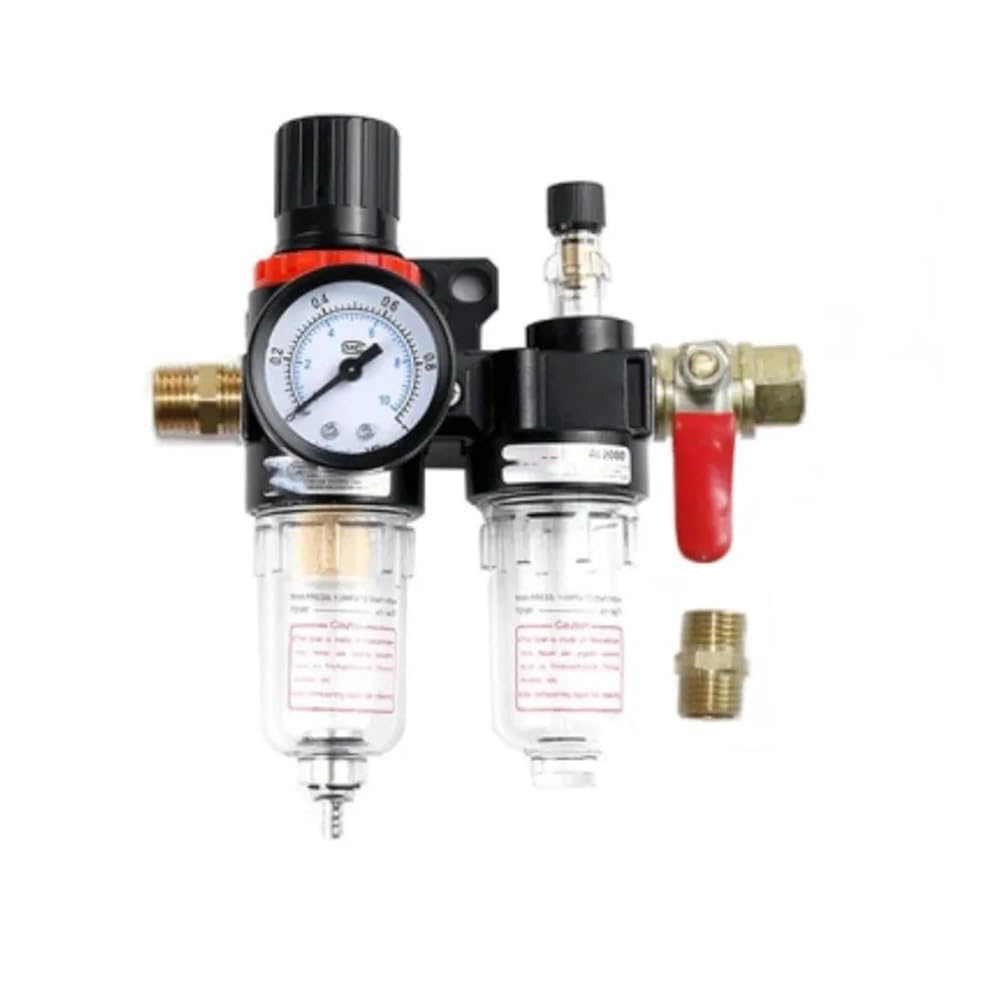

packing list:
1 * Check valve
2 * Adapter
notes:
1. Due to the different monitor and light effects, the actual color of the product may be slightly different from the color shown on the pictures. Thank you!
2. Please allow 1-3mm measurement deviation due to manual measurement.
packing list:
1 * Check valve
2 * Adapter
==========
Type: Source Processing Unit
Model: AFC2000
Origin: Mainland China
