Filter, Regulator & Lubricator Combos
The O-rings could not compress, causing the filter to squeeze against the housing, which caused the leak. The O-rings were of excellent quality.
Drain or replace element depending on fuel contamination level. Check water level in water collection bowl daily and repair as needed. Replace element at least once a year or when loss of power is noticed.
drain
1. Loosen the self-venting drain and drain the water from the bowl into a container.
2. Tighten the drain hose.
3. Use the filler ball to fill the filter with fuel.
4. Start the engine and check to make sure there are no leaks.

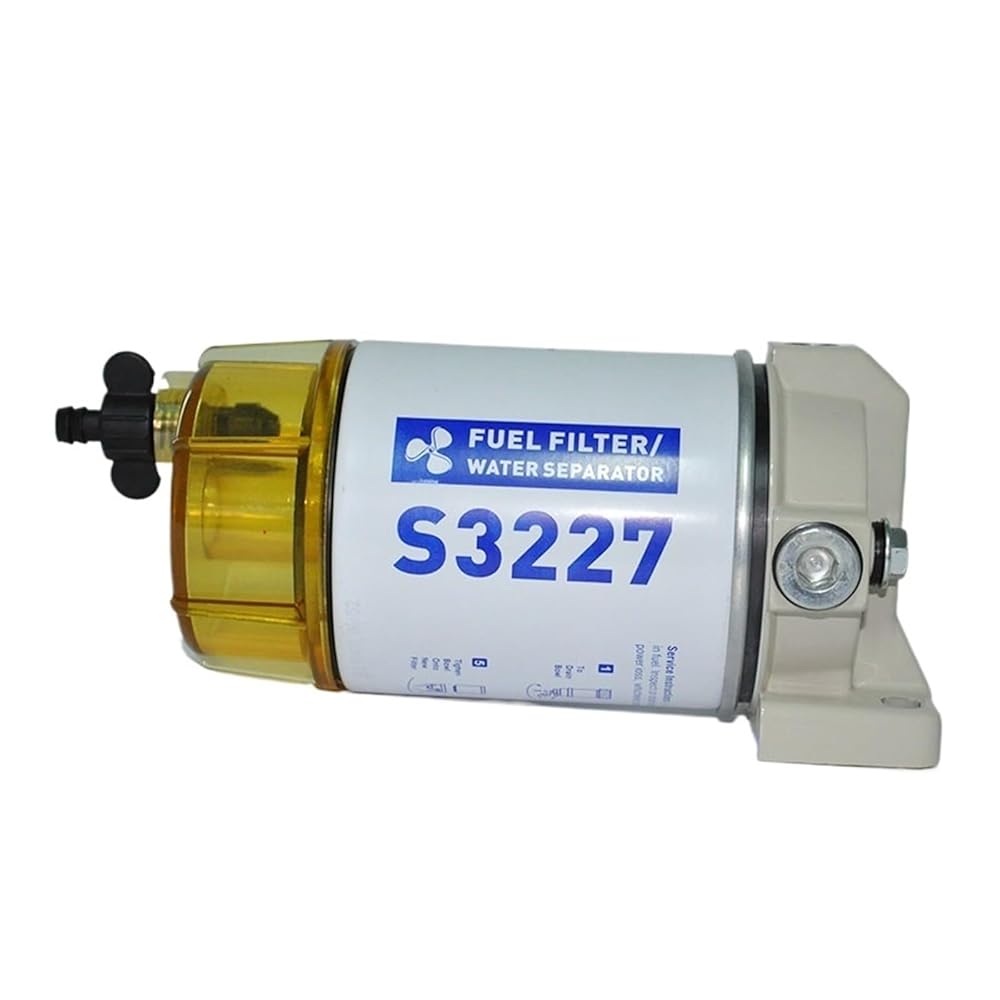

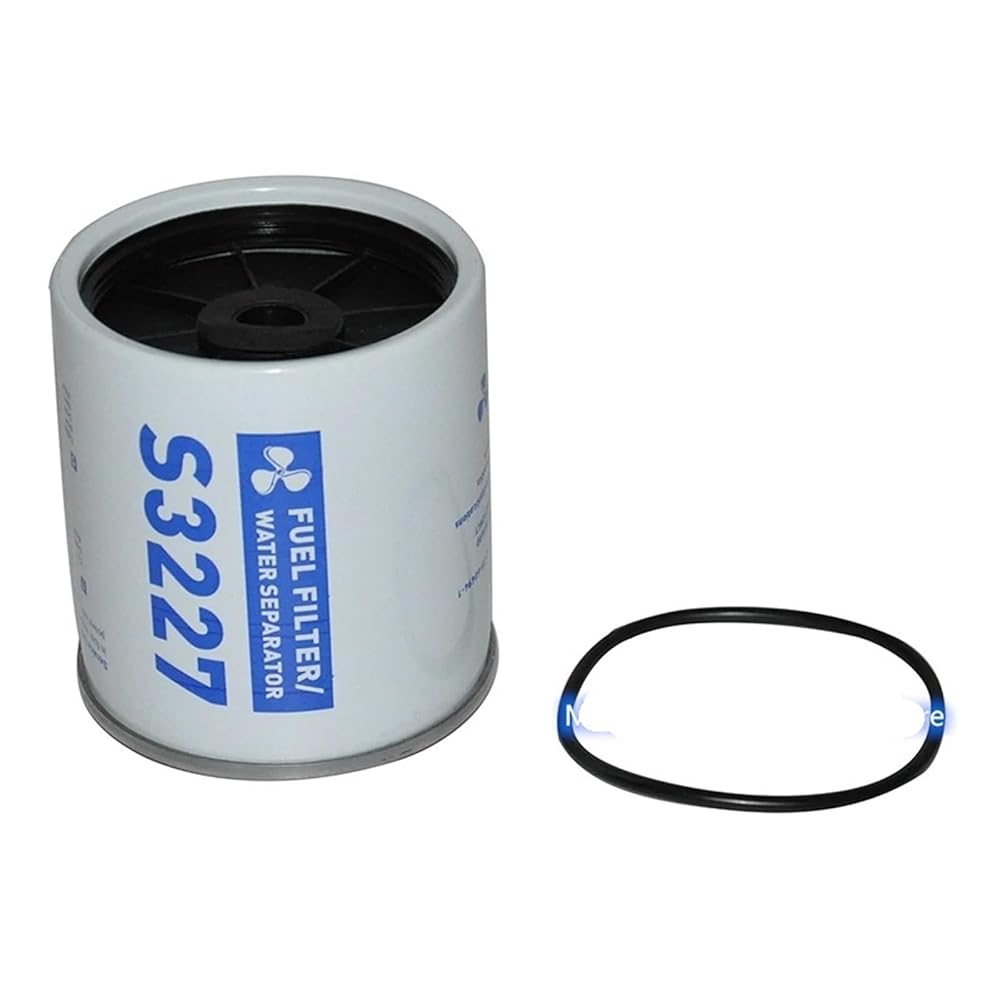

Category: Oil-water separator
Element Type: 10 micron
Thread Type: 1"-14
Connection Type: 3.125" Female Bottom Thread
Model: S3227
Size: 97*104mm
Applicable to: Ships and yachts
Tank material: iron plate
Filter paper: oil-water separation filter paper
Sealing ring: nitrile rubber

Other Part Number: S3227
Installation location on the vehicle: Oil-water separator
Country/Region of Manufacture: CN
Interchange Part Number: S3227
Special features: Filter elements
Material Type: Aluminum
Product weight: 200G
Product height: 11 cm
Product width: 10cm
Product length: 11 cm
Manufacturer Part Number: S3227
Origin: Mainland China
OEM number:s3227
Code: P012003008
