مميزات خاصة

🔑 Secure Key-Operated Control – DPDT (Double Pole Double Throw) switch with removable key for added safety and restricted access.
⚡High Current Capacity – Rated at 5A 250VAC / 28VDC, suitable for heavy-duty electrical applications.
6 Pin DPDT 2NO-2NC 3 Positions Latching Keylock Switch Systems with smooth key rotation.
🛠️ Durable Build – Nickel-plated metal housing with threaded mounting design for firm panel installation.
🧰 Wide Application – Ideal for industrial control panels, vending machines, elevators, and security access systems.
🔩 Easy Installation – Comes with mounting nut and washer and 2 keys; compact size fits standard panel cutouts.
IP65 protection rating, which means it is: Dust-proof: Completely protected against dust ingress Water-resistant: Protected against water jets from any direction

وصف

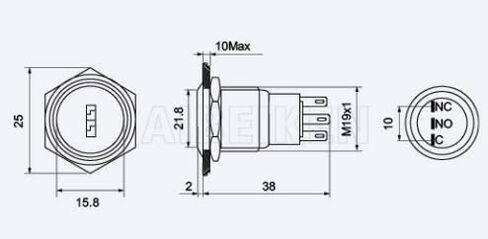

: 22mm
Mounting hole size: 0.75" (19mm)
Switch combination: 3 Position,2NO 2NC DPDT
Switch rating: 5A/250VAC
Head shape: Round Cap
Protection level: IP54

Key Switch, DPDT, 5 A This DPDT Key Lock Switch provides a secure and reliable solution for controlling power or circuit selection in your equipment. Built with a sturdy nickel-plated housing and rated for 5A at 250VAC/28VDC, it ensures long-lasting performance in demanding environments. operation adds an extra layer of security, preventing unauthorized use. Compact and easy to install with a standard 19mm panel cutout, this switch is ideal for industrial control panels, vending machines, arcade systems, security access panels, and automation equipment. Each unit includes two removable keys for convenience and backup.

مرحبًا،

بحث

قفل مفتاح دوار مقاس 19 مم، 6 سنون DPDT 2NO-2NC 3 أوضاع (إغلاق) لتركيب اللوحة، ولوحات التحكم، ولوحات الوصول الآمنة، وآلات البيع، ولوحة التحكم الصناعية
