Globe Valves
Structure : Ball
Port Size : 1/2"(DN15), 3/4"(DN20), 1"(DN25), 1-1/4"(DN32),1-1/2"(DN40), 2"(DN50)
Material : Brass
Temperature of Media : 0-95
Standard or Nonstandard : Standard
Pressure : 1.6Mpa

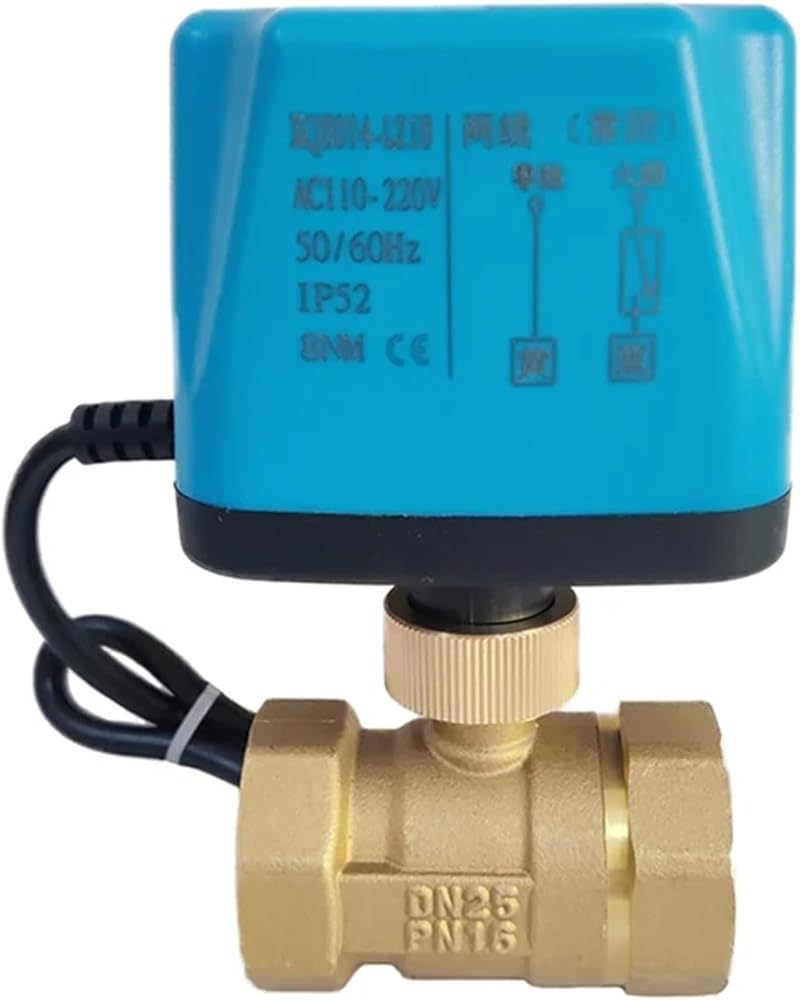

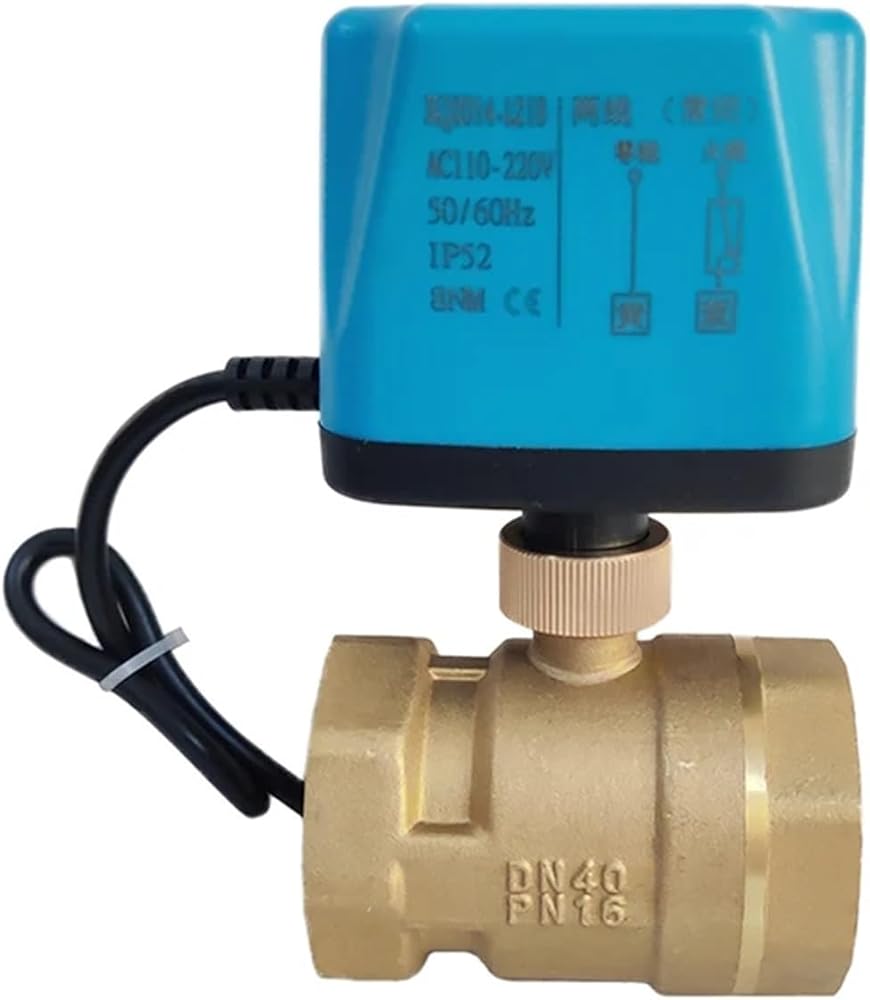

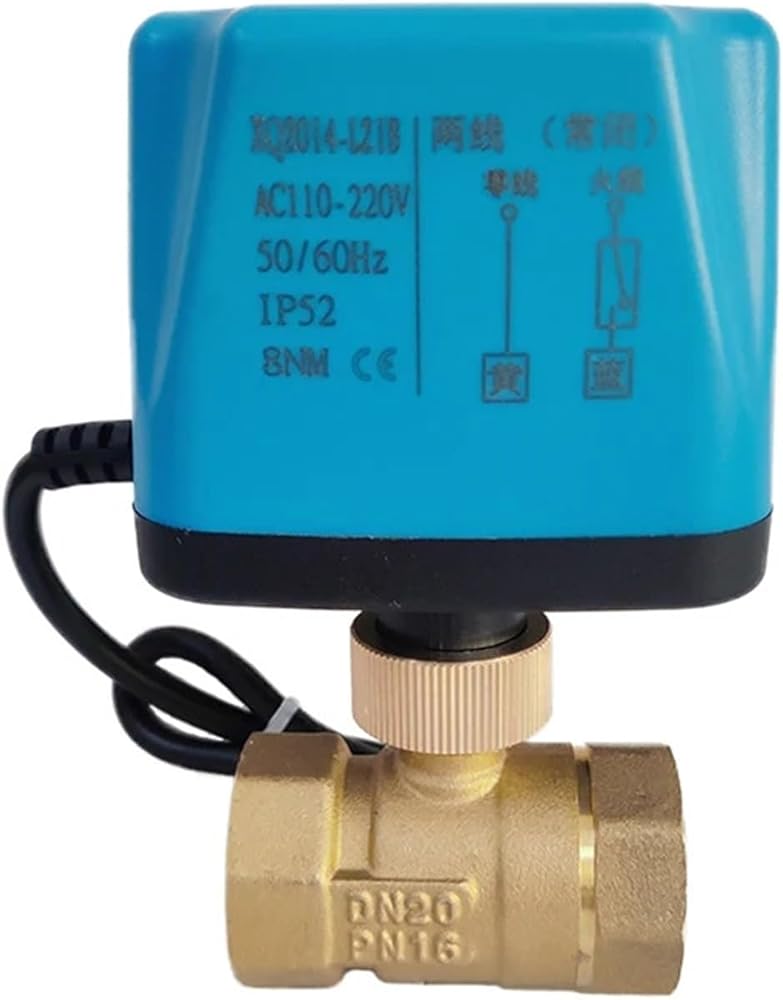

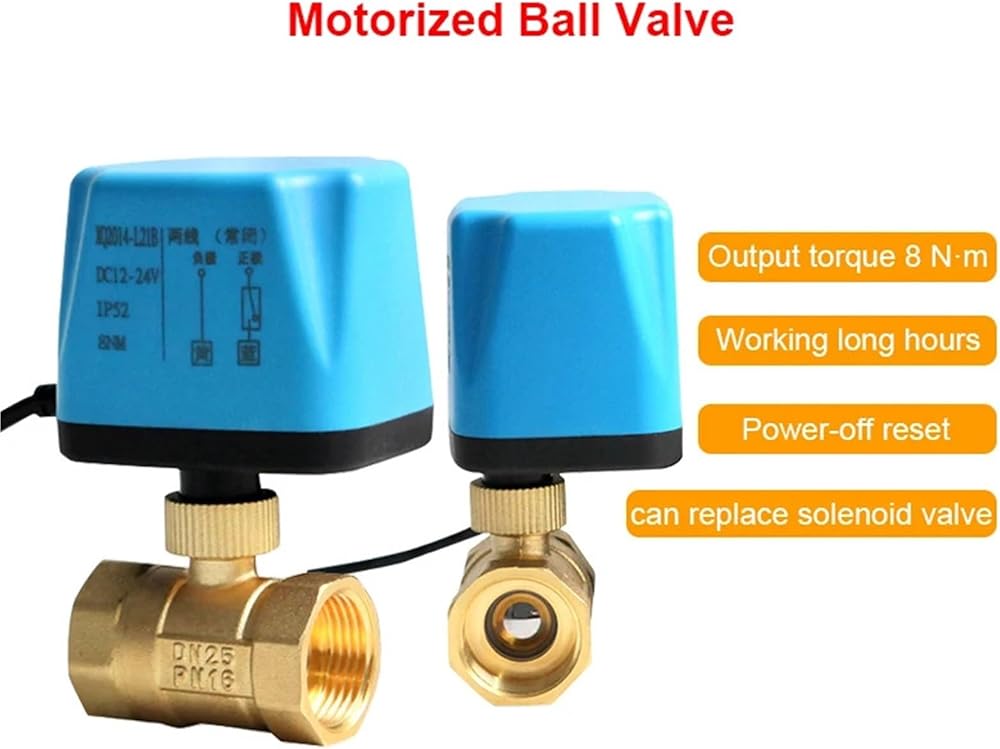

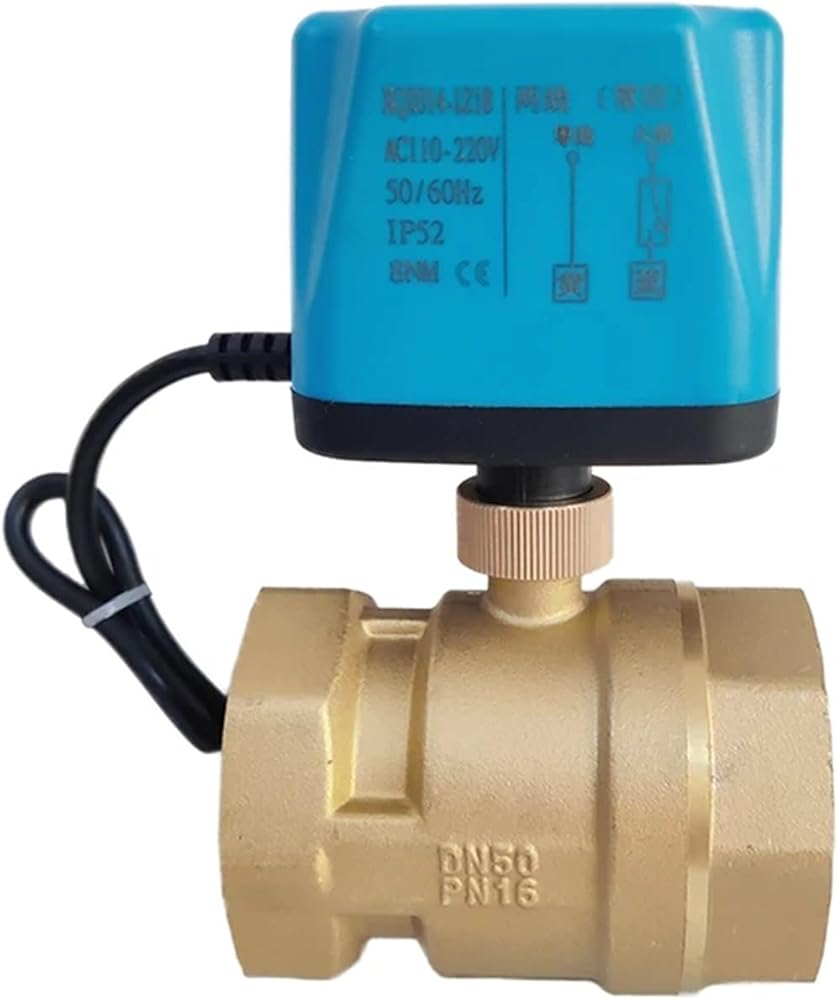

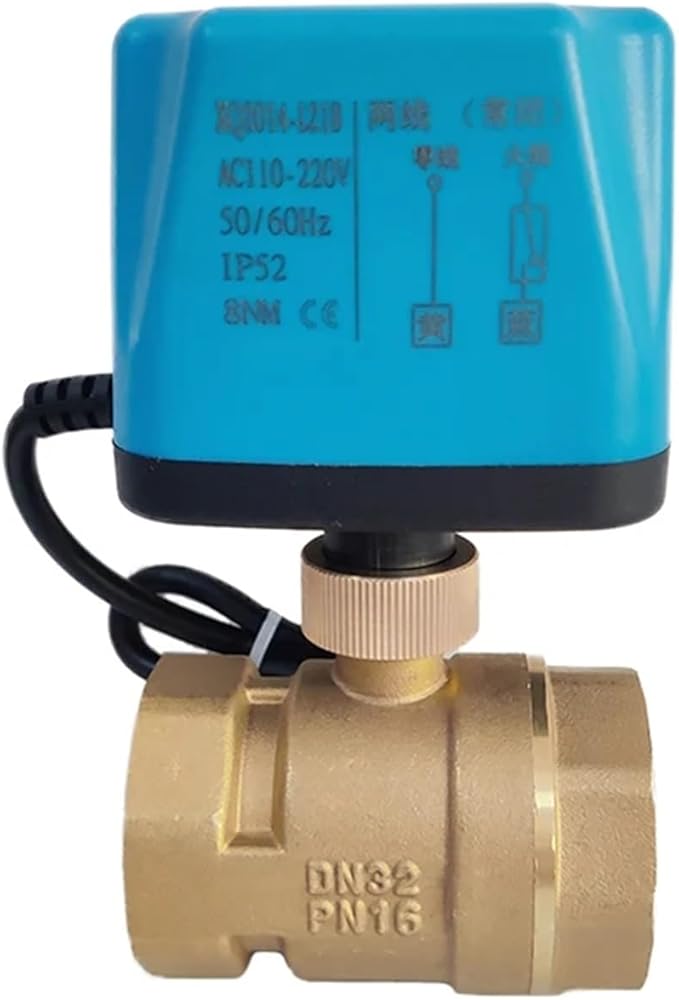

Model Number : Electric Ball Valve
Power Source : AC
Body material : Brass
Wiring mode : 2-Wire Power-off reset
Driving voltage : 220VAC,110VAC, 24VAC, 24VDC, 12VDC
Applicable medium temperature : 0-95
Power consumption : 6 W (only when the valve is opened and closed)
Action time : 5-15 S
Nominal Pressure : 1.6 Mpa
Lead length : 30 CM
Connection method : female thread
