Function: LRS-350 seriescan convert AC110V/220Vvoltage to DC5V/12V/15V/24V/36V/48Vvoltage.
Input AC110220V 5060Hz.
Output: 5VDC,12VDC,24VDC,36VDC,48VDC
Protections: overload/ over voltage/ short circuit.
Cooling by free air convection.
(Not suggest for use in bathroom)
Connection:
L, N: AC power input
GND: Ground wire
-V: power output "-"
+V: power output "+"
ADJ: Adjust the output voltage ±10%
Working Temperature: -20~70.
Storage Temperature: -40~85.
Ambient Humidity: 0~95% Non-Condensation
Built-in over voltage, over current, and short circuit protection
==========
Type : others
Rated Capacity : 40-1000VA(include40VA)
High-concerned chemical : None
Output Power : 301 - 400W
is_customized : Yes
Output Current : 0-100A

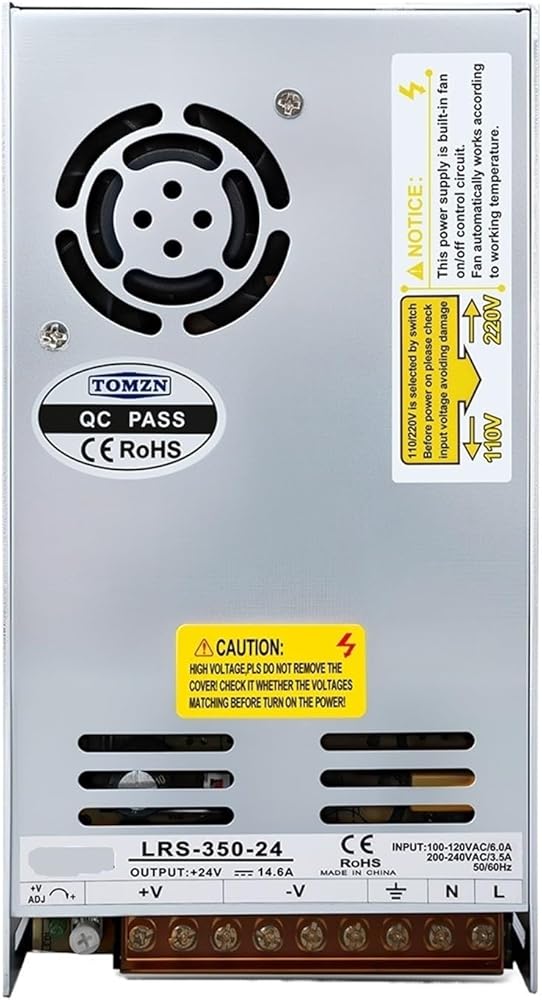

Model Number : LRS-350
Output Frequency : N
Output Type : SINGLE
Origin :
Size : 120*35*240
Weight : 0.64Kg/PCS
Protection : Short Circuit, Over load
adjustable : 10%
INPUT AC VOLTAGE : 110V, 220V,230V 50/60HZ for the whole world
