Globe Valves
Structure : Ball
Port Size : 1/2"(DN15), 3/4"(DN20), 1"(DN25), 1-1/4"(DN32),1-1/2"(DN40), 2"(DN50)
Material : Brass/Stainless steel
Temperature of Media : -10-100
Standard or Nonstandard : Standard
Pressure : 1.6 MPa

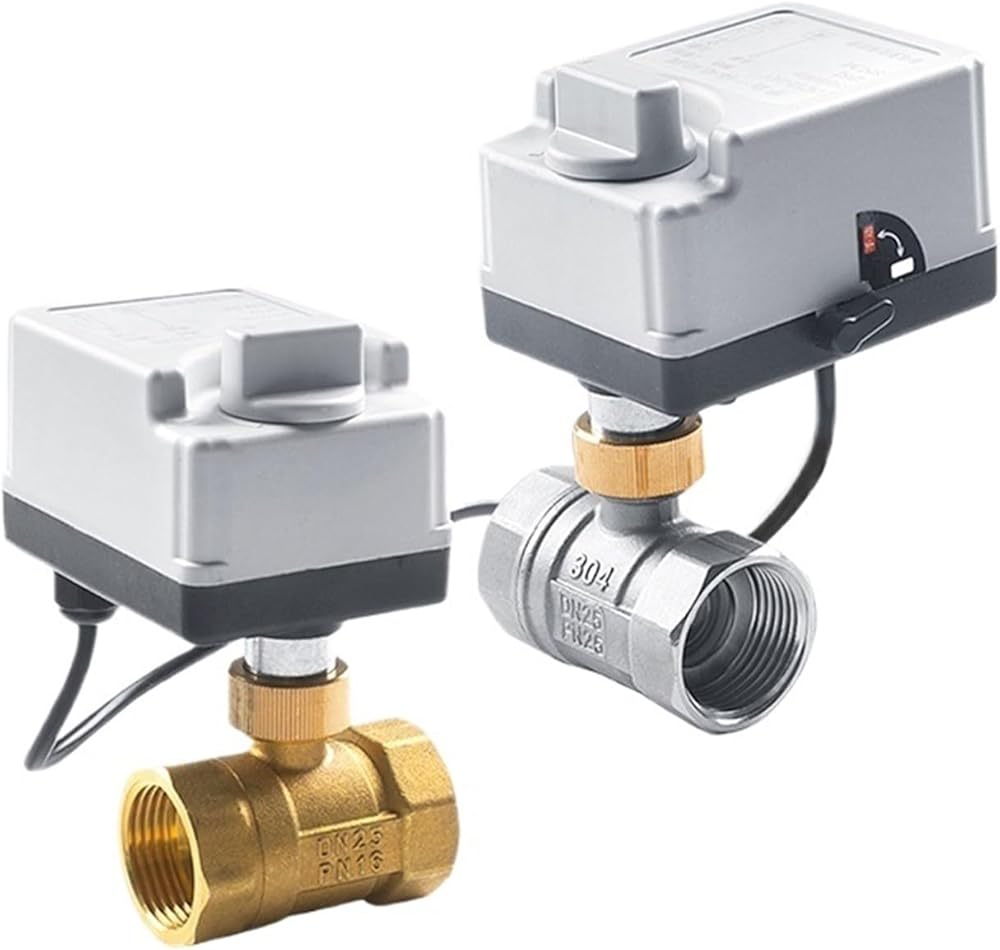

Model Number : Brass Electric Ball Valve
Power Source : AC
Body material : Brass/Stainless steel
Wiring mode : Three-Wire two-control Three-Wire one-control
Structure Forms : Two Ways
Driving voltage : 220VAC, 24VDC, 12VDC
Power consumption : 6 W (only when the valve is opened and closed)
Applicable medium temperature : -10-100
Action time : 5-15 S
Nominal Pressure : 1.6 Mpa
Lead length : 30 CM
Connection method : G female thread
