Filter Valves
SpecificationPower Supply: AC220V/DC12V/DC24V
Operation Mode: Three Wire Two Ways Control/Three-wire One Control mode/2-wire, (power-off reset mode)Power: 6W (Only when the valves open and close)
Running Time: 5-15 Seconds
Torque:220V 8 N.M, DC12/24V 6 N.M

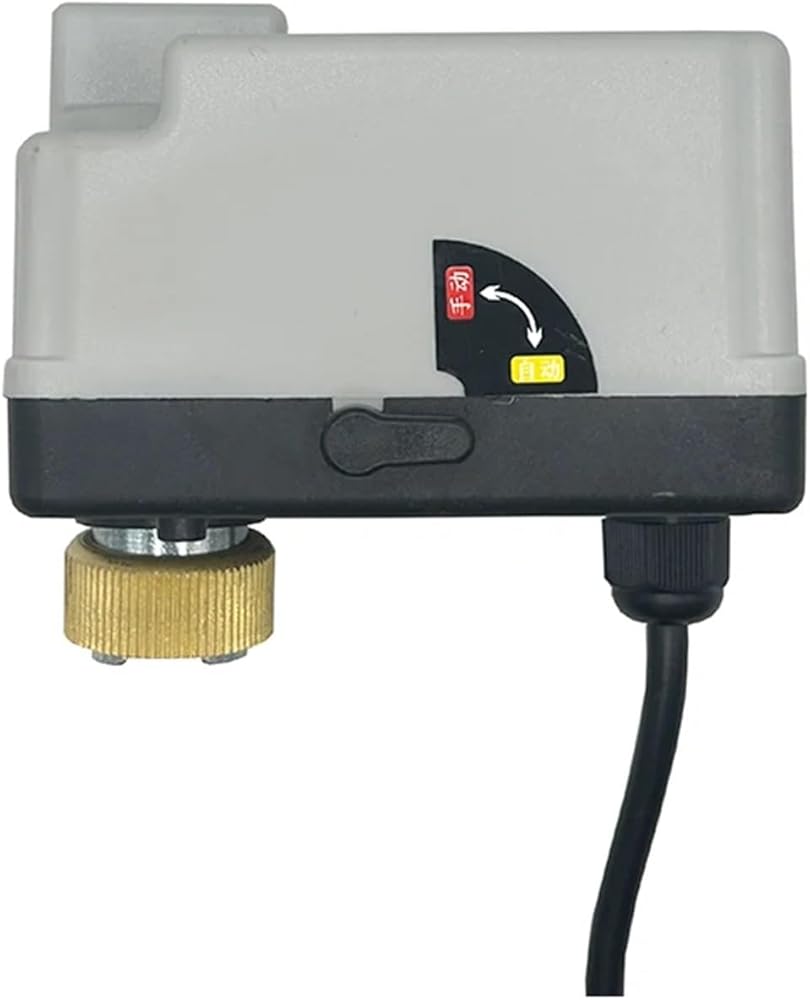

Package list:1PC* Actuator
CR02: 3-wire, (three-wire two-control mode) wiring diagram
Voltage: AC220V, DC12V, DC24V
1. The SW is connected with OPEN, the valve is opened, and the internal power is automatically cut off when it is in place, and the valve remains in the open state.
2. The SW is connected with CLOSE, the valve is closed, and the internal power is automatically cut off when it is in place, and the valve is kept in the closed state.
