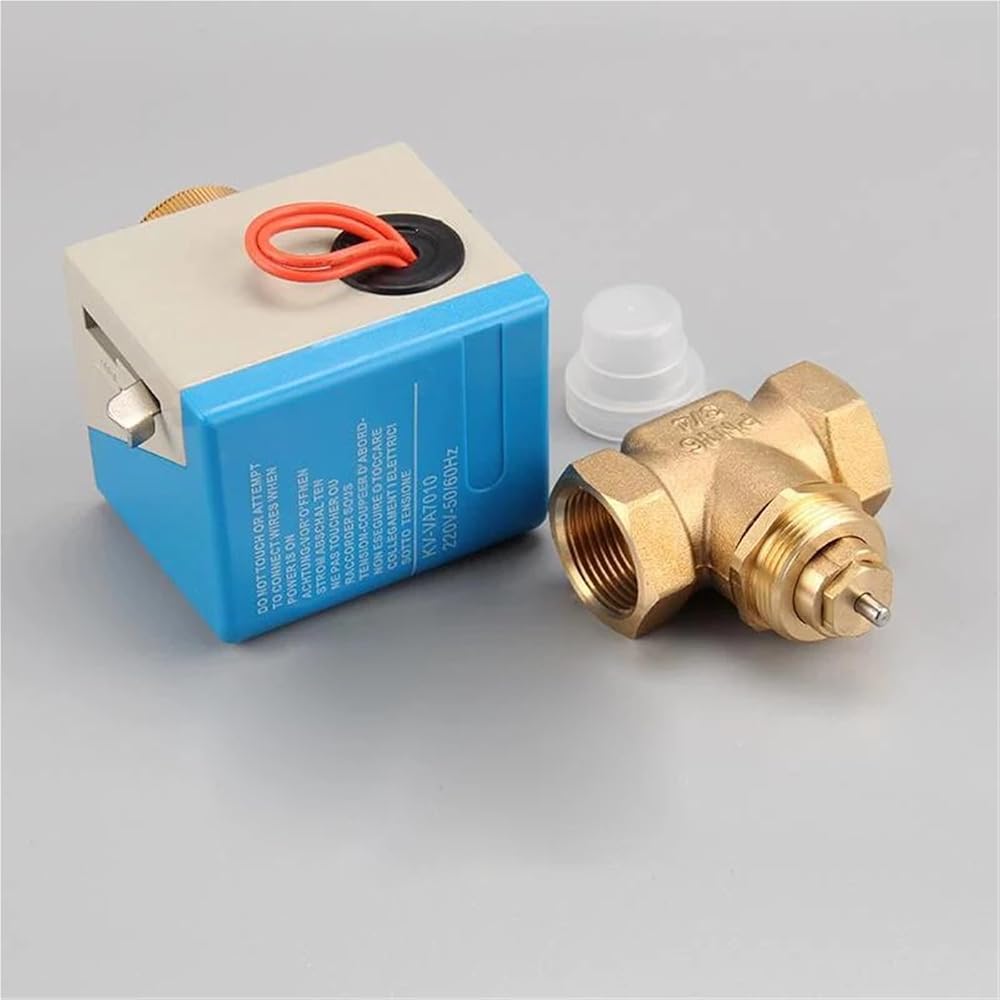

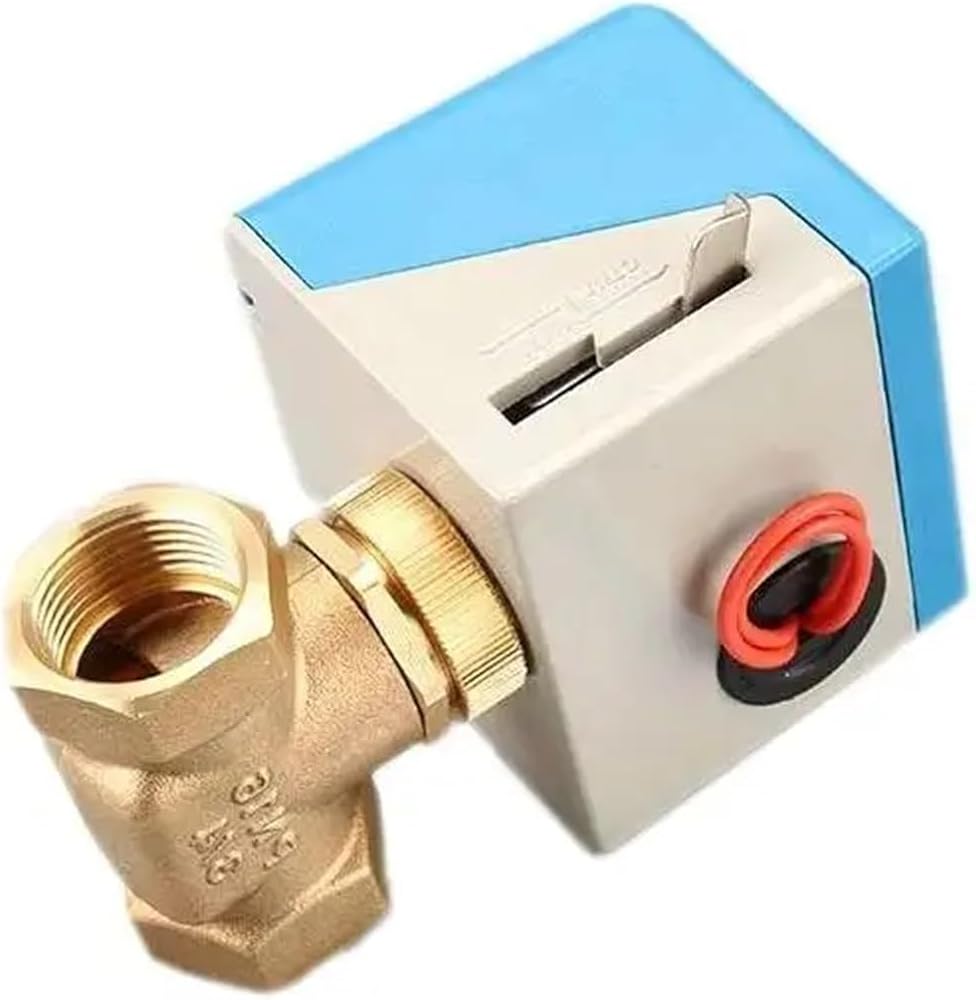

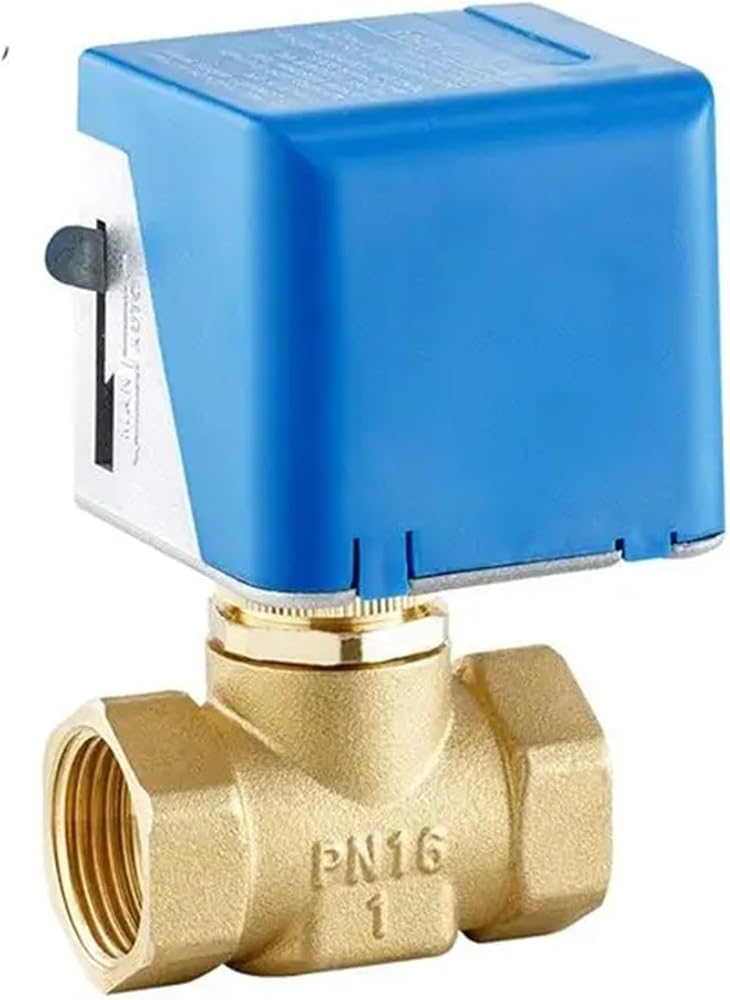

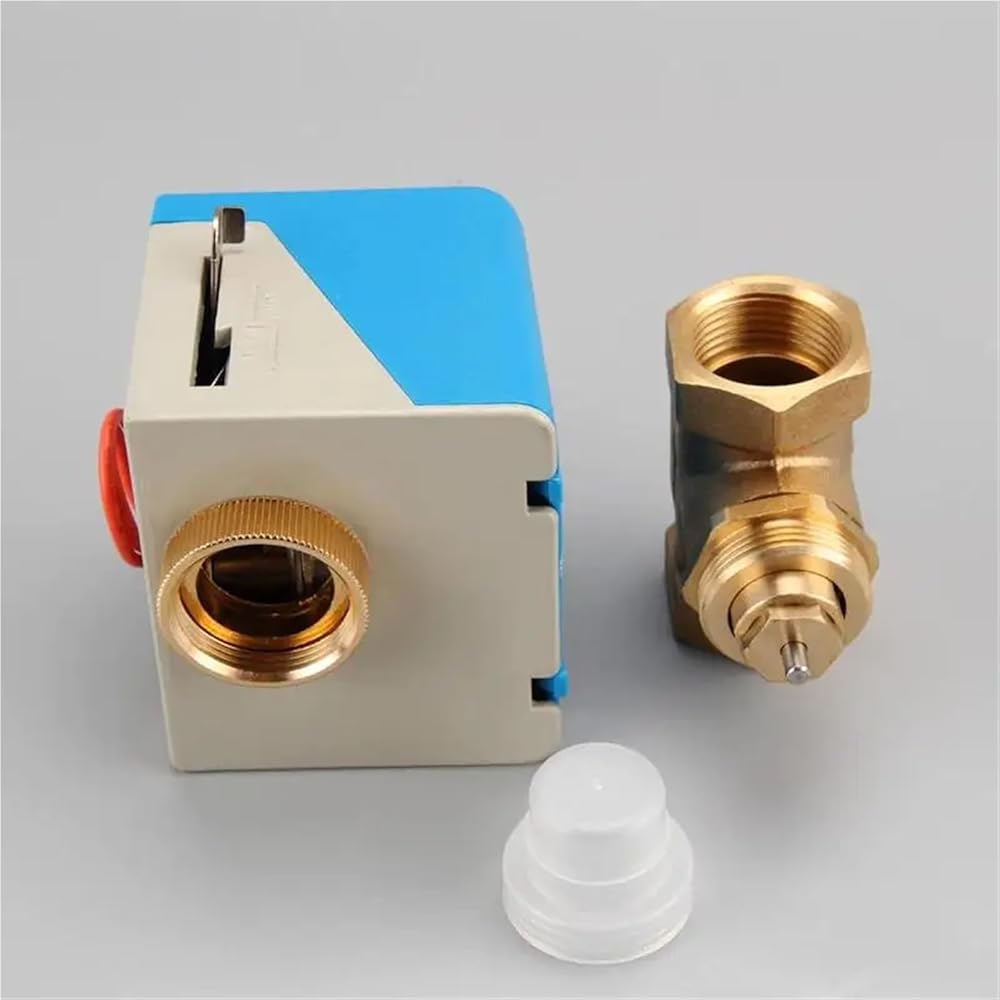

Filter Valves
Body valve: Brass(forging)
Valve stem: stainless steel
Material of seal: silicone rubber
the drive chassis: die casting aluminum alloy
Drive cover : Flame retardant ABS engineering plastics
Driving motor :hysteresis synchronous motor
The drive voltage :AC220V, 50HZ/60HZ
Power consumption:7.5 VA
The valve body pressure::1.6 mpa to allow pressure: s0.13 mpa
Media :cold water, hot water
Media temperature:2.95
Ambient temperature:0/60
Closing and opening time :opening time about 10 second, closing time about 5 second
The valve connect way: G internal pipe thread(
Trip(nominal valve): 4.0mm
