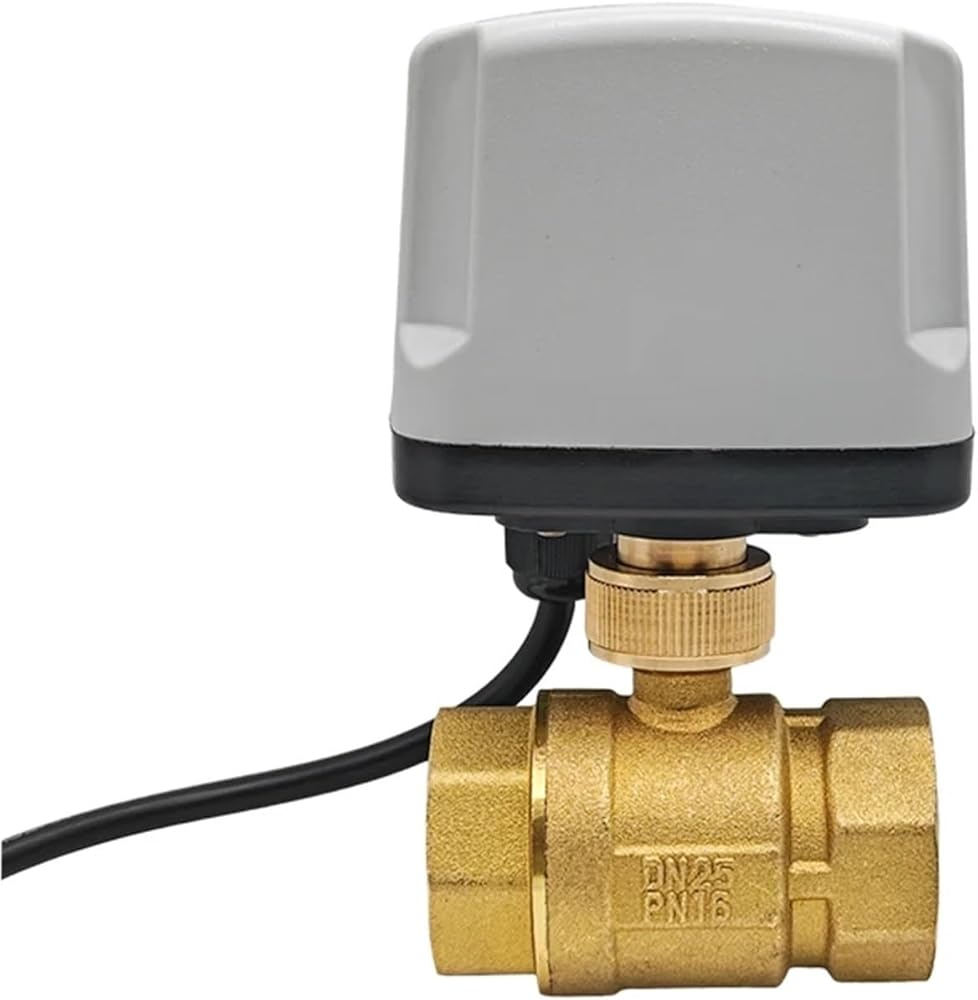

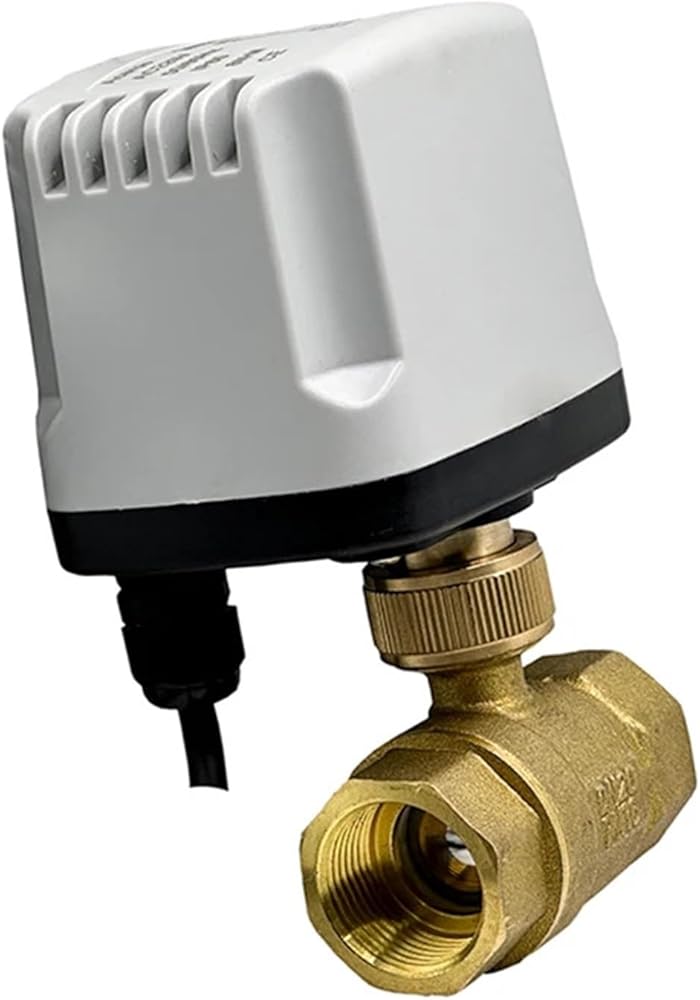

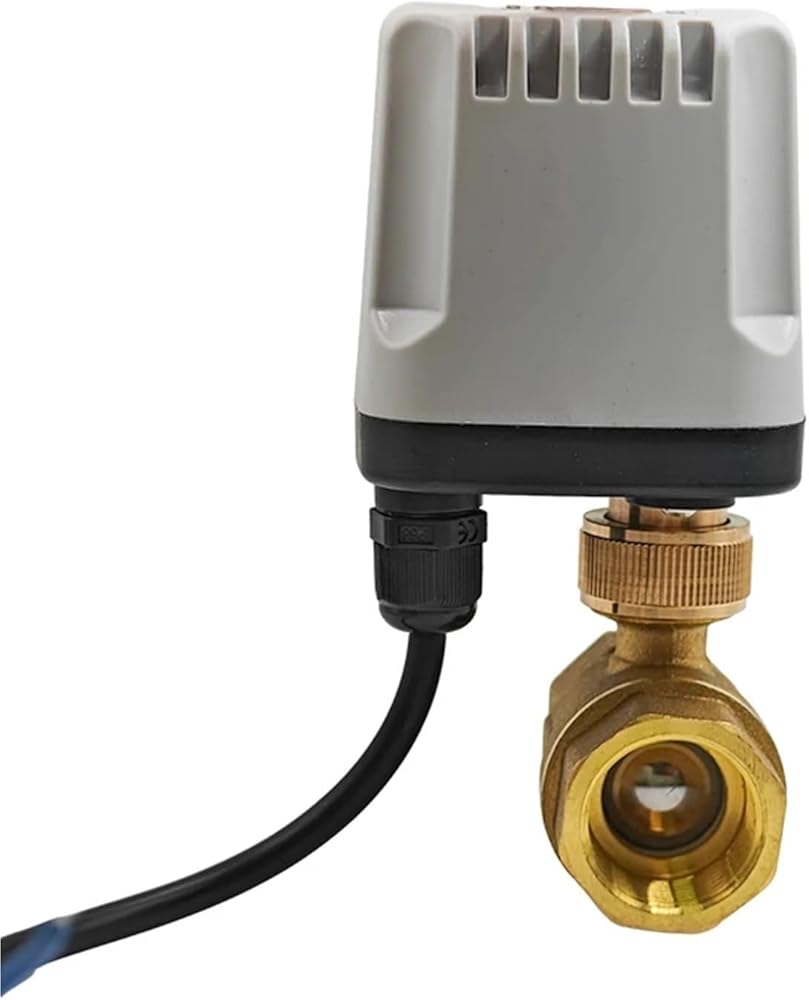

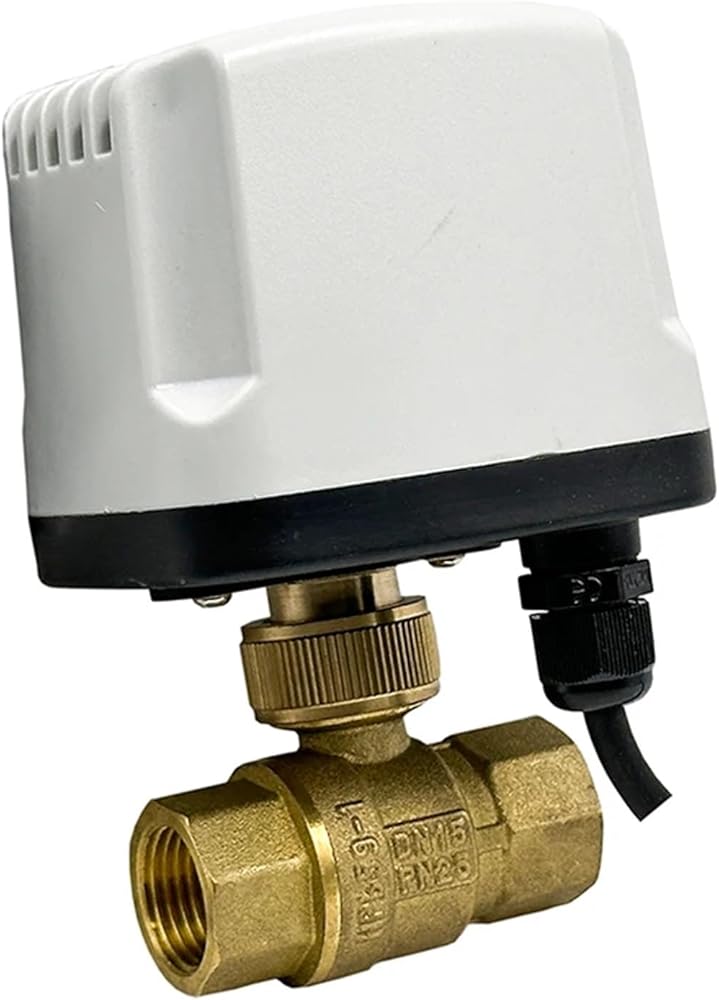

Filter Valves
Specification
Medium: Cold/hot water, 60% Ethylene Glycol
Material: Brass
Power Supply: AC220V/DC12V/DC24V
Structure Forms: Two Ways,
Operation Mode: CR02(Three Wire Two Ways Control) , CR03(Three-wire One Control mode), CR04(2-wire, power-off reset mode)
Power: 6W (Only when the valves open and close)
Running Time: 5-15 Seconds
Nominal Pressure: 1.6MPa
Medium Temperature: 2°~95°
Maximum Differential Pressure: 1.0MPa
Connection Mode: G Internal Thread
Torque:220V 8 N.M, DC12/24V 6 N.M
Package list:1PC* Ball Valve
Structure : Ball
Port Size : 1/2" 3/4" 1"
Media : Water
Material : BRASS
Power Source : AC
Power : 6W
Power Supply : AC220V, DC12V, DC24V
Structure Forms : 2 Way
Medium Temperature : -2°~95°
Max Pressure : 1.6Mpa
