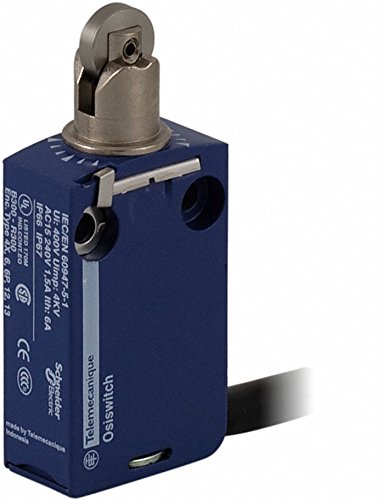

This miniature limit switch features steel roller construction and zinc body construction. Use in packaging, materials handling, conveying, machining, and food and beverage handling.

Limit Switch Style: General Purpose Limit Switch
Basic Actuator Style - Limit Switch: Plunger
Actuator Style - Limit Switch: Plunger, Roller
Actuator Location - Limit Switch: Top
Item: General Purpose Limit Switch
AC Contact Rating - Limit Switch: 6A @ 240V
DC Contact Rating - Limit Switch: 6A @ 240V
Contact Form- Switches: 1NC/1NO
Actuator Length - Limit Switch: 0.80"
Body Height - Limit Switch: 1.97"
Body Width - Limit Switch: 1.18"
Body Depth - Limit Switch: 0.63"
Boot Sealed Actuator - Limit Switch: No
Threaded for Panel Mounting - Limit Switch: No
Body Style - Limit Switch: Miniature
NEMA Rating: 1, 2, 4, 6, 6P, 12, 13
Wiring Entry: Plug-In Cable
Electrical Connection: 1m Cable, 5 Wire
IP Rating: 68
Movement: Horizontal
Travel: 0.31"
Series: XCMD
Operating Temp. Range: -13 Degrees to 158 Degrees F
Roller Material: Steel
Roller Dia.: 0.46"
Roller Width: 0.14"
Body Material: Zinc
Arm Material: Metal
Operating Force: 1.60 in.-lb.
Standards: UL, CSA, CE
