DR-60-18 Din Rail type Switching power supply 60W 18VDC 3A Output for led light
Features:
High efficiency, high reliability and low cost
Switch input voltage range choice
full load and machine test
Protection characteristics: short circuit/overload
Air cooling
Specificate:
Size:78×93×56mm
WALT: 60W
output voltage :18v
Model
DR-60-12
DR-60-18
DR-60-24
Output
output Voltage
12V
18V
24V
Voltage tolerance
±1.0%
±1.0%
±1.0%
Rated Current
5A
3A
2.5A
Related Power
60w
60w
60w
Wave&Noise
80mVpp
100mVpp
100mVpp
Adjustable range for Voltage
10
10
±10%
Set up,rise,hold up time
800ms 600ms 50ms
Input
Voltage Range
85 ~ 264VAC 47-63HZ 120-370VDC
Input Current
1.5A/115VAC 0.5A/230VAC
Efficiency
77%
77%
82%
AC inrush current
Cold start current 15A/115V 30A /230VAC
Leakage current
Protection
Overload
Related output power 105-135% start overload protection
Protection type: cutoff output, recovery after restart power
Over voltage
13.8V-16.2V
17.2V-20.2V
27.6V-32.4V
Hiccup mode,recovers automatically after fault condition
Environment
Working temp humidity
-10~+60°C 20%~90%RH
Stor temp, humidity
-20~+85°C 20%~90%RH Non-condensing
Safety
Withstand voltage
I/P-O/P:1.5KVAC 1min
I/P-FG:1.5KVAC 1min
O/P-FG:0.5KVAC 1min
Standard
Safety standard
Fit UL1012
Refer
Design refer to GB4943,UL60950,EN60950
EMC standard
Design refer to GB9254,EN55022 Class A
Size
size
L99*W97*H35mm
Package
0.4kg, 40 pcs/16kg
Note:1.All parameters not specially mentioned are measured at 230VAC input, related load and 25 f ambient temperature.2.Wave&noise are measured at 20MHz of bandwidth by using a 12 twisted pairwire terminated with a 01uf47uf parallel capacitor3Tolerance includes set up tolerance line regulation and load regulation

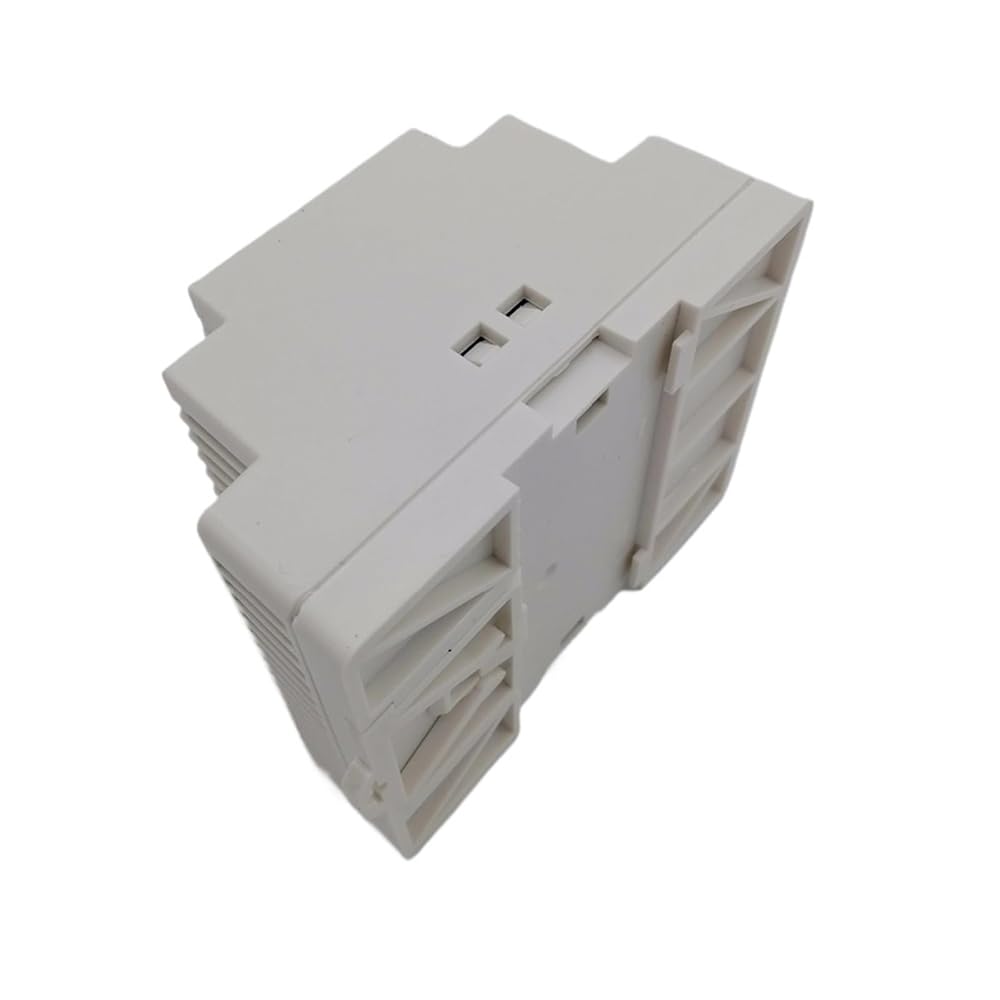

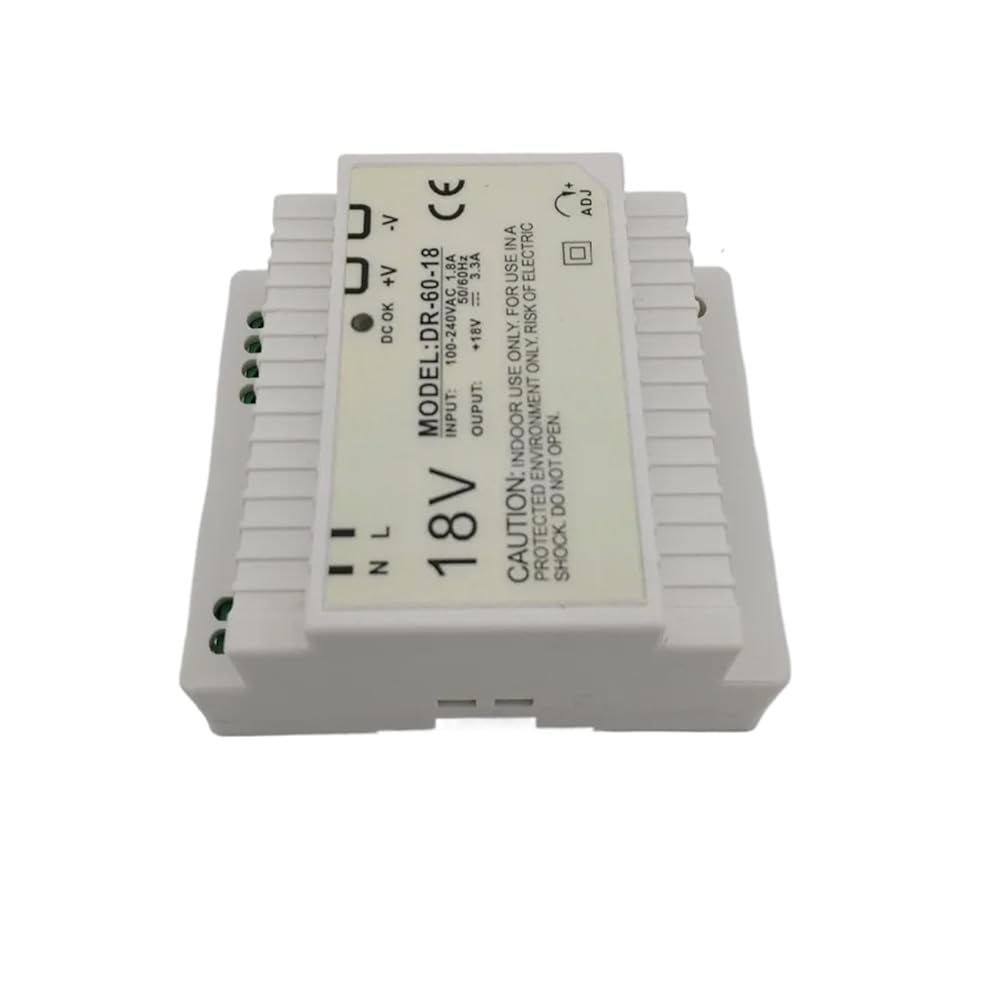

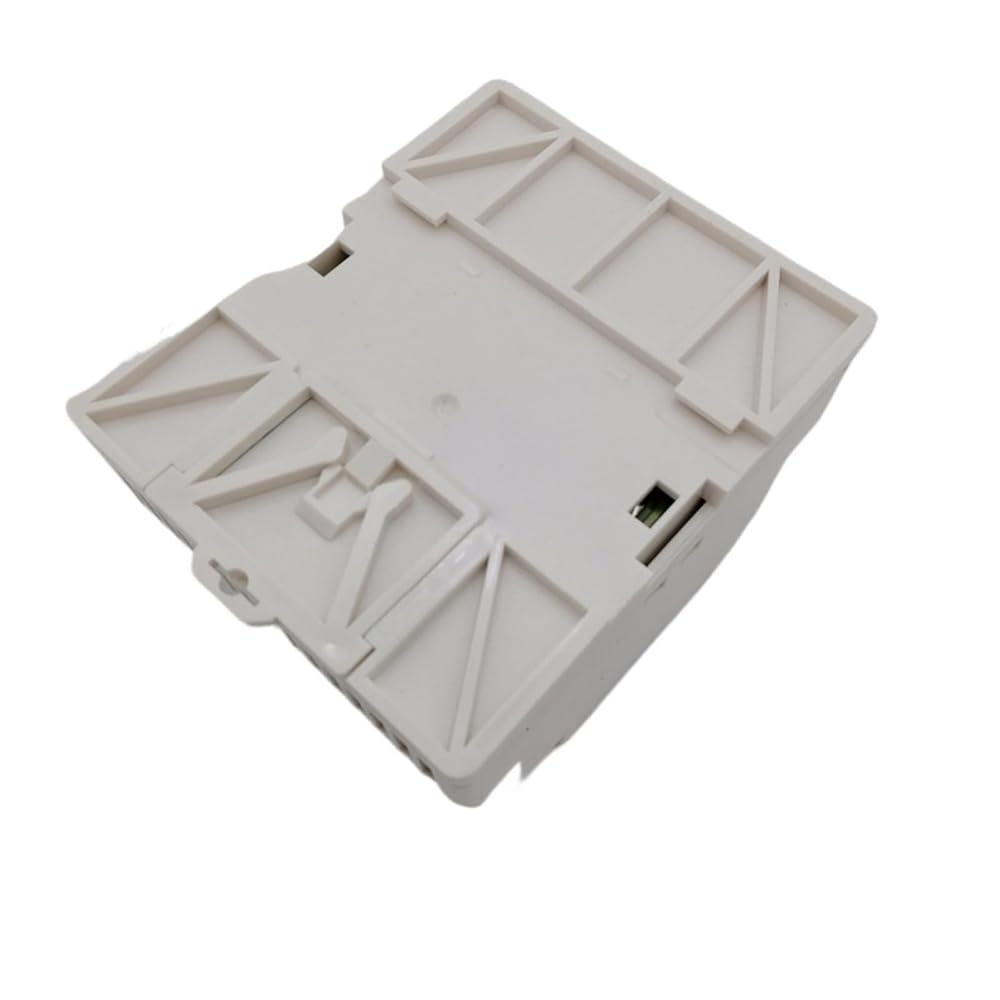

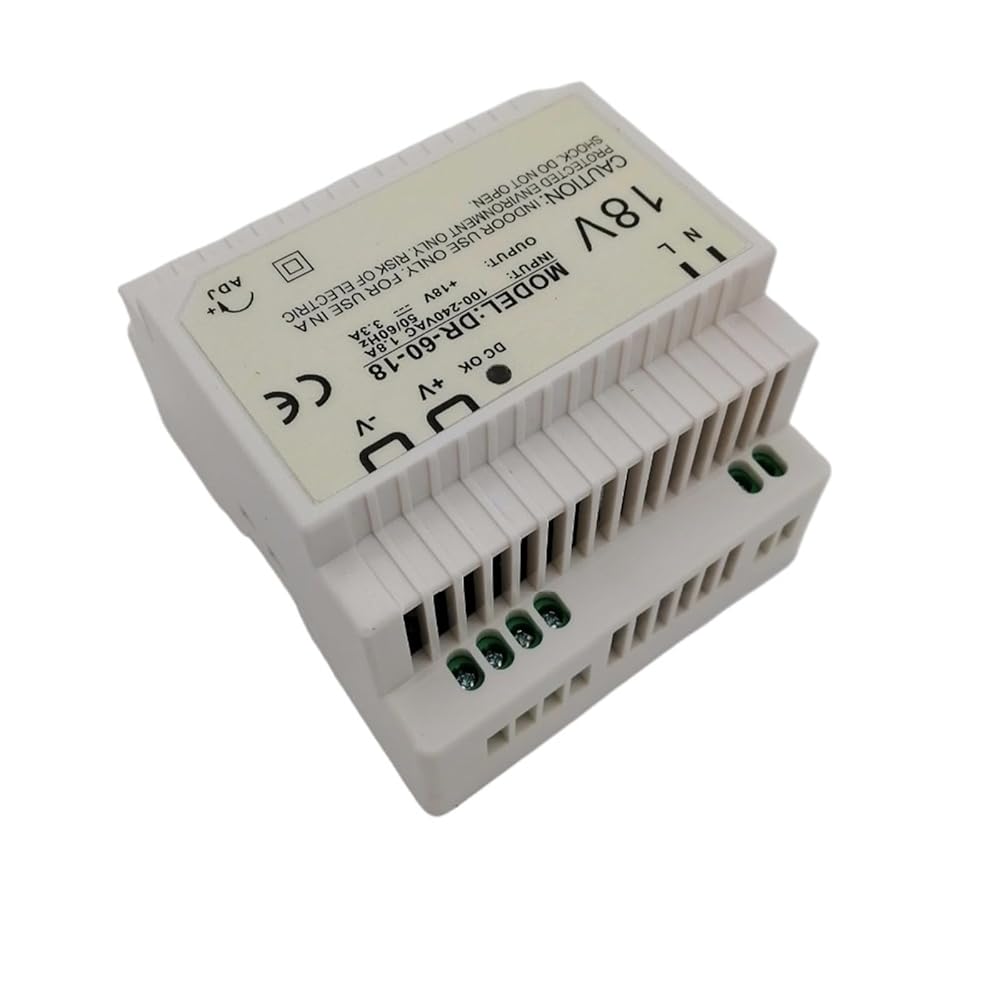

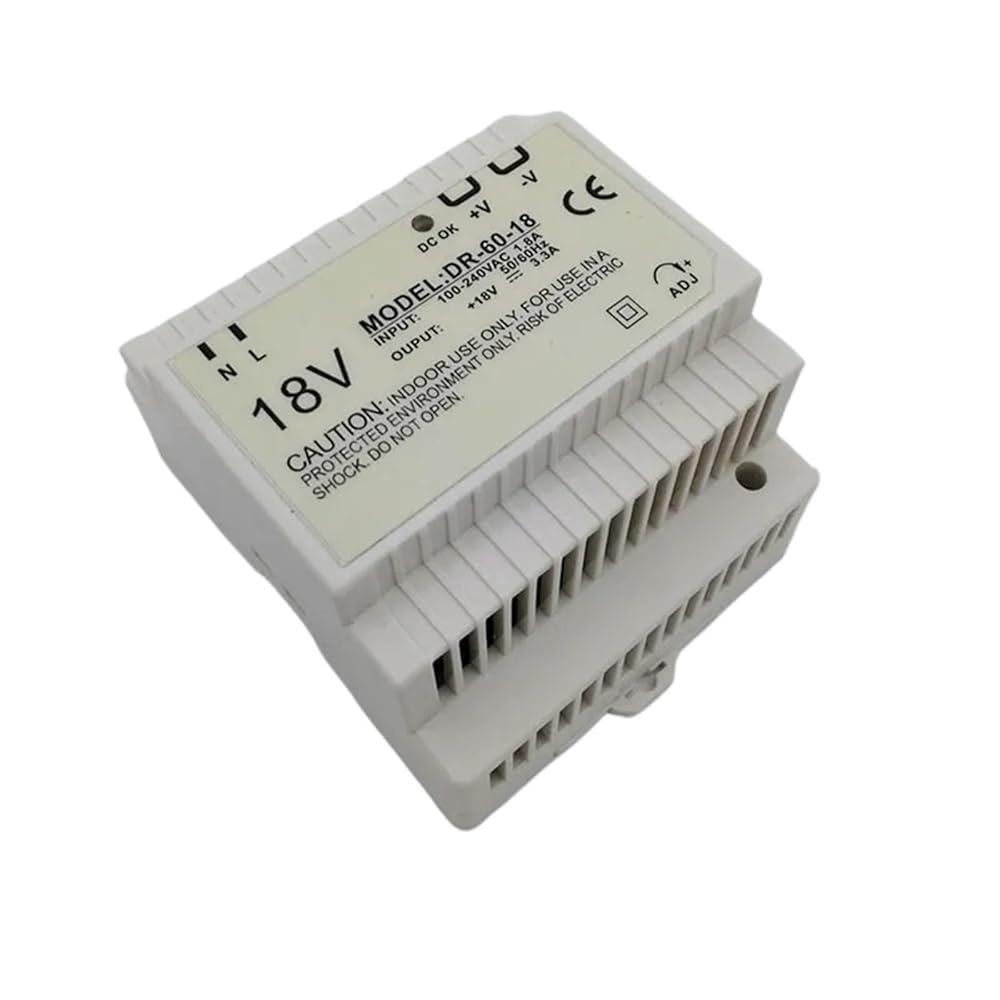

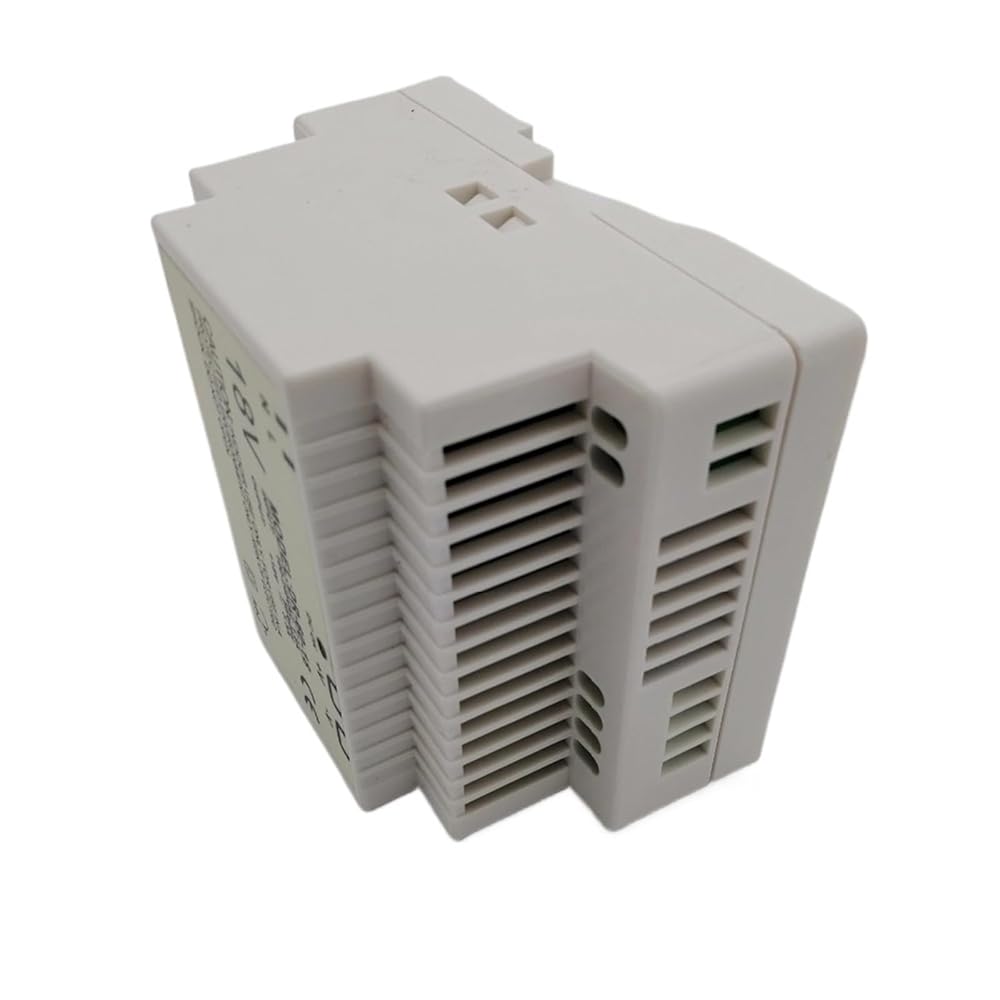

Products show
