Filter, Regulator & Lubricator Combos
Specification:

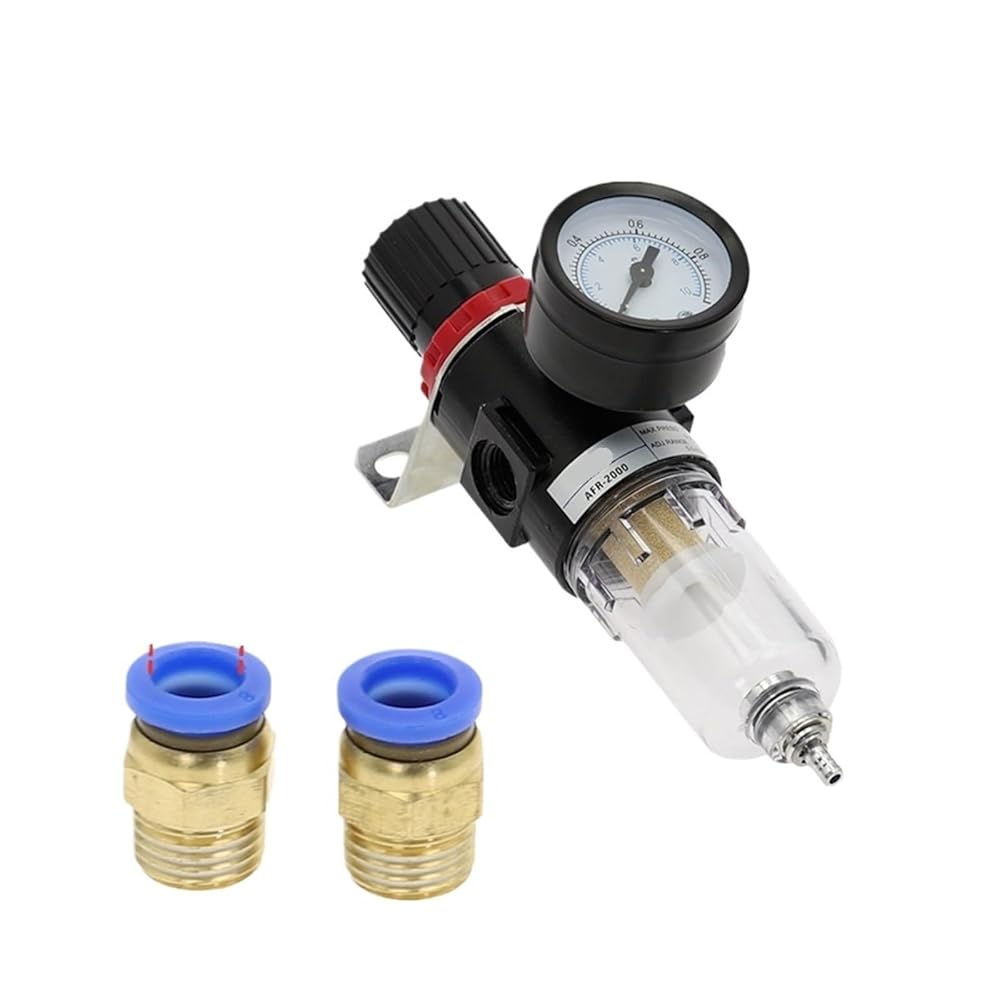

Product Name: Pneumatic Filter Pressure Regulator
Model: AFR-2000
Working fluid: Air
Maximum pressure: 9.9kgf/cm2
Adjustable pressure range: 0.5-9.0kgf/cm2
Operating temperature range: 41°F -140°F
Connecting pipe inner diameter: 8X5mm
Pressure gauge range: 0-1MPa
Total size: 16 x 7 x 4.2 cm / 6.3" x 2.8" x 1.7" (L*W*H)
Pressure gauge thread diameter: 10mm/ 0.39"
Pressure gauge size: 4.1 x 2.4cm/ 1.6" x 0.98"(D*T)
Mounting hole size: 8 x 7mm/ 0.31" x 0.28" (L*W)
Package Contents
1 x Pneumatic filter regulator
2 accessories
==========
Type: Source Processing Unit
Model: AFR2000
Origin: Mainland China
