Miniature Cylindrical Connectors

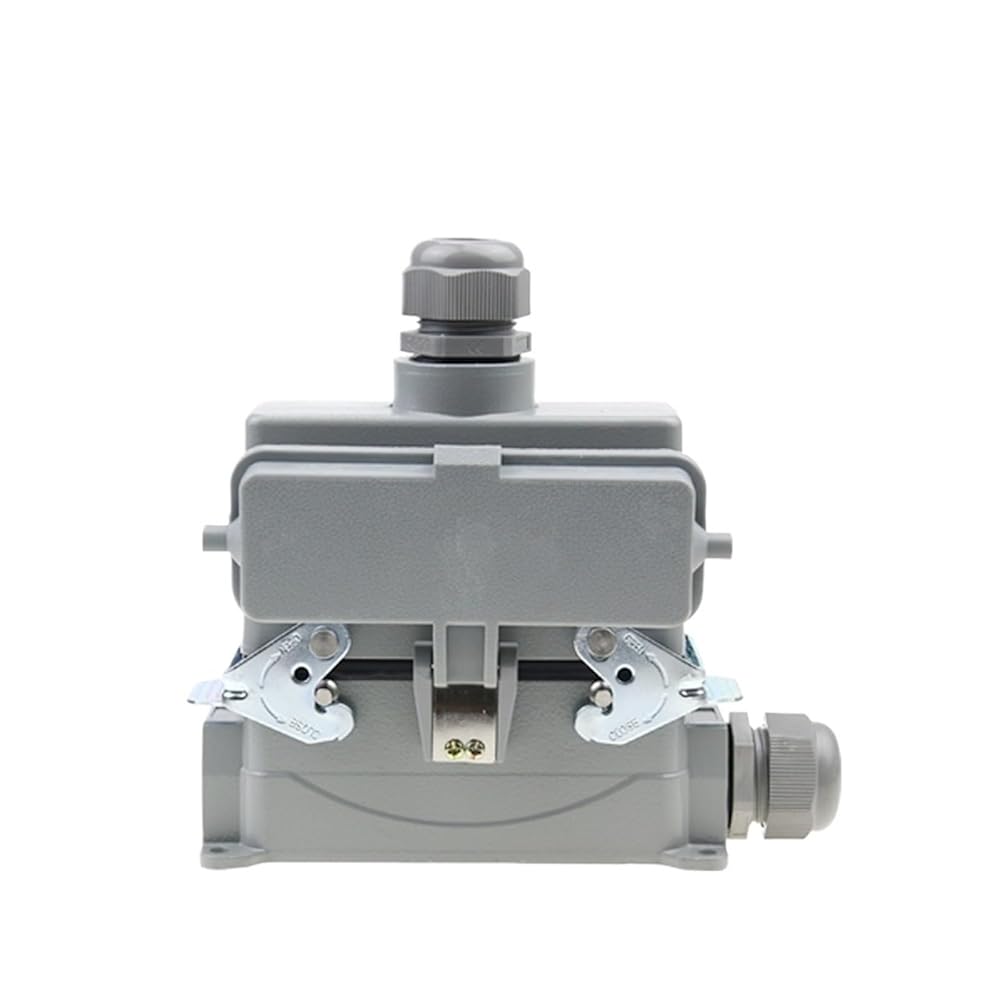

Product Name: Heavy Duty Connector
Model: HDC-HE-6/10/16/24
Product Type: Top Connector and Side Connector
Rated voltage: 500V
Rated current: 16A
Rated pulse voltage: 6KV
Connector pin material: copper plated with silver
Plug-in material: polycarbonate
Connector shell material: aluminum alloy

Protection level: IP65
Connection type: screw crimping
Wire size: 0.5 to 4 mm2
Screw torque: 0.25nm
Screw crimp cable length: 7 to 9 mm
Operating temperature: -40°C to +125°C

Model: HDC-HE-5-24
Voltage: 415 V
