Suction Cups SAOB (Oval, 1.5 Folds)
Suction area (LxW) from 60 x 30 mm to 140 x 70 mm
Applications

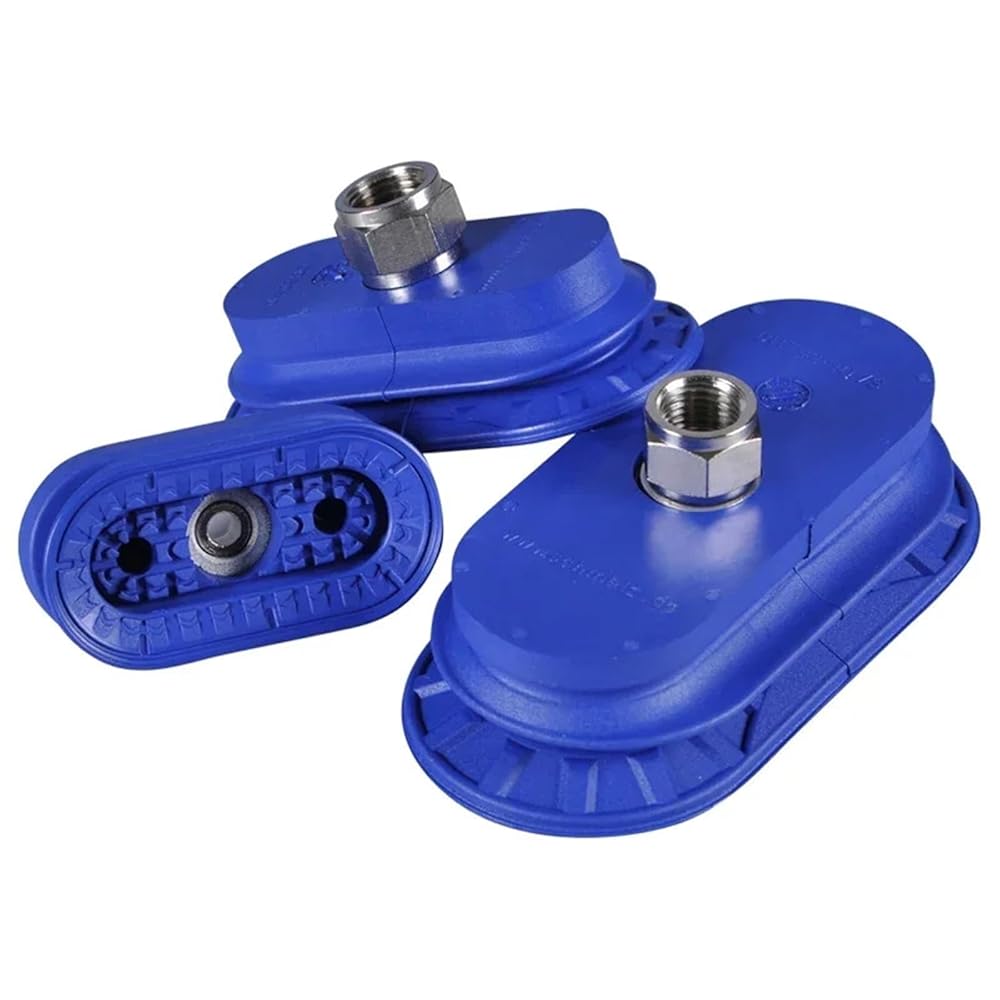

Oval bellows suction cup with 1.5 folds for dynamic handling of long, narrow workpieces e.g. reinforcing ribs and plates
Handling of thin steel sheets and aluminum sheets without deformation or deep-drawing
For use e.g. in feeder systems for press lines in the automotive industry
Groove on the bottom prevents the oily sheets from slipping and permits precise positioning in stamping presses etc.
Design
Robust, wear-resistant oval suction cup SAOB with 1.5 folds made of NBR, single sealing lip, special groove and inner support
Connection nipple glued to the suction cup with a reinforcing element (very high strength)
Suction cups available with various connection types
Our Highlights... Your Benefits...
Oval shape with 1.5 folds
For long, narrow workpieces and for stamped bodywork components
Large, structured inner support
No deep-drawing of the workpiece and handling of very high lateral forces, even with oily metal sheets
Wide range of sizes
For a wide range of workpiece sizes and shapes
Stiff top fold
Resistance to lateral forces and high horizontal accel.
