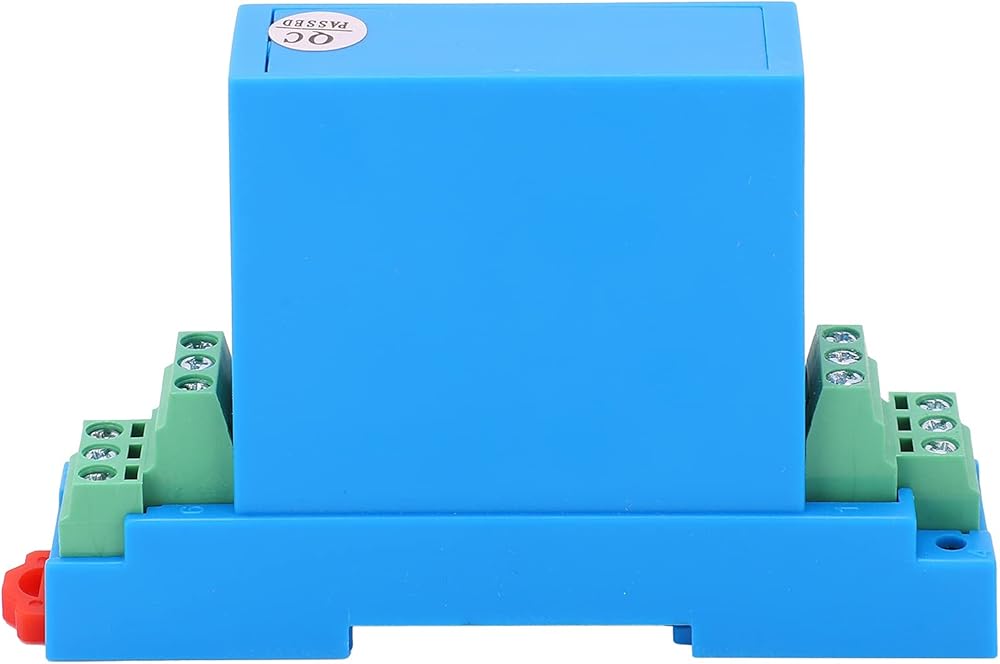

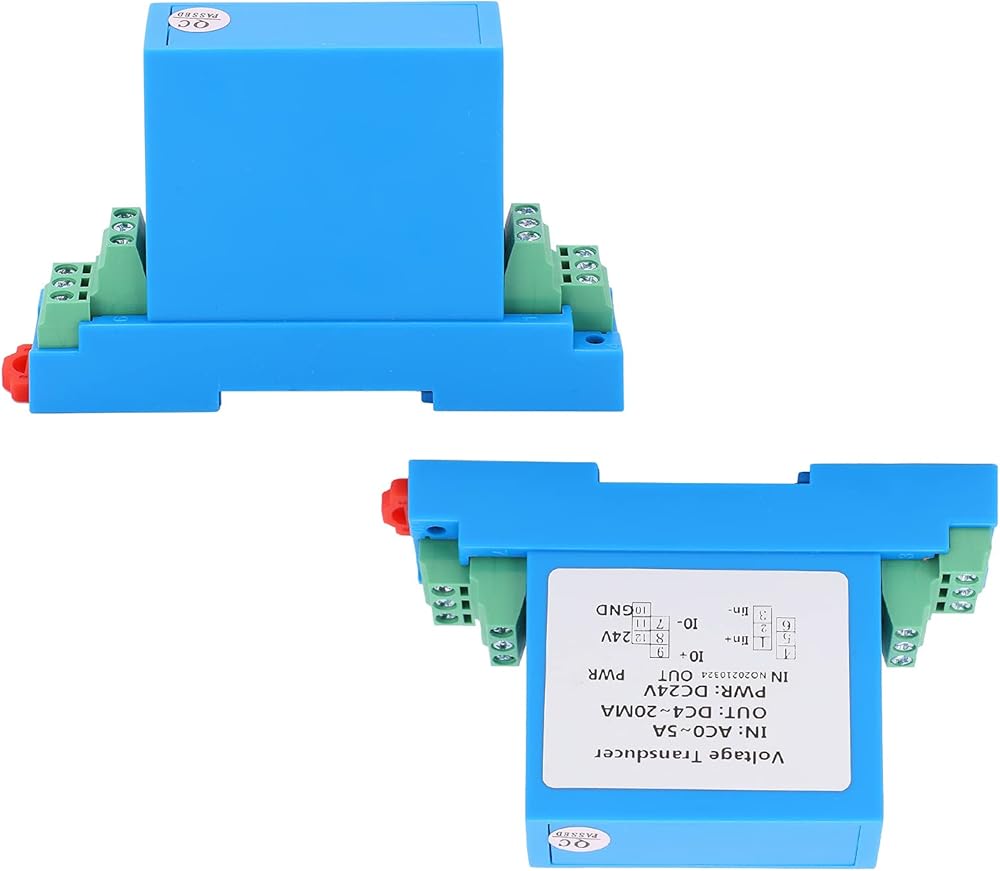

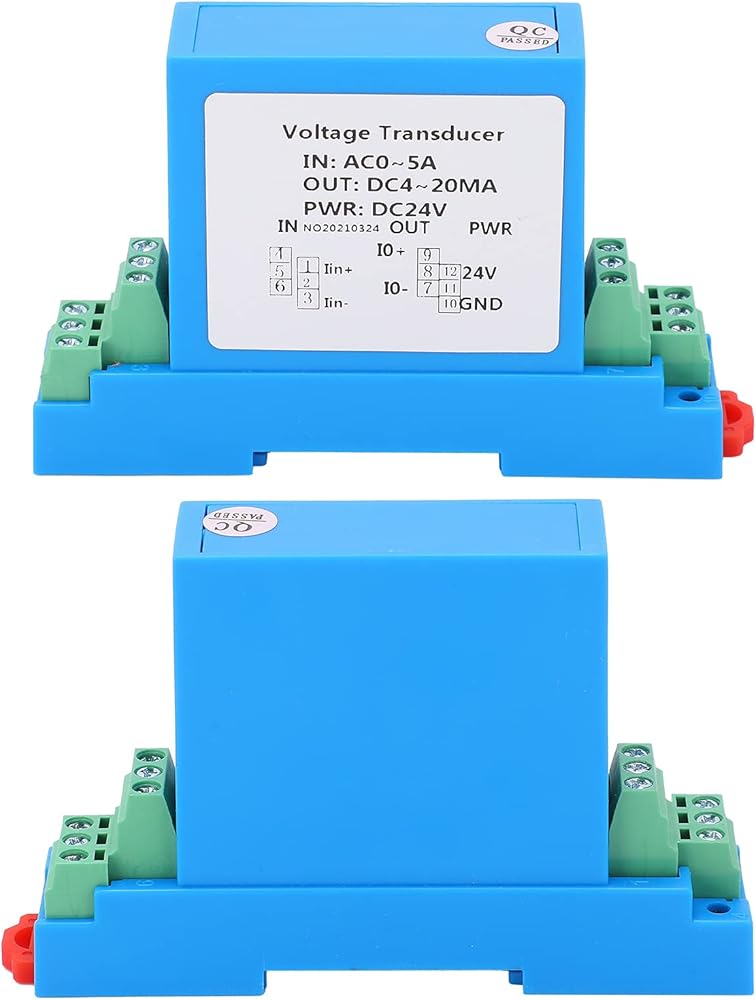

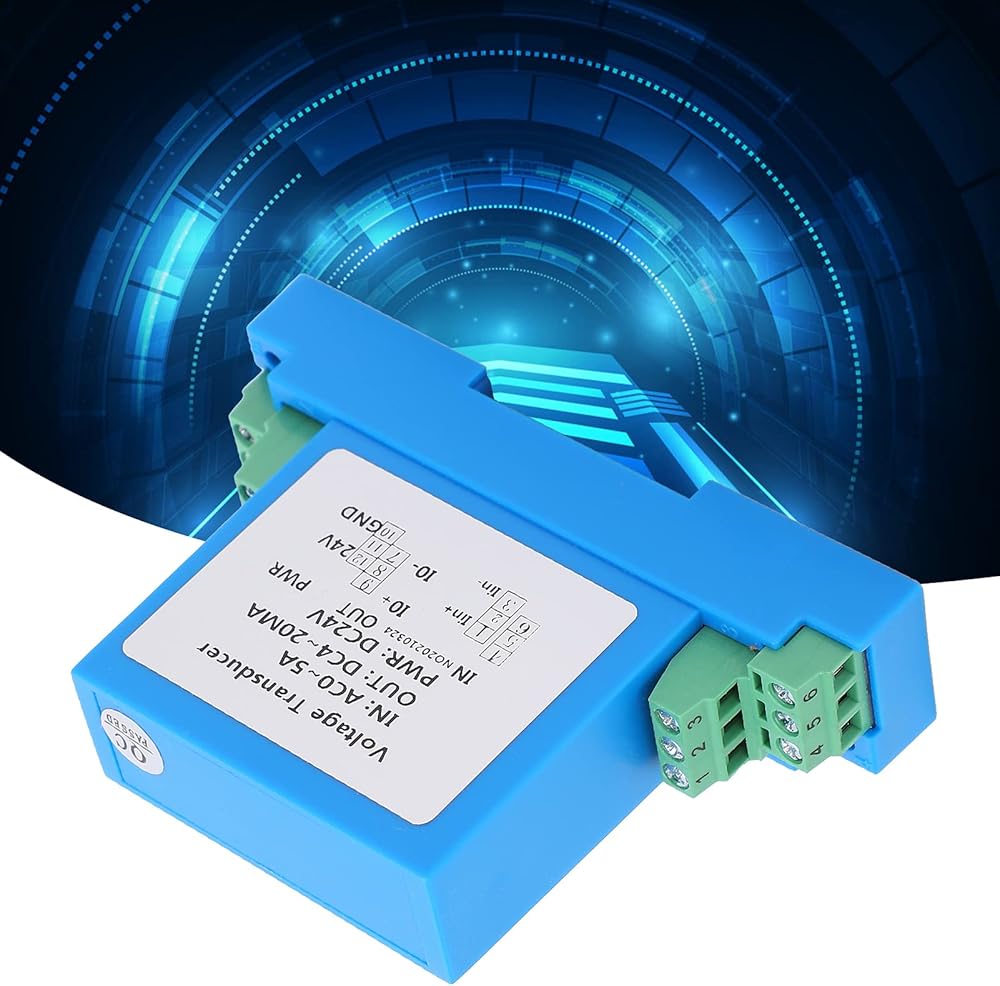

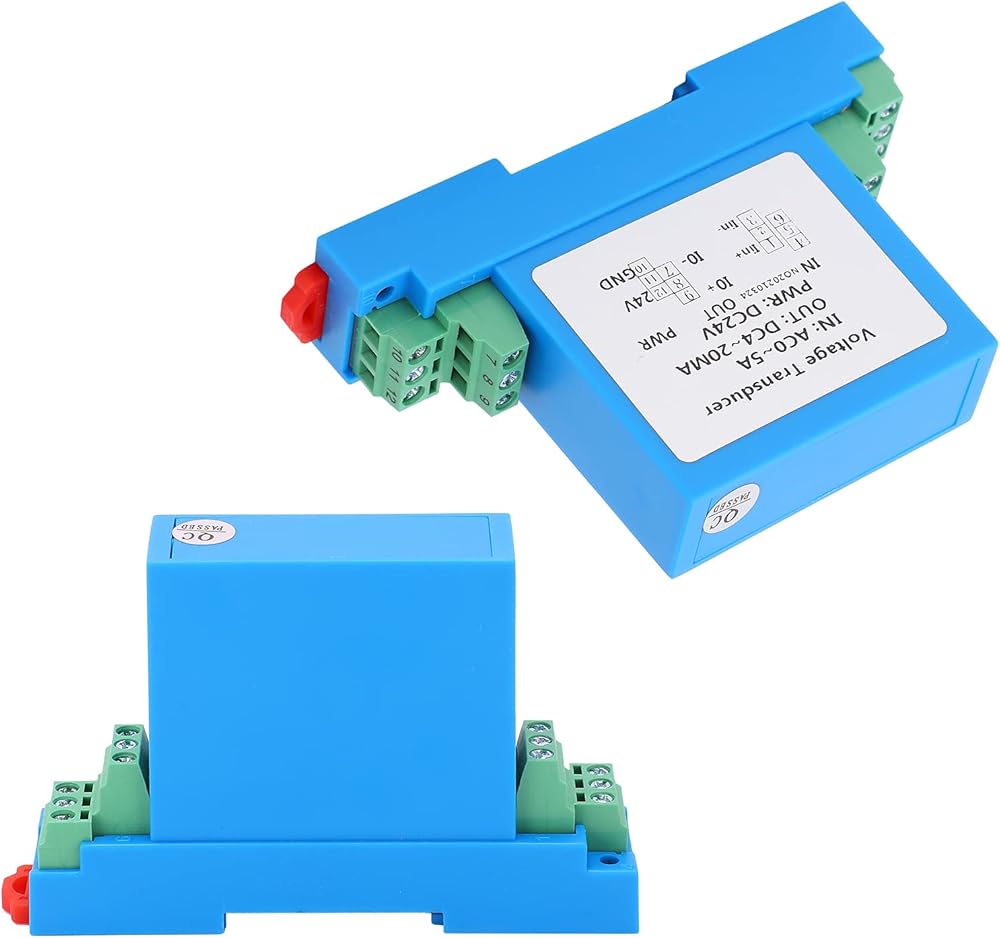

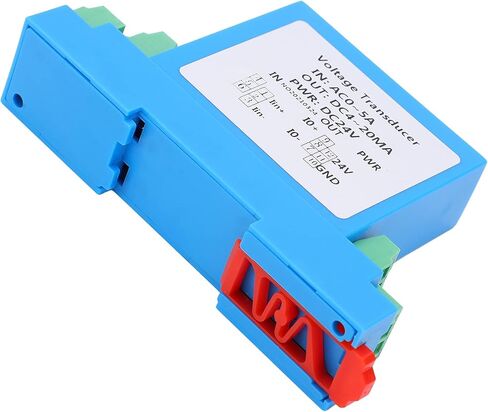

AC Current Transmitter with DC 4 to 20mA Output, Hall Type AC 0 to 5A Input Transformer for Power Distribution Control and Motor Monitoring, Standard Guide Rail or Screw Mount

SAR 164
Brand
Klanata
Weight
86 g
– 1 +

Special Features

  • Measurement Circuit Isolation: Utilizes Hall type current conversion to isolate the measurement circuit from the incoming signal while withstanding 30 times the nominal input to prevent internal component damage.
  • Enhanced Signal Stability: Features isolation between the detection and output signals to filter noise and improve the signal to noise ratio for reliable anti interference performance in industrial environments.
  • High Insulation Design: Designed with high insulation between the primary and secondary sides to provide and wide frequency response while maintaining low power consumption in a compact form factor.
  • Perforated Input Mounting: Includes a perforated input design to eliminate insertion loss and supports installation via standard guide rail or flat screws for flexible integration into existing power systems.

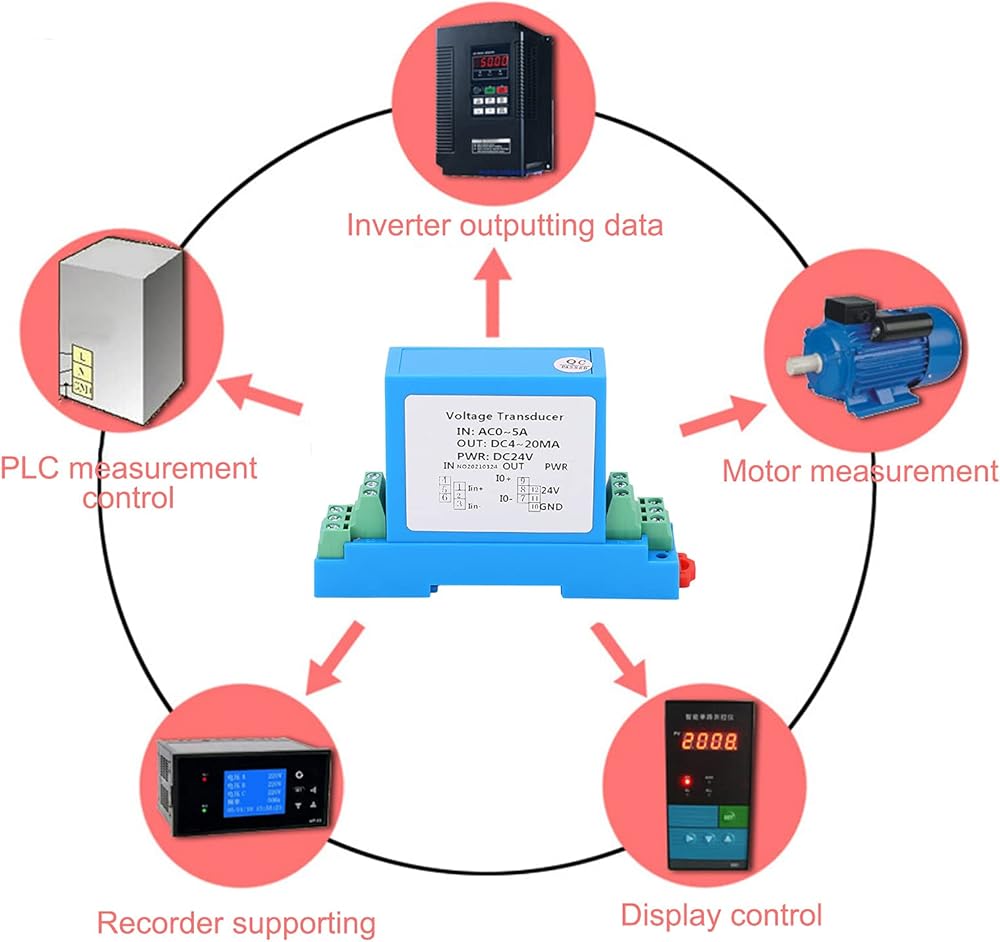

  • Industrial Monitoring Applications: Suitable for intelligent load current monitoring in generators, motors, low voltage power distribution cabinets, air conditioners, and power grid or railway system signal monitoring.

Description

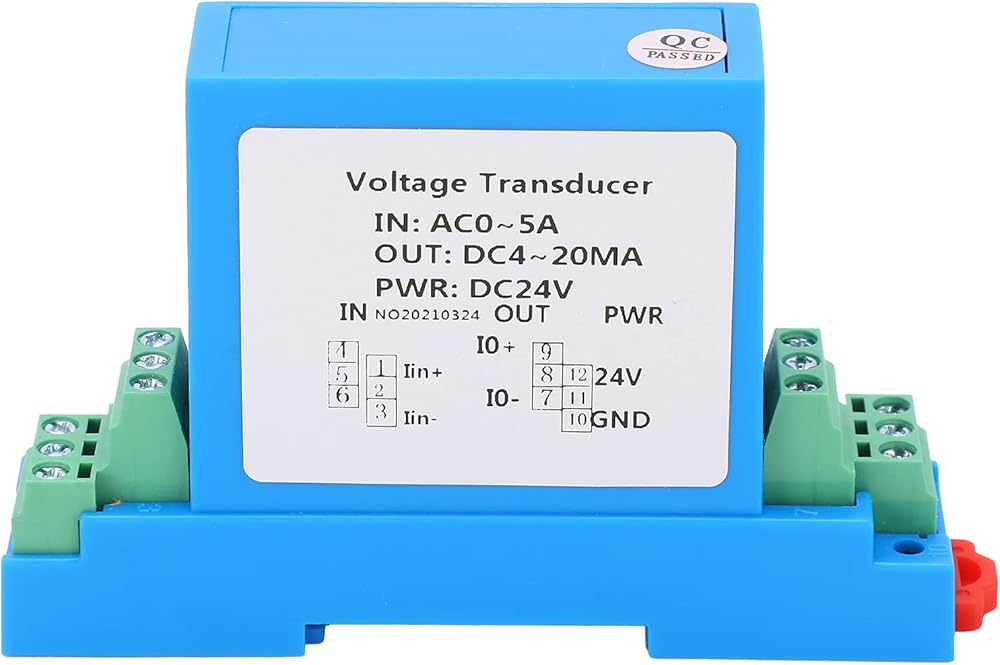

Item Type: AC Current Transmitter
Material: ABS
Power Supply: DC24V

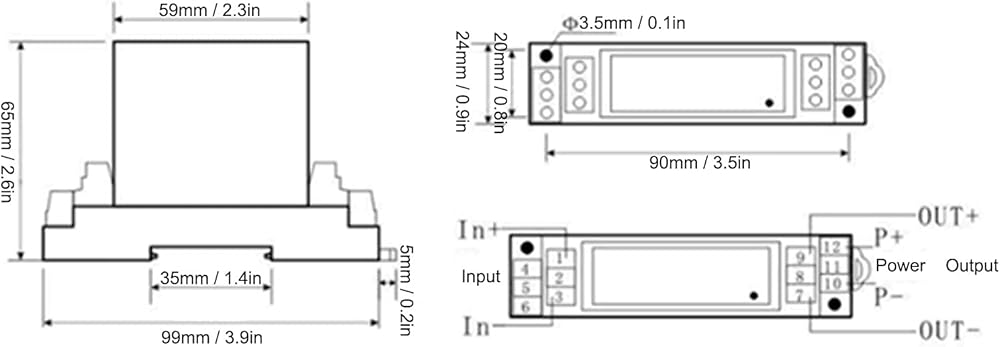

Installation Method: Standard rail + flat screw fixation
Product Use: Used to measure AC current, especially for power frequency 50Hz sine wave AC current
Rated Current: AC0-5A
Rated Output: DC4-20mA
Load Capacity: Voltage Output: 5mA; Current Output: 6V
Accuracy: 0.5%
Overload Capacity: 30 Times the nominal input
Isolation withstand Voltage: 3KV/50Hz, 1Min
Offset Voltage: 10mV
Temperature Drift: 500PPM/℃
Linearity: 0.1%
Frequency Bandwidth: 20-5KHz
Current Consumption:
