Filter, Regulator & Lubricator Combos
Features
1. Exquisite and compact structure.
2. Small pressure loss and high water separation efficiency;
3. Filter accuracy is 5um and 40um optional;
Installation and Usage
1 Before installation, please check whether the components are damaged during transportation.
2. Pay attention to whether the air flow direction (note the “ ” direction) and thread type are correct.
3. Please pay attention to whether the installation conditions meet the technical requirements (such as "working pressure" and "operating temperature range").
4. Pay attention to the medium used or the installation environment, and avoid contact with chlorine-containing, carbon compounds, aromatic compounds, and oxidizing acid and alkali substances to avoid damage to the cup body and oil cup.
5. Clean or replace the filter element regularly. The oiler and pressure regulator should be used in order from large to small.
6. Pay attention to dust prevention. When disassembling and storing the device, dust covers should be installed on the air inlet and outlet.
==========
Type: Source Processing Unit

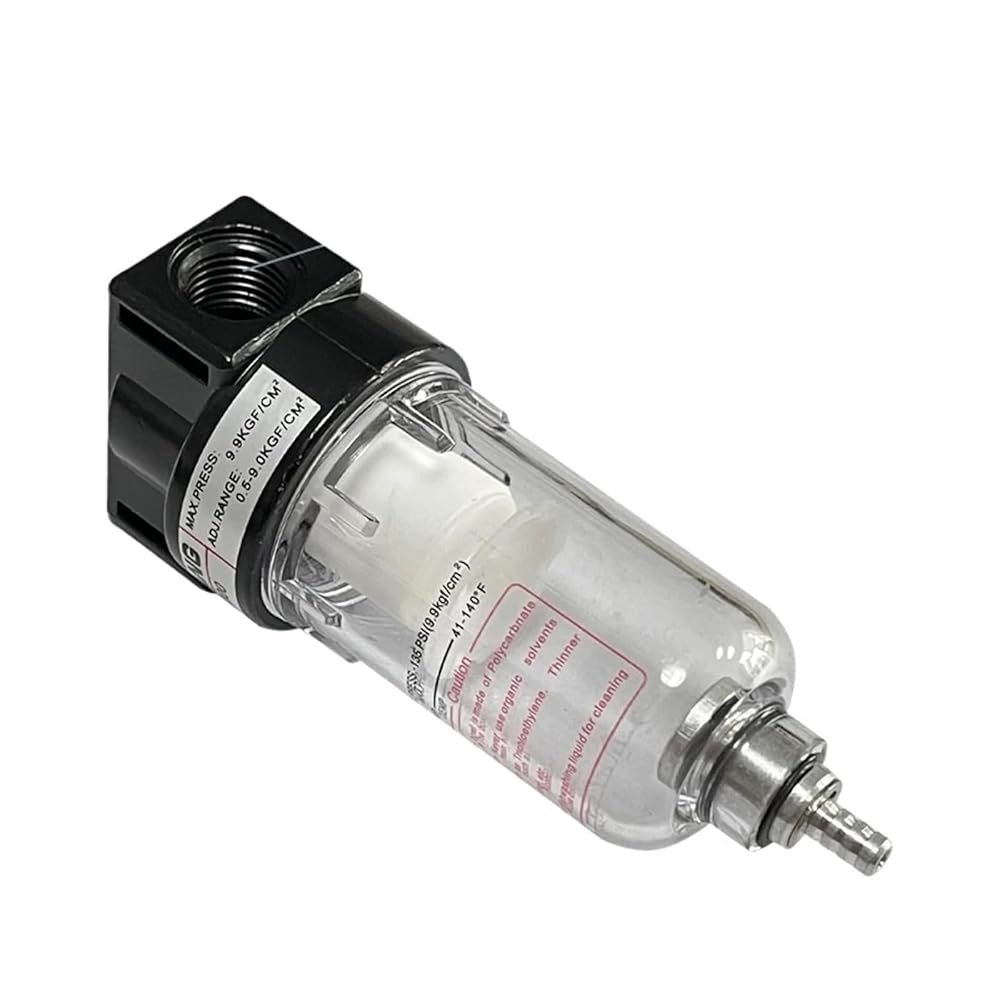

Model:AF2000
Origin: Mainland China
