Specifications:

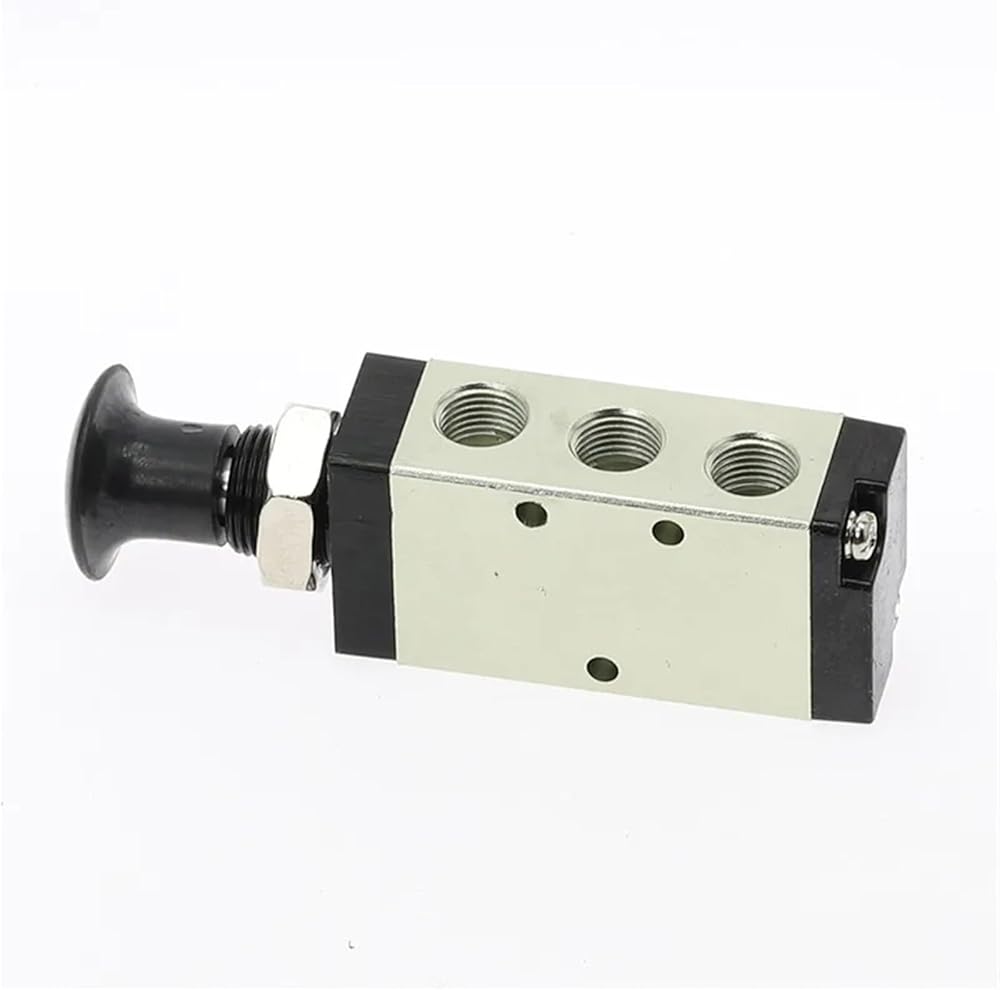

Product Name :Hand Pull Valve
Model :4R110-06
Operation Type Manual
Working Medium Clear :Air (40µm filteration)
Position and Port Number 5 Port 2 Position
Port Size Air Inlet=G1/8"
Air Outlet=G1/8"
Air Exhaust=G1/8"
Operating Temperature Range: 0~60°C
Effective Sectional Area (mm)2; 12mm2;(CV=0.67)
Working Pressure Range :1.5~8kgf/cm2;
Total Size(Approx): 2.7 x 1.8 x 8.7cm / 1.1"x 0.7"x 3.4" (L*W*H)
Material Alloy
Package Content 1 x Hand Pull Valve
Model
4R110-06
4R210-06
4R210-08
4R310-08
4R310-10
Working Medium
Air
Number of Places
2-position 5-way
Joint Pipe Bore
Air Inlet=Air Outlet=1/8
Air Inlet=Air Outlet=1/4
Air Inlet=Air Outlet=3/8
Effective Sectional Area
12mm2
(CV=0.67)
14mm 2
(CV=0.78)
16mm 2
(CV=0.89)
25mm 2
(CV=1.39)
30mm 2
(CV=1.67)
Working Pressure
0~0.8Kgf/cm 2
Ensured Pressure Resistance
12.0Kgf/cm 2
Operating Temperature Range
-5~60°C
Type : Valves
Model Number : 4R110-06
