Filter Valves
Specifications:

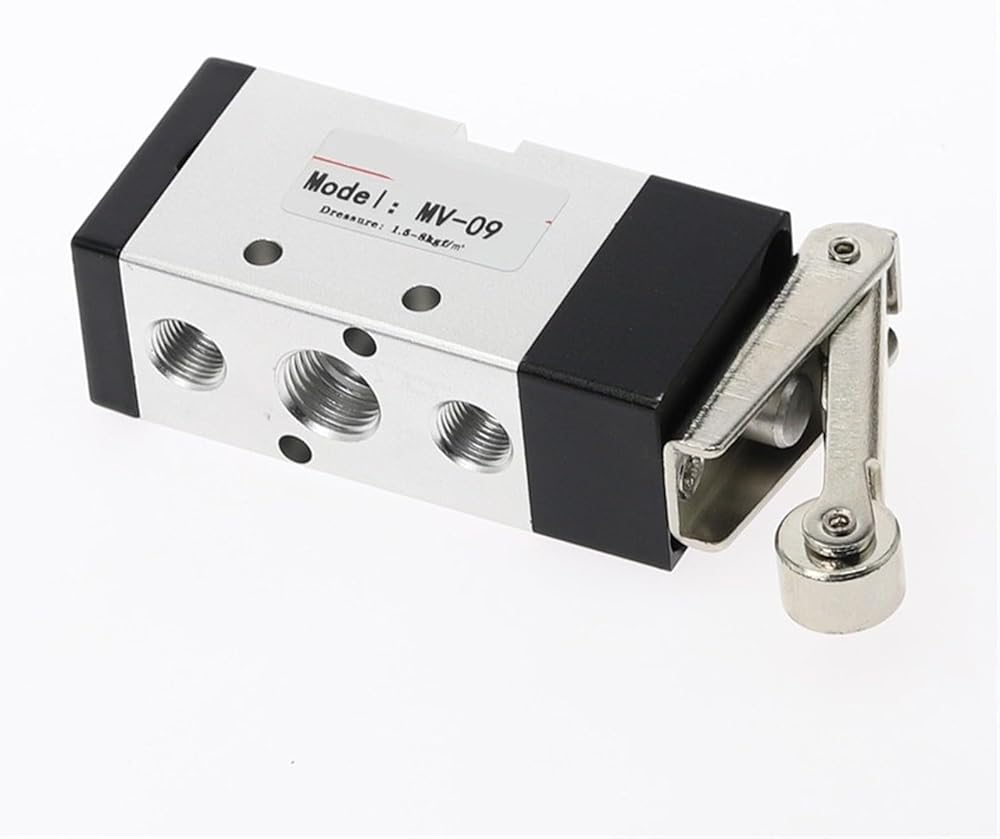

Product Name Mechanical Valve
Model: MV-09
Actuator Type Roller Type
Position and Way: No. 2 Position 5 Way
Thread Diameter
Air Inlet= Air Outlet= 12.7mm
Exhaust: :10mm
Fixing Hole Diameter :4mm/ 0.16"
Working Pressure Range:
1.5 - 8kgf/cm2;
Roller Diameter :15.8mm / 0.62"
Total Size(Approx.) :35 x 25 x 105mm / 1.4" x 1" x 4.1"(L*W*H)
Package
1 x Mechanical Valve
3 x Fittings
2 x Silencer
Type : Valves
Model Number : MV-09 MV522R
Air Inlet : 1/4"=12.7MM
Air Outlet : 1/4"=12.7MM
Exhaust : 1/8"=10MM
