[Mini Split Base Design] Compact 16mm inner hole ideal for installation in tight spaces.
[Precision Machined Measurement] Delivers accuracy of ≤0.5 grade for reliable current readings.
[User-Friendly Snap Joint] Easy-to-install snap joint structure allows direct cable fixing.
[Robust Environmental Resistance] Fully enclosed design ensures durability across temperatures from -40F to 185F.
[Versatile Applications] Compatible with energy meters for AC 220V and 380V power supplies, no need to cut power during installation.

Descriptions:

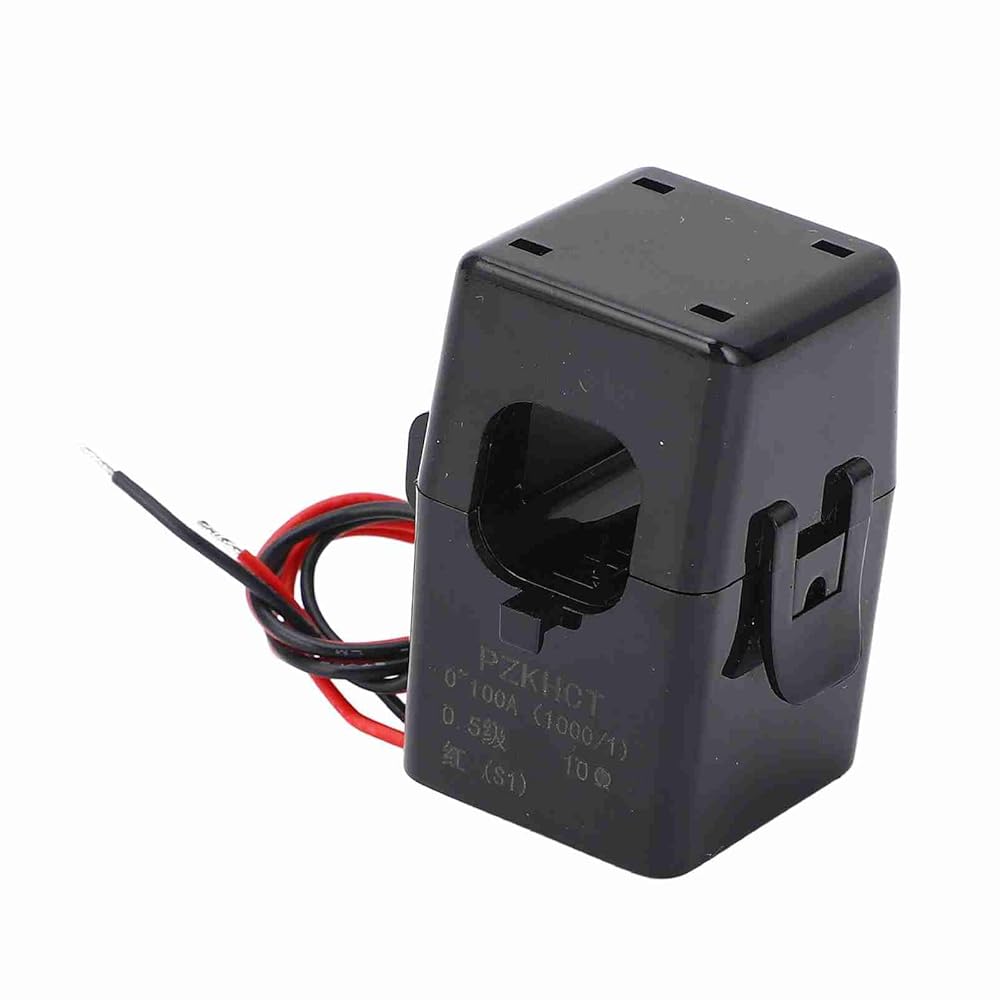

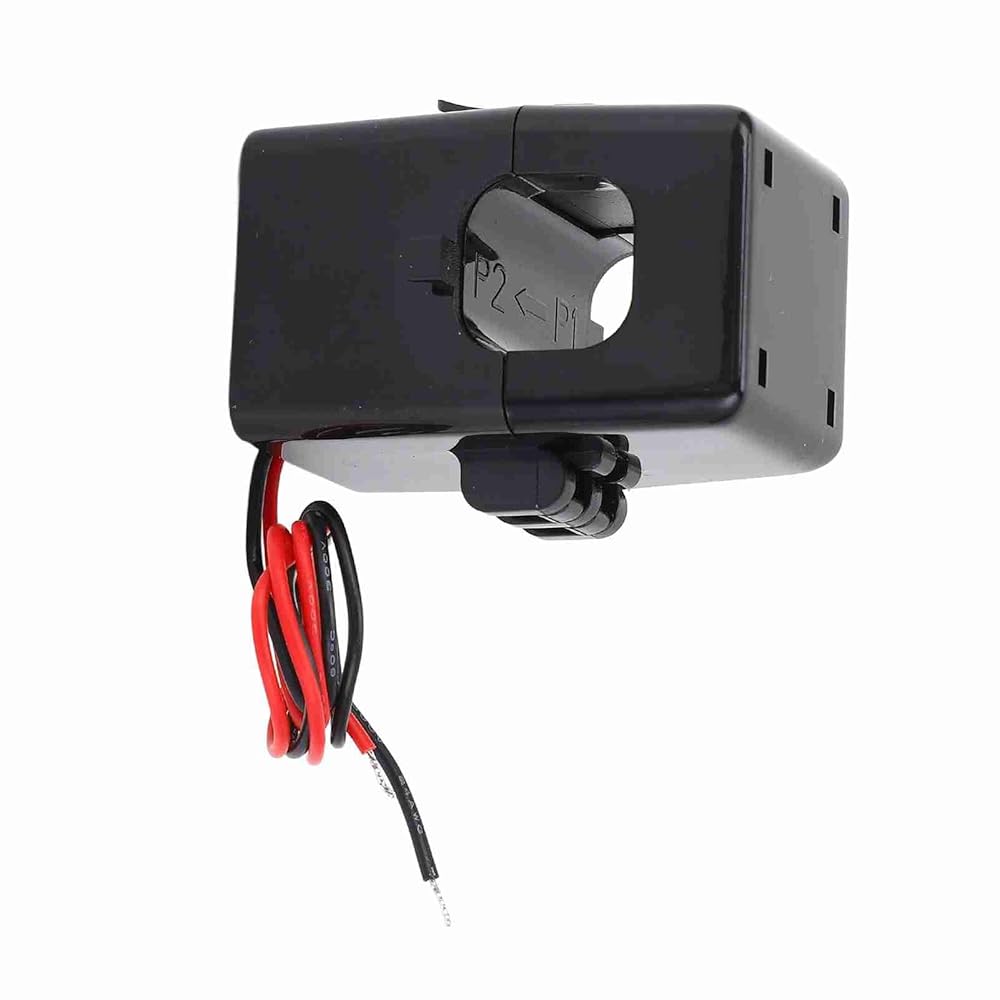

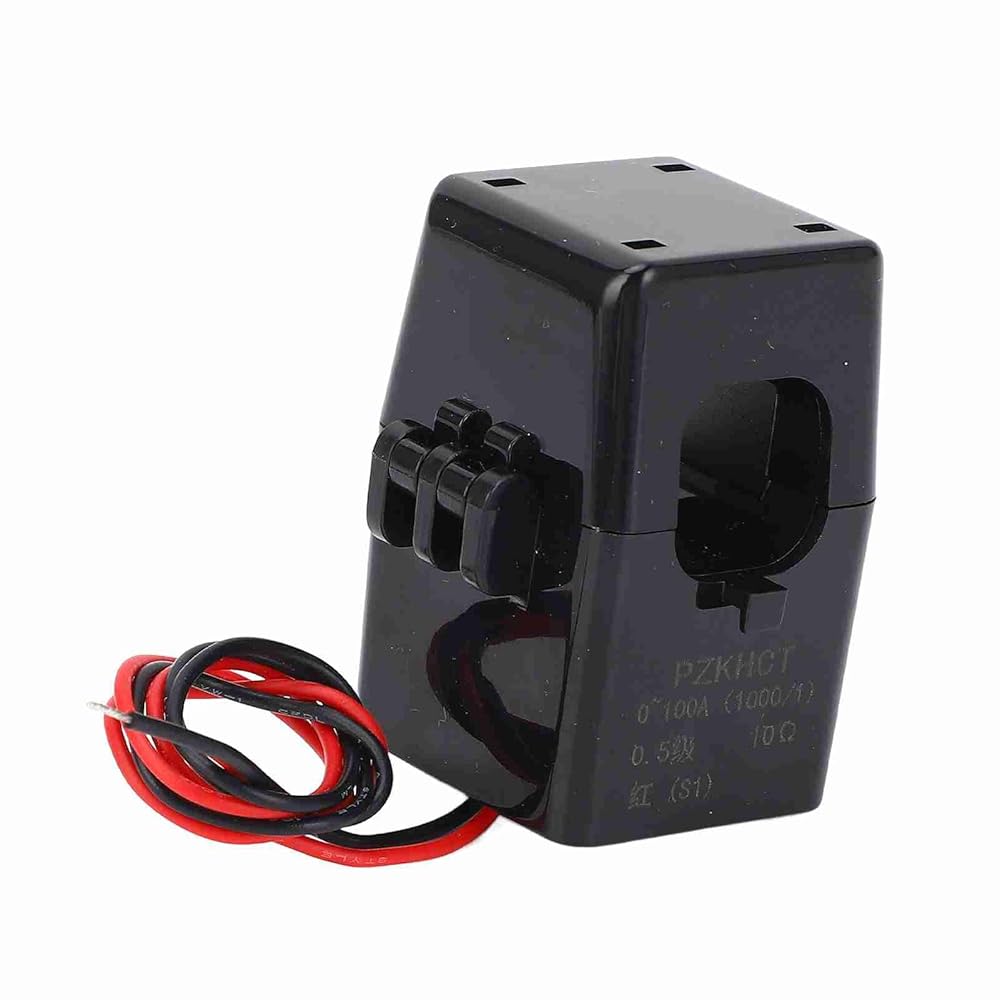

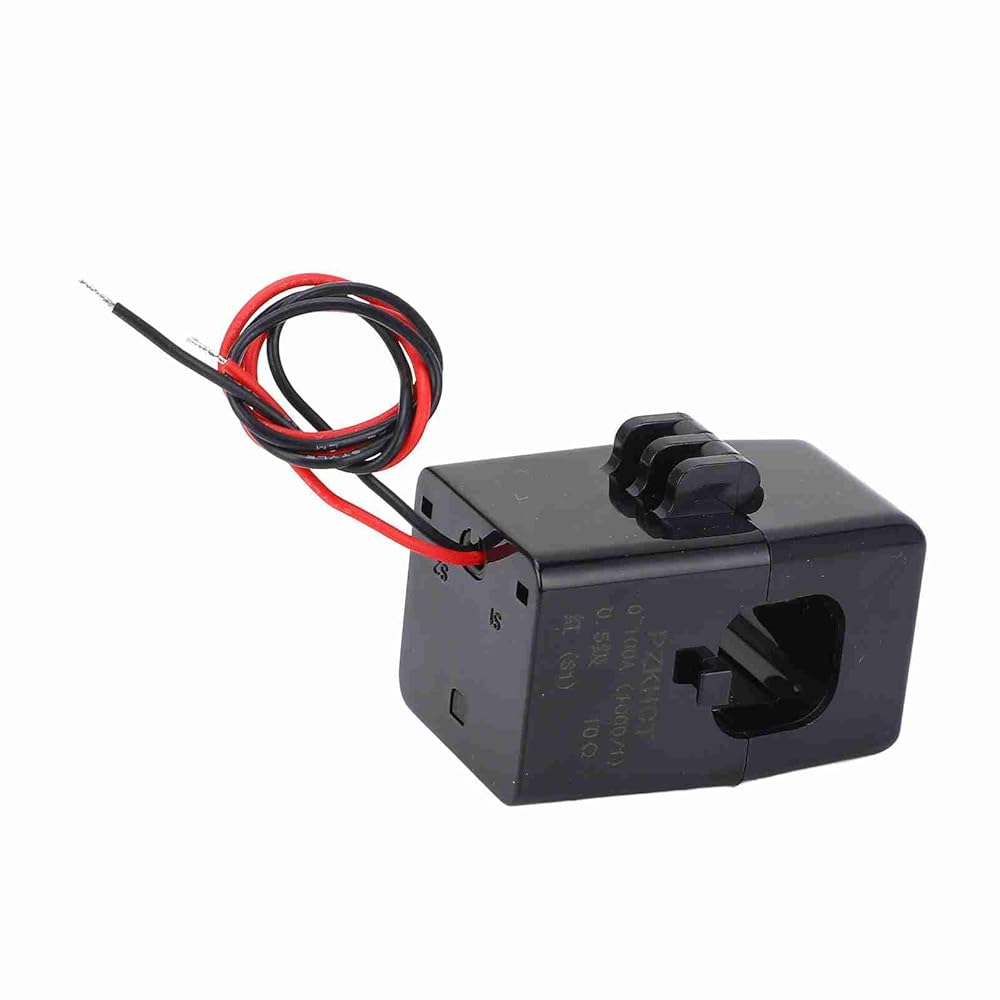

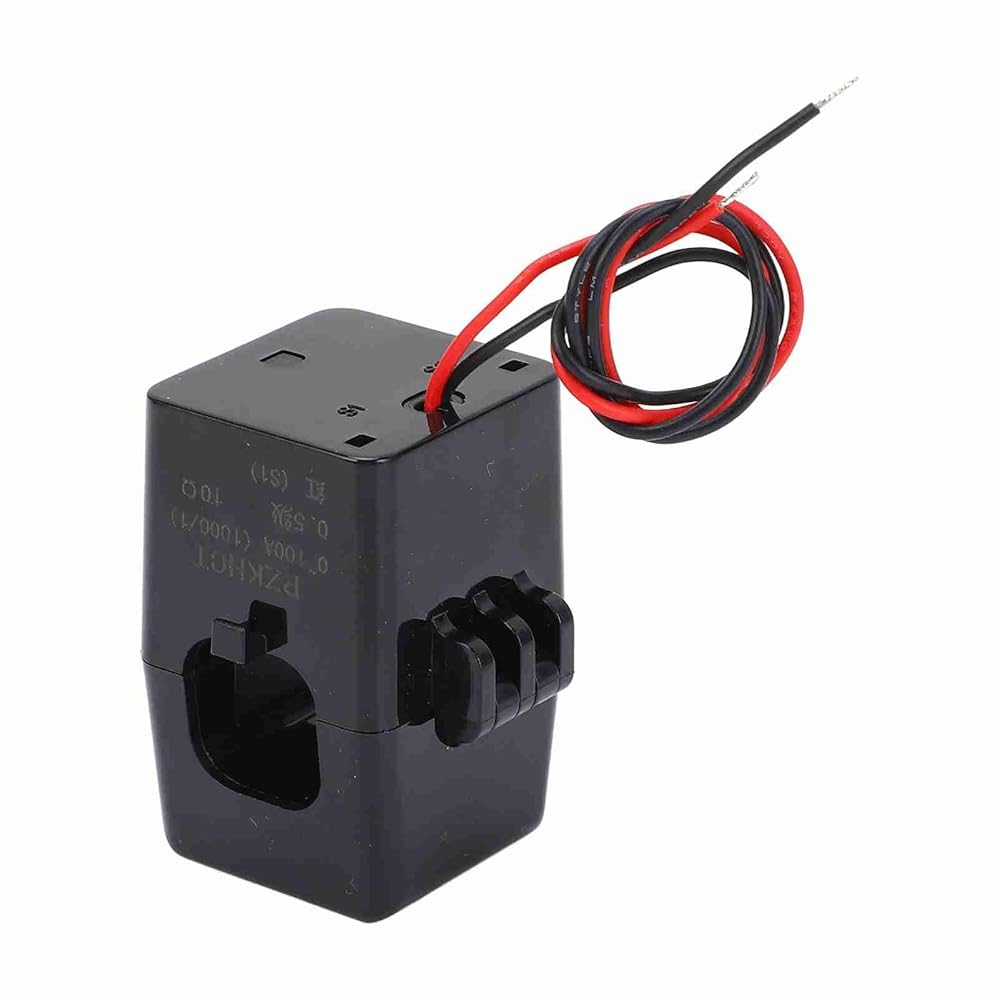

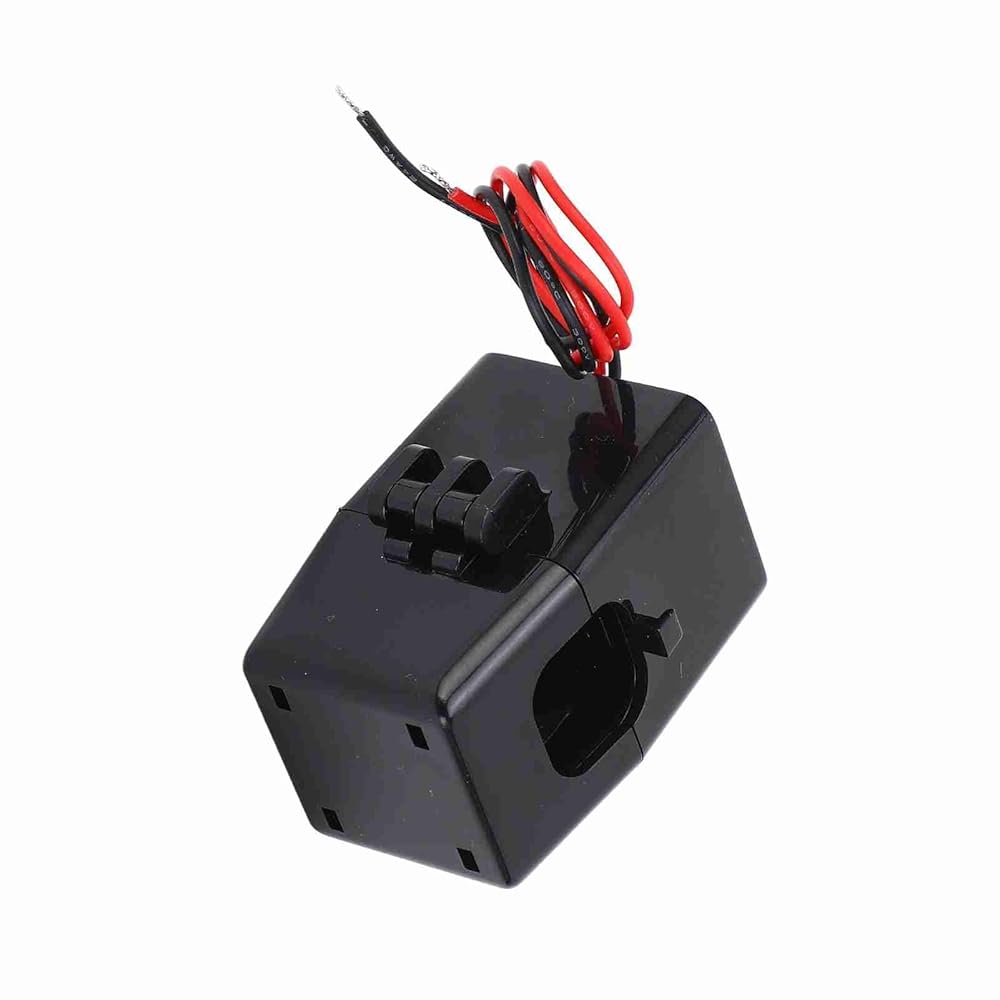

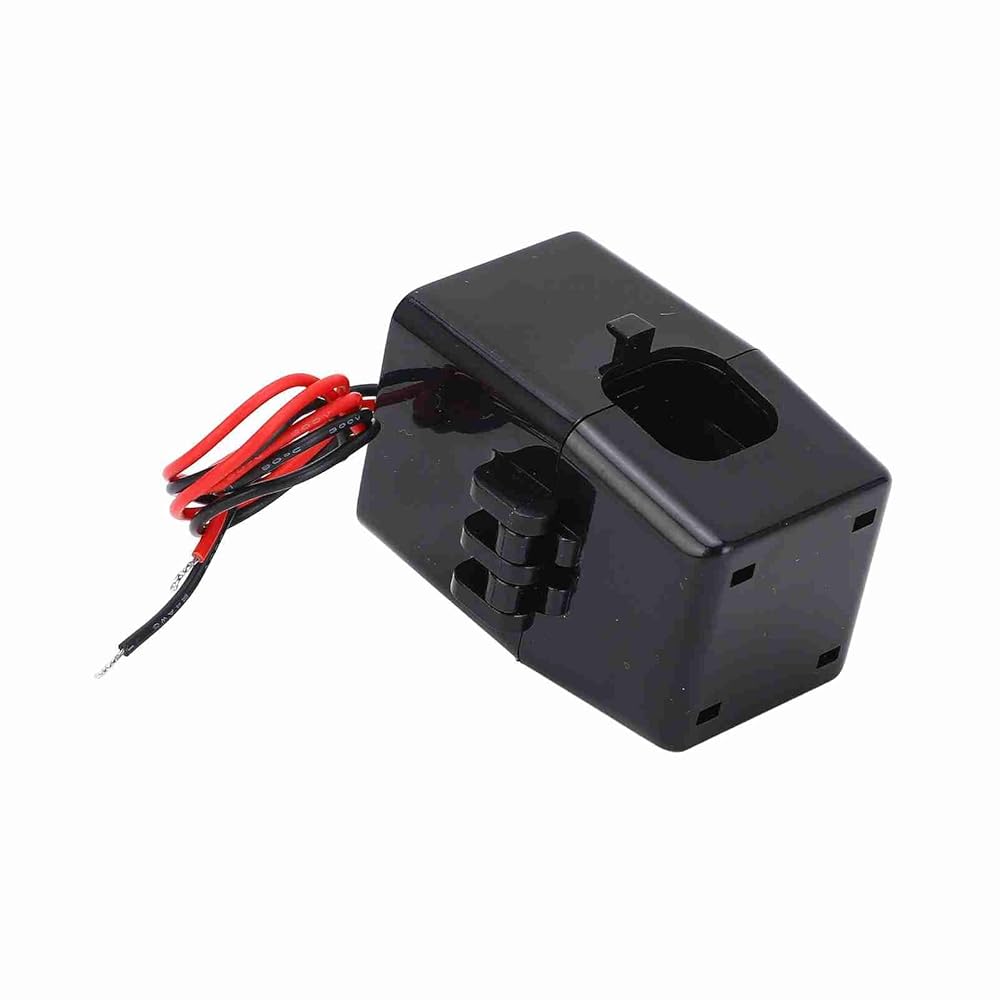

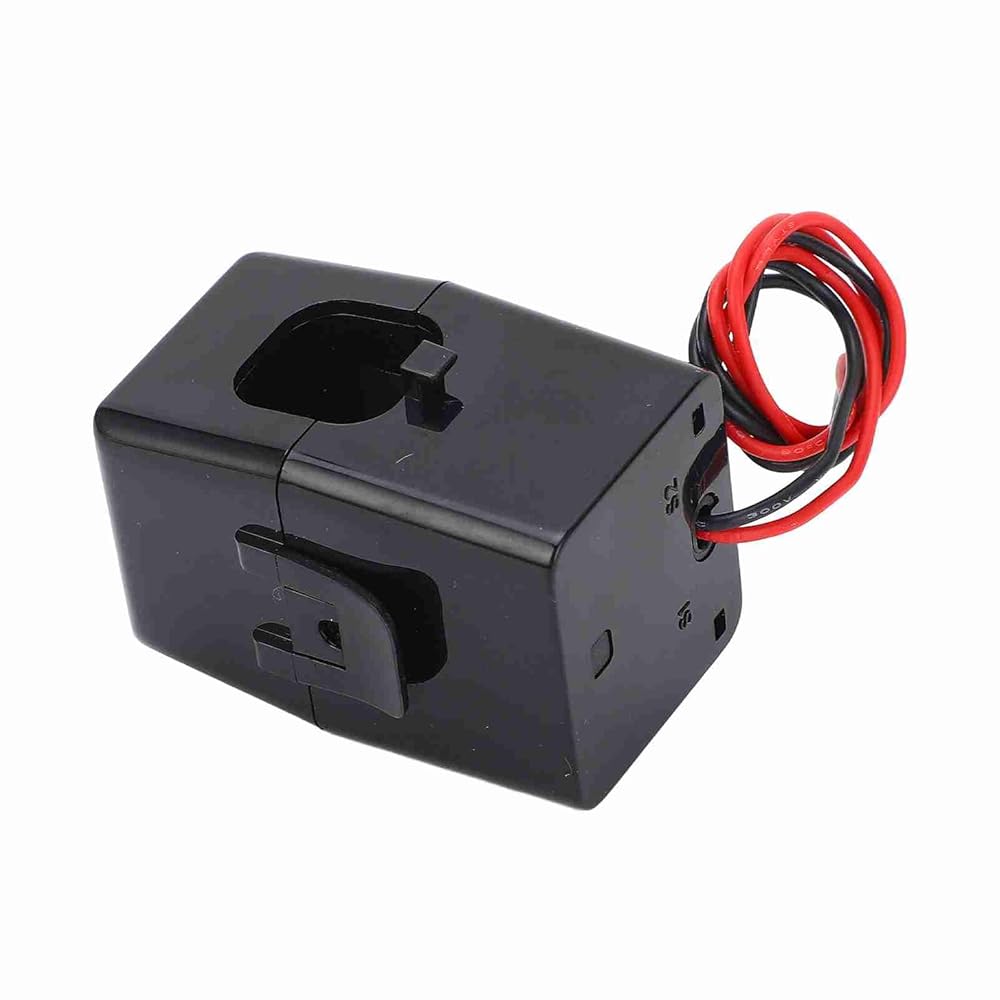

This is a mini split base current transformer; it's the smallest one compared to the similar products (output 100MA). Fully enclosed, good mechanical properties and environmental resistance, strong voltage isolation capability, safety and reliability. Used for energy meter in special; AC 220v, 380v power supply can both be applied.
Features:
This is a mini split base current transformer; it's the smallest one compared to the similar products (output 100MA).
The diameter of inner hole is 16mm, the accuracy is ≤0.5 grade,

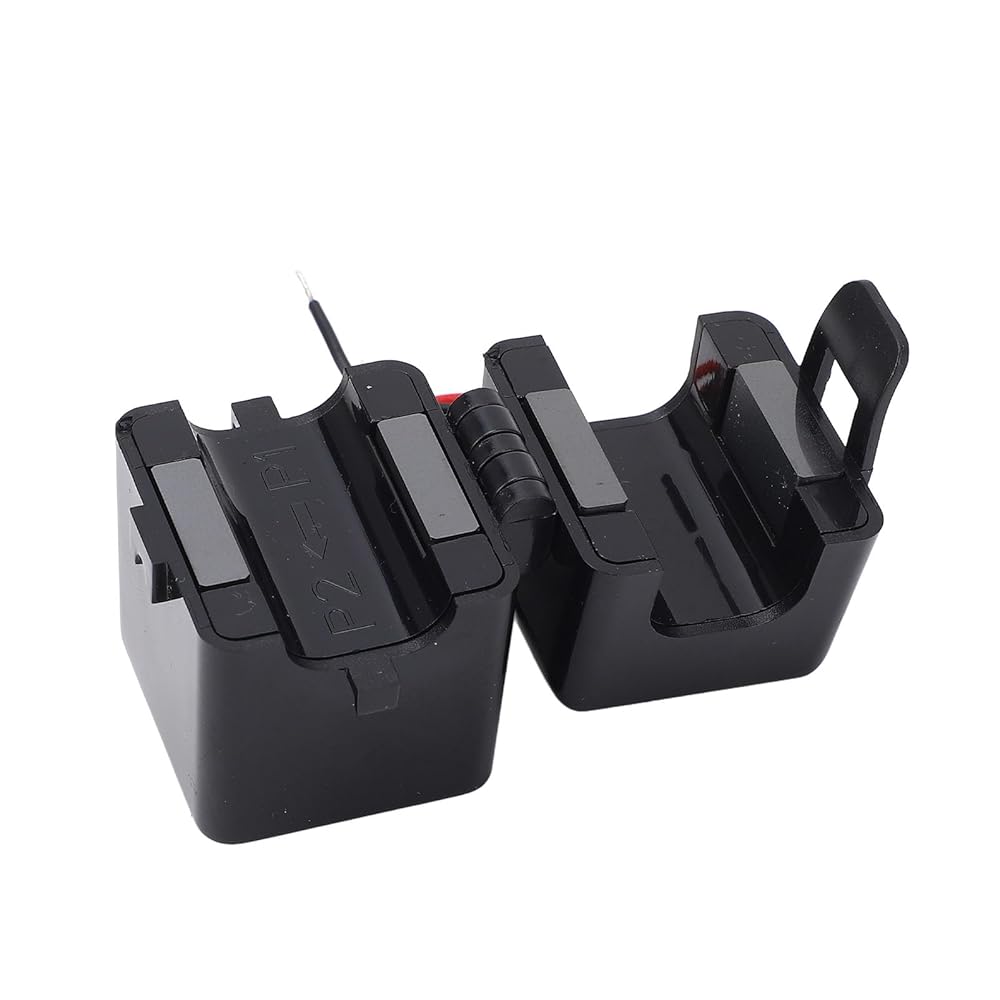

Using snap joint structure, it can be fixed to the cable directly through nylon ties.
Built-in input coil; small and light, easy to install.
Fully enclosed, good mechanical properties and environmental resistance, strong voltage isolation capability, safety and reliability.
Specifications:
Model: PZKHCT
Environment temperature: -40℃~+85℃
Relative humidity: ≤ 90%(40℃)
Working frequency: 50Hz~60Hz
Insulation endurance grade: B grade (130℃)
Insulation resistance: >1000MΩ normally
Dielectric strength: can afford power frequency 1000V/1minute
Mystical/Fantasy resistance: Conform to UL94-Vo grade
Internal resistance: 10Ω
Measuring range: 0-100A
Weight:59g
Application:
1. The current transformer is used for energy meter in special; AC 220v, 380v power supply can both be applied.
2. When you fix the energy meter, you don't need to cut off the
