Filter Valves
Specification:

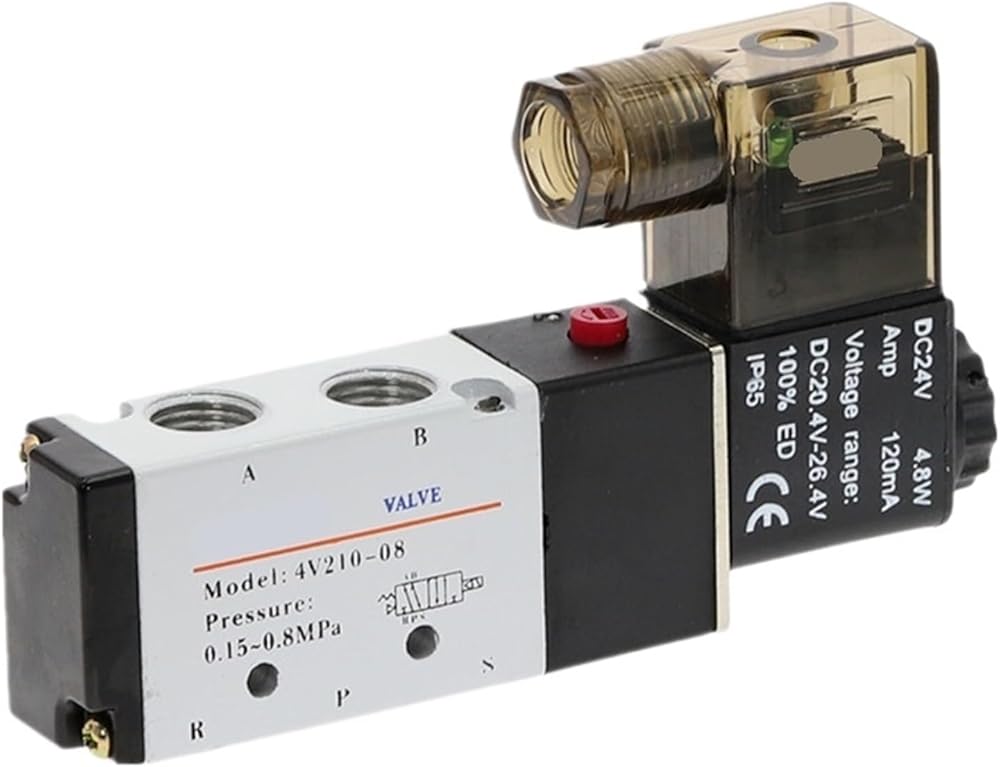

Product Name :Solenoid Valve
Model: 4V210-08
Working Pressure: 1.5 ~ 8 kgf/cm2
Operating Temperature :-5~50°C
Power Consumption: 2.0W
Voltage :DC 12V 24V AC 110V 220V
Voltage Range: AC187V-242V
Excitation Time: 0.05 Second
Position & Way Number Twoposition Fiveway
Effective Sectional Area 16mm2 CV=0.89)
Joint Pipe Bore: Inlet=Outlet=1/4'', Exhaust=1/8"
Total Size :11.8 x 6.6 x 2.1cm/4.6'' x 2.6'' x 0.8"(L*W*H)
Package Content :1 x Solenoid Valve
Type : Valves
Model Number : 4V210-08
