Sattie 600P / R 5V-24V Rotary Encoder, 6mm Shaft, AB 2-Phase, Incremental Encoder for Speed, Angle & Acceleration Measurement

SAR 88
Brand
Thincol
Weight
159 g
– 1 +

Special Features

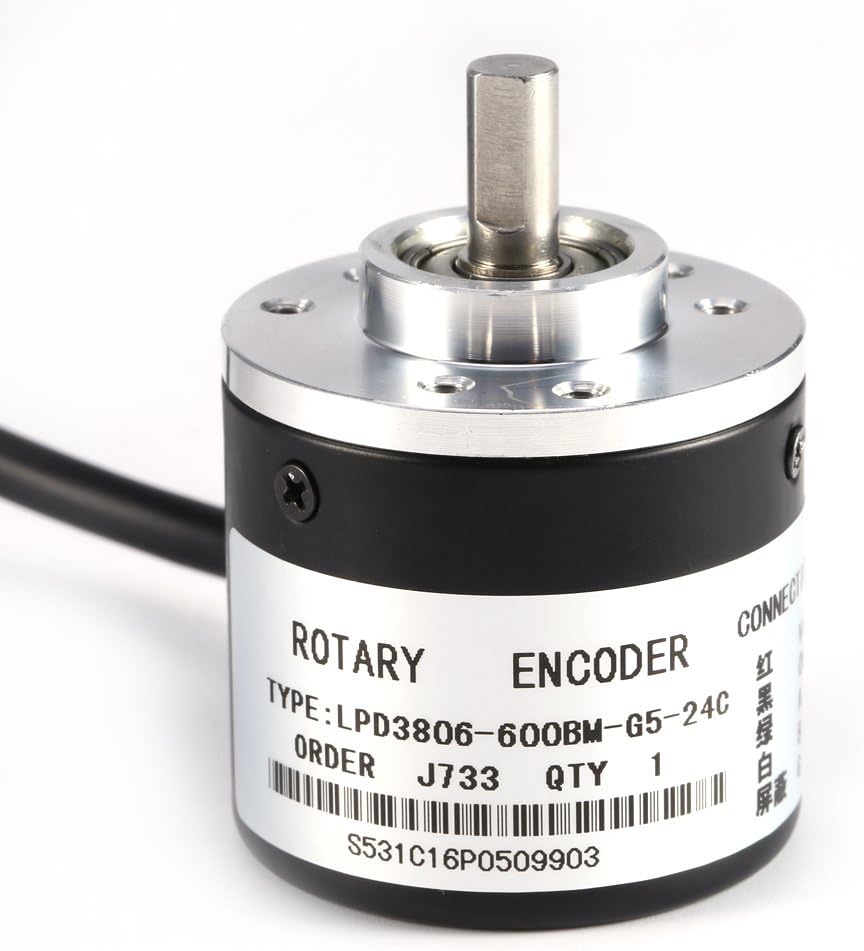

  • ?? Incremental photoelectric rotary encoder： two phase output rectangular quadrature AB pulse, the circuit output is NPN open collector output type, this type of output can be directly connected to a single chip microcomputer or PLC with an internal pull-up resistor, such as a single chip microcomputer PLC(PLC input).
  • ?? Application： It is suitable for intelligent control of various displacement change measures, automatic fixed length suede leather machine, steel fixed length cutting controller, civil height measuring human body scale, robot of competition of college students, etc., used to measure the rotation speed and angle of objects, acceleration and length.

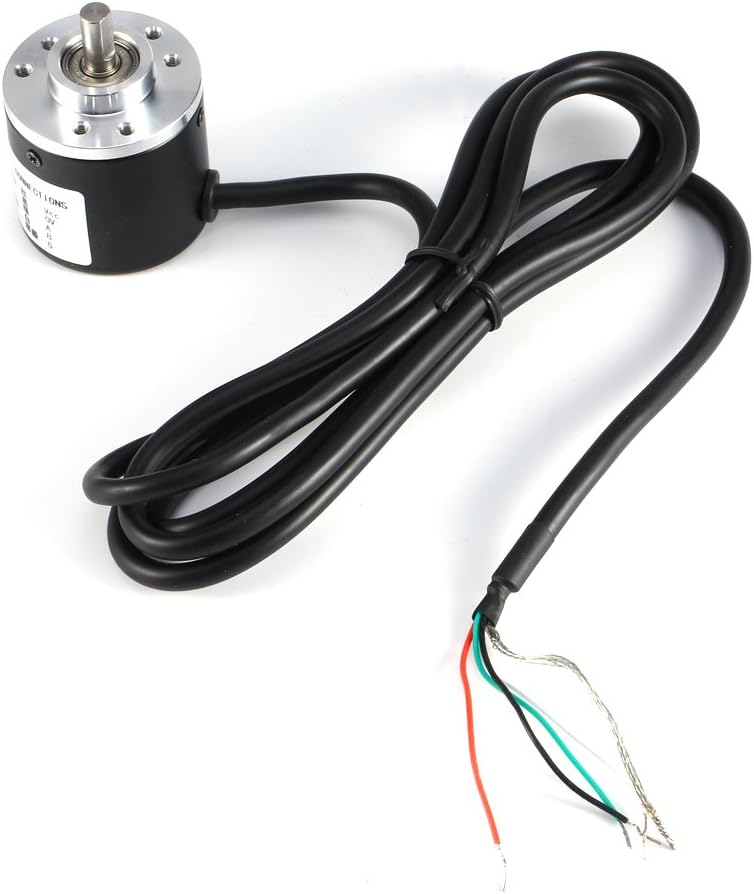

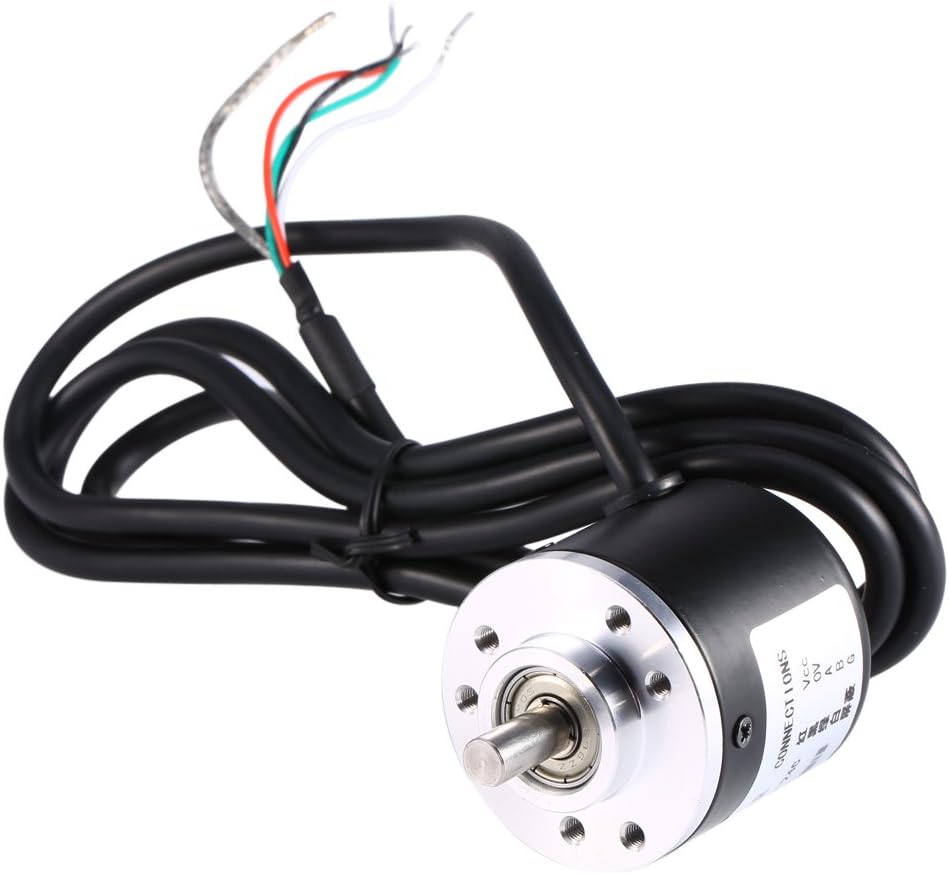

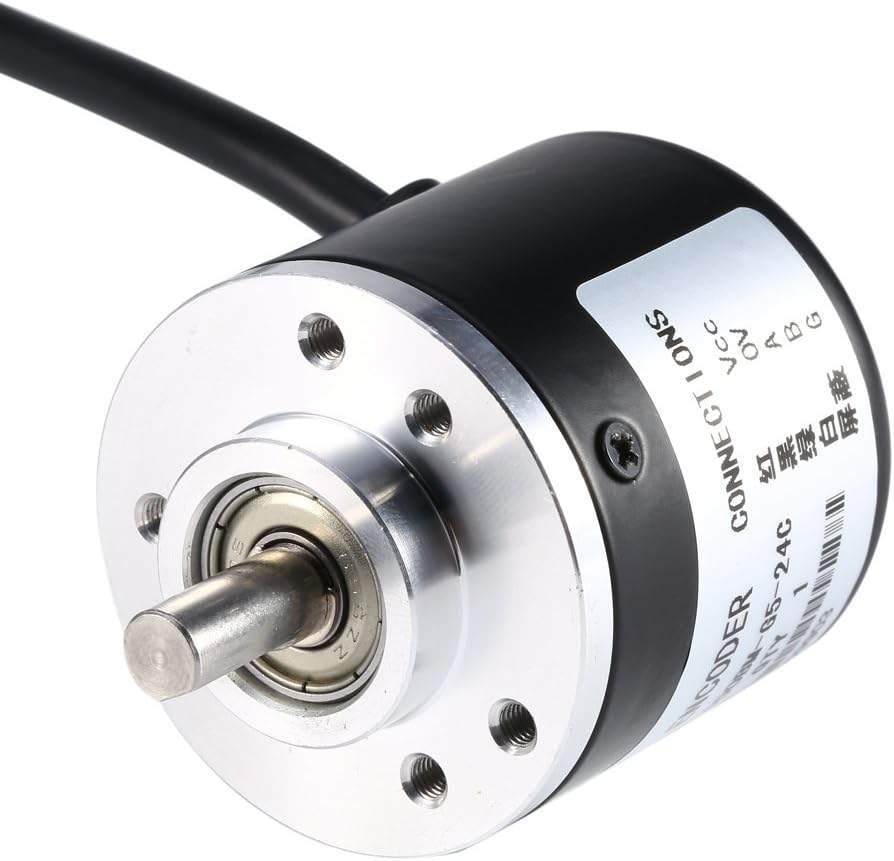

  • ?? Connection： Green = Phase A, White = Phase B, Red = VCC + Power, Black = V0. Note: AB biphasic output should not be directly connected to VCC, otherwise the output transistor will burn out.
  • ?? Parameters： response frequency: 0-20KHz, power supply: DC 5-24V; Encoder Size: 38 x 35.5mm / 1.49 x 1.39inch, Shaft: About 6 x 13mm / 0.23 x 0.51inch, Max Mechanical Speed: 5000R / min.
  • ?? After-sales service guarantee： If the product does not meet your expectations, please contact us first. We will solve your problems immediately and provide you with the best shopping experience.

Description

Description of the article:
1pc Incremental rotary encoder 600 p/r 6 mm Shaft 5-24v

Specifications:
100% new
Pulses: 600 p/r (single phase 600 pulses/R, double phase 4 doubling to 2400 pulses) Power supply: DC5-24V Axis: 6 * 13mm/0.23 * 0.51 "
Size: 38 * 35.5mm/1.49 * 1.39 "
Output: AB 2phase output rectangular orthogonal pulse circuit, the output for NPN open collector output type Maximum mechanical speed: 5000 R/min Response frequency: 0-20KHz Cable length: 1.5 meters

Uses:
1.It can be used to measure the rotation speed, the angle and acceleration of the object and the measurement of length 2. Suitable for intelligent control of various displacement measurements, Automatic fixed length leather guillotine machines, steel cutting.Length control, human height civil measurement, racing students.bots

Notice:
The AB 2phase output should not be directly connected to VCC, otherwise it will burn out the output triode, because they are different batches, and may have no terminal. (Green = phase A, white = phase B, red = power Vcc +, black = V0)

Package included:
1 x Encoder 600P/R Incremental rotary encoder
