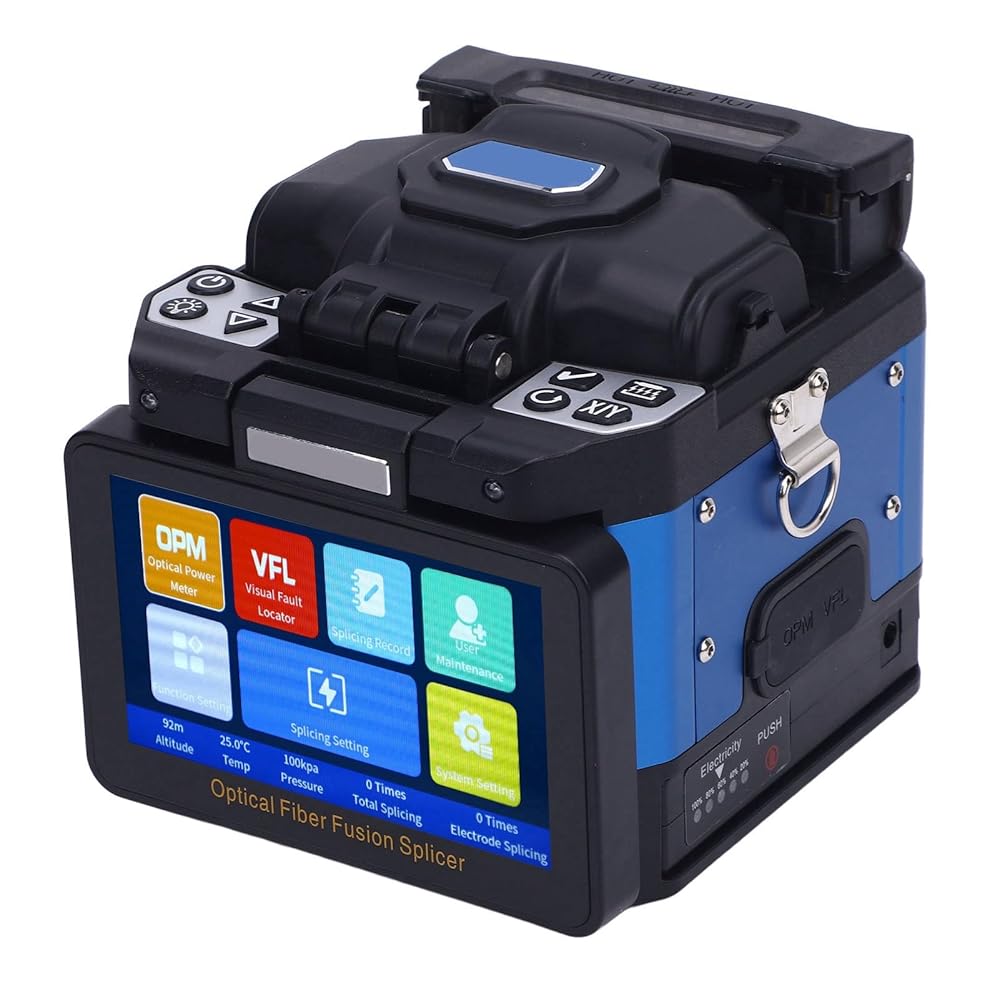

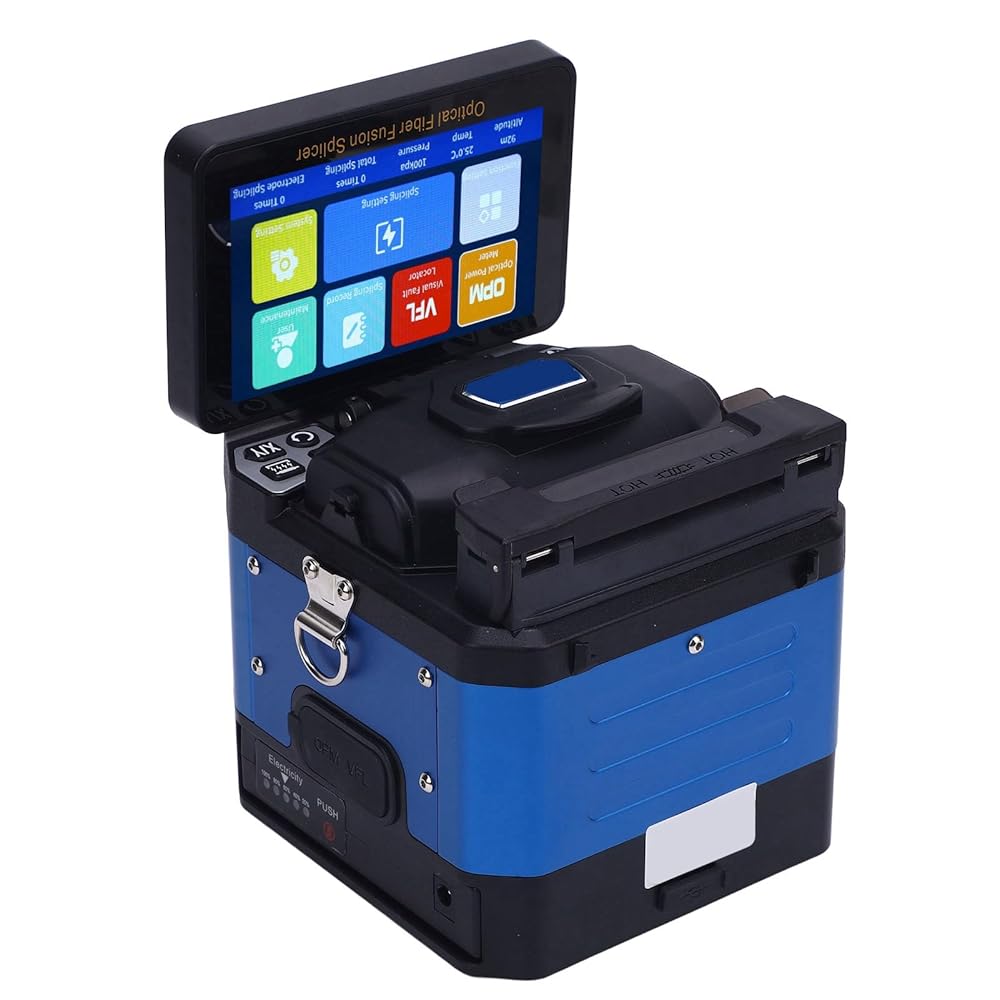

Optical Fiber Splicer 5in Capacitive Touchscreen 6 Motors Automatic Fiber Optic Splicer with Cutter for FTTH (US Plug AC100-240V)

SAR 3,083
Brand
Jauarta
SizeUS Plug AC100-240V
– 1 +

Special Features

  • Accelerated Splicing and Heating: Equipped with powerful high speed motors, our 6 motor splicer achieves a remarkable 8 second splicing time and 18 second heating, enabling approximately 200 continuous cycles.
  • Accuracy Engineering Design: Utilizing advanced coring alignment technology with automated focusing and six motors, this splicer delivers exceptional accuracy and minimizes splicing loss while measuring connection quality effectively.

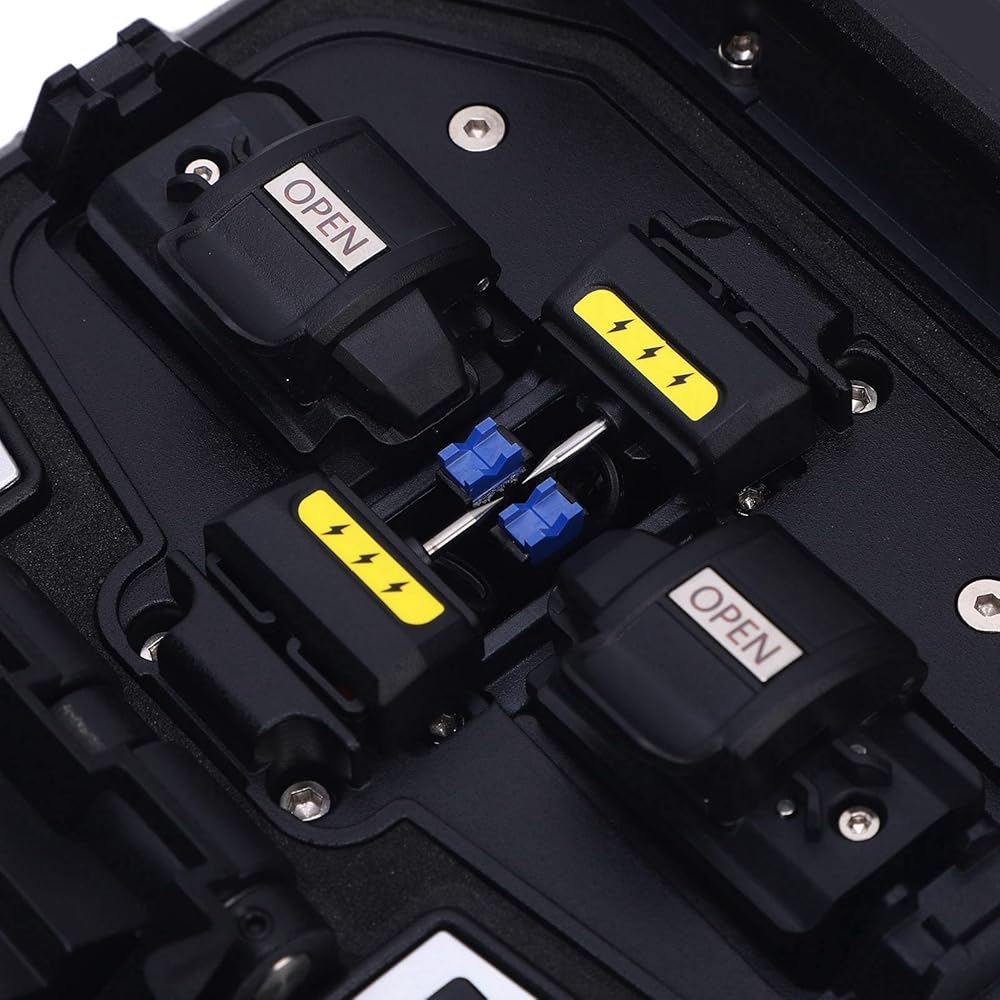

  • 3 in 1 Fiber Holder: Our three in one fiber holder supports various fiber types, including SM, MM, DS, and NZDS, with splicing losses as low as 0.01dB, making it suitable for custom applications.

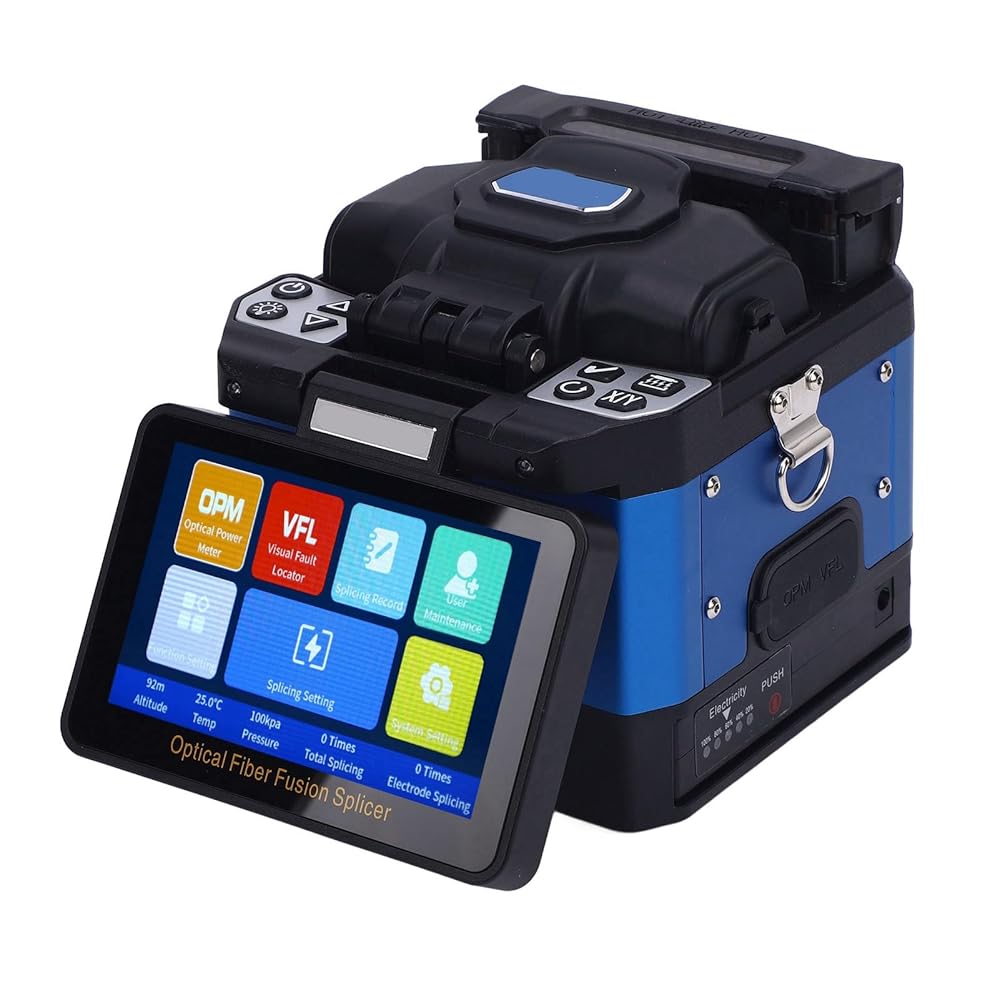

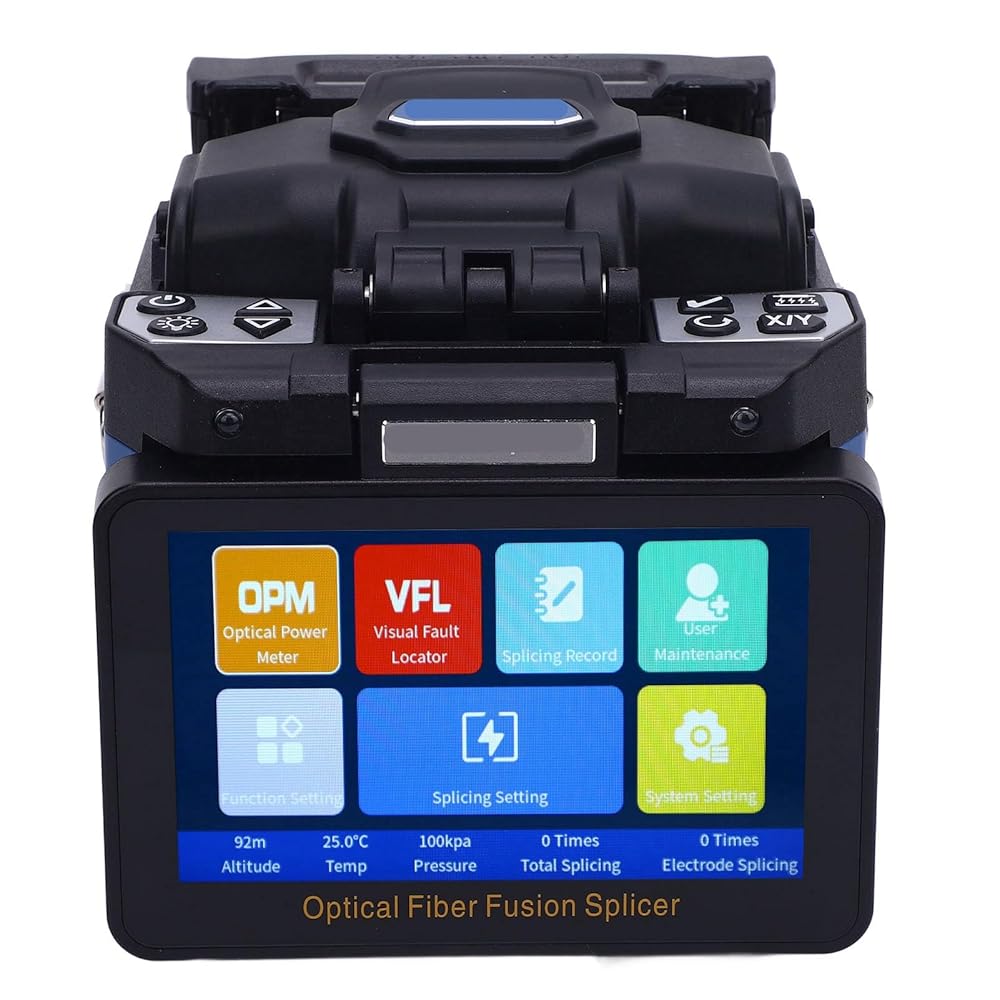

  • Clear LCD with Extended Battery Life: The splicer features a 5 inch high resolution capacitive touchscreen that provides up to 300x magnification. Its built in 6700 mAh battery offers approximately 200 continuous splicing cycles on a single charging.
  • Automatic Rebounding Fiber Cutter: This splicer comes with a fully automatic rebounding fiber cutter, equipped with strong silicone pads. It offers a cutting lifespan of about 48,000 uses, ensuring efficiency for different fiber types.

Description

Specification:
Item Type: Optical Fiber ​​ Splicer
Material: ABS, Aluminum Alloy, Tungsten Steel
Fiber Type: SM (G.652 and G.657), MM (G.651), DS (G.653), NZDS (G.655) and Custom Fiber Types
Fiber Diameter: Cladding Diameter 80-150μm, Coating Diameter 100-1000μm
Continuous Loss: 0.02dB (SMF), 0.01dB (MMF), 0.04dB (​​ NZDs) measured using ITU I shear method
Alignment Method: Coring, Cladding
Focusing Method: 6 Motor Auto Focusing
​​ Method: Full Auto, Semi Auto, Manual
​​ Time: 8s (SMF typical value)
Tension Test: 1.96N-2.1N
Image Display: 5 inch HD Capacitive Touch Screen, Button Touch 2 Use, Content Can Rotate in Two Directions
Magnification: 300x (X Y axes)
​​ Record: 1000 sets
Typical Heating Time: 18s
Heating Mode: Heating Time, Temperature Adjustable, Supports Auto or Manual Heating
Safety Tube Sleeve: Approx. 20 to 60mm / 0.79 to 2.36in
OPM:
Range (dBm): -70 to +10dBm
Wavelength: 850-1650nm (10 Wavelength Bands)
VFL: ≥15km
Operating Interface: GUI Graphic User Interface
System Upgrade: USB (Data Export, Function Upgrade, Power Output)
Electrode Life: 3000 times
Lighting Method: LED
Battery Capacity: Built in 6700mAh (200 times of ​​ and Heating Typical Use)
Power Supply: 11.8V Li Battery x1 (Built in Battery Included) Charging Time Approx. 3.5 hours
Language Support: Chinese, English, French, Russian, Italian, Portuguese, Polish, Spanish, Thai, Arabic
Operating Environment:
Temperature: -15-+50℃
Humidity: ≤90%RH (Non condensing)
Altitude: 0-5000m/Wind
Speed: ≤15m/m
Storage Condition:
Temperature: -40-+50℃
Humidity: 0-95%
Splicer Size: Approx. 137 x 160 x 145mm / 5.39 x 6.3 x 5.71in(Length x Width x Height)
Fiber Cleaver
Cutting Angle: ≤6°
Cutting Length: 9-16mm (Diameter0.25)/10-16mm (Diameter0.25)
Fiber Diameter Type: 125μm
Suitable Fiber Types: 0.25 and 0.9mm
Fiber Cutting Length:
