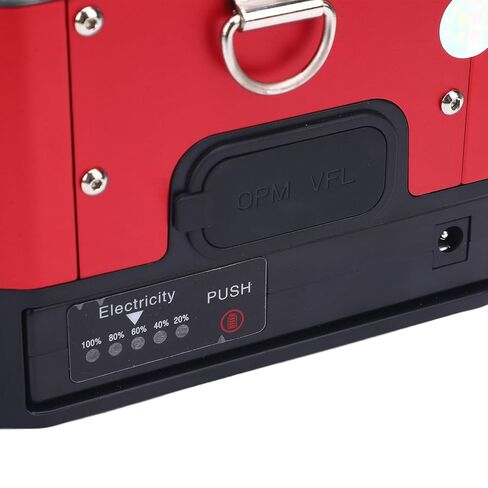

Fiber Splicer Kit 8s Splicing 18s Heating 6 Motor Cores Alignment Full Automatic Fiber Splicing Machine (US Plug AC100-240V)

SAR 2,883
Brand
Jauarta
SizeUS Plug AC100-240V
– 1 +

Special Features

  • [High Efficiency] This splicer can achieve 8 second splicing and 18 second heating with a powerful high speed motor, built in 670mAh battery, supporting continuous splicing and heating for about 200 times. Supports automatic, semi automatic and manual splicing modes.
  • [Precise Cores Alignment] The fiber splicer features automatic focusing function and 6 motors, allowing for precise cores alignment and less loss. Effectively measure connection loss, verify continuity, and help evaluate the transfer quality of fiber optic links.

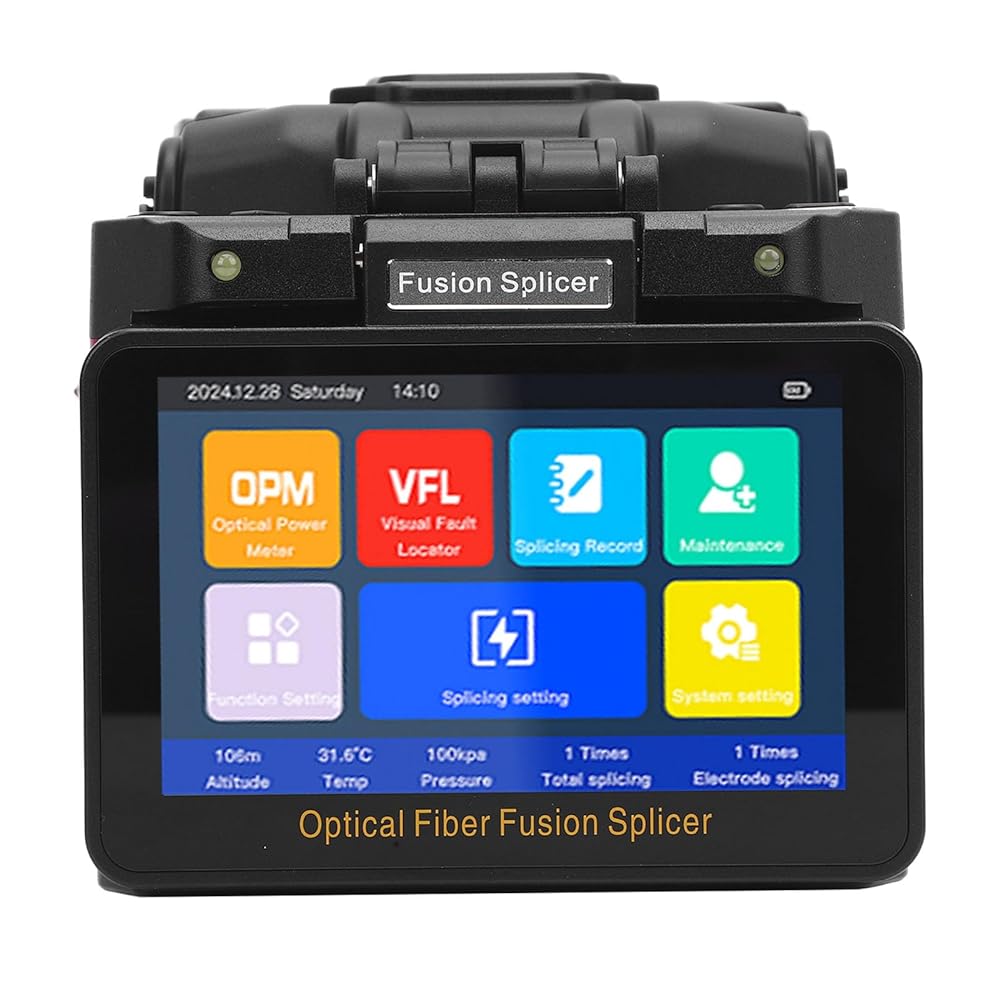

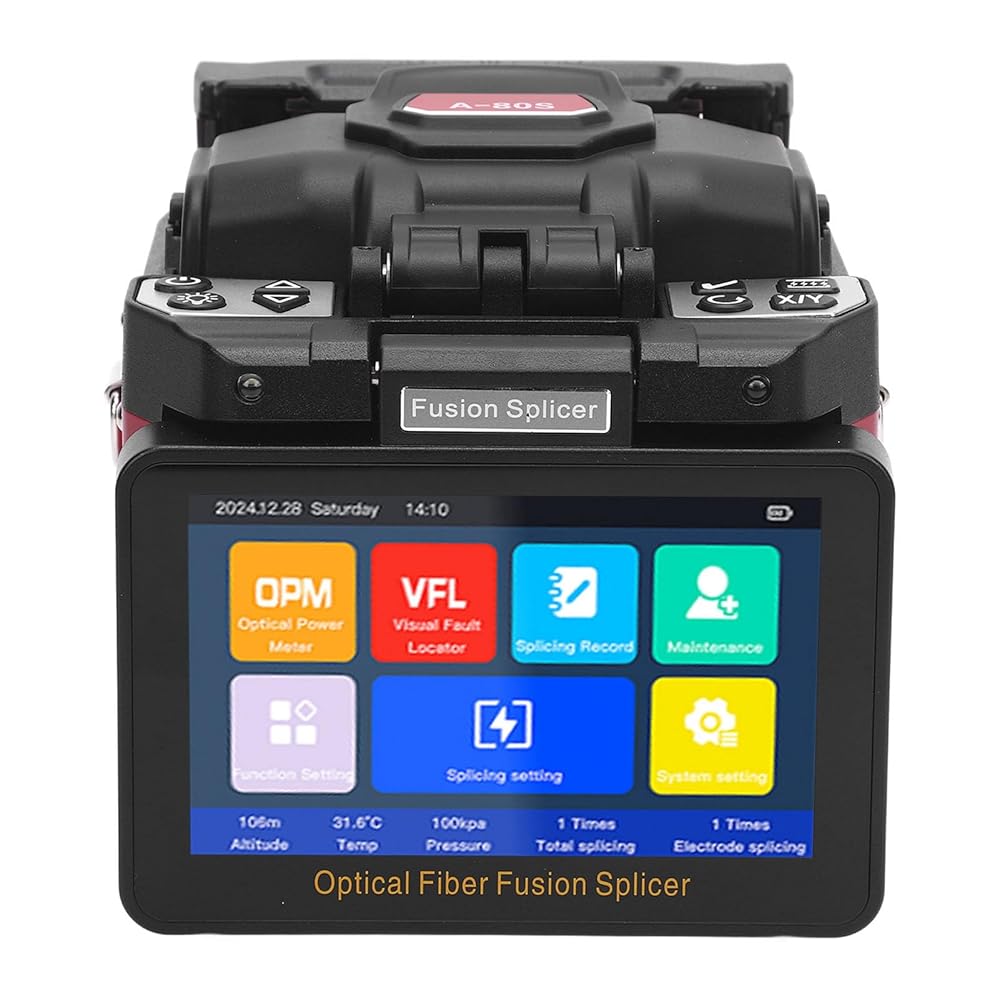

  • [Clear LCD Screen] The fiber splicing machine adopts 5 inch capacitive touch screen with 800x480 high resolution, easy to read and control, supporting 300X magnification for X or Y axes display.
  • [Automatic Fiber Cleaver] Universal for hot melting and cold splicing, enhanced silicone pad allows for secure fiber clamping, the cutting angle is about 6 degree, suitable for 0.25mm and 0.9mm fiber cables.

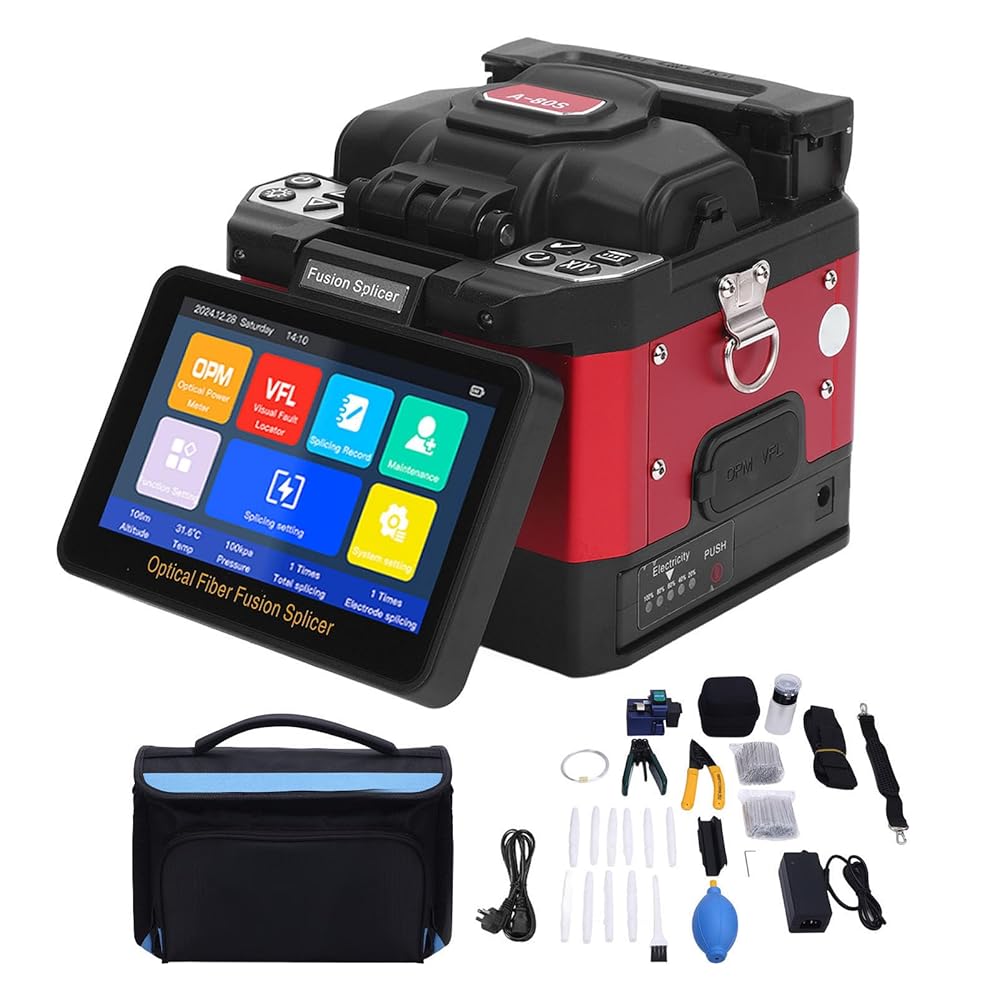

  • [Large Storage Bag] The kit comes with a large capacity storage bag, with cushioning inside to guard the machine, convenient to carry all your accessories.

Description

Specification:
Item Type: Fiber ​​ Splicer Kit
Material: ABS, Aluminum Alloy, Silicone, Tungsten Steel

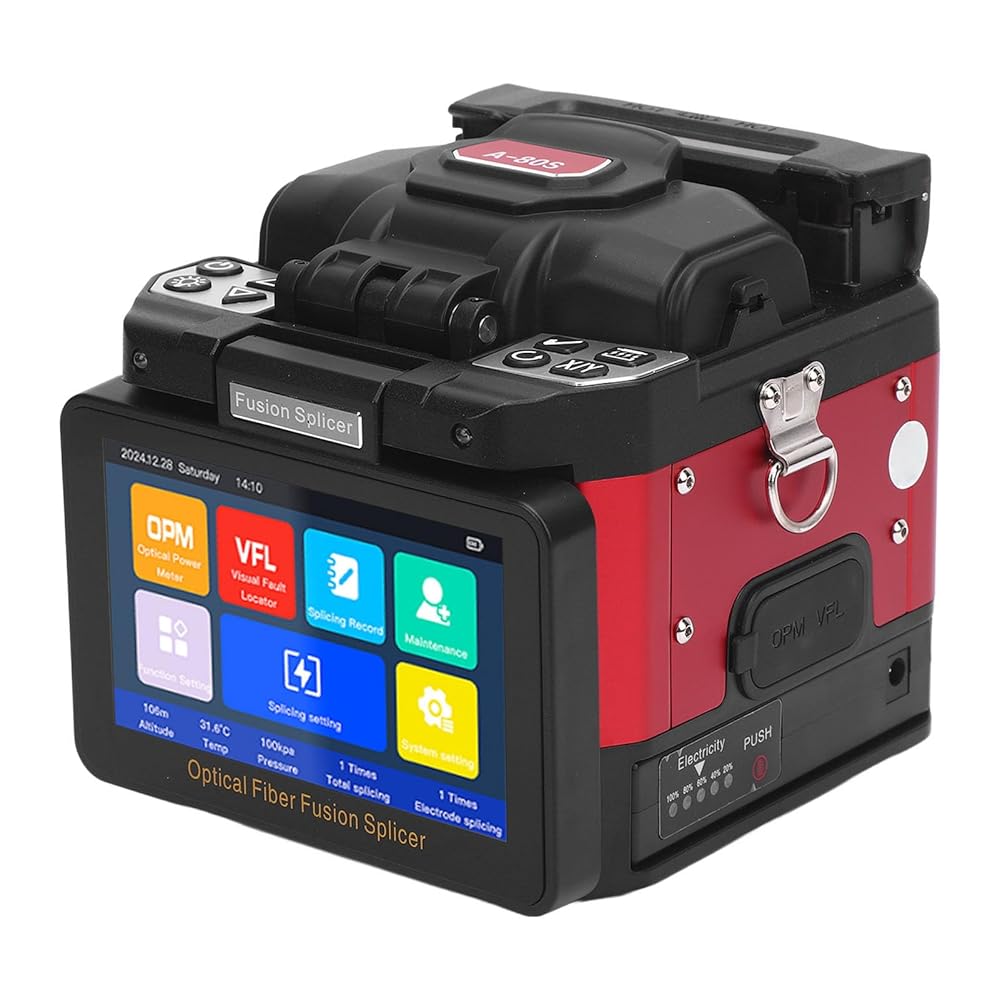

A-80S Optical Fiber ​​ Splicer:
Suitable Fiber: SM (G.652 and G.657), MM (G.651), DS (G.653), NZDS (G.655), and customized fiber types
Fiber Diameter: Cladding Diameter: 80~150μm, Coating Diameter: 100~1000μm
Continuous Loss: 0.02dB (SMF), 0.01dB (MMF), 0.04dB (​​/NZDs) measured by ITU-T cutback method
Alignment Method: Fiber cores, cladding
Focusing Method: Six motors automatic focusing
Splicing Mode: Full automatic, semi automatic, manual
Splicing Time: 8s (SMF typical value)
Tensile Test: 1.96N~2.1N

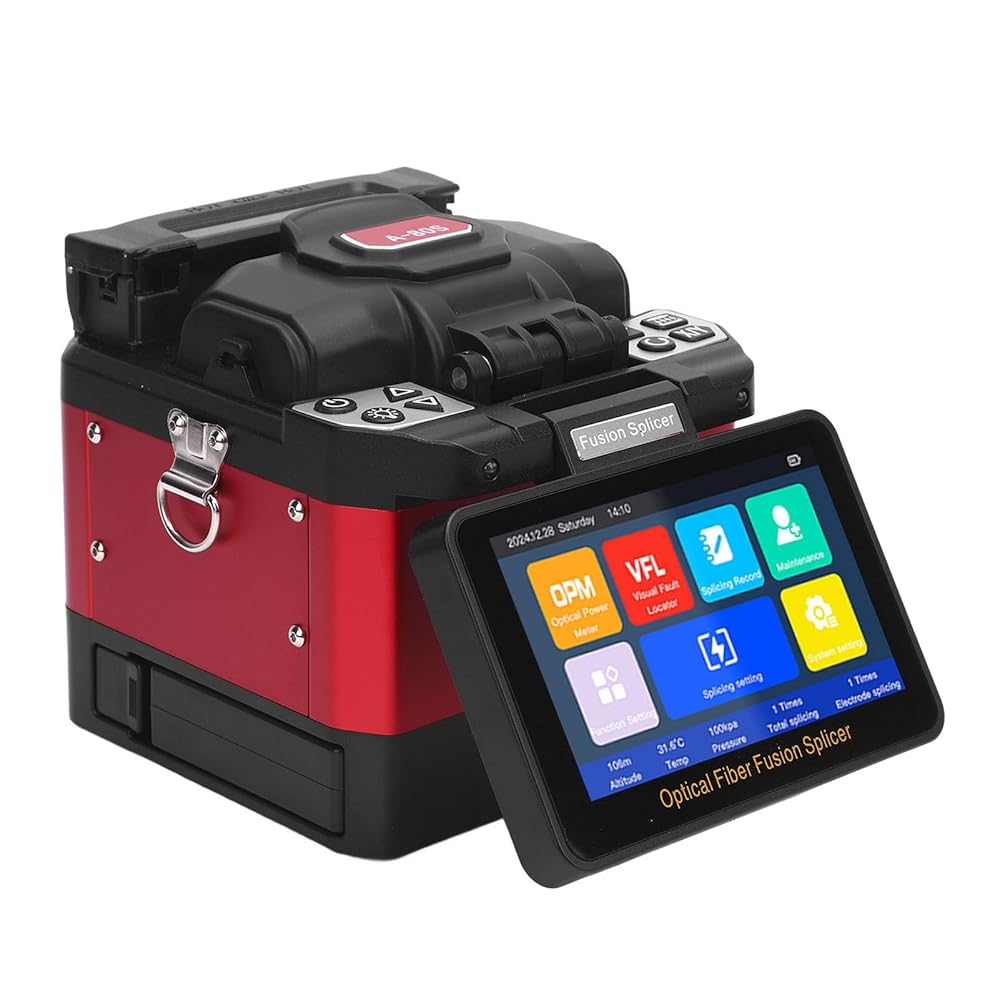

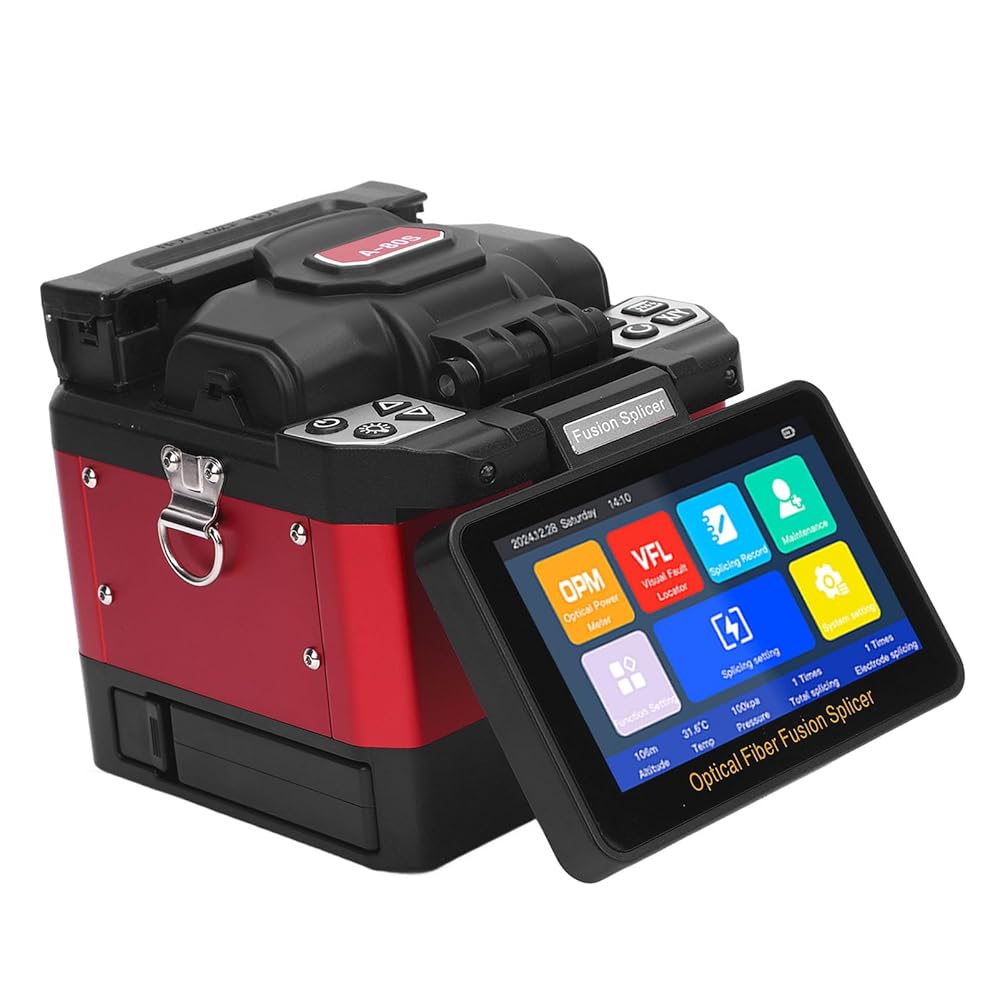

Image Display: 5 inch HD capacitive touch screen, key/touch double control, content can be flipped and operated in both directions
Magnification: 300X (X axes/Y axes)
Splicing Records: 1000 groups
Typical Heating Time: 18s
Heating Mode: Adjustable heating time and temperature, supports automatic or manual heating

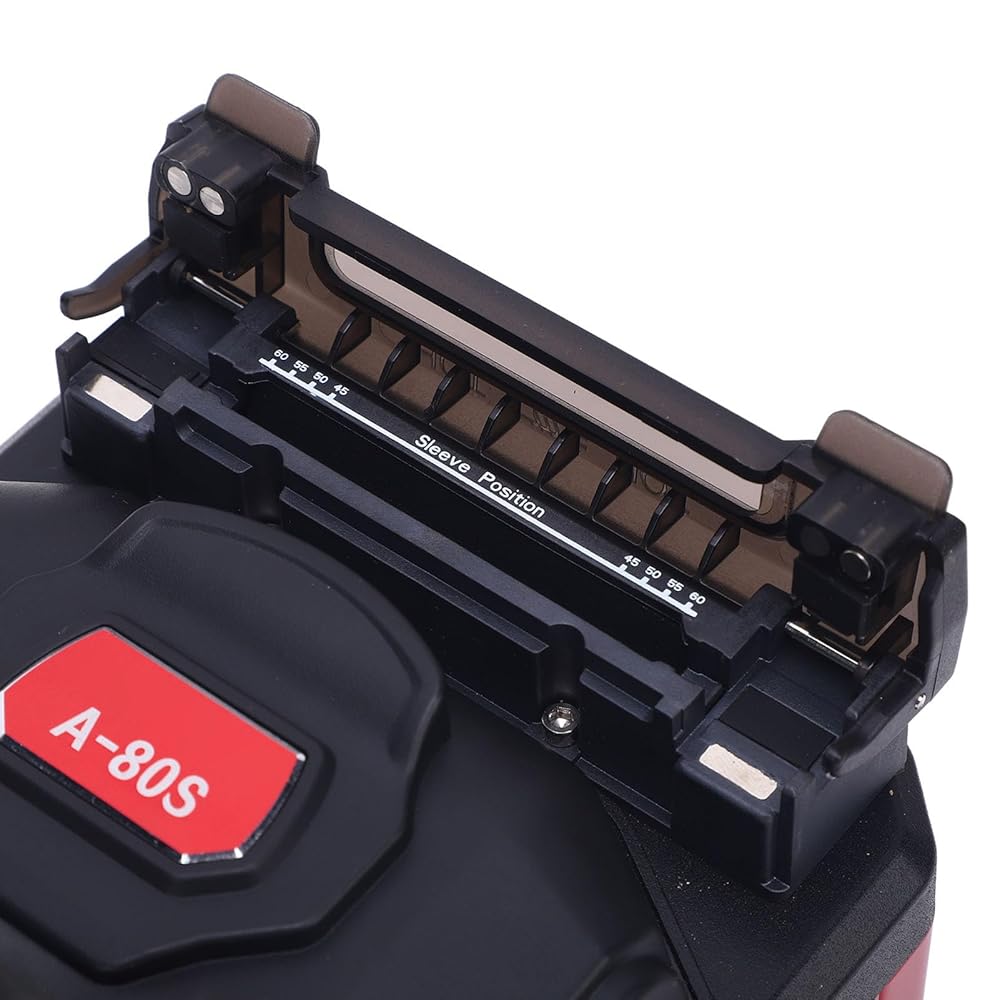

Heat Shrink Tube Sleeve: 20-60mm
OPM: Range (dBm): -70~+10dBm, Wavelength: 850-1650nm (10 bands)
VFL: ≥15km
Control Interface: GUI graphical user control interface
System Upgrade: USB (Data export, function upgrade, power output)
Electrode Life: About 3000 times
Lighting: LED

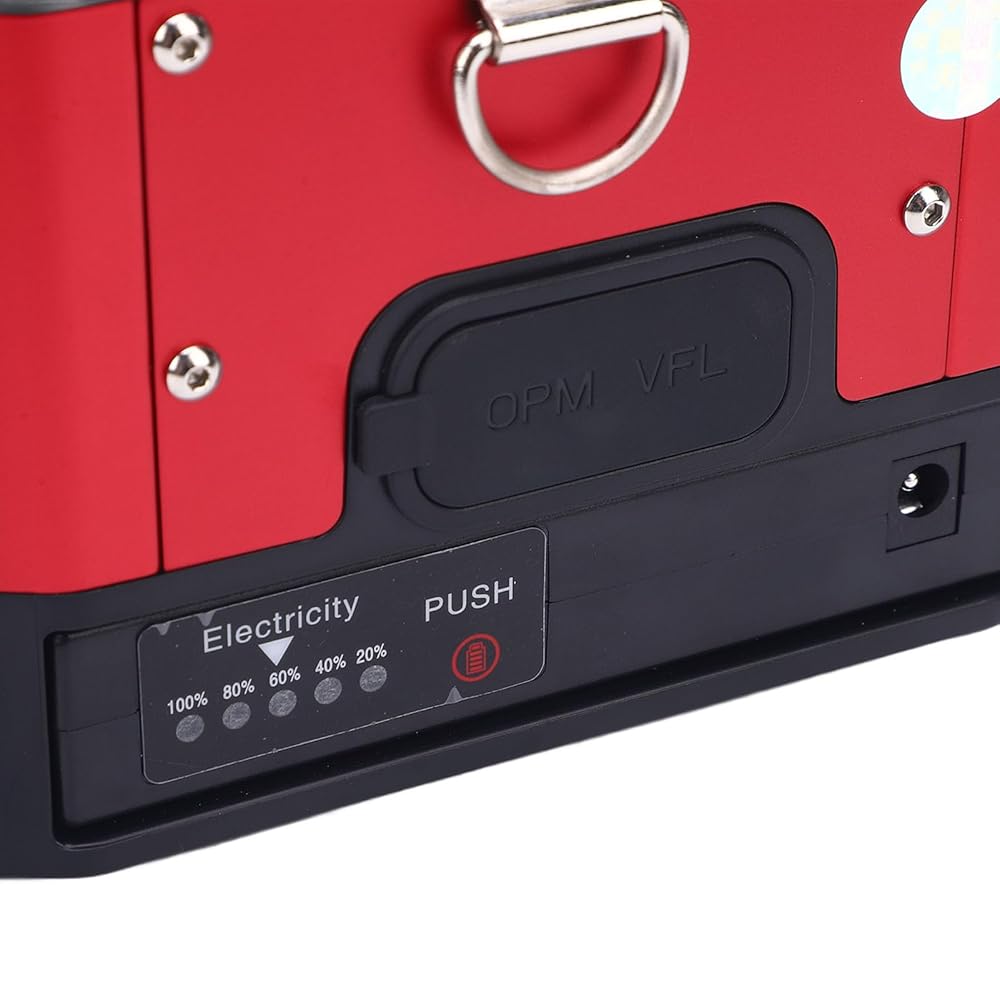

Battery Capacity: 6700mAh (200 times of typical splicing and heating)
Power Supply: 11.8V lithium cell x 1 (Built in)
Charging Time: About 3.5 hours
Language Supported: Chinese, English, French, Russian, Italian, Portuguese, Polish, Spanish, Thai, Arabic
Working Environment:
Temperature: -15 to +50℃
Humidity: ≤90%RH (Non condensing)
Altitude: 0-5000m
Wind Speed: ≤15m/m
Storage Conditions:
Temperature: -40 to +50℃
Humidity: 0-95%
Splicer Size (LxWxH): Approx. 137x160x145mm / 5.39x6.3x5.71in
AUA-X5 Fiber Cleaver:
Cutting Angle: About 6°
Cutting Length: 9-16mm (Dia0.25), 10-16mm (Dia0.25)
Fiber Diameter Type: 125μm
Suitable
