Spec:

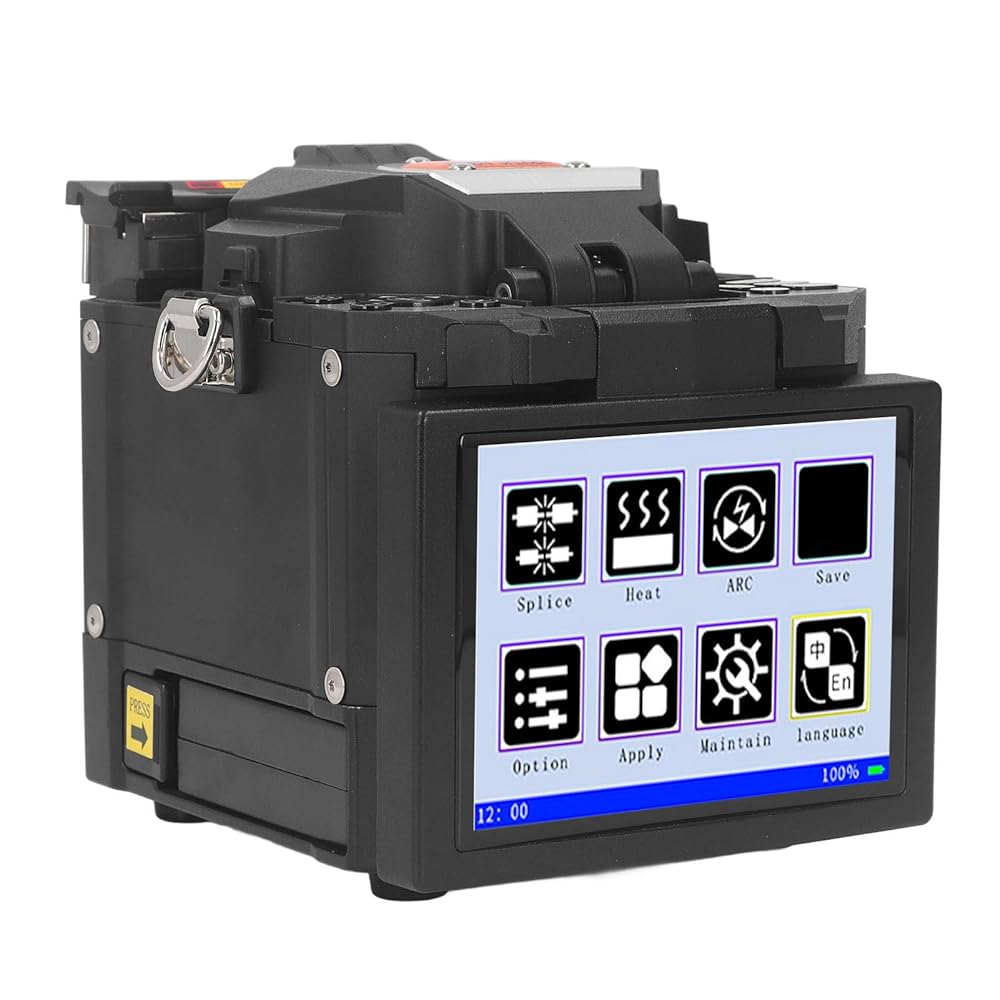

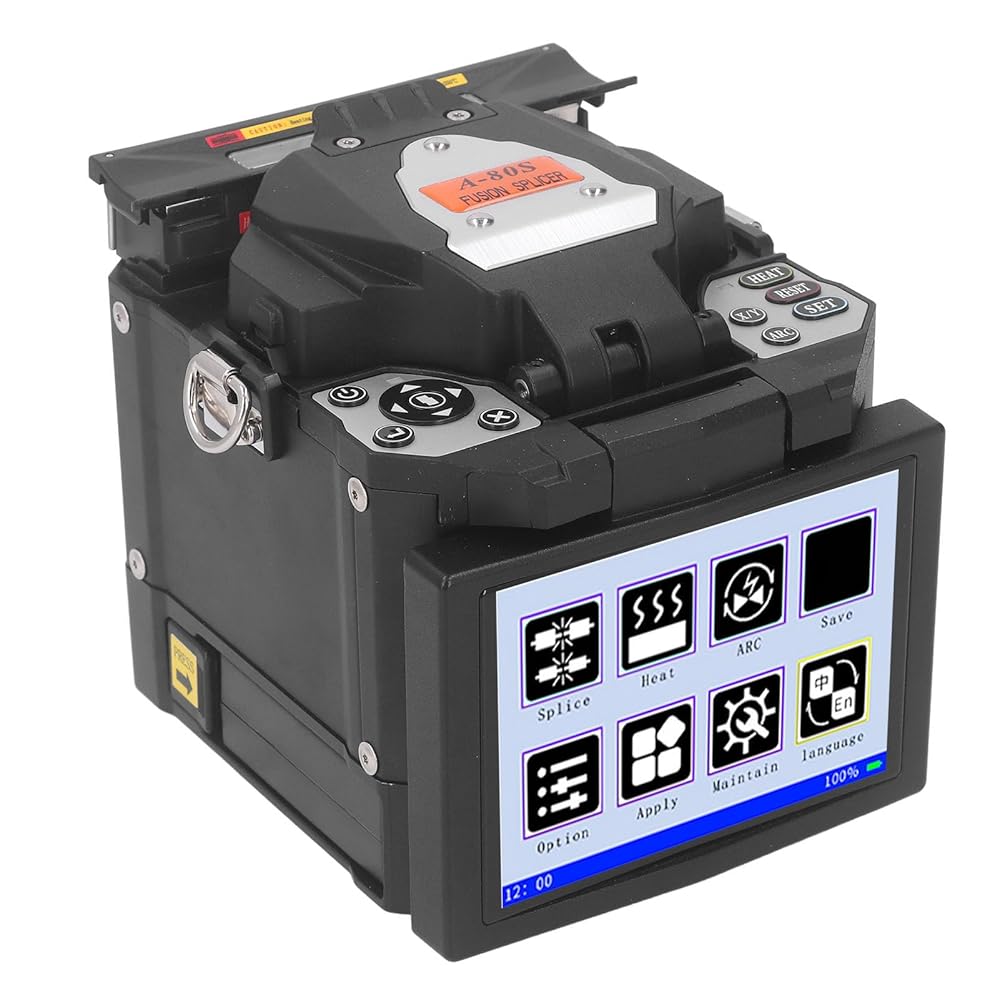

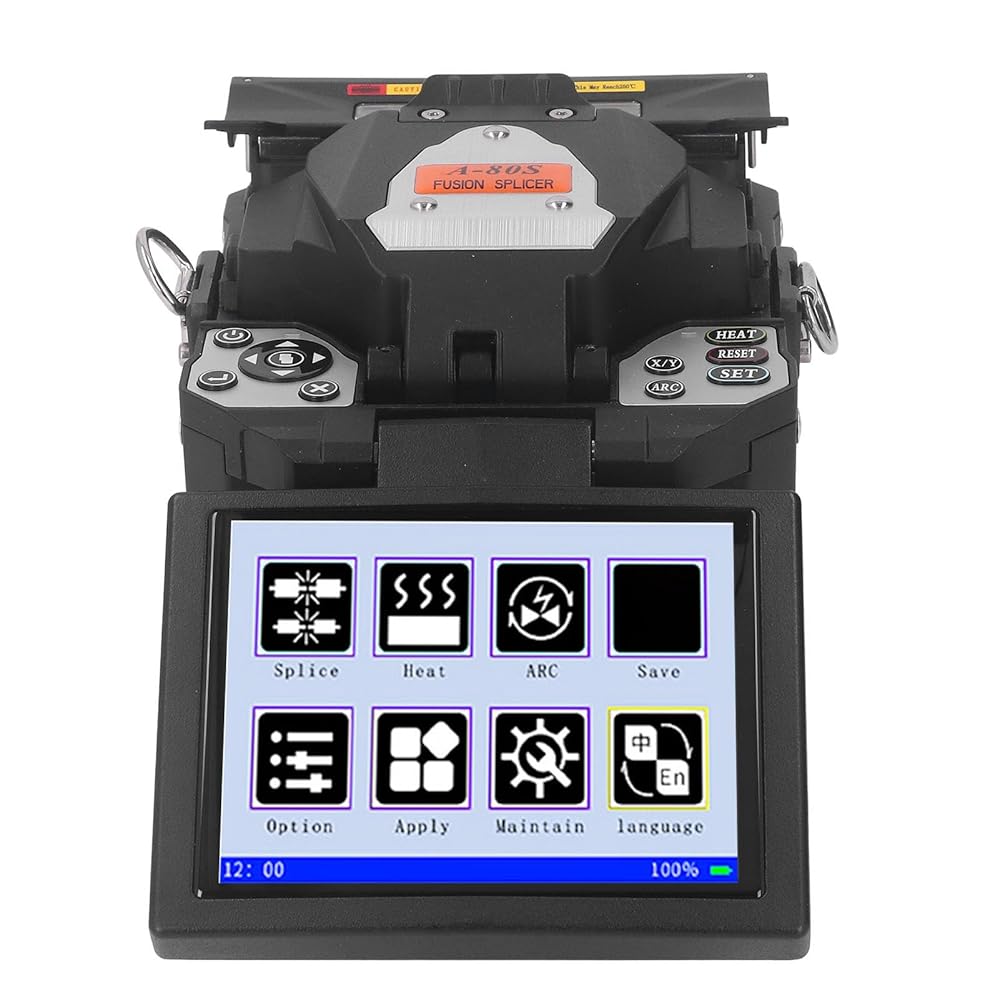

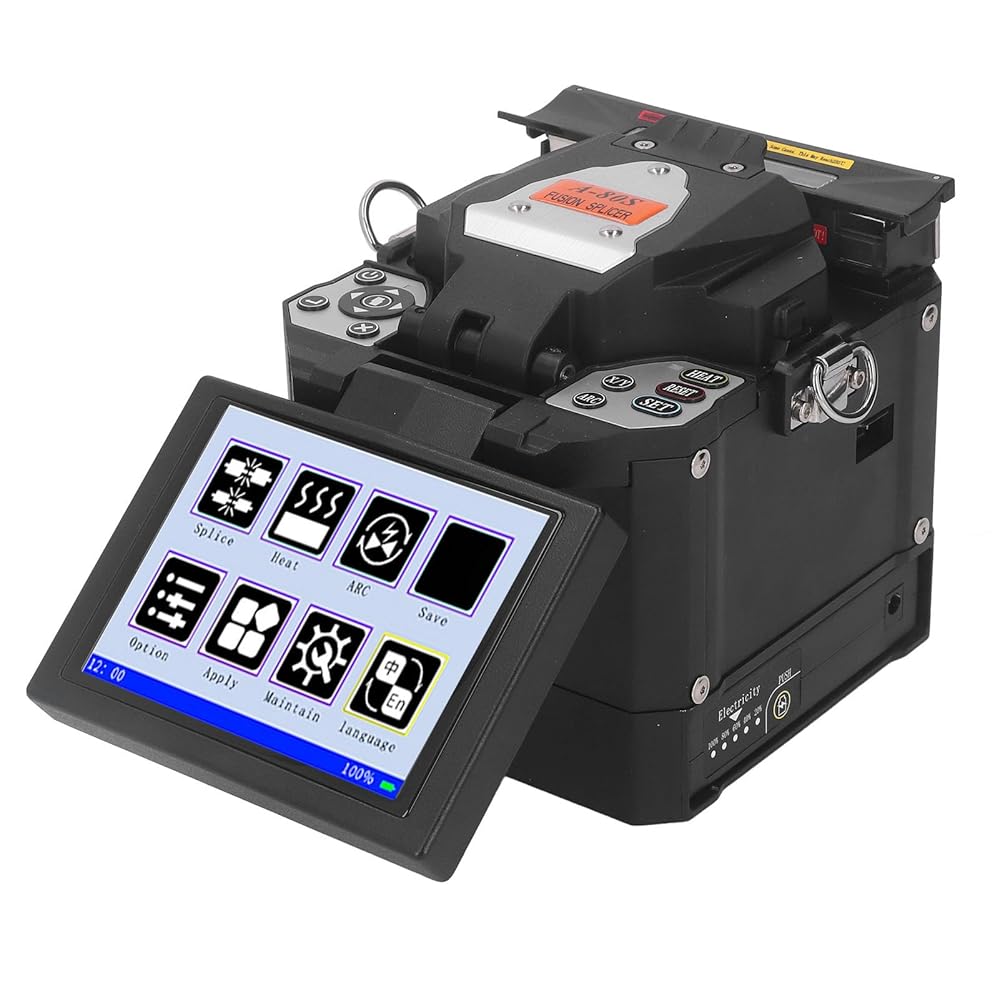

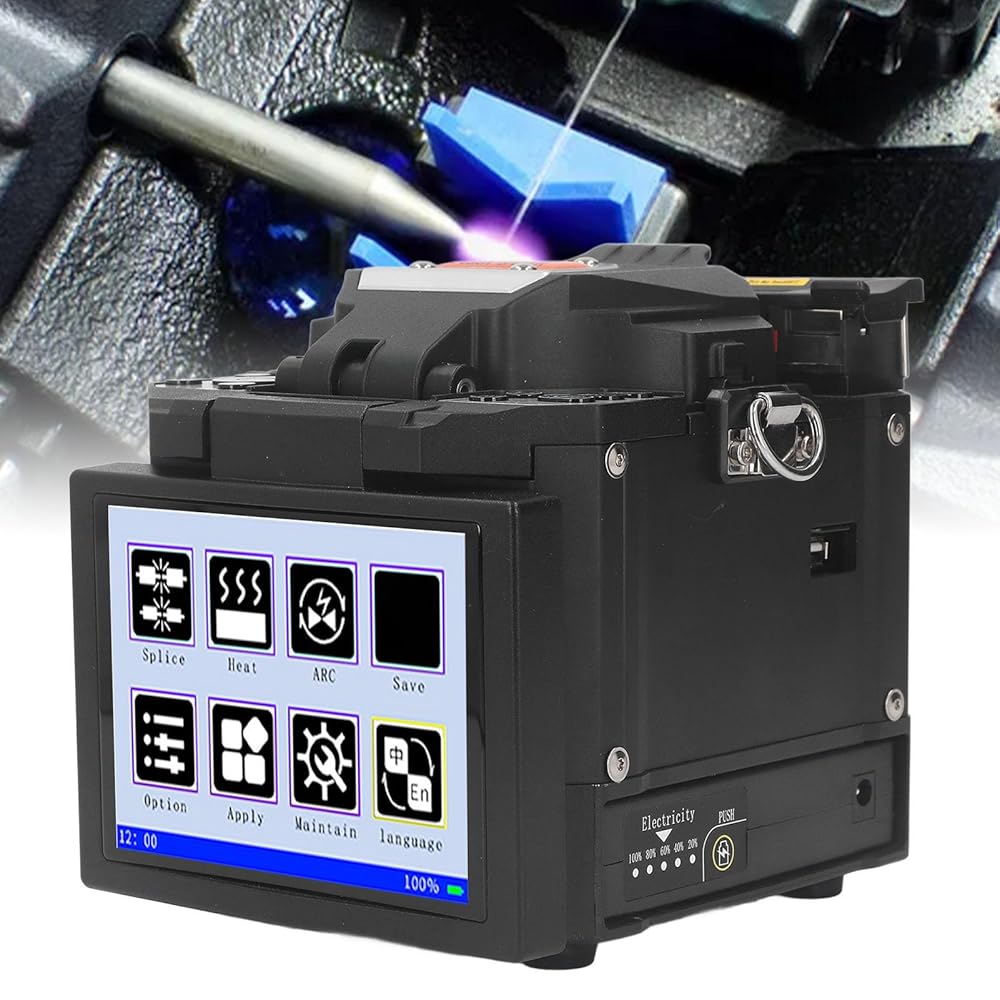

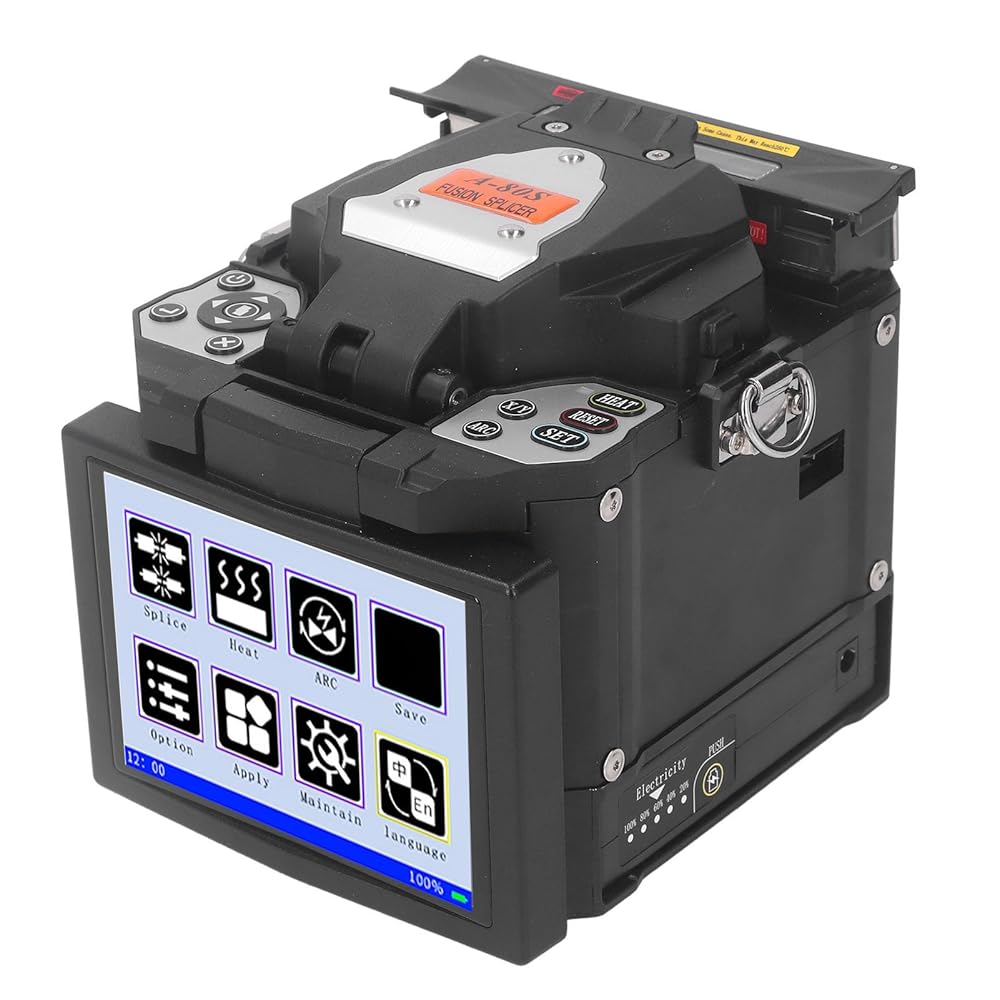

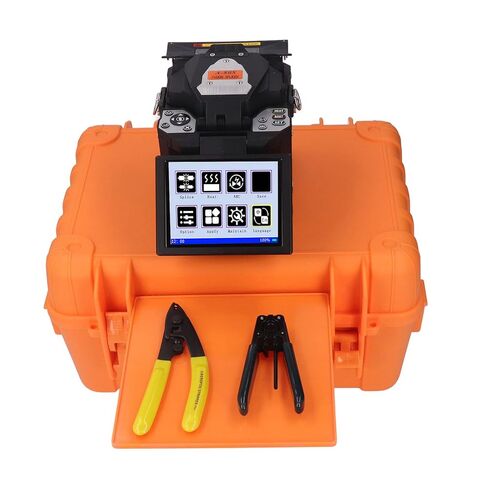

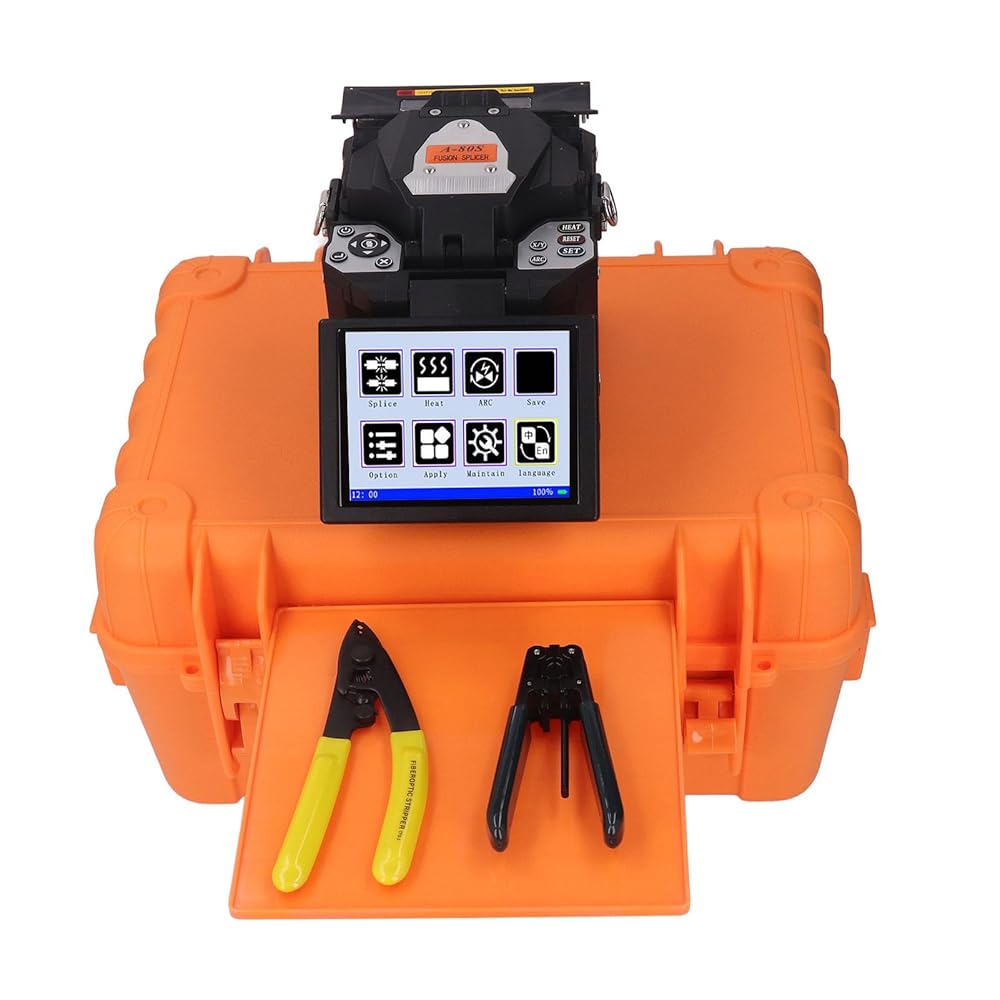

Item Type: Fiber ​​ Splicer
Applicable Fiber: SM (G.652 G.657), MM (G.651), DS (G.653), NZDS (G.655), custom fiber type
Splicing Loss: 0.02dB (SM), 0.01dB (MM), 0.04dB (DS NZDS)
Return Loss: Better than 60dB
Typical Connection Time: 9 Seconds
Typical Heating Time: 26 Seconds (heating time can be set, heating temperature can be adjusted)
Fiber Optic Alignment: Fine Alignment, Core Alignment, Cladding Alignment
Fiber Diameter: Cladding diameter 80-150μm. Coating diameter 100-1000μm
Cutting Length: Coating Layer 250μm Below: 8-16mm; Coating Layer 250-100um: 16mm
Tension Test: Standard 2N
Magnification Factor: 400X (X Axes or Y Axes)
Heat Shrink Tubing: 60mm, 40mm, and a series of micro shrink tubing

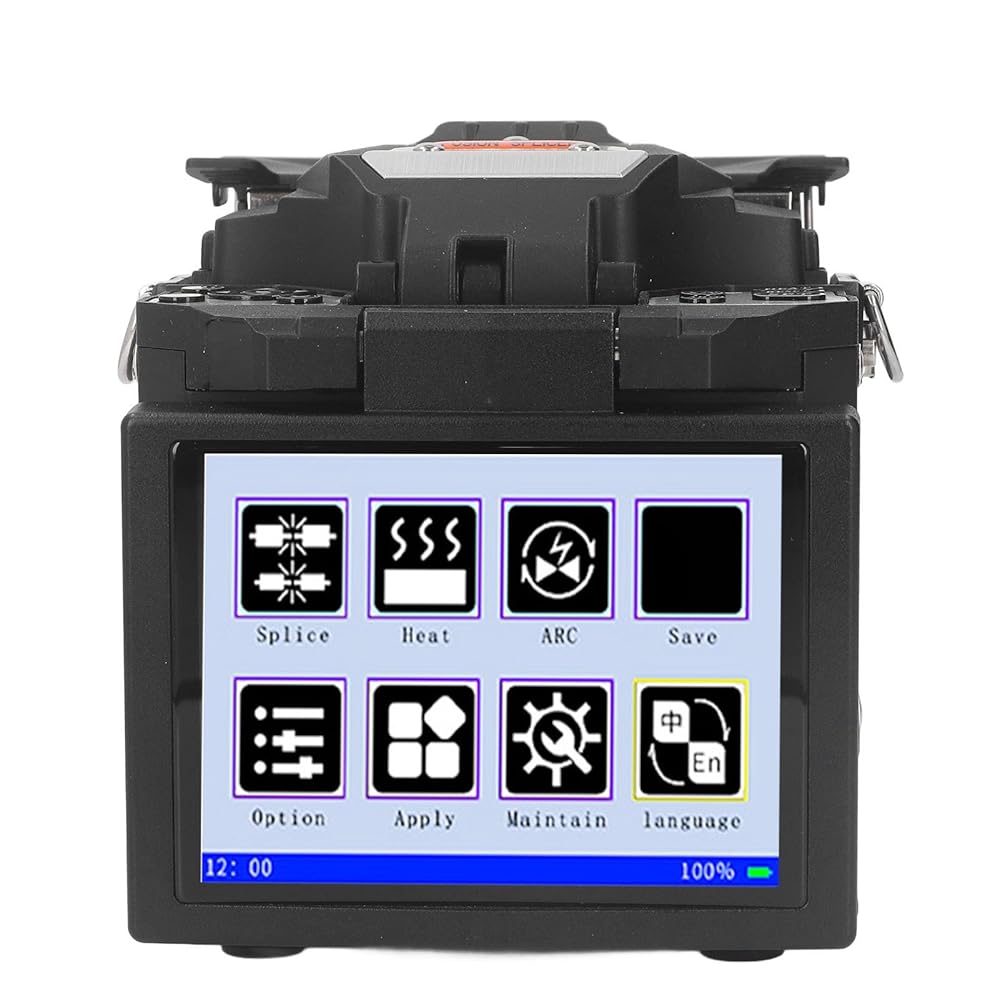

Display: 5.0 Inch TFT color LCD display screen, content can be flipped, convenient for dual way operating
​​ Mode: 17 Sets Usage Mode
Heating Mode: 9 Sets Usage Mode
Battery Life: Can be continuously fused and heated for no less than 200 times
Power Supply: 1 x 6700mAh Rechargeable Li Battery, Charging Time ≤ 3.5H; (included)
Power Saving Function: Can save 15% of li battery power in typical environments
Working Temperature: -10-50℃
Working Temperature: Working Altitude: 0-5000m
Maximum Wind Speed: 15m/s
Lighting Function: Convenient for placing optical fibers at night
Size: Approx. 390 x 300 x 210mm / 15.4 x 11.8 x 8.3in

How to Use:
Take out the product, install it, turn on the switch and use it

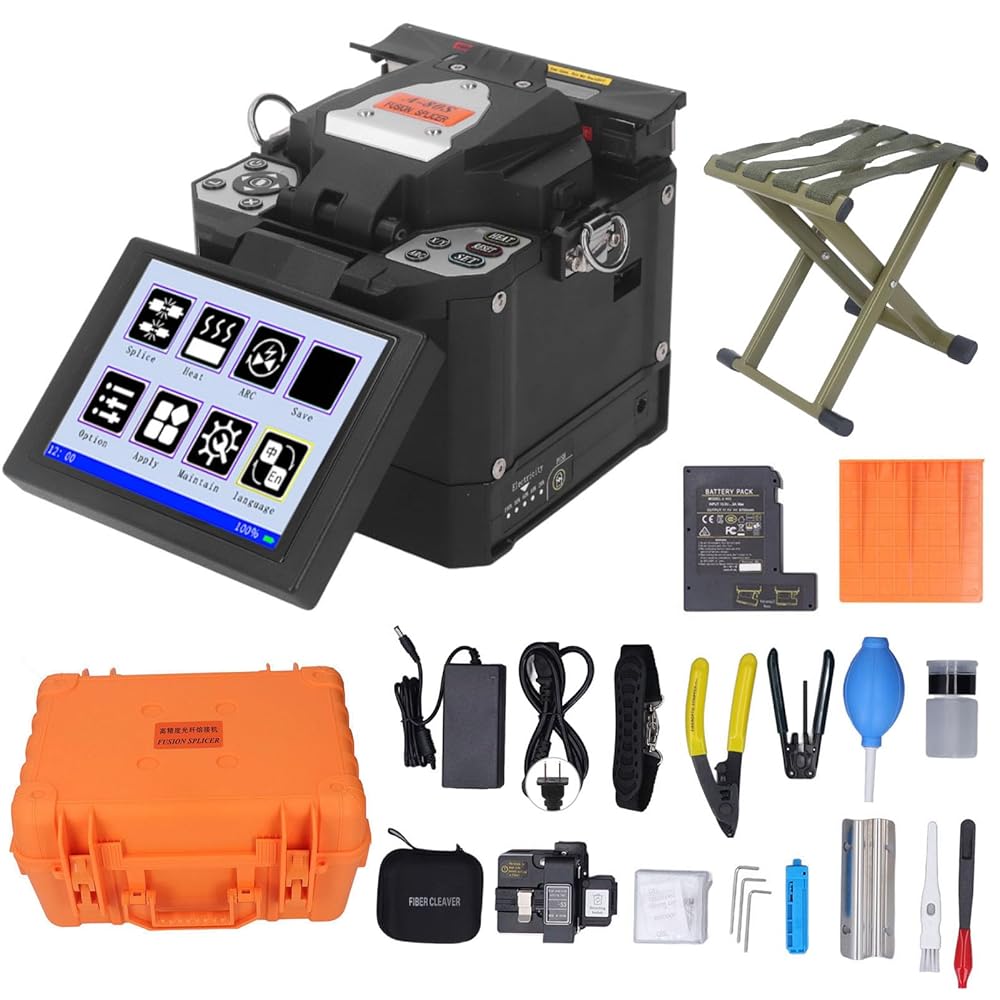

Package List:
1 x Fiber ​​ Splicer
1 x ​​ Splicer Battery
1 x ​​ Splicer User Manual
1 x Stool
1 x Fiber Cutting Knife
2 x Fiber Cutting Knife Wrench
1 x Fiber Cutting Knife Storage Box
1 x Fiber Cutting Knife User Manual
1 x Green Wire Stripping Pliers
1 x Yellow 3 Port Pliers
1 x Plastic Length Fixer
1 x Charging Adapter
1 x Power Cord
2 x Electrode Needle
1 x Electrode Storage Box
1 x Carrying
