Specification:

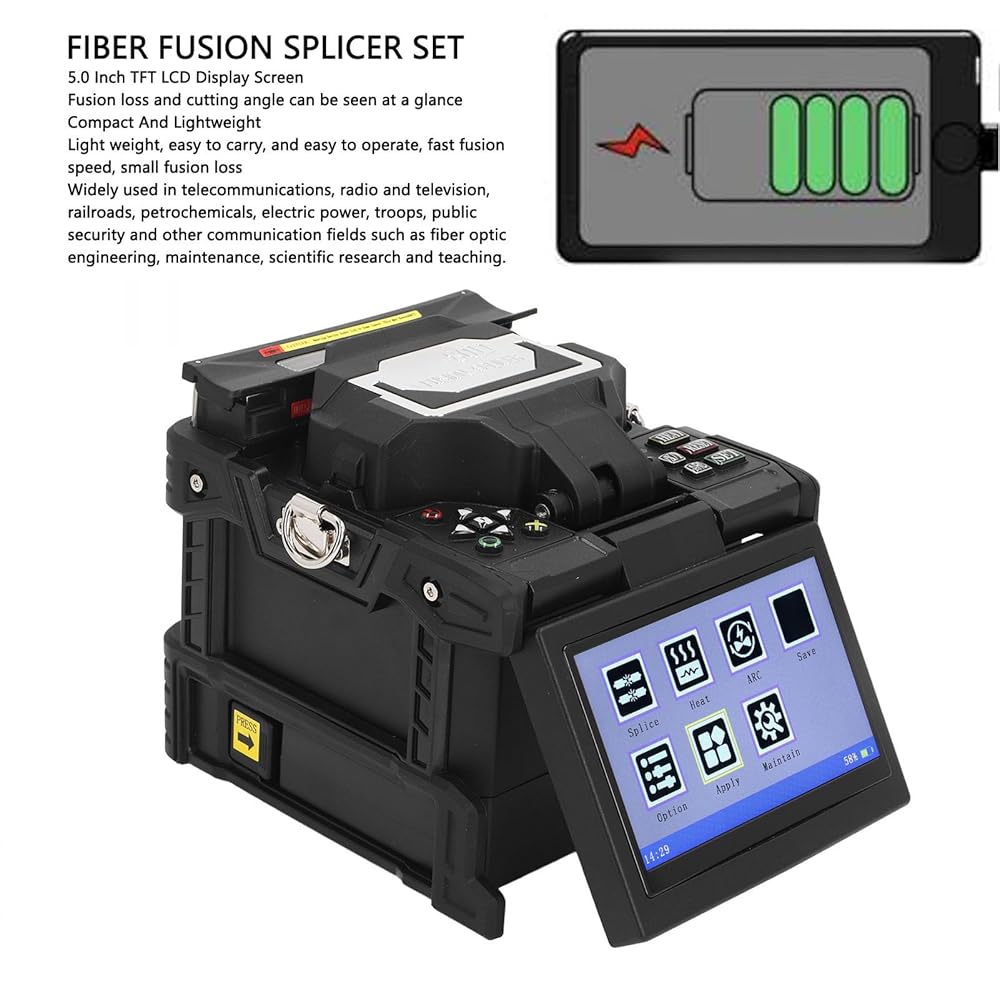

Item Type: Optical Fiber ​ Splicer Kit
Material: ABS
Model: SKL-80D
Fiber Compatibility: SM (G.652, G.657), MM (G.651), DS (G.653), NZDS (G.655) and Custom Fiber Types
Splice Loss: 0.02dB (SM), 0.01dB (MM), 0.04dB (DS/NZDS)
Return Loss: Better than 60dB
Typical Splice Time: 9 Seconds
Typical Heating Time: 26 Seconds (Adjustable Heating Time and Temperature)
Fiber Alignment: Fine Alignment, Core Alignment, Cladding Alignment
Fiber Diameter: Cladding Diameter: 80-150μm, Coating Diameter: 100-1000μm
Cutting Length: Coating less than 250μm: Approx. 8-16mm/0.31-0.63in, Coating 250-1000μm: Approx. 16mm/0.63in
Tension Test: Standard 2N

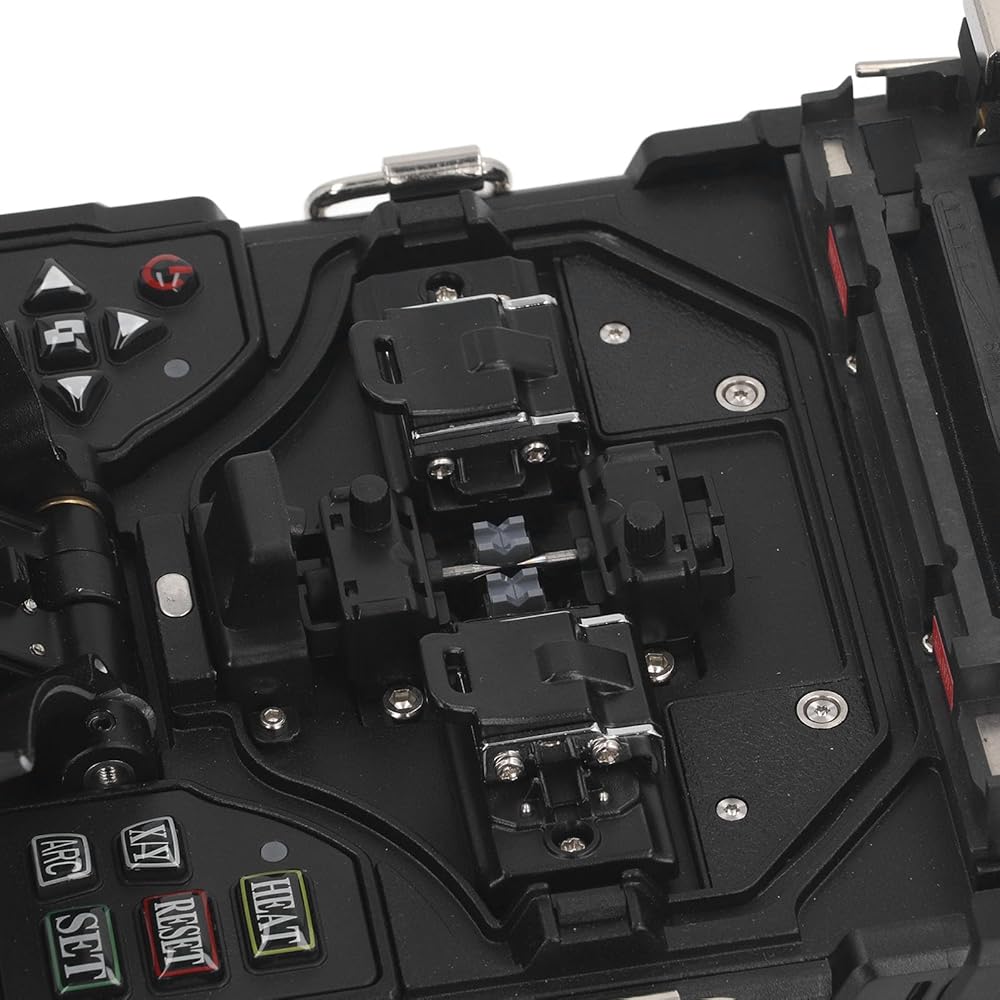

Fiber Fixture: Multifunctional fixture, suitable for bare fiber, pigtail, jumper, ​; interchangeable fixture suitable for SC connectors and various FTTx fiber optic cables
Magnification: 400x (X or Y Axes)
Heat Shrink Tube: 60mm, 40mm, and a range of mini tubes
Display: 5.0 Inch TFT Color LCD Display, Reversible Content, Convenient for Bidirectional Operation
External Interface: USB interface for easy data download and software updates
Splice Modes: 17 Group Modes
Heating Modes: 9 Group Modes
Splice Loss Storage: Built In Memory Stores 5000 Latest Splice Results
Battery Life: Continuous splicing and heating for at least 200 times
Power Supply: 1 x 6700mAh Rechargeable Lithium Battery, Charging Time ≤ 3.5H (Included)
Power Saving Function: Save 15% Lithium Battery Power in Typical Environments
Operating Environment: Temperature: -10-+50°C, Temperature: Lighting Function: Convenient for placing optical fibers at night

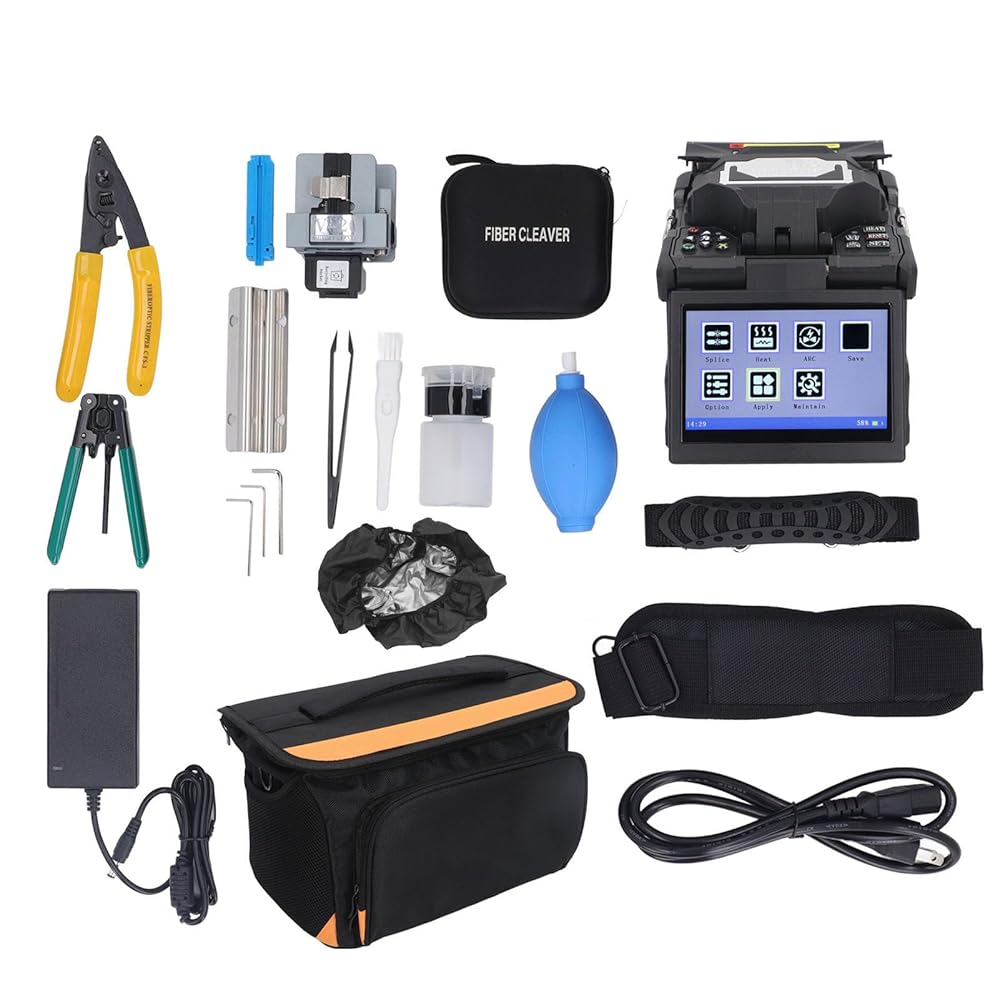

Package List:
1 x Fiber ​ Splicer
1 x Fiber Cutter
1 x Wire Stripping Pliers
1 x 3 Mouth Pliers
1 x Plastic Length Fixer
1 x Charging Adapter
1 x Power Cord
1 x Empty Bottle
1 x Air Blower
1 x Brush
1 x Tweezer
1 x ​ Splicer User Manual
1 x Fiber
