Item Parameter: Voltage:24V DC 18~26V DC range | Power Input:2.9W | Speed:6850 RPM | Type:DC axial compact fan | Material:Impeller:Glass-fiber reinforced PA plastic ; Housing:Glass-fiber reinforced PBT plastic | Airflow direction:Exhaust over struts | Direction of Rotation:Clockwise viewed toward rotor | Air flow:56m³/h | Sound Data:Sound power level=5.7B; Sound pressure level=41dB(A) | Protection:Protection against reverse polarity and blocked rotor With electronic locked-rotor and overload protection | Approval:VDE、CSA、UL、CE
Model:614 NHH fan for ebm papst; Type:DC axial compact fan; Temperature Range:-20℃ to+70℃ operating; Bearing system:Ball bearing; Cable:Leads AWG 22 TR 64 stripped and tin-plated
Fan Size:60mm × 60mm × 25mm Length×Width×Depth; Weight:0.066 kg; High-reliability 614 NHH fan built with German precision. A high-performance DC axial compact cooling fan engineered for industrial ventilation and heat dissipation

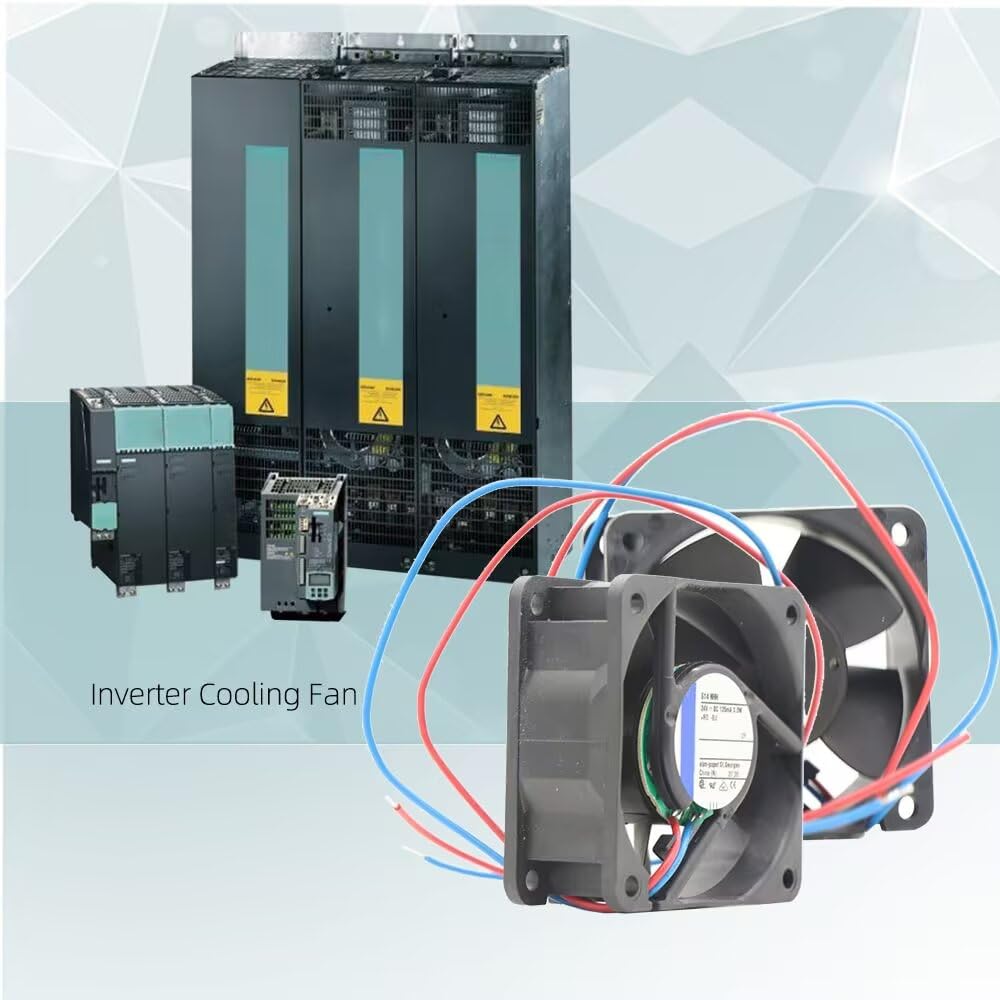

Applicance:614 NHH fan widely used in industrial electronic components and small-to-medium-scale equipment cooling systems; our store are professional for providing ventilation and heat dissipation products and industry control accessories. Optional custom designs:Speed signal Go/No-go alarm Moisture protection Degree of protection IP54 / IP68
Condition:All items tested and brand-new states before sale compliant with VDE CSA UL CE. Based on the correct installation and use we can provide 6-month warranty. More details feel free to contact us
وصف
Product Parameters |

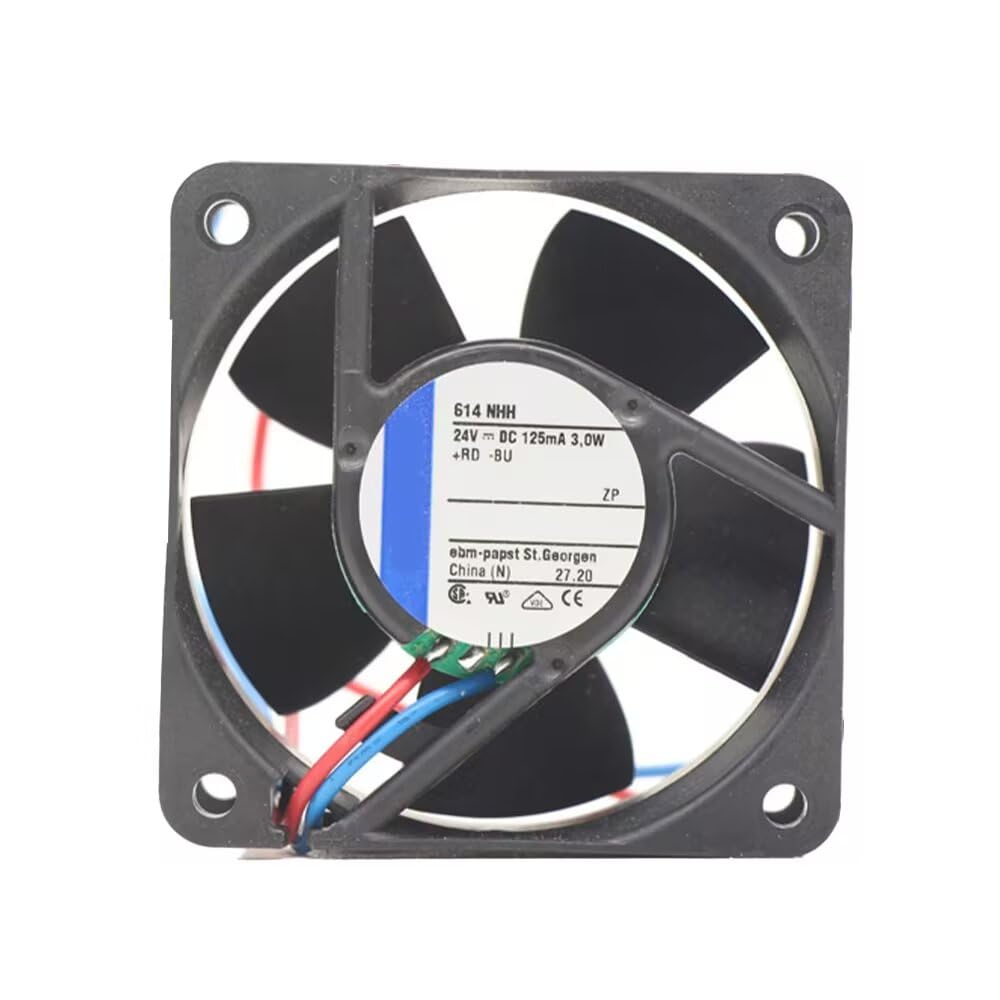

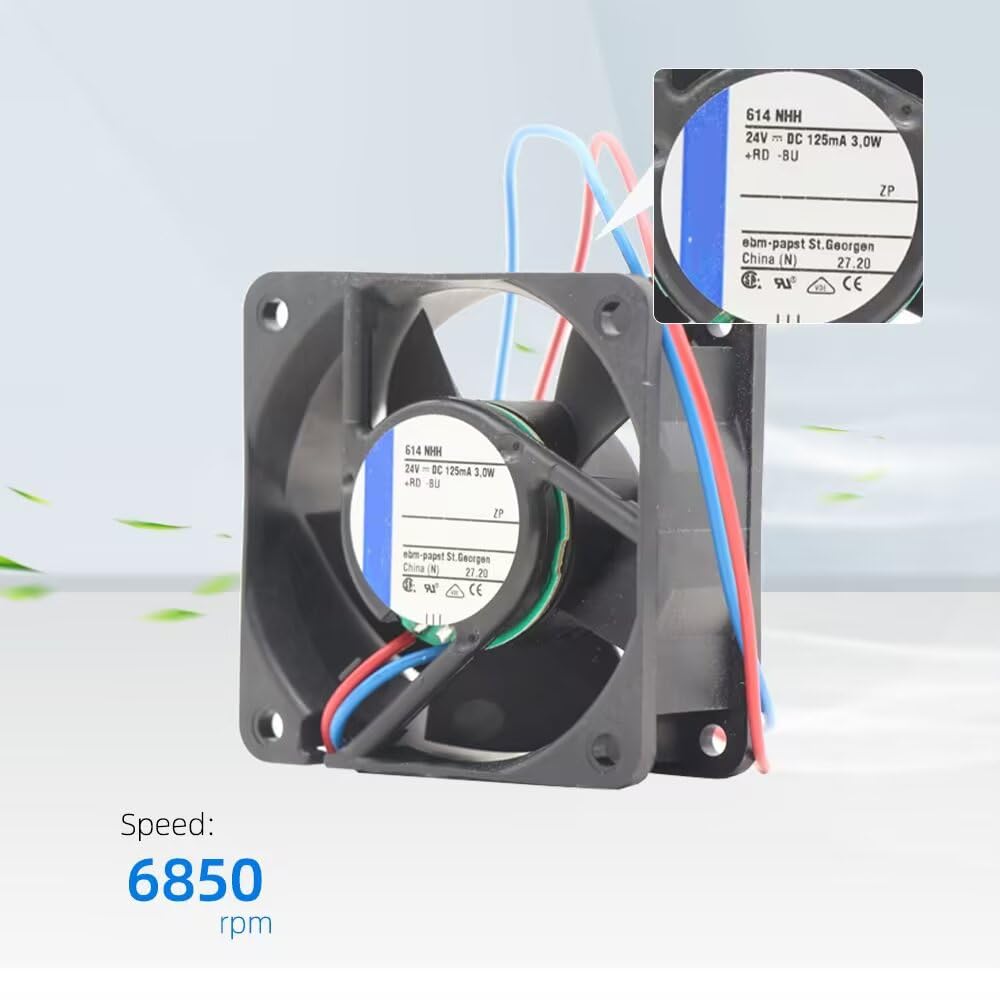

Type ：614 NHH（DC axial compact fan）
Nominal voltage ：24 VDC
Nominal voltage range ：18~26 VDC
Power consumption ：2.9 W
Speed ：6850 RPM

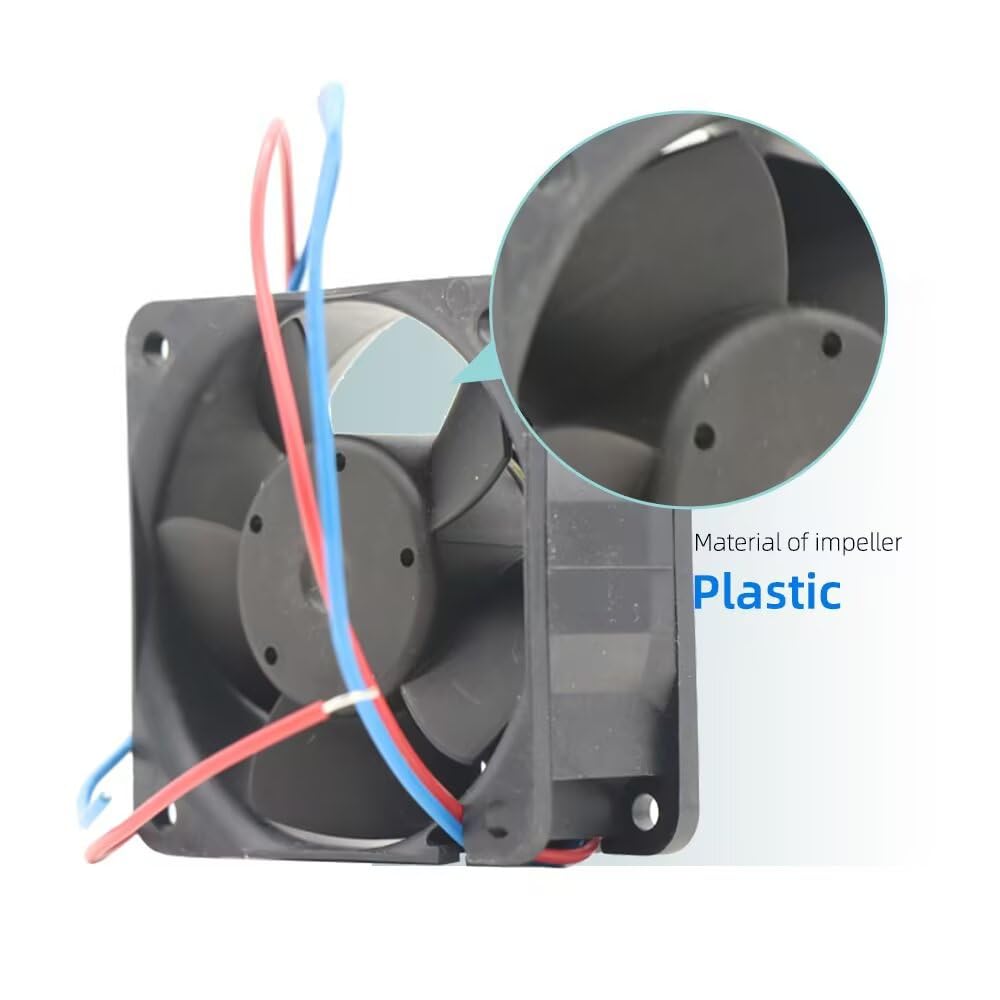

Impeller material ：Glass-fiber reinforced PA plastic
Housing material ：Glass-fiber reinforced PBT plastic
Airflow direction ：Exhaust over struts
Direction of rotation ：Clockwise viewed toward rotor
Air flow ：56 m³/h
Sound Data ：Sound power level=5.7 B; Sound pressure level=41 dB(A)
Bearing system ：Ball bearing

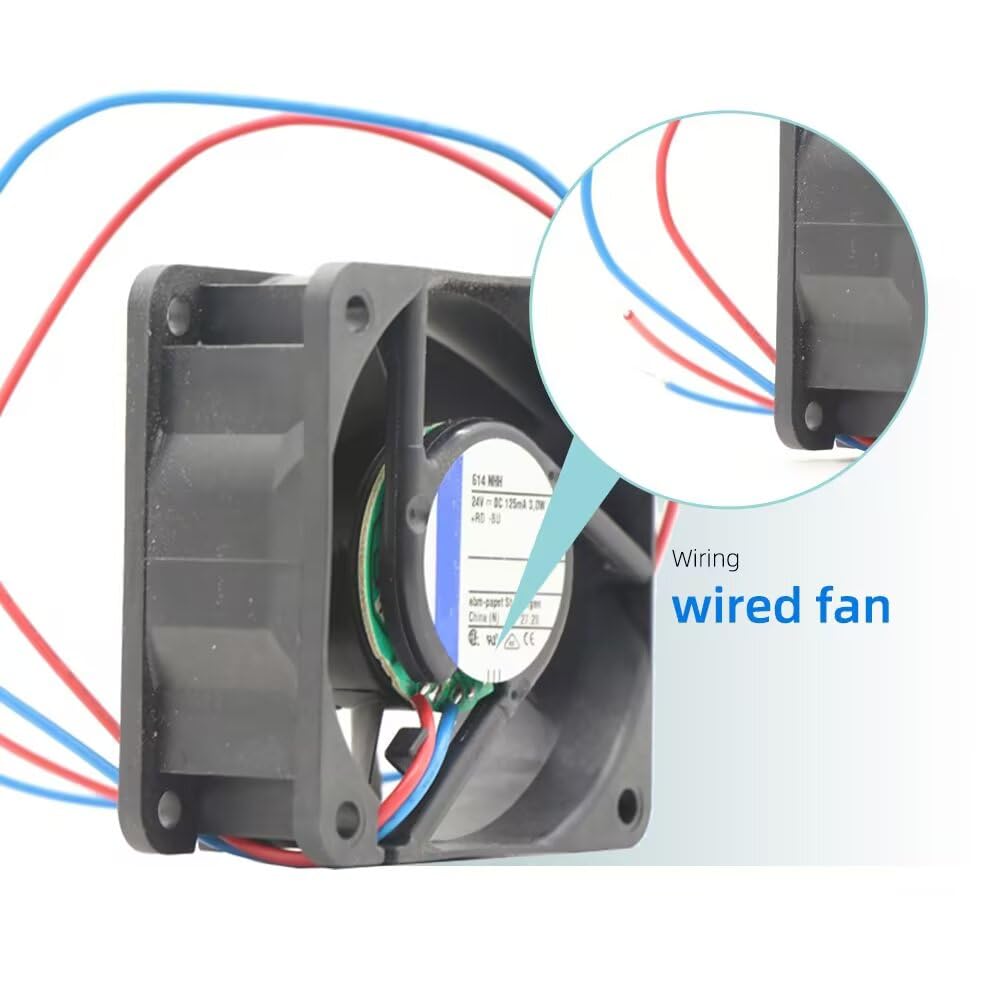

Cable details ：Leads AWG 22 TR 64 stripped and tin-plated
Motor protection ：Protection against reverse polarity and blocked rotor
Locked-rotor protection ：With electronic locked-rotor and overload protection
Operating temperature ：-20℃ ~ 70℃
Service life ：L10 at 40℃=60000 h; L10 at maximum temperature=30000 h

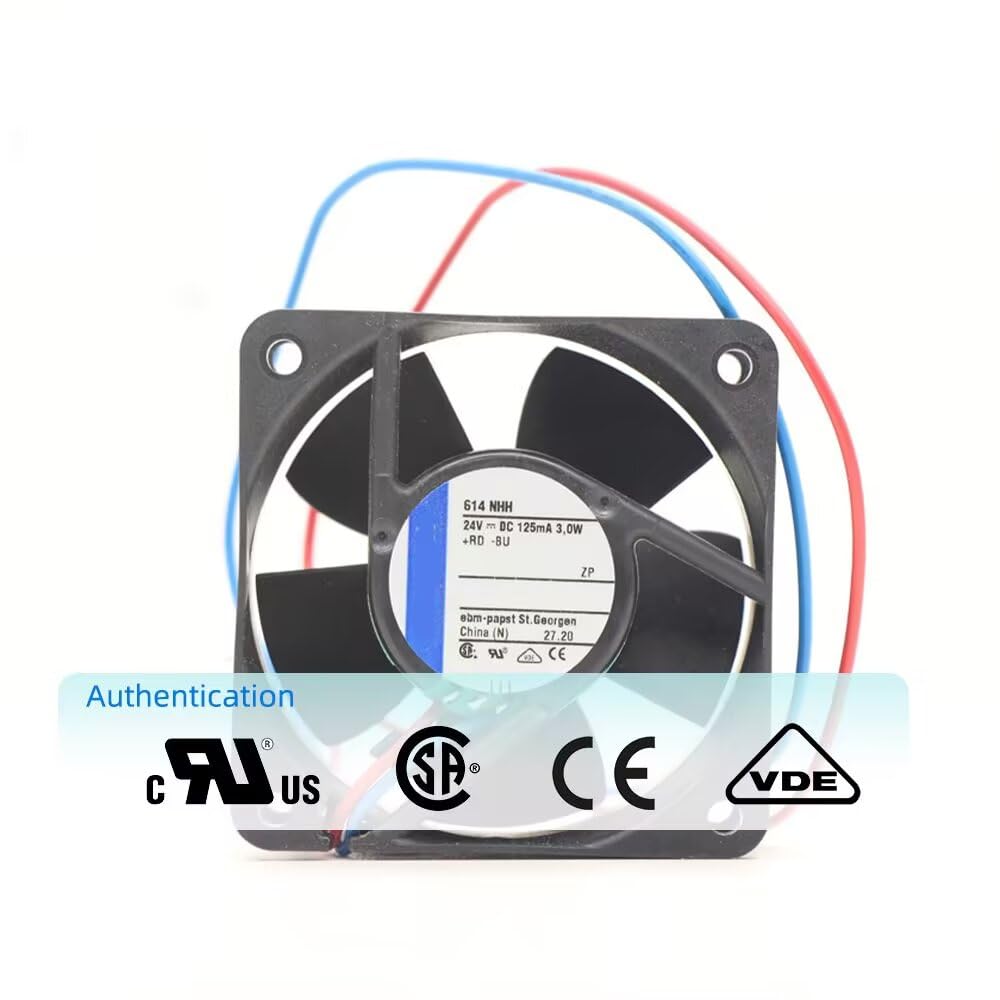

Approval ：VDE、CSA、UL、CE
Optional custom designs ：Speed signal、Go/No-go alarm、Moisture protection、Degree of protection IP54 / IP68
Weight ：0.066 kg

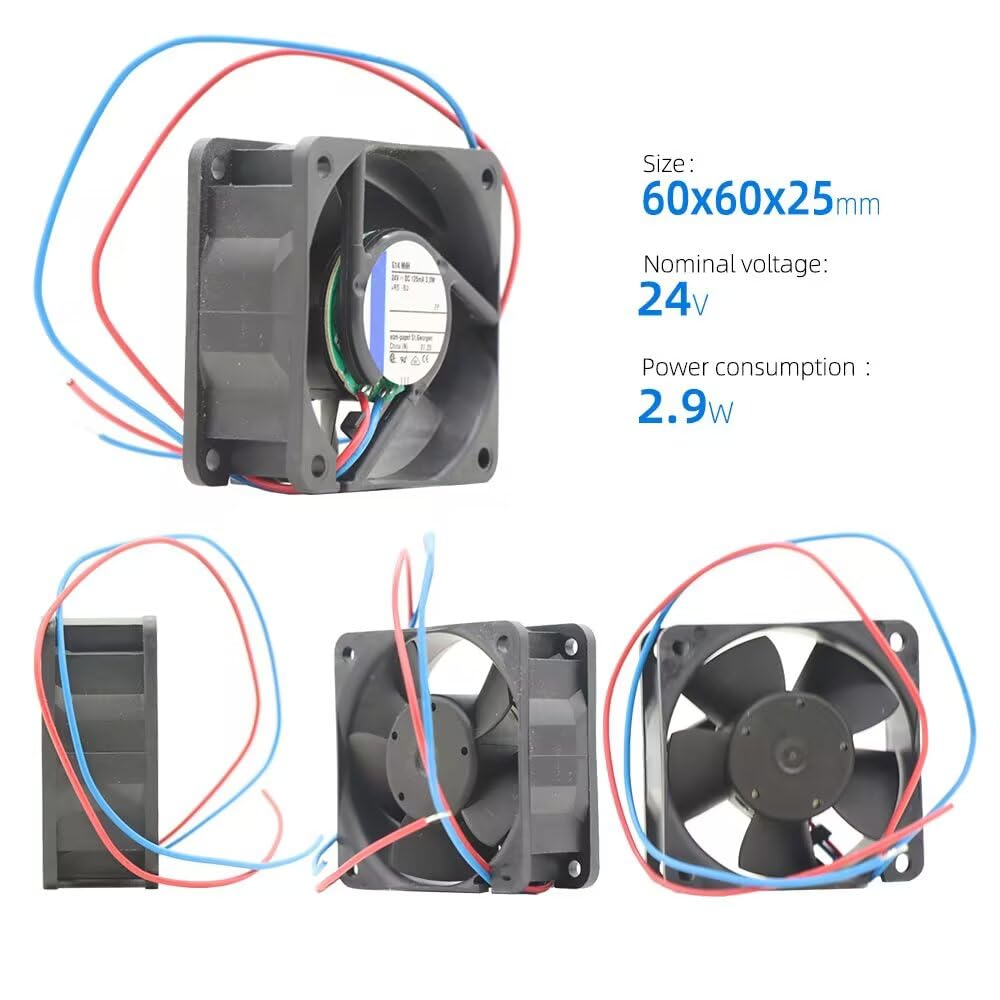

Dimensions ：60mm × 60mm × 25mm
