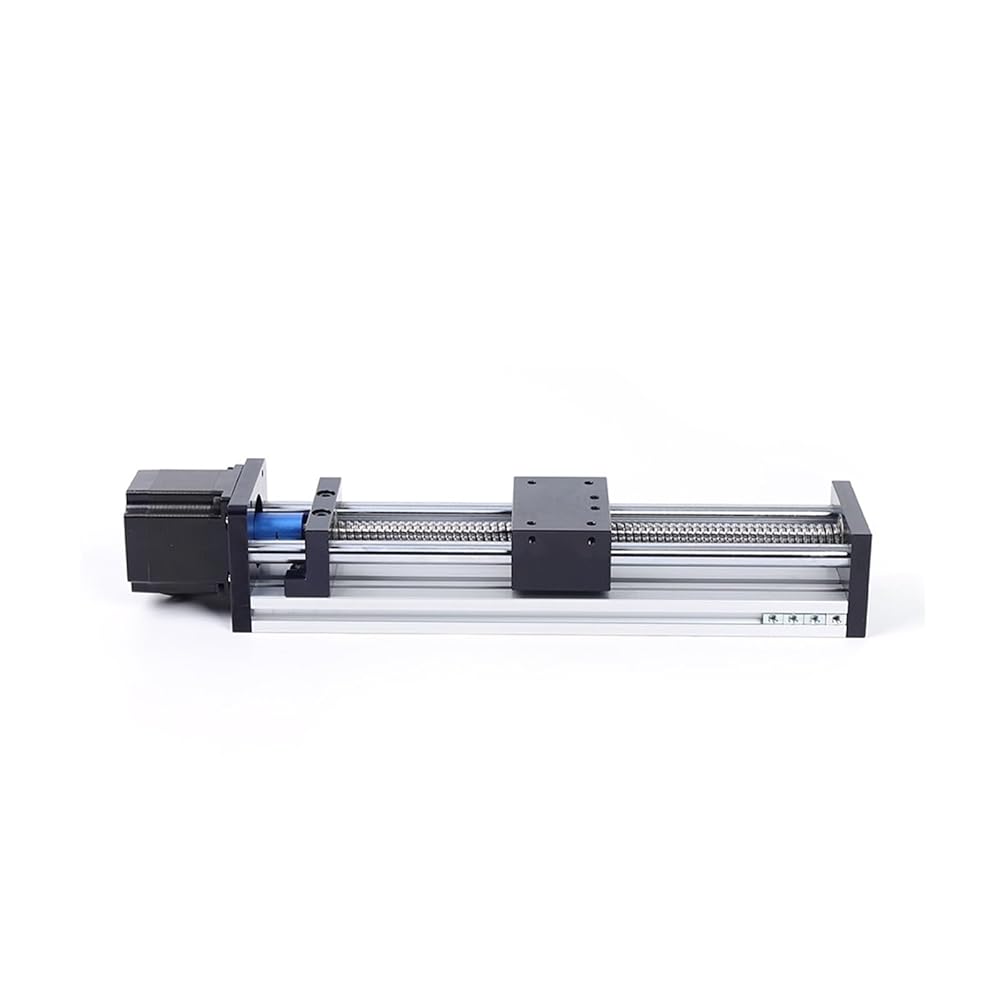

Effective stroke: 100mm /200mm/300mm
Accuracy: 0.0m
Ball screw diameter: 12mm; lead: 4mm
Speed: 40-100 mm/s
Horizontal load: 30kg-maximum 50kg
Vertical load-bearing capacity: 15kg
Nema 23 stepper motor;
Diameter 57*56mm
Voltage: 24V
Current: 3A
Torque: 0.9NM
100 mm
200 mm
300 mm
40-100 mm/s
40-100 mm/s
40-100 mm/s
24 volts
24 volts
24 volts
30 kg - maximum 50 kg
30 kg - maximum 50 kg
30 kg - maximum 50 kg
Main parameters
Effective stroke: 100mm /200mm/300mm
Accuracy: 0.0m
Ball screw diameter: 12mm; lead: 4mm
Speed: 40-100 mm/s
Horizontal load: 30kg-maximum 50kg
Vertical load-bearing capacity: 15kg
Nema 23 stepper motor;
Diameter 57*56mm
Voltage: 24V
Current: 3A
Torque: 0.9NM
