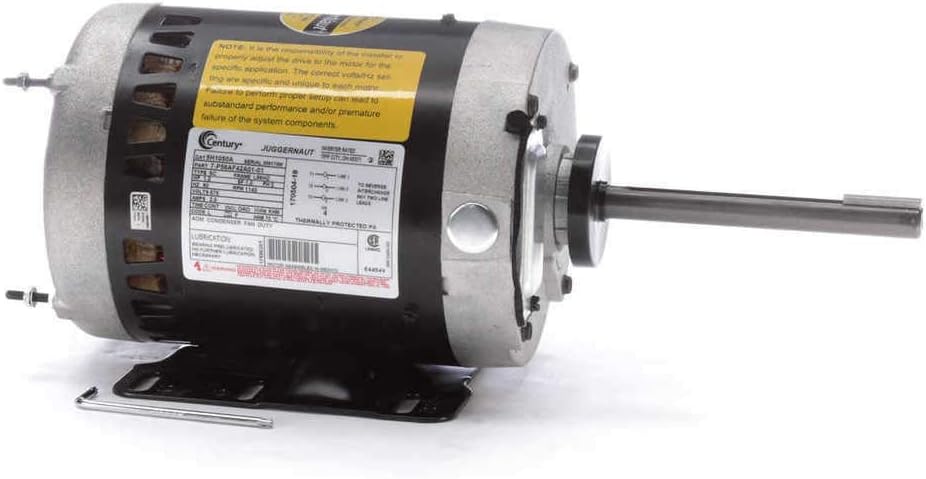

Condenser Fan Motor, 1 HP, 1140 RPM, 60 Hz in Saudi Arabia

Condenser Fan Motor, 1 HP, 1140 RPM, 60 Hz

SAR 2,474
Brand
Century
Category
Electric Motors
Weight
0.8 kg
– 1 +

Special Features

  • <b>Price For:</b> Each <b>Motor Design</b>: 3-Phase <b>No. of Speeds</b>: 1 <b>Motor Service Factor</b>: 1.00 <b>Motor Enclosure Design</b>: Open Air-Over <b>Item</b>: Condenser Fan Motor <b>Duty</b>: Continuous <b>Hz</b>: 60 <b>Motor Thermal Protection</b>: Auto <b>Phase</b>: 3 <b>Motor Application</b>: HVAC/R <b>Motor Bearings</b>: Ball <b>Motor Shaft Rotation</b>: CW/CCW <b>Motor Sub Application</b>: Condenser Fan
  • <b>Features</b>: Inverter Duty, Removable Rigid Base, Voltage Change Module, Large Water Slinger, Positioning Lugs for Easy Belly Band Mounting, Quick Connect Design <b>Standards</b>: UL Recognized (E44549), CSA Certified (LR4642) <b>Voltage Compatibility</b>: 208, 230, 240, 460, 208-220/440, 208-230, 208-230/460, 208-240, 220/460, 220-230/460, 230/460 <b>Shaft Dia.</b>: 5/8" <b>Bolt Circle Dia.</b>: 5-7/8" <b>Body Dia.</b>: 6-1/2" <b>Application</b>: Condenser Fan Motor <b>Frame</b>: 56HZ
  • <b>Voltage</b>: 208-230/460 <b>Ins. Class</b>: F <b>Shaft Length</b>: 6-1/16" <b>Motor Shaft Design</b>: Keyed with Single Flat <b>Overall Length</b>: 16-9/16" <b>Motor Mounting Position</b>: Horizontal or Vertical Shaft Up <b>Motor Mounting Type</b>: Rigid Base <b>Nameplate RPM</b>: 1140 <b>Mounting Stud Pattern</b>: 4-1/8" x 4-1/8" <b>Max. Ambient Temp.</b>: 70 Degrees C <b>HP</b>: 1 <b>Stud Size</b>: 10-32 <b>Length Less Shaft</b>: 10-1/2" <b>Full Load Amps</b>: 4.4-4.0/2.2
  • <b>Stud Quantity</b>: 4 <b>Country of Origin (subject to change)</b>: Mexico

Description

'Condenser Fan Motor,Motor Design 3-Phase,Motor Enclosure Design Open Air-Over,1 HP,RPM Range 1101-1200,Nameplate RPM 1140,Voltage 208-230/460,56HZ Frame,Number of Speeds 1,Overall Length 16-9/16 In.,Shaft Length 6-1/16 In.,Shaft Orientation Horizontal or Up,Features Inverter Duty, Removable Rigid Base, Voltage Change Module, Large Water Slinger, Positioning Lugs for Easy Belly Band Mounting, Quick Connect Design,Motor Shaft Rotation CW/CCW,Full Load Amps 4.4-4.0/2.2'
