Globe Valves
Specification
Medium: Cold water, Hot water or 50% Glycol solution
Body material: Brass

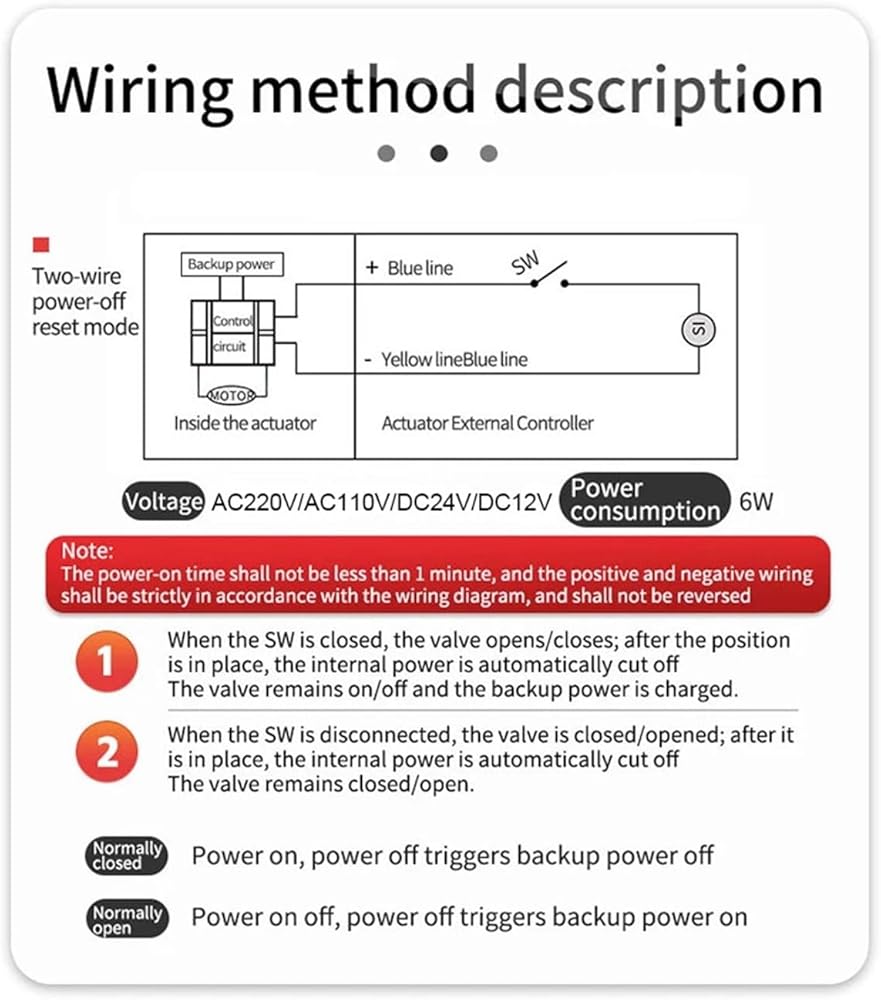

Wiring mode: 2-wire, power-off reset
Working form: Normally Close/Normally Open
Driving voltage: 220VAC, 110VAC, 24VAC, 24VDC, 12VDC
Power consumption: 6 W (only when the valve is opened and closed)
Applicable medium temperature: 0-90
Action time: 5-15 S
Nominal Pressure: 1.6 Mpa
Lead length: 30 CM
Notice:
1. "AC110-220V" marked on the motorized ball valve can be connected to 110V and 220V voltage, "DC12V-24V" can be connected to 12V and 24V voltage
2. The more you order, the more offers, please contact us
3. Package list: Valve*1
==========
NC or NO : Normally Closed
Actuator Mode : With Manual And Instruction
Structure : Ball

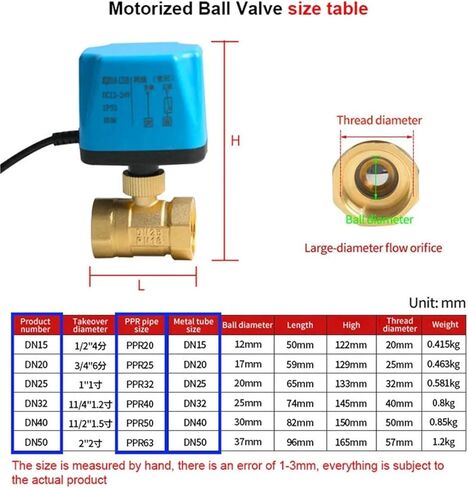

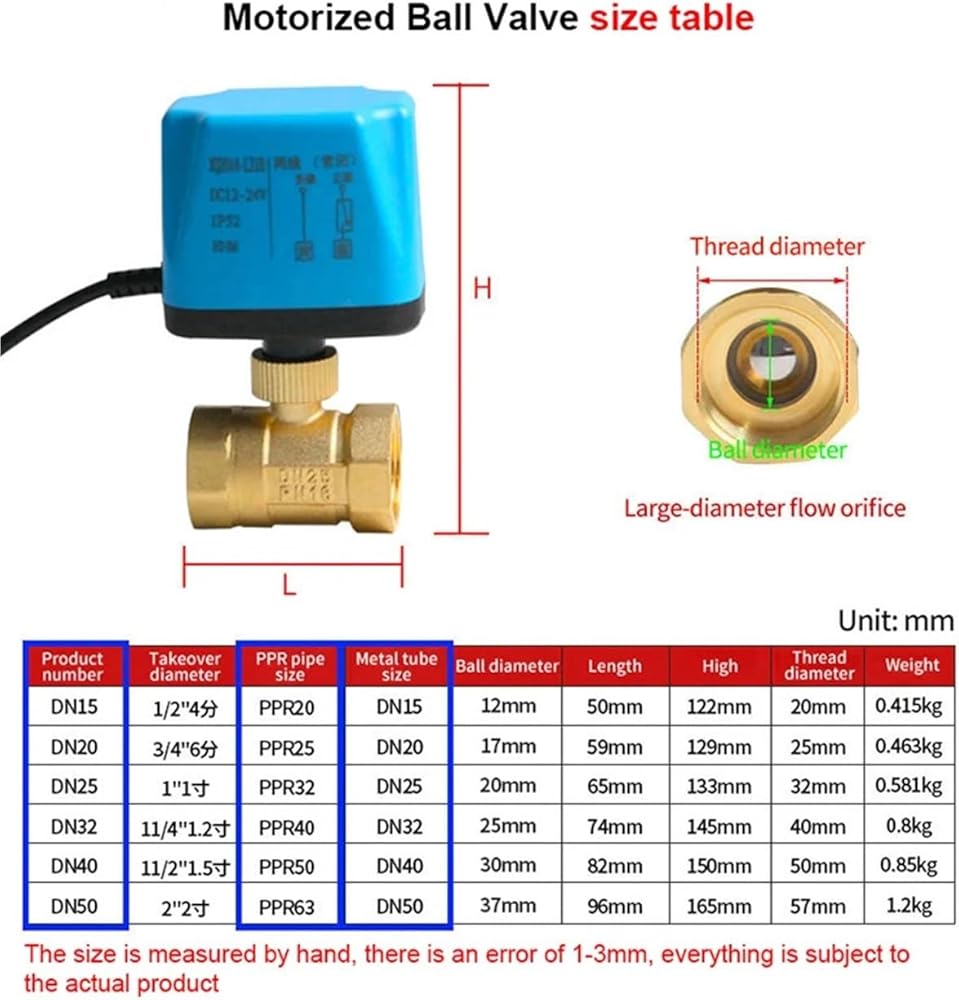

Port Size : DN15(1/2"), DN20(3/4"), DN25(1"), DN32(1-1/4"), DN40(1-1/2"), DN50(2")
Media : Water
Material : Brass
Temperature of Media : Normal Temperature
Standard or Nonstandard : Standard
Medium : Cold water, Hot water or 50% Glycol solution
Body material : Brass
Wiring mode : 2-Wire Power-off reset
Driving voltage : 220VAC,110VAC, 24VAC, 24VDC, 12VDC
Applicable medium temperature : 0-90
Power consumption : 6 W (only when the valve is opened and closed)
Action time : 5-15 S
Nominal Pressure : 1.6 Mpa
Lead length : 30 CM
