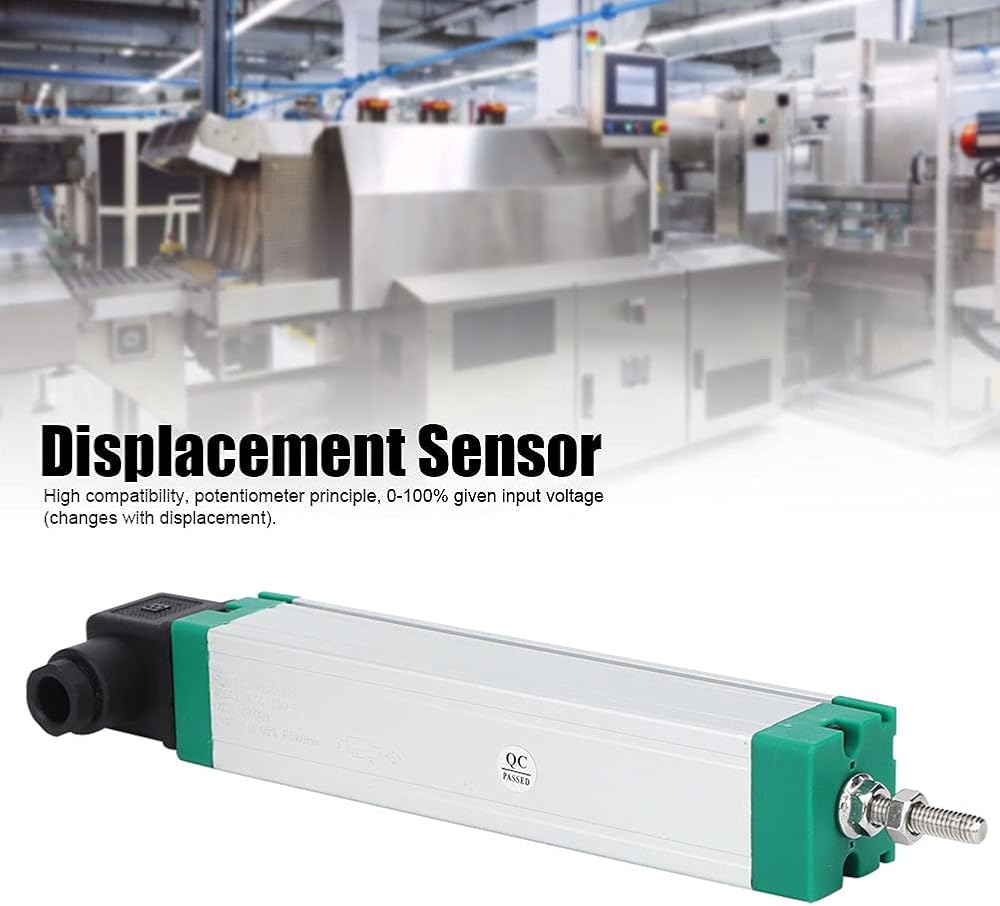

linear position Component & Technology: 【High Displacement Sensor】 adopts a potentiometer principle and features a 0-100% input voltage range that changes with displacement. The innovative plug type design ensures convenience and practicality, providing smooth operation without noise output.
linear position Component & Technology: 【High Displacement Sensor】 adopts a potentiometer principle and features a 0-100% input voltage range that changes with displacement. The innovative plug type design ensures convenience and practicality, providing smooth operation without noise output. Core & Results: 【Versatile Application】 designed for diverse uses, this displacement sensor guarantees high-definition sound quality and reduced signal transmission loss.
linear position Component & Technology: 【High Displacement Sensor】 adopts a potentiometer principle and features a 0-100% input voltage range that changes with displacement. The innovative plug type design ensures convenience and practicality, providing smooth operation without noise output. Core & Results: 【Versatile Application】 designed for diverse uses, this displacement sensor guarantees high-definition sound quality and reduced signal transmission loss.
linear position Component & Technology: 【High Displacement Sensor】 adopts a potentiometer principle and features a 0-100% input voltage range that changes with displacement. The innovative plug type design ensures convenience and practicality, providing smooth operation without noise output. Core & Results: 【Versatile Application】 designed for diverse uses, this displacement sensor guarantees high-definition sound quality and reduced signal transmission loss.
linear position Component & Technology: 【High Displacement Sensor】 adopts a potentiometer principle and features a 0-100% input voltage range that changes with displacement. The innovative plug type design ensures convenience and practicality, providing smooth operation without noise output. Core & Results: 【Versatile Application】 designed for diverse uses, this displacement sensor guarantees high-definition sound quality and reduced signal transmission loss.
Description

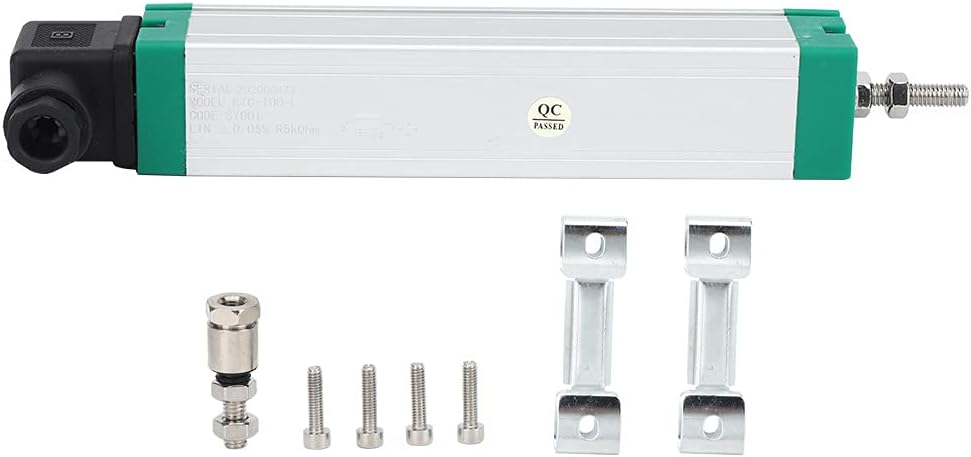

Specifications: Item Type: Displacement Sensor Optional : -100, -300 Material: Stainless steel Electrical Stroke: Range + 3mm Resolution / Resolution: Infinite uninterrupted analysis Repeatability: 0.01mm Normal Working Current Of Sliding Brush: ≤10μA The Maximum Current Of The Sliding Brush When Causing The Fault: 10mA Maximum Allowable Working Voltage: 42V Effective Temperature Coefficient Ratio Of Output Voltage To Input Voltage: Usually 5ppm / K Insulation Resistance (500VDC, 50Hz): ≥10MΩ Insulation Strength (500VAC, 50Hz): ≤100μA Cover Length (A): Range + 78.5mm Mechanical Stroke (B): Range + 8mm Maximum Load Of Pull Rod: 50KG : Horizontal direction 100 × 10 ^ 6 times Maximum Operating Speed: 10m / S, maximum operating acceleration 10m / s² Protection Level: Highest IP67 (DIN40500 / IEC529) Voltage Parameter How to Use Package List 1 x Displacement Sensor 1 x Plug 3 x Accessories 4 x Screw
