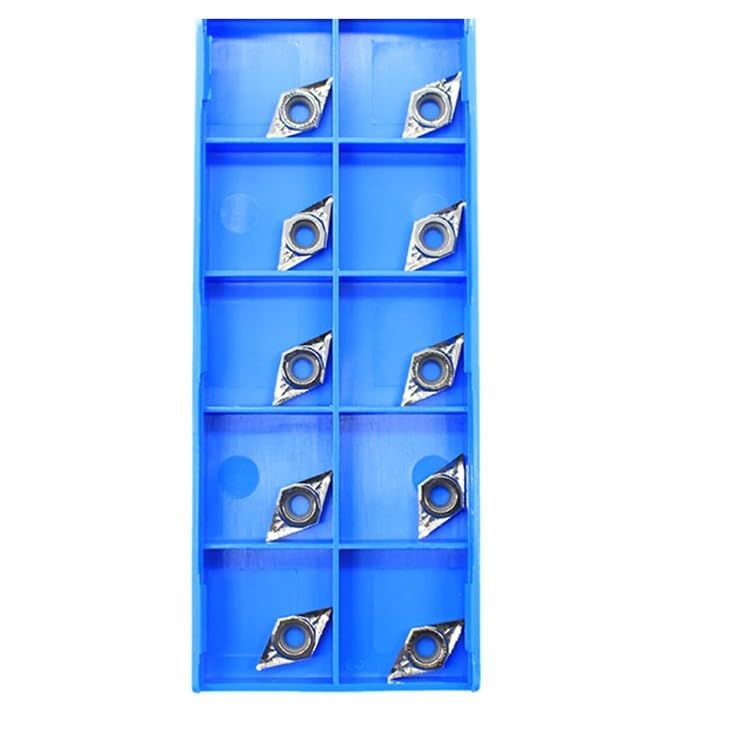

These DCGT07 series inserts are designed for precision turning and finishing on aluminum and other soft metals. The DCGT geometry provides a 55° diamond insert with a positive rake angle and polished edges, ideal for fine cutting with low cutting forces.

Technical Parameters:

Models: DCGT070202 (0.2 mm radius), DCGT070204 (0.4 mm radius), DCGT070208 (0.8 mm radius)

Shape: 55° rhombic (D‑type), positive rake

Approx. inscribed circle: 7 mm (0.276 inch)

Approx. thickness: 2 mm (0.079 inch)

Nose radii: 0.2 mm (0.008 inch), 0.4 mm (0.016 inch), 0.8 mm (0.031 inch)

Grade: AK H01 – uncoated fine‑grain carbide for aluminum and non‑ferrous materials

Cutting edges: Single‑sided (one edge per insert)

Quantity: 10 inserts per box

Compatible holders: Fits DCGT‑style tool holders designed for 55° positive inserts
